1. Introduction
This instruction manual provides essential information for the safe and effective use of your Scanreco Original Ni-MH Battery, model 592. This rechargeable battery features a 7.2V voltage and a 2000mAh capacity, designed for use with compatible Scanreco radio remote control systems. Please read this manual thoroughly before initial use and retain it for future reference.
2. Safety Information
Observe the following safety precautions to prevent damage to the battery or injury to yourself:
- Do not disassemble, open, or shred the battery pack.
- Do not expose the battery to heat or fire. Avoid storage in direct sunlight.
- Do not short-circuit the battery. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
- Do not remove the battery from its original packaging until required for use.
- Do not subject battery packs to mechanical shock.
- In the event of a battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
- Do not use any charger other than that specifically provided for use with the equipment.
- Observe the plus (+) and minus (-) marks on the battery and equipment and ensure correct use.
- Keep the battery clean and dry.
- Do not leave a battery on prolonged charge when not in use.
- Dispose of batteries properly at designated collection points. The crossed-out wheeled bin symbol indicates that the battery should not be disposed of with general household waste.
3. Product Overview
The Scanreco Original Ni-MH Battery (Model 592) is a robust and reliable power source for your remote control applications. Its design ensures compatibility and optimal performance with Scanreco systems.

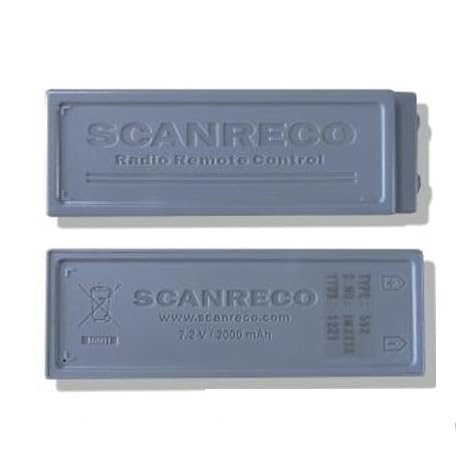

Image showing the front and back of the Scanreco Original Ni-MH Battery. The front displays 'SCANRECO Radio Remote Control', while the back shows 'SCANRECO www.scanreco.com 7.2V 2000mAh' along with a crossed-out waste bin symbol indicating proper disposal.
4. Setup
Follow these steps for initial setup and installation:
- Initial Charge: Before first use, fully charge the battery using a compatible Scanreco charger. Refer to your charger's manual for specific charging instructions.
- Installation: Carefully insert the battery into the designated battery compartment of your Scanreco radio remote control unit, ensuring correct polarity (+ and - terminals).
- Secure: Close the battery compartment securely.
5. Operating Instructions
Once installed and charged, the battery powers your Scanreco remote control system. Monitor the power indicator on your remote control unit to determine the battery's charge level. Recharge the battery when the indicator shows low power to ensure uninterrupted operation.
6. Maintenance
Proper maintenance extends the life and performance of your battery:
- Regular Charging: Recharge the battery regularly, even if not in constant use, to maintain its capacity. Avoid deep discharge.
- Storage: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the battery to approximately 50% capacity.
- Cleaning: Keep the battery terminals clean. Use a dry, soft cloth to wipe away any dust or debris.
- Inspection: Periodically inspect the battery for any signs of damage, swelling, or leakage. Discontinue use immediately if any issues are observed.
7. Troubleshooting
If you encounter issues with your battery, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Incorrectly inserted, faulty charger, dirty terminals, battery fault. | Ensure correct insertion. Check charger functionality. Clean battery terminals. If issues persist, the battery or charger may need replacement. |
| Short operating time | Battery not fully charged, battery nearing end of life, extreme operating temperatures. | Ensure full charge. If battery is old, consider replacement. Operate within recommended temperature ranges. |
| Remote control not powering on | Battery not installed, battery discharged, battery fault, remote control fault. | Verify battery installation. Charge battery. Test with a known good battery. If problem persists, consult your remote control manual or Scanreco support. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Scanreco |
| Model Number | 592 |
| Battery Cell Composition | NiMH (Nickel-Metal Hydride) |
| Voltage | 7.2 Volts |
| Capacity | 2000 mAh |
| Reusability | Rechargeable |
| Recommended Use | Radio Remote Control Systems |
| Number of Units | 1 Count |
| ASIN | B0CJLSQG7J |
9. Warranty and Support
Specific warranty information for this Scanreco battery is not provided within this manual. For details regarding warranty coverage, technical support, or service, please refer to the documentation included with your original purchase or contact Scanreco directly through their official website or authorized distributors.
For further assistance, you may visit the Scanreco website: www.scanreco.com
