Bennett Read KMX104 Concerto 25 Kitchen Machine Stand Mixer User Manual

Introduction

Thank you for choosing the Bennett Read KMX104 Concerto 25 Kitchen Machine. This versatile appliance is designed to assist with a wide range of kitchen tasks, including mixing, kneading, blending, chopping, and juicing. To ensure safe and optimal performance, please read this manual thoroughly before first use and retain it for future reference.

Image: The Concerto 25 logo, highlighting its 25-in-1 functionality.

Important Safety Instructions

• Always ensure the appliance is unplugged from the power outlet before assembling, disassembling, or cleaning.
• Do not immerse the motor unit in water or any other liquid. Clean with a damp cloth only.
• Keep hands, hair, clothing, as well as spatulas and other utensils away from moving parts during operation to prevent injury.
• Never operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• This appliance is for household use only. Do not use outdoors.
• Supervise children closely when the appliance is in use.
• Ensure all attachments are securely locked in place before operating.
• Do not overload the appliance. Refer to the capacity guidelines for specific ingredients.

Product Overview and Components

The Bennett Read Concerto 25 Kitchen Machine comes with various components designed for different functions. Familiarize yourself with each part before use.

Image: The Bennett Read KMX104 Concerto 25 Kitchen Machine displayed with its main unit, mixing bowl, and a wide array of attachments including a blender, food processor, juicer, meat grinder, and various mixing tools.

Main Unit:

• Motor Unit: Houses the powerful 1200W motor and control dial.
• Tilt-Head: Allows easy access to the mixing bowl and attachments.
• Speed Control Dial: Variable stepless speeds for precise control.
• Attachment Ports: Dedicated ports for various accessories (mixer, blender, food processor, etc.).

Standard Mixing Attachments:

• 8-Litre Stainless Steel Mixing Bowl: Large capacity for various recipes.
• Dough Hook: For kneading heavy doughs (e.g., bread, pizza).
• Beater: For medium to heavy mixtures (e.g., cake batter, cookie dough).
• Whisk: For light mixtures (e.g., egg whites, cream).
• Splashguard: Prevents splattering during mixing.

Additional Attachments (may vary by package):

• Blender Jug: For smoothies, soups, and sauces.
• Food Processor Bowl with Blades: For chopping, slicing, and shredding.
• Citrus Juicer: For extracting juice from citrus fruits.
• Meat Grinder: For grinding various meats.
• Grinder/Mill: For grinding coffee beans, spices, etc.

Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for storage or future transport.
2. Initial Cleaning: Before first use, wash all detachable parts (mixing bowl, attachments, blender jug, food processor bowl, etc.) in warm soapy water, rinse thoroughly, and dry completely. Wipe the motor unit with a damp cloth.
3. Placement: Place the main unit on a stable, flat, and dry surface. Ensure there is adequate space around the appliance for ventilation and operation.
4. Attaching the Mixing Bowl: Place the 8-litre stainless steel mixing bowl onto the base of the main unit. Turn it clockwise until it locks securely into place.
5. Attaching Mixing Tools:
   • Ensure the tilt-head is in the raised position.
   • Select the desired mixing tool (dough hook, beater, or whisk).
   • Insert the top of the attachment into the shaft, pushing upwards and then rotating slightly until it clicks into place.
   • Lower the tilt-head until it locks securely.
6. Attaching Splashguard: If using, slide the splashguard onto the mixing bowl after the mixing tool is attached and the head is lowered.
7. Power Connection: Plug the power cord into a suitable electrical outlet.

Operating Instructions

The Concerto 25 offers versatile functionality. Always ensure the appliance is stable and correctly assembled before operation.

Using the Stand Mixer Function:

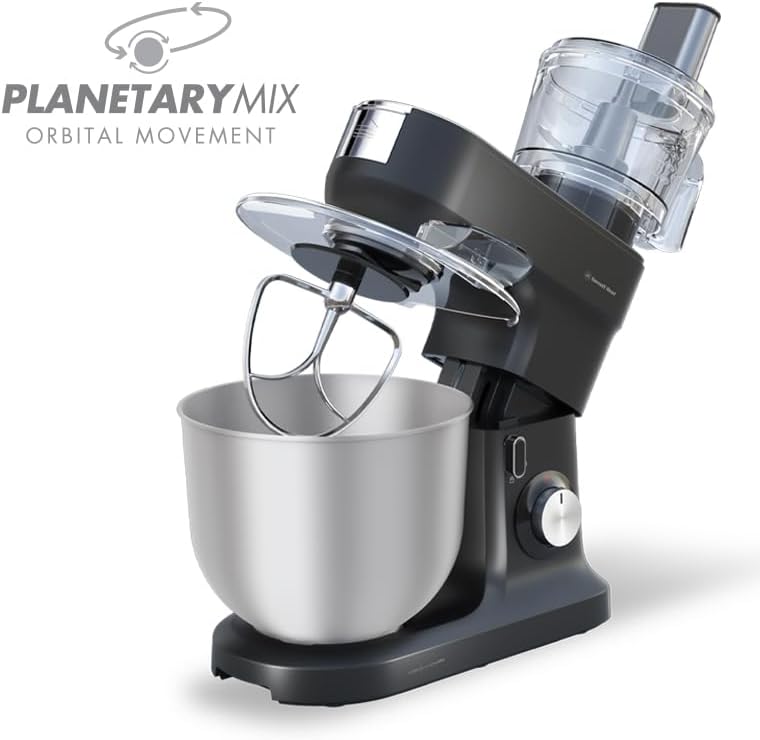

Image: Diagram illustrating the planetary mixing action, where the mixing tool rotates on its own axis while orbiting the bowl.

1. Ensure the mixing bowl and desired attachment (dough hook, beater, or whisk) are securely in place.
2. Add your ingredients to the mixing bowl. Refer to recipe guidelines for quantities. The maximum capacity is 2.5 kg of cake batter or 2.4 kg of bread dough.
3. Lower the tilt-head until it locks.
4. Turn the speed control dial to the desired setting. Start with a low speed and gradually increase as needed. The planetary mixing action ensures thorough incorporation of ingredients.
5. When finished, turn the speed dial to "0" (off) and unplug the appliance.
6. Raise the tilt-head and remove the attachment and mixing bowl.

Using the Blender Function:

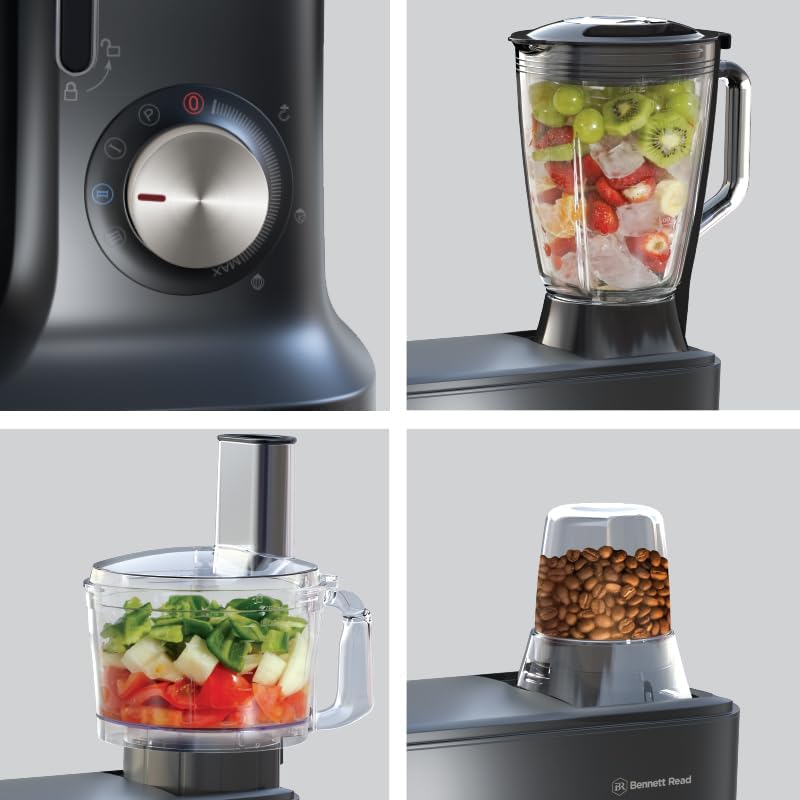

Image: A composite image showing close-ups of the speed control dial, the blender jug filled with fruit, the food processor bowl with chopped vegetables, and the grinder attachment with coffee beans.

1. Ensure the main unit is unplugged.
2. Assemble the blender jug by ensuring the blade assembly is securely attached to the bottom of the jug.
3. Add ingredients to the blender jug. Do not exceed the maximum fill line.
4. Place the lid securely on the blender jug.
5. Place the assembled blender jug onto the designated blender port on the main unit and twist to lock.
6. Plug in the appliance and turn the speed control dial to the desired blending speed. Use the pulse function for short bursts.
7. After blending, turn the dial to "0" and unplug. Remove the blender jug.

Using the Food Processor Function:

1. Ensure the main unit is unplugged.
2. Assemble the food processor bowl with the desired blade (chopping, slicing, or shredding) and secure the lid.
3. Place the assembled food processor onto its designated port on the main unit and twist to lock.
4. Add ingredients through the feed chute. Use the pusher to guide ingredients.
5. Plug in the appliance and turn the speed control dial to the desired processing speed.
6. After processing, turn the dial to "0" and unplug. Remove the food processor.

Using Other Attachments (e.g., Juicer, Grinder):

Follow similar steps for other attachments. Always ensure the appliance is unplugged before attaching or detaching accessories. Refer to the specific attachment's mini-manual for detailed instructions if provided.

• Citrus Juicer: Attach to the designated port. Cut citrus fruits in half and press onto the reamer while the machine is running at a low speed.
• Meat Grinder: Assemble the grinder components (auger, blade, plate) and attach to the front port. Feed prepared meat into the hopper using the pusher.
• Grinder/Mill: Attach the mill to its designated port. Add dry ingredients like coffee beans or spices. Operate at appropriate speed for desired consistency.

Maintenance and Cleaning

Regular cleaning and maintenance will prolong the life of your Bennett Read Concerto 25 Kitchen Machine.

1. Always Unplug: Before cleaning, ensure the appliance is unplugged from the power outlet and has cooled down.
2. Motor Unit: Wipe the exterior of the motor unit with a soft, damp cloth. Do not use abrasive cleaners or immerse in water.
3. Mixing Bowl and Attachments: The stainless steel mixing bowl, dough hook, beater, whisk, splashguard, blender jug, and food processor parts should be washed in warm soapy water. Rinse thoroughly and dry immediately to prevent water spots or corrosion.
4. Blades: Handle sharp blades (blender, food processor) with extreme care during cleaning.
5. Dishwasher Safety: Check individual component instructions for dishwasher compatibility. Generally, hand washing is recommended for longevity.
6. Storage: Store the appliance and its attachments in a clean, dry place when not in use.

Troubleshooting

If you encounter issues with your appliance, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

Specifications

• Model: KMX104
• Brand: Bennett Read
• Power: 1200W
• Mixing Bowl Capacity: 8 Litres
• Functions: 25-in-1 (Mixing, Kneading, Blending, Chopping, Juicing, Grinding, etc.)
• Speed Control: Variable Stepless Speeds
• Material: Plastic, Stainless Steel
• Product Dimensions: 50.5 x 33 x 63.5 cm
• Item Weight: 12.8 kg
• Care Instructions: Hand Wash (for most detachable parts)

Warranty and Support

Your Bennett Read KMX104 Concerto 25 Kitchen Machine is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details.

For technical assistance, spare parts, or warranty claims, please contact Bennett Read customer support:

• Manufacturer: Tevo (Pty) LTD
• Contact Information: Please refer to the official Bennett Read website or your purchase documentation for the most current contact details (phone number, email, or service center locations).
• Online Resources: Visit the official Bennett Read website for product registration, FAQs, and additional support resources.

When contacting support, please have your product model number (KMX104) and proof of purchase readily available.
