UBPET C10PRO Automatic Self-Cleaning Cat Litter Box User Manual

Introduction

Thank you for choosing the UBPET C10PRO Automatic Self-Cleaning Cat Litter Box. This innovative device is designed to simplify pet care by providing an intelligent, hygienic, and safe solution for managing your cat's litter needs. With advanced features like smart camera monitoring, app control, and comprehensive safety sensors, the C10PRO ensures a clean environment for your cat and convenience for you.

Image: The UBPET C10PRO unit, showcasing its sleek design, alongside a smartphone displaying the companion app and a packet of pet odor eliminator.

Setup Guide

1. Unboxing and Component Check

Carefully remove all components from the packaging. Verify that all parts are present:

• UBPET C10PRO Main Unit
• Power Adapter
• Waste Bin Liner (pre-installed or separate)
• Deodorizer (3 pieces included)

2. Assembly

No tools are required for installation and disassembly. Ensure the unit is placed on a flat, stable surface.

3. Initial Setup and App Connection

1. Connect the power adapter to the unit and plug it into a power outlet.
2. Wait for the litter box to complete its self-test cycle.
3. Pour cat litter into the main drum, ensuring it does not exceed the warning line.
4. Download the UBPET app from your smartphone's app store.
5. Follow the in-app instructions to connect the device to your 2.4GHz Wi-Fi network.

Operating Instructions

Automatic Cleaning

The UBPET C10PRO automatically detects when your cat has used the litter box and initiates a cleaning cycle after a set delay (default or user-defined). The waste is deposited into a sealed compartment to contain odors.

Manual Cleaning

You can initiate a cleaning cycle manually via the control panel on the unit or through the UBPET app.

App Control Features

The UBPET app provides comprehensive control and monitoring capabilities:

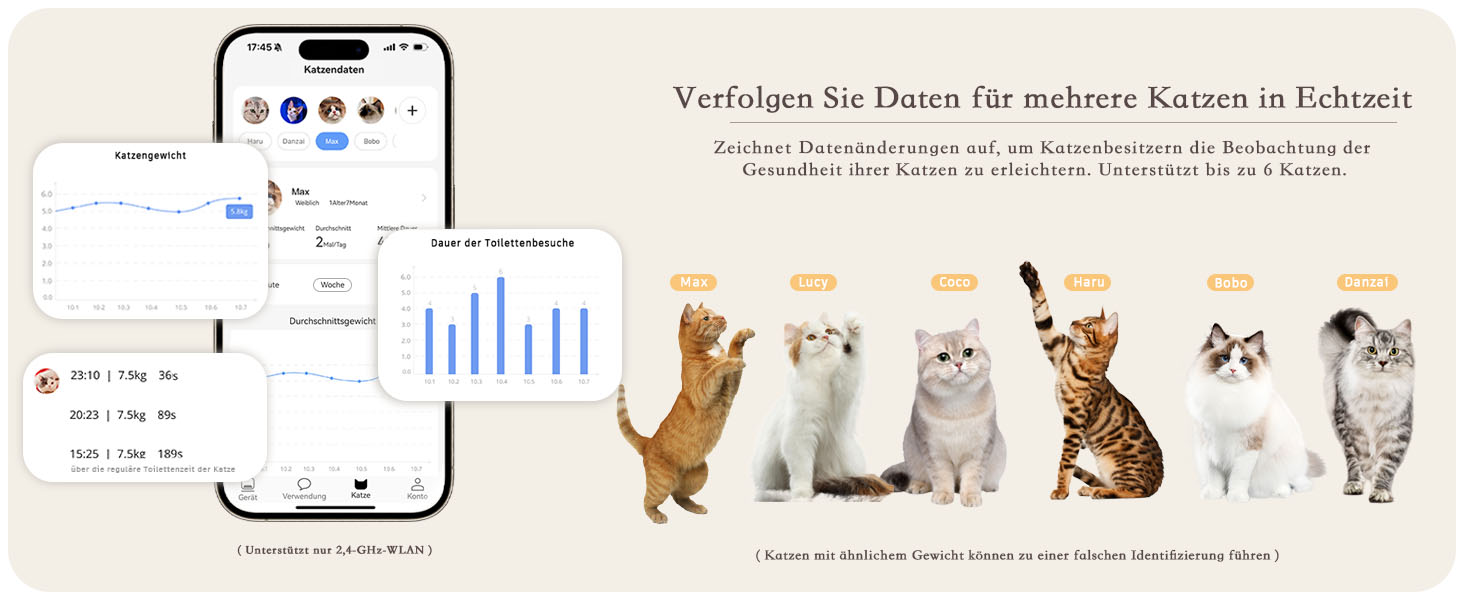

• Real-time Tracking: Monitor your cat's weight and activity in real-time. The app records toilet data, including frequency and duration of visits. Supports up to 6 cats (note: cats with similar weights may cause identification errors).
• Smart Camera Monitoring: Check the status of the litter box in real-time. A video is generated and sent to your mobile phone after your cat uses the toilet, allowing you to match information for cats with similar weights. The camera also generates and transmits video if an anomaly is detected. No additional fees are required to view videos.
• Scheduled Cleaning: Set specific times for automatic cleaning cycles.
• One-Click Emptying: Conveniently empty the litter for replacement or cleaning.

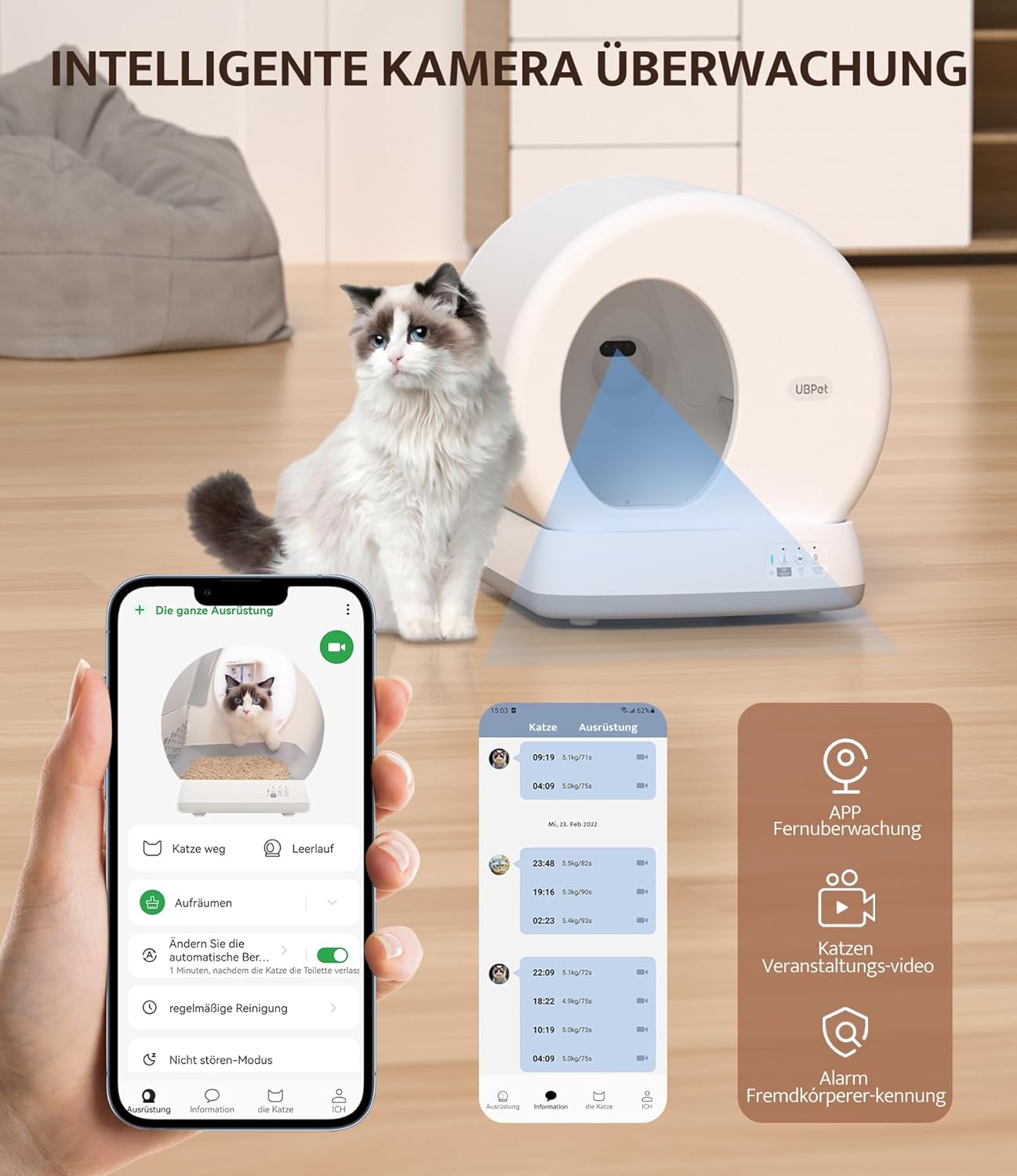

Image: A smartphone screen showing the UBPET app's real-time camera view of the litter box, with a cat nearby. This illustrates the smart camera monitoring feature.

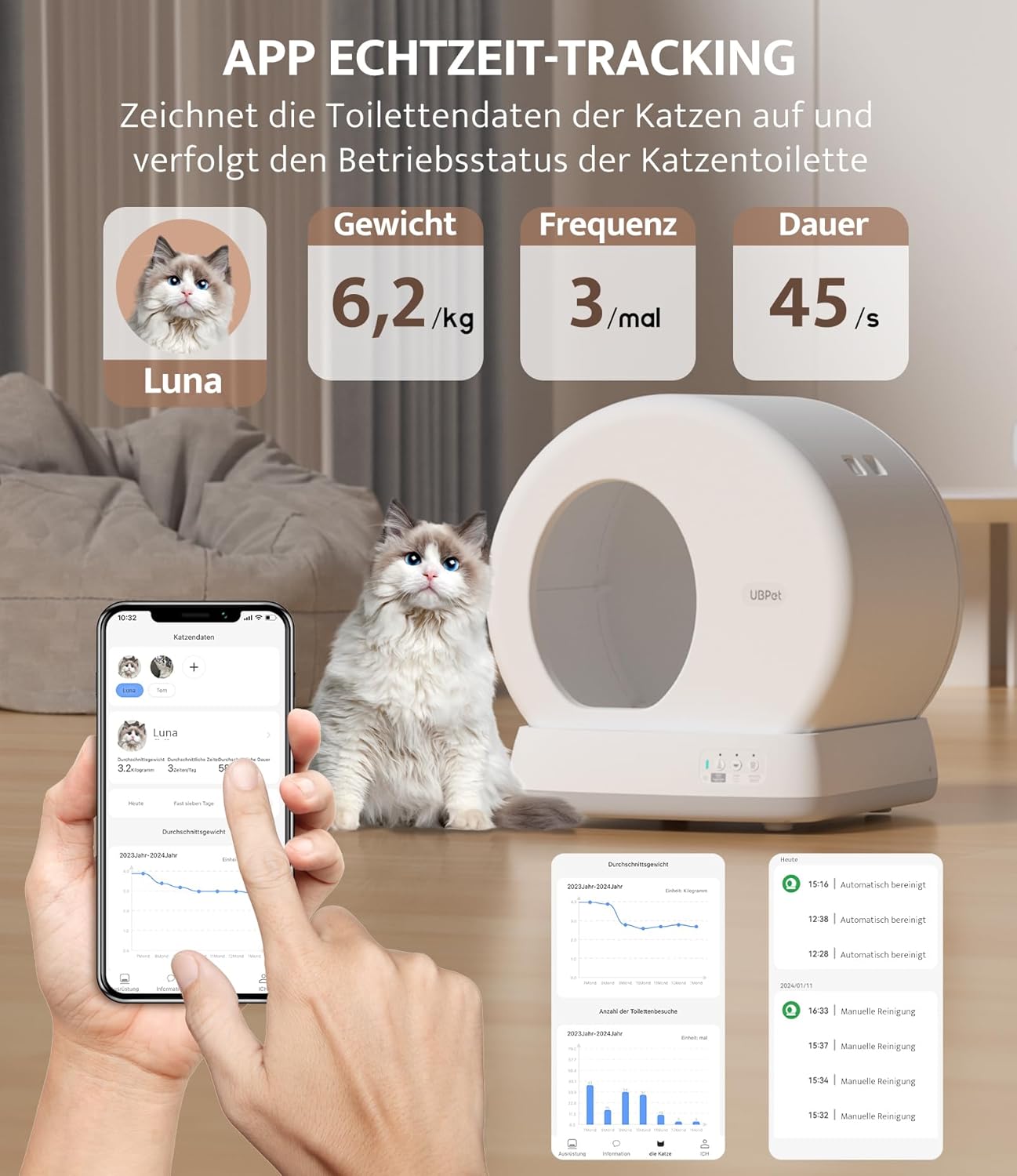

Image: A smartphone screen showing the UBPET app's real-time tracking interface, displaying cat weight, frequency of use, and duration of visits, with a cat sitting next to the litter box.

Odor Control

The C10PRO features double odor control. After cleaning, waste is transported to a sealed compartment. The deodorizer in the waste bin then breaks down ammonia, effectively eliminating odors. Three deodorizer pieces are included, with each lasting approximately 30 days, achieving a 92.7% ammonia decomposition rate.

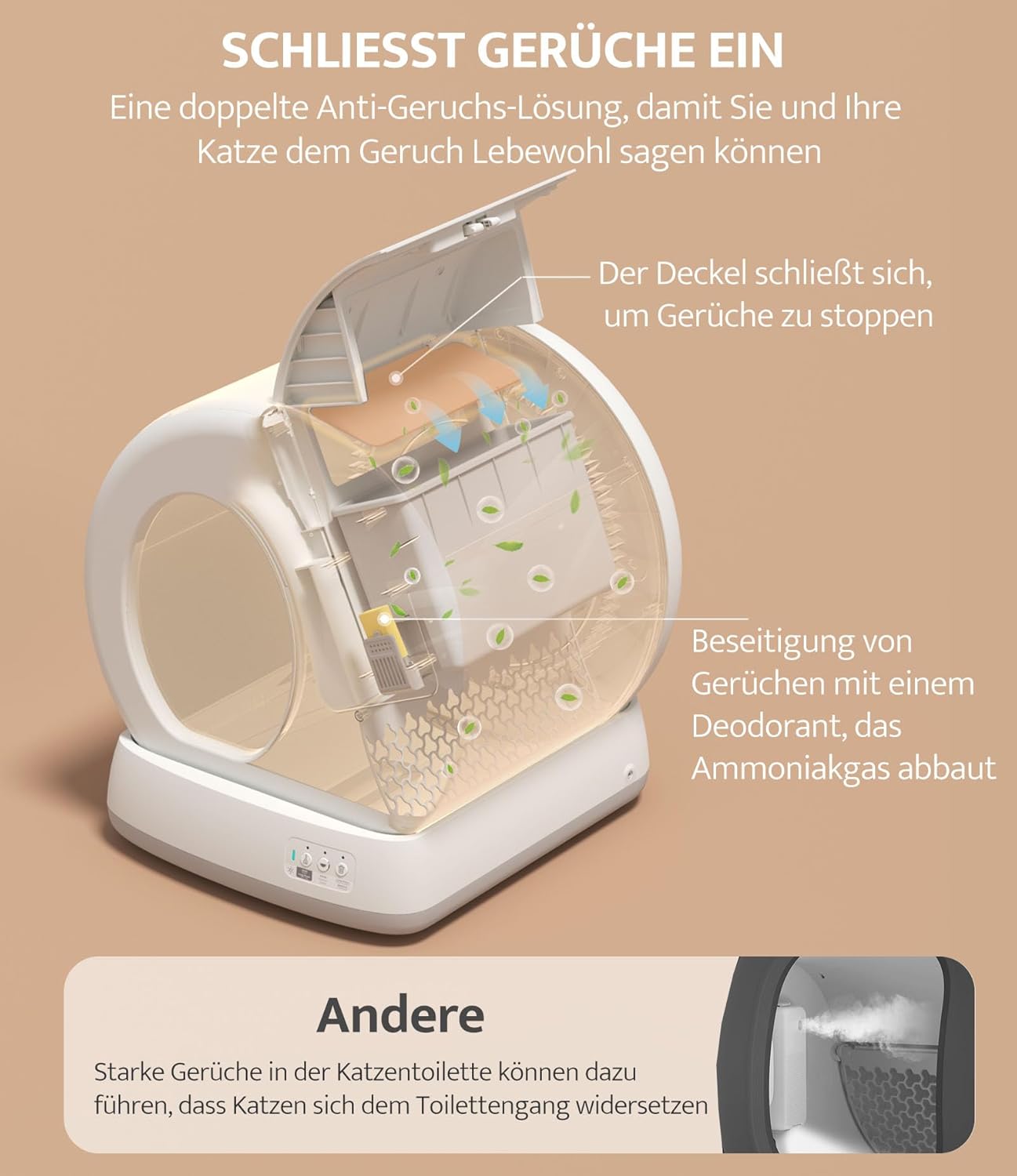

Image: An internal view of the UBPET C10PRO, illustrating how the lid seals to contain odors and how the deodorizer works to eliminate unpleasant smells.

Maintenance

Recommended Cat Litter

The specially designed filter openings can effectively filter and separate various types of cat litter, including plant-based, bentonite, mixed, and crystal litter. To minimize waste, it is recommended not to use cat litter with particle lengths greater than 1 cm. Do not pour litter beyond the warning line, as excess litter will be cleaned out.

Image: A visual guide to recommended cat litter types, showing that fine-grained litter (bentonite, mixed) is preferred over larger particle types (plant-based, crystal) for optimal performance.

Cleaning the Unit

The UBPET C10PRO is designed for easy cleaning. The entire body is washable, with the exception of the base which contains electronic components. The parts can be easily disassembled for cleaning or scrubbing. It is recommended to clean the interior every 1 to 3 months and replace the litter box liner every 3 to 5 days.

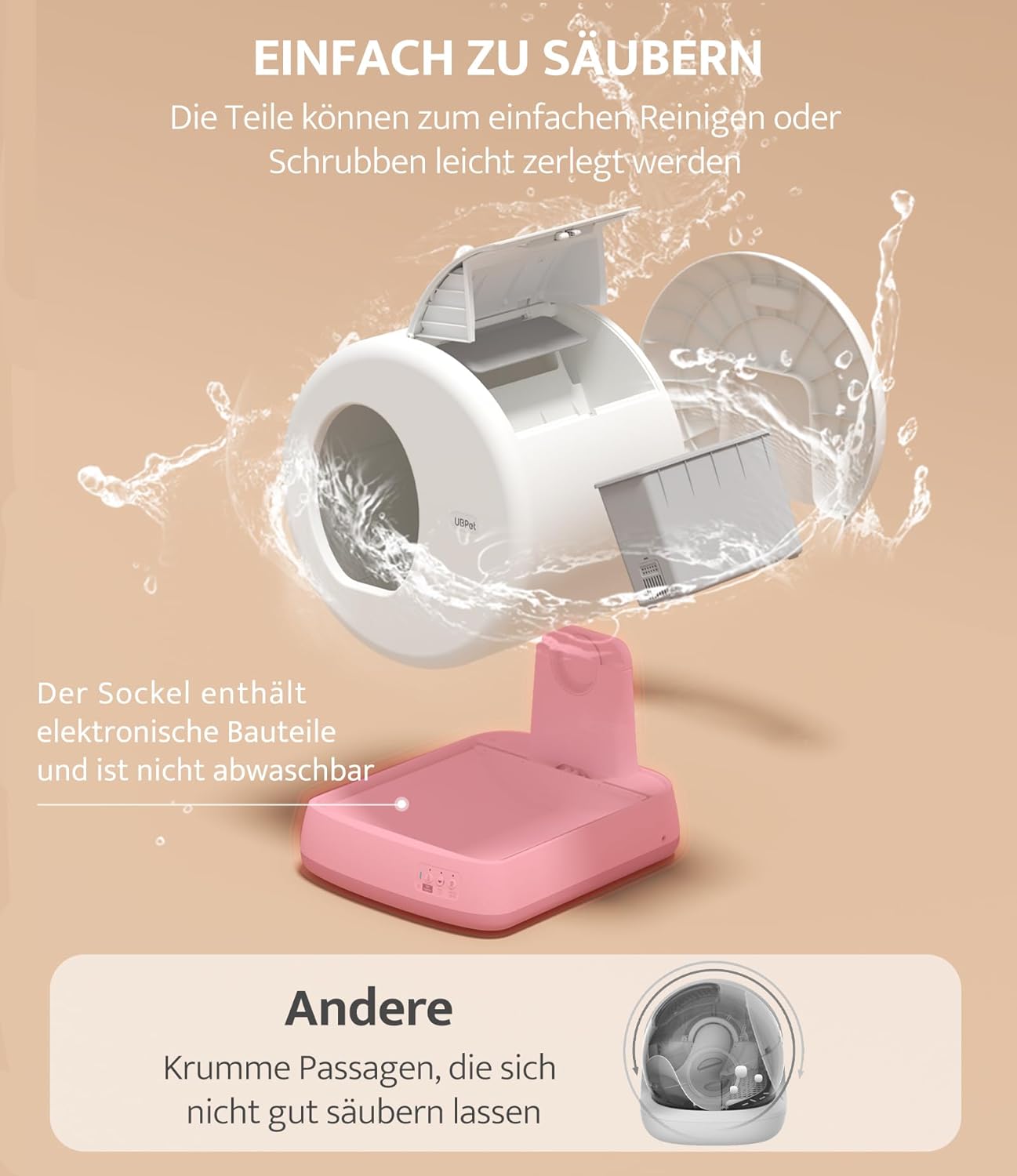

Image: An exploded view of the UBPET C10PRO, demonstrating how easily the components can be detached for cleaning. It highlights that the base, containing electronics, is not washable.

Replacing Deodorizer

Replace the deodorizer in the waste bin approximately every 30 days for optimal odor control.

Safety Features

The self-cleaning litter box is equipped with 10 high-precision sensors that detect changes in the environment comprehensively. If a cat approaches, the unit immediately pauses operation to ensure the cat's safety. The self-test and remote alarm system provide additional protection. Do not place a mat under the litter box to avoid weighing errors.

Image: A visual representation of the anti-pinch protection, showing the sensor's detection range (120 degrees, 80cm) and how the unit stops operation when a cat is detected nearby.

Troubleshooting

Common Issues and Solutions

• Litter getting stuck or not cleaning properly: Ensure you are using cat litter with particle lengths not greater than 1 cm. Check if the litter level exceeds the warning line.
• App connectivity issues: Verify that your Wi-Fi network is 2.4GHz. Ensure the device is within range of your router. Restart the litter box and your router if necessary.
• Weight measurement errors: Do not place any mats or objects under the litter box that could interfere with the sensors.
• Unit stops unexpectedly: This is likely due to the safety sensors detecting movement. Ensure no pets or objects are near the entry during operation.

If problems persist, please refer to the customer service information below.

Specifications

Image: A detailed diagram illustrating the dimensions of the UBPET C10PRO (520mm x 530mm x 555mm) and its suitability for cats weighing between 1.5kg and 8kg, highlighting the low 14.7cm entry point.

Warranty and Support

SAROSORA offers warranty service and full refunds. For any questions regarding your UBPET C10PRO cat litter box or issues encountered during use, please do not hesitate to contact us. Your satisfaction is our top priority.

Contact information can typically be found on the product packaging or through your purchase platform.
