Introduction
Thank you for choosing the Yaheetech Metal Double Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Warning: Keep away from children during assembly and ensure all small parts are out of reach.

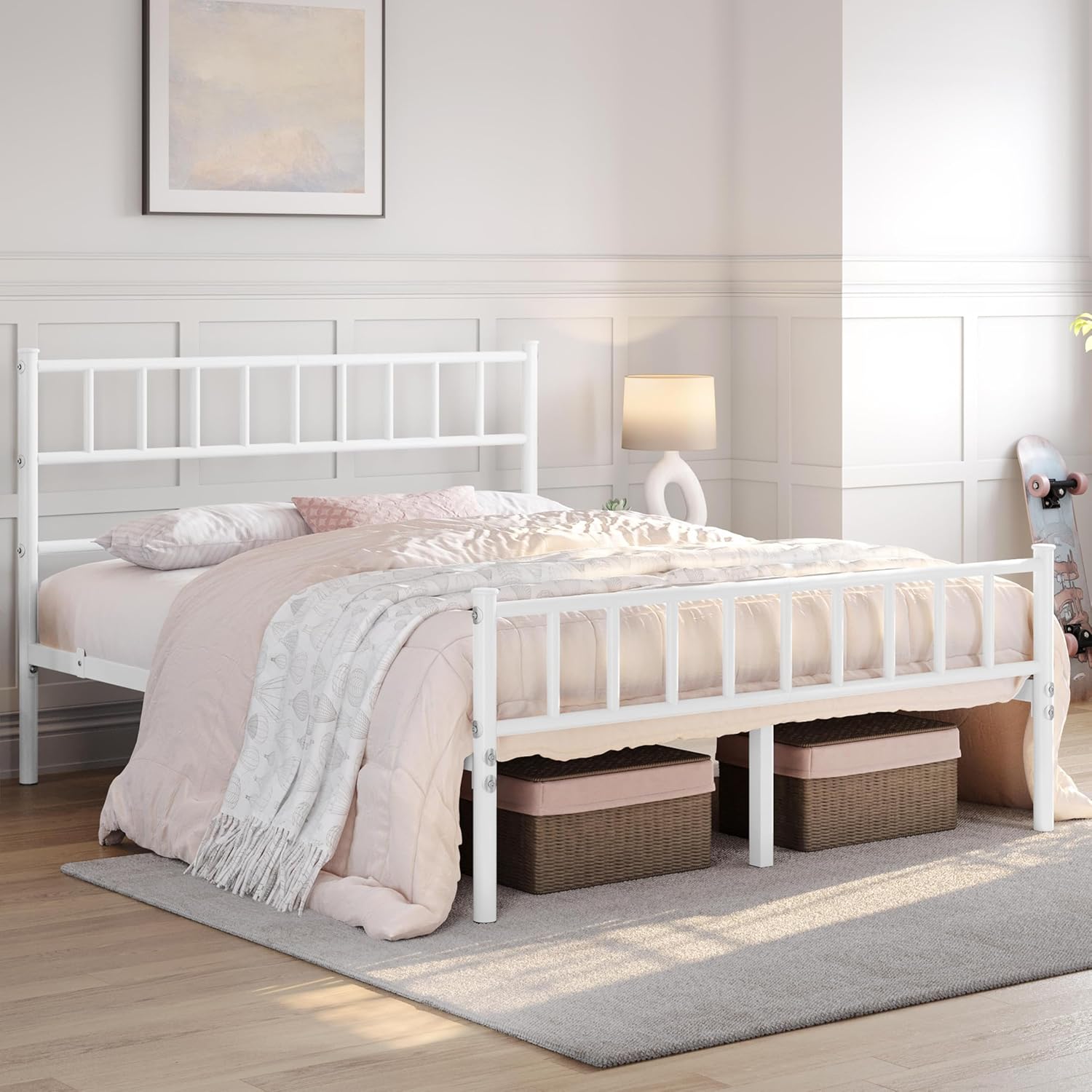

Image: The Yaheetech white metal double bed frame, fully assembled with a mattress and bedding.
Setup and Assembly
The Yaheetech bed frame is designed for straightforward assembly. Follow these steps carefully to ensure a stable and secure structure.
1. Unpacking and Part Identification
Carefully unpack all components and lay them out. Verify that all parts listed in the included parts list are present. If any parts are missing or damaged, please contact customer support.
2. Frame Assembly
Begin by assembling the main frame sections. The headboard and footboard are designed to connect securely to the side rails.

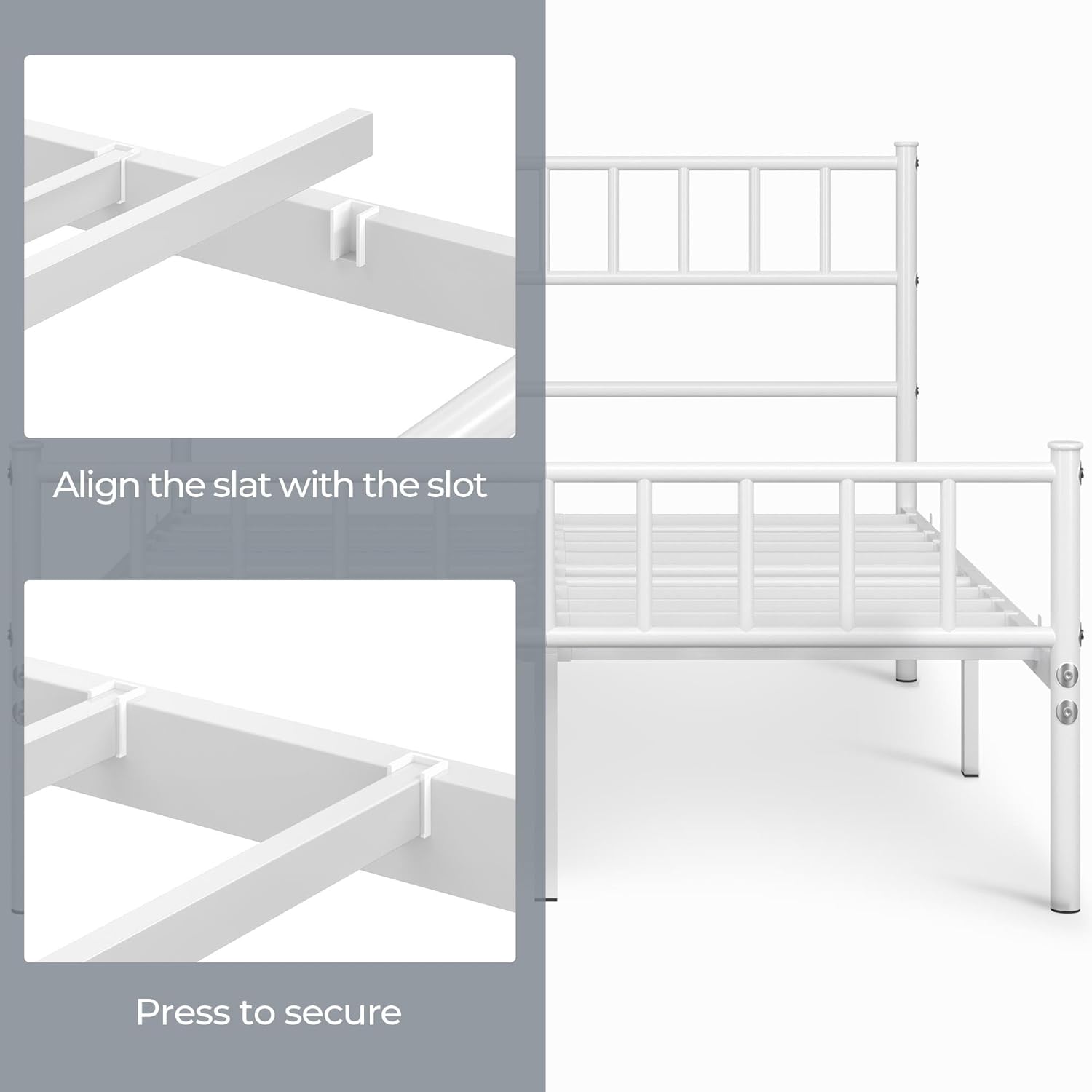

Image: This image shows the simple process of assembling the bed slats: align each slat with its designated slot and press firmly until secured.
3. Attaching Support Legs
The bed frame features 9 strong metal legs for robust support. Ensure each leg is securely attached to the frame using the provided hardware.

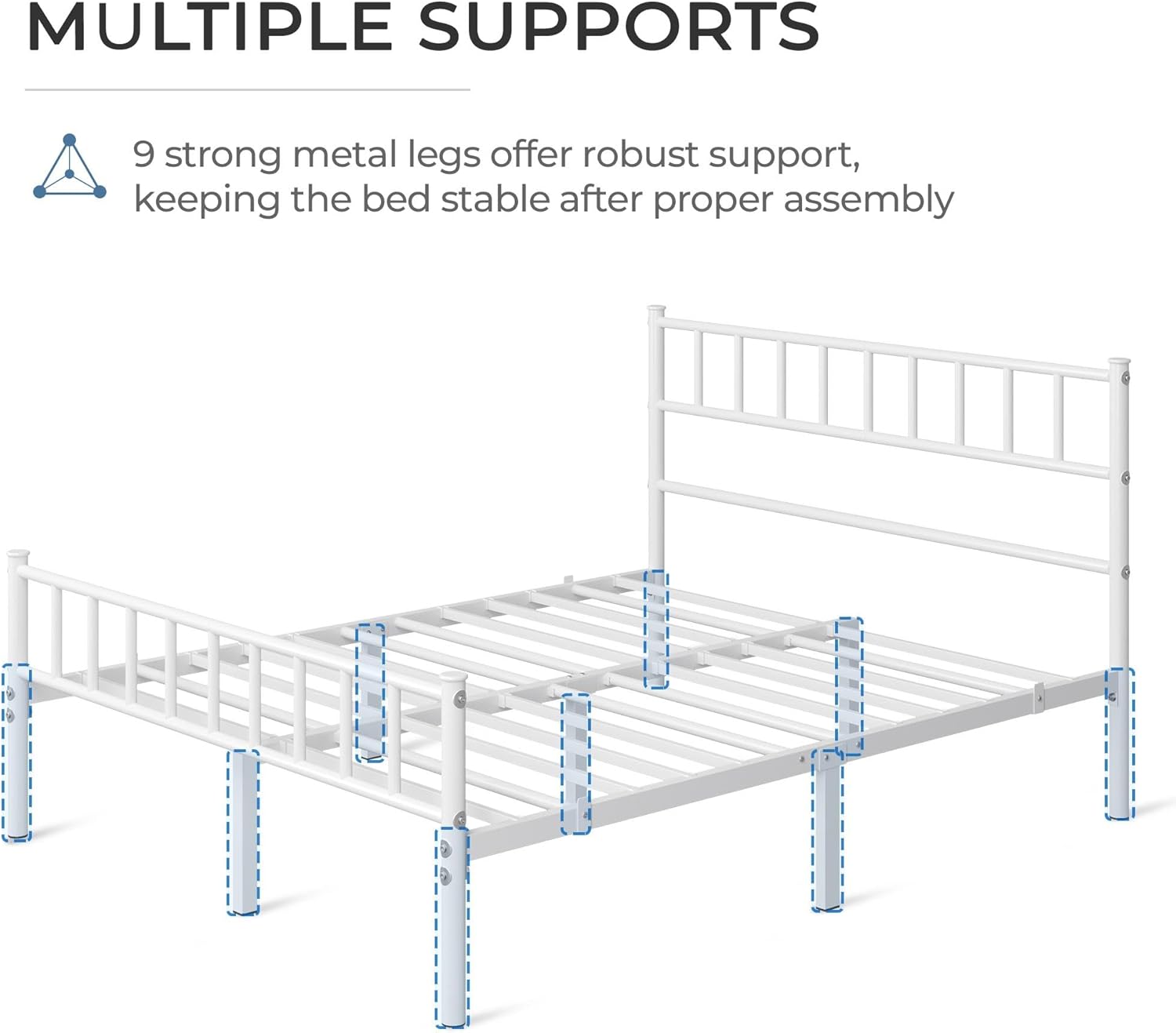

Image: The bed frame is equipped with 9 sturdy metal legs, ensuring stability and robust support for the mattress and users.

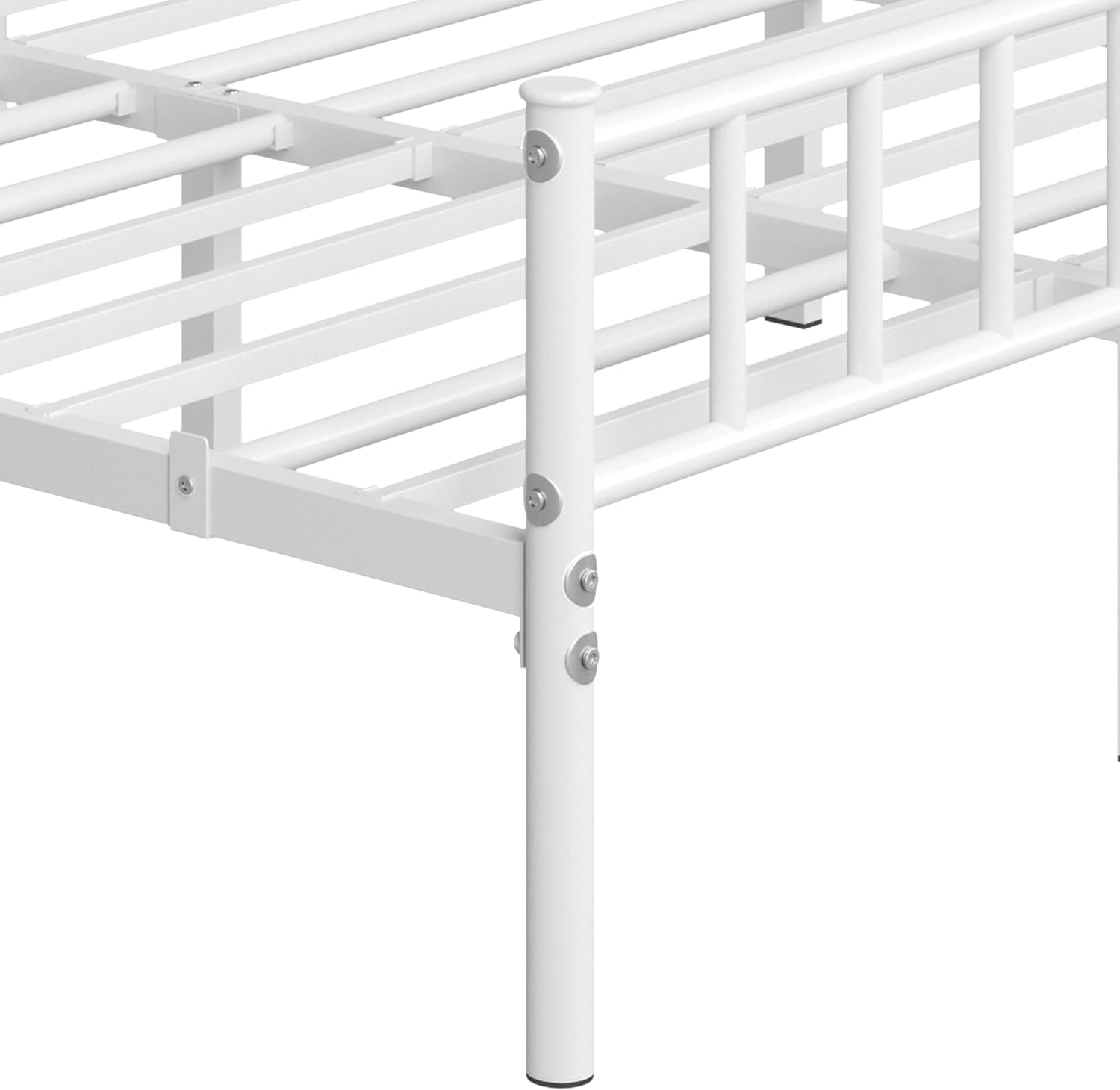

Image: Detail of the robust leg attachment mechanism, secured with bolts for enhanced stability.
4. Installing Slats and Anti-Slip Baffles
Place the metal slats into their designated positions. The frame includes anti-slip baffles to prevent mattress movement. Ensure these are correctly installed.

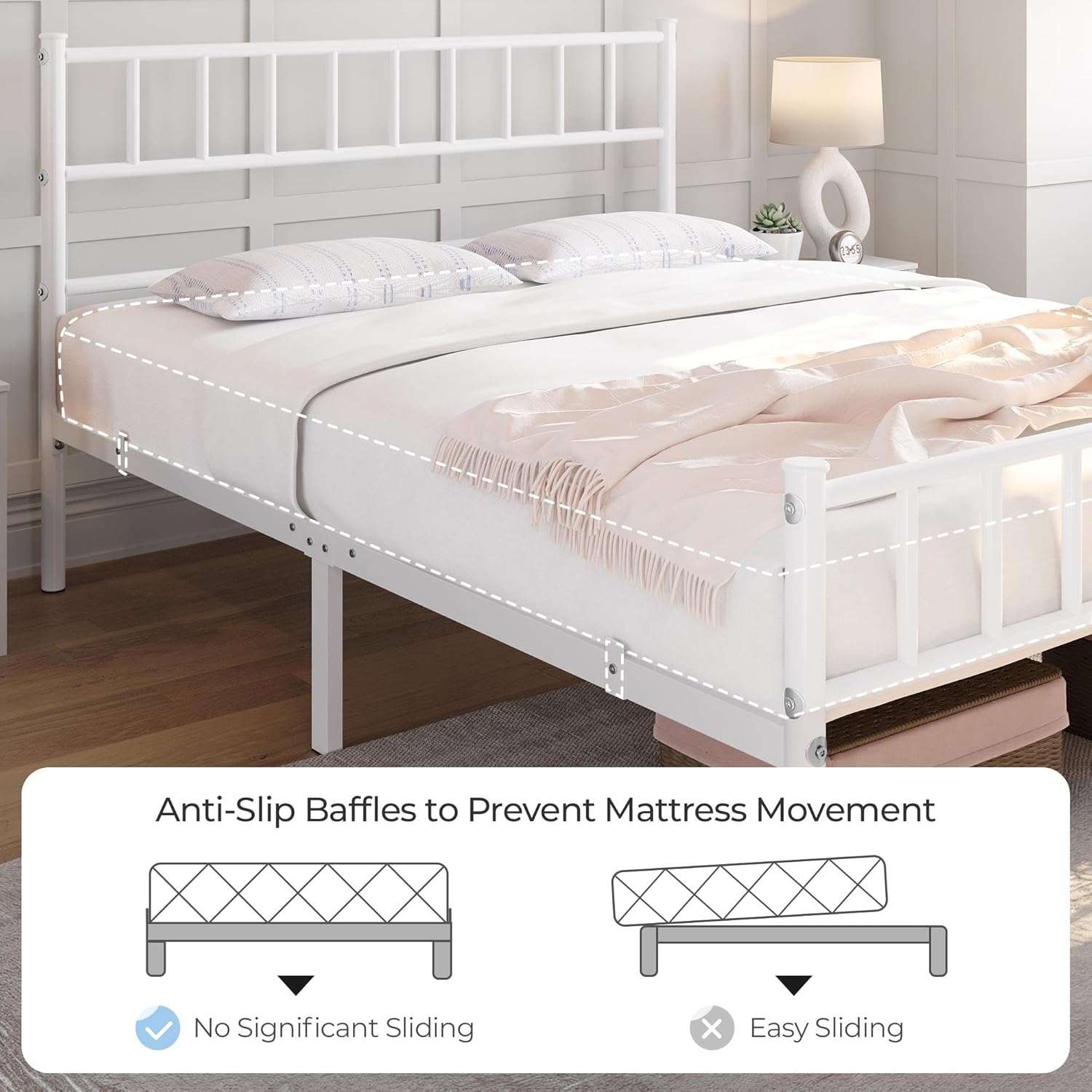

Image: Integrated anti-slip baffles are designed to prevent the mattress from shifting, ensuring a stable sleeping surface.
5. Final Checks
Before placing your mattress, double-check all screws and connections to ensure they are tight and secure. The bed frame should be stable and level.
Operating Instructions
1. Mattress Placement
Carefully place your mattress (recommended size: 160 x 200 cm) onto the assembled bed frame. The anti-slip baffles will help keep the mattress in place.
2. Weight Capacity
The bed frame has a maximum weight capacity of 363 kg. Do not exceed this limit to ensure safety and product longevity.
3. Under-Bed Storage
Utilize the 32 cm of ground clearance for convenient storage. This space is ideal for storing boxes, luggage, or other items, helping to keep your room tidy.

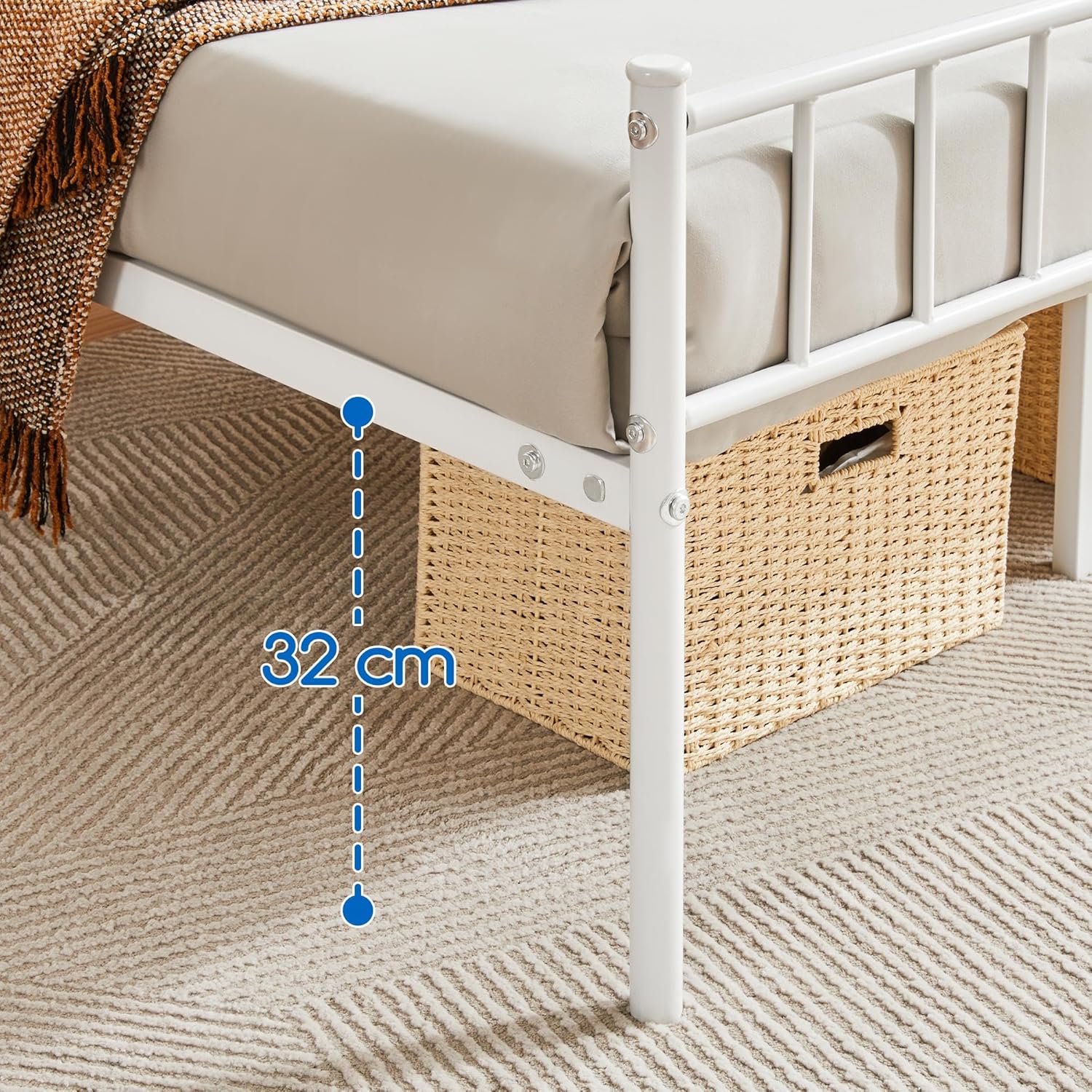

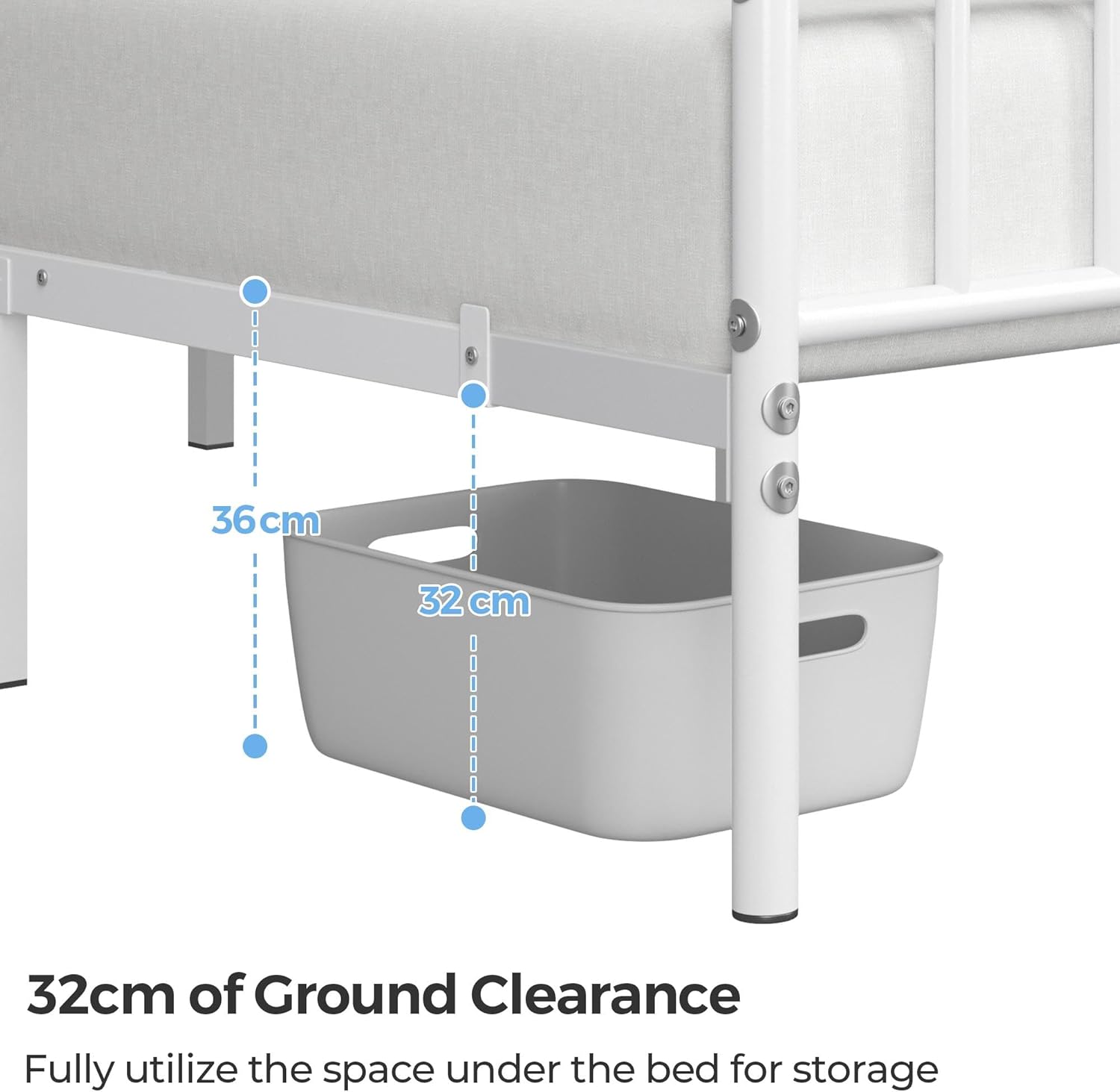

Image: The bed frame offers 32 cm of ground clearance, providing ample space for under-bed storage solutions like baskets or boxes.
Image: A view of the assembled bed frame, showcasing its minimalist design and the practical under-bed storage space.
Maintenance
1. Cleaning
Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the powder-coated finish.
2. Regular Checks
Periodically check all bolts and screws to ensure they remain tight. Re-tighten any loose connections to maintain the bed frame's stability and prevent squeaking.
Troubleshooting
Squeaking Noises
If the bed frame produces squeaking noises, check all connections. Loose bolts are a common cause. Tighten all screws and bolts securely. Applying a small amount of lubricant to connection points can also help.
Instability
If the bed frame feels unstable, ensure all legs are properly installed and making full contact with the floor. Verify that all frame sections are correctly aligned and bolted together according to the assembly instructions.
Specifications
Image: This diagram illustrates the overall dimensions of the bed frame, including length, width, height, and the 32 cm clearance beneath the frame for storage.
Image: A comprehensive table detailing the product specifications, such as material (Iron), maximum weight capacity (363 kg), applicable mattress size (200cm L x 160cm W), overall dimensions (207cm L x 162cm W x 88.5cm H), ground clearance (32cm), and color (White).
| Feature | Specification |
|---|---|
| Brand | Yaheetech |
| Model | YA-00129752 |
| Color | White |
| Material | Metal (Iron) |
| Product Dimensions (L x W x H) | 207 x 166 x 88.5 cm |
| Applicable Mattress Size | 160 x 200 cm |
| Weight Capacity | 363 kg |
| Ground Clearance | 32 cm |
| Item Weight | 21 kg |
| Special Features | Sturdy, Stable, Sectional Structure, Anti-slip baffles |
Warranty Information
Yaheetech products typically come with a standard manufacturer's warranty. For specific details regarding the warranty period and terms for your bed frame, please refer to the warranty card included in your packaging or visit the official Yaheetech website. Please retain your proof of purchase for any warranty claims.
Customer Support
If you have any questions, require assistance with assembly, or encounter any issues with your Yaheetech bed frame, please do not hesitate to contact our customer support team. You can find contact information on the Yaheetech official website or through your purchase platform.
