GEEKVAPE Z Fli Tank 2 Sub Ohm Atomizer Instruction Manual

Introduction

Welcome to the GEEKVAPE Z Fli Tank 2 instruction manual. This guide provides essential information for the safe and effective use of your new atomizer. Please read it thoroughly before operation.

The GEEKVAPE Z Fli Tank 2 is designed for an enhanced vaping experience, featuring an upgraded flip cap for secure and easy refilling, a leak-proof top airflow system, and compatibility with the renowned Z Series coils.

Image: GEEKVAPE Z Fli Tank 2 overview, showcasing its main features including the flip cap, Z coil compatibility, top airflow, and 5.5ml capacity.

Package Contents

Please check the package contents to ensure all items are present:

• 1 x GEEKVAPE Z Fli Tank 2 Atomizer
• 1 x Pre-installed Z0.15 XM Coil (0.15Ω, 70-85W)
• 1 x Spare Z0.4 XM Coil (0.4Ω, 50-60W)
• 1 x Spare Glass Tube
• 1 x Spare Parts Pack
• 1 x User Manual, Warning & Info Cards

Image: Visual representation of the GEEKVAPE Z Fli Tank 2 retail box and its standard package contents.

Product Features

• Upgraded Flip Cap: The tighter flip top cap ensures effortless opening and prevents accidental e-liquid spills. It boasts a longer lifespan, capable of over 3,000 pop-ups.
• Damascus Steel Design: Crafted with Damascus steel, the tank exhibits a durable and elegant aesthetic.
• 5.5ml Capacity: A generous e-liquid capacity for extended use.
• Leak-proof Top Airflow System: Designed to minimize leakage and provide smooth airflow.
• Precise Airflow Control: Allows users to fine-tune their vaping experience.
• Z Coil Compatibility: Fully compatible with all Geekvape Z Series coils for versatile performance.
• 810 Drip Tip: Standard 810 drip tip for comfortable use.

Image: A table summarizing the key functions and features of the Z Fli Tank 2, including material, cap type, size, filling method, and coil compatibility.

Image: A close-up view demonstrating the upgraded flip cap, highlighting its secure snap-tight mechanism for easy opening and accident prevention.

Image: A detailed view of the Damascus steel pattern on the GEEKVAPE Z Fli Tank 2, emphasizing its craftsmanship and elegant appearance.

Setup

1. Coil Installation

1. Unscrew the base of the atomizer.
2. Align the new coil with the slot in the base and push it firmly into place. Ensure it is seated correctly.
3. Prime the coil by dripping a few drops of e-liquid onto the cotton wicking ports.
4. Screw the base back onto the tank securely.

2. Filling the Tank

1. Locate the flip cap at the top of the atomizer.
2. Press the release button or slide the cap to open the top-fill port.
3. Insert the nozzle of your e-liquid bottle into the fill port and slowly fill the tank to its 5.5ml capacity. Avoid overfilling.
4. Close the flip cap securely until it clicks into place.
5. After filling a new coil, let the tank stand for 5-10 minutes to allow the e-liquid to fully saturate the coil. This prevents dry hits and extends coil life.

Operating

Airflow Adjustment

The GEEKVAPE Z Fli Tank 2 features a top airflow control ring. Rotate the airflow control ring located at the top of the tank to adjust the amount of air intake. Turning it clockwise will restrict airflow, resulting in a tighter draw, while turning it counter-clockwise will open the airflow for a looser draw and more vapor production.

Compatible Coils

The Z Fli Tank 2 is compatible with all Geekvape Z Series coils. The package includes Z0.15 XM (0.15Ω, 70-85W) and Z0.4 XM (0.4Ω, 50-60W) coils. Other compatible coils include Z0.15, Z0.2, Z0.25, and Z0.4 coils, each offering different wattage ranges and vaping experiences.

Image: A display of various GEEKVAPE Z Series coils, indicating their resistance and recommended wattage ranges, highlighting compatibility with the Z Fli Tank 2.

Maintenance

Cleaning the Tank

Regular cleaning helps maintain optimal performance and flavor. To clean your Z Fli Tank 2:

1. Disassemble the tank by unscrewing the top cap, glass tube, and base.
2. Remove the coil.
3. Rinse all components (except the coil) with warm water. You can use a mild dish soap if necessary, ensuring to rinse thoroughly afterwards.
4. Dry all parts completely before reassembling. Air drying is recommended.

Coil Replacement

Coils are consumable parts and need to be replaced periodically, typically every 1-2 weeks depending on usage and e-liquid. Follow the coil installation steps in the Setup section to replace your coil.

Troubleshooting

• Leaking: Ensure all O-rings are properly seated and not damaged. Check that the coil is installed correctly and the tank components are screwed on tightly. Avoid overfilling.
• No Vapor/Weak Vapor: Check if the coil is properly installed and making contact. Ensure your device is providing sufficient power within the coil's recommended wattage range. Replace the coil if it's old or burnt.
• Burnt Taste: This usually indicates a dry coil. Ensure the coil is properly primed and fully saturated with e-liquid before use. Do not exceed the recommended wattage for your coil. Replace the coil if the burnt taste persists.
• Gurgling Noise: This can be caused by excess e-liquid in the airflow path. Try flicking the tank downwards to clear excess liquid or disassemble and clean the airflow components.

Specifications

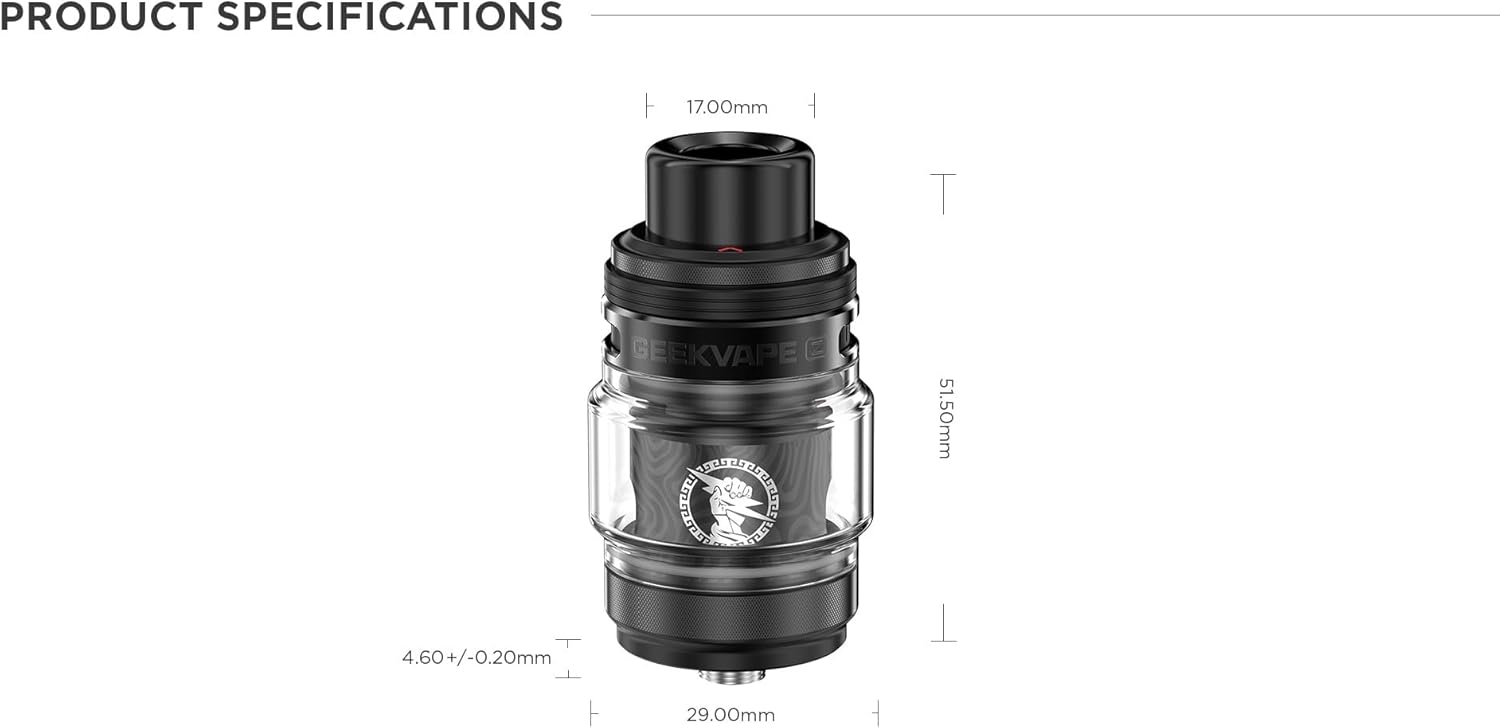

Image: A technical diagram illustrating the precise dimensions of the GEEKVAPE Z Fli Tank 2.

Safety Information

Age Restriction: This product is intended for adult users only. Sale is prohibited to persons under the age of 18.

Nicotine and Tobacco Free: This product does not contain e-liquid, nicotine, or tobacco. It does not contain any sticks, liquids, prefilled cartridges, or refills.

General Safety:

• Keep out of reach of children and pets.
• Do not use if damaged.
• Use only with compatible vaping devices.
• Dispose of components responsibly according to local regulations.

Warranty and Support

For detailed warranty information, product registration, and customer support, please visit the official GEEKVAPE website or contact your authorized retailer. Keep your proof of purchase for any warranty claims.
