WIN STELLAR Alli-Inclusive Sliding Pocket Doors User Manual
Model: 60" x 80" (Double 30" x 80")
1. Important Safety Information
Please read all instructions carefully before beginning installation and operation. Failure to follow these instructions may result in property damage or personal injury.
- Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
- Ensure the wall structure is capable of supporting the weight of the door system (approximately 66 pounds per door panel, total for double doors).
- Verify all electrical, plumbing, and HVAC lines within the wall cavity before cutting or drilling.
- Keep children and pets away from the work area during installation.
- Do not attempt to modify the door panels or hardware, as this may compromise safety and performance.
2. Product Overview
The WIN STELLAR Alli-Inclusive Sliding Pocket Doors offer a modern and space-saving solution for interior doorways. This double door system features tempered frosted glass panels and a soft-close mechanism, providing both privacy and natural light. The door frame is constructed from durable MDF with a PVC film finish, designed for longevity and ease of maintenance.
Key Features:
- High-Quality Materials: MDF door frame with PVC film for enhanced durability and extended service life.
- Tempered Frosted Glass: Provides privacy while allowing natural light to filter through. The glass is 8 times stronger than regular glass for increased safety.
- Soft Close Mechanism: Ensures smooth and quiet operation, preventing slamming.
- Complete Hardware Kit: Includes all necessary components for installation.
- Pre-cut Panels: Designed for a tight fit and simplified assembly.

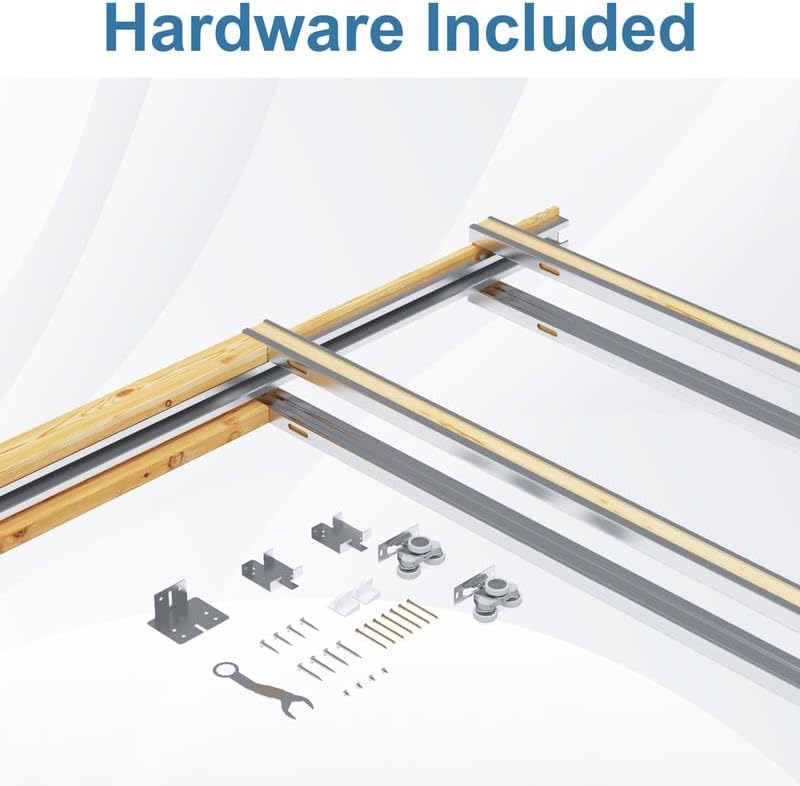

3. Package Contents & Hardware
Before beginning installation, unpack all components and verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
Typical Components (may vary slightly):
- Double Door Panels (with frosted tempered glass)
- Pocket Door Frame Components (MDF)
- Top Track and Rollers
- Soft Close Mechanism
- Mounting Brackets and Fasteners
- Installation Tools (basic wrench, etc.)
- Detailed Installation Instructions Manual
4. Specifications
| Attribute | Detail |
|---|---|
| Brand | WIN STELLAR |
| Model | 60" x 80" (Double 30" x 80") |
| Color | White |
| Material | MDF with PVC film, Tempered Frosted Glass |
| Style | Classic |
| Assembly Required | Yes |
| Item Weight | Approximately 66 pounds |
| Product Dimensions (per panel) | 1.42 x 30 x 80 inches |
| Rough Opening Width | 2 x door width + 1" (e.g., for 60" total door width, 61" rough opening) |
| Rough Opening Height | Door height + 4-1/2" (e.g., for 80" door height, 84.5" rough opening) |
| Wall Structure Thickness (Min.) | 3-1/2" (89mm) (2x4) |
| Door Thickness Compatibility | 1" (25mm) to 1-3/4" (45mm) |
| Weight Capacity | 200 lbs (90kgs) |
5. Setup & Installation
The WIN STELLAR pocket door system is designed for straightforward assembly. Detailed, step-by-step instructions and necessary tools are included in your package. Please refer to the separate installation guide for comprehensive visual and written instructions.
5.1 Pre-Installation Checks:
- Ensure the wall opening is plumb, level, and square.
- Confirm the rough opening dimensions meet the specifications provided in Section 4.
- Verify that the wall structure is robust enough to support the door system.
5.2 Rough Opening Requirements:
Accurate rough opening dimensions are critical for proper operation. Refer to Figure 5.1 and the specifications table for precise measurements. The wall structure thickness must be a minimum of 3-1/2 inches (2x4 framing).
5.3 Assembly Steps (General Overview):
The installation process typically involves:

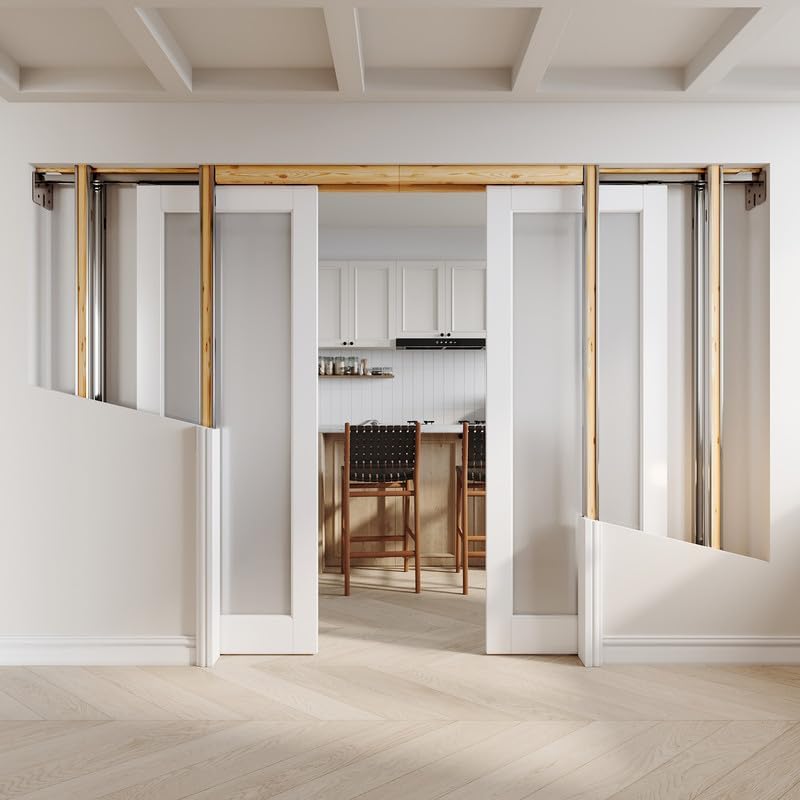

- Assembling the pocket door frame within the rough opening.
- Securing the top track and associated hardware.
- Installing the door panels onto the rollers and track.
- Adjusting the soft-close mechanism for optimal performance.
- Finishing the wall around the pocket door frame.
6. Operation

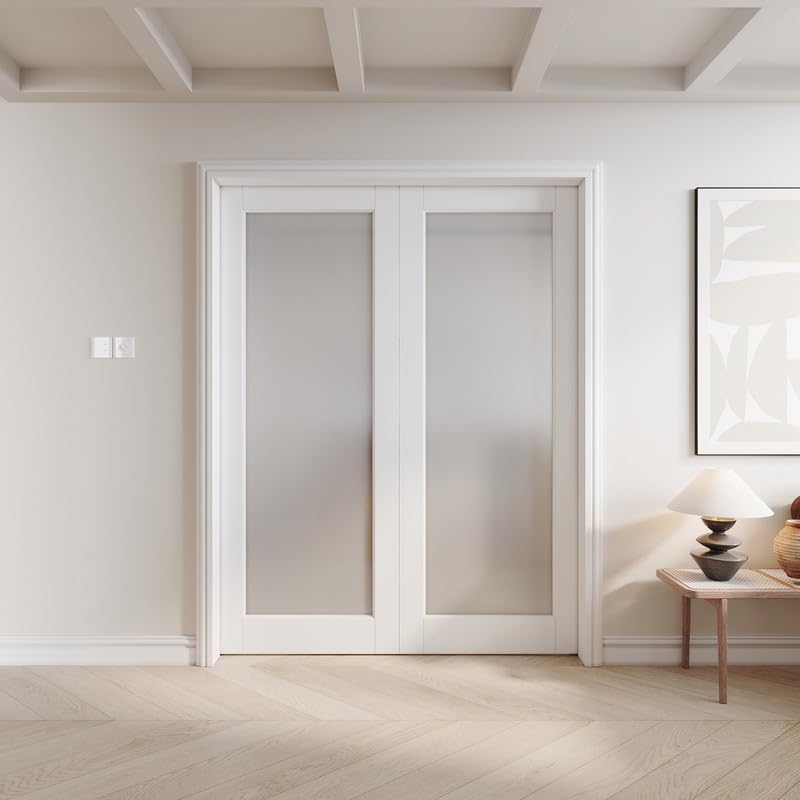

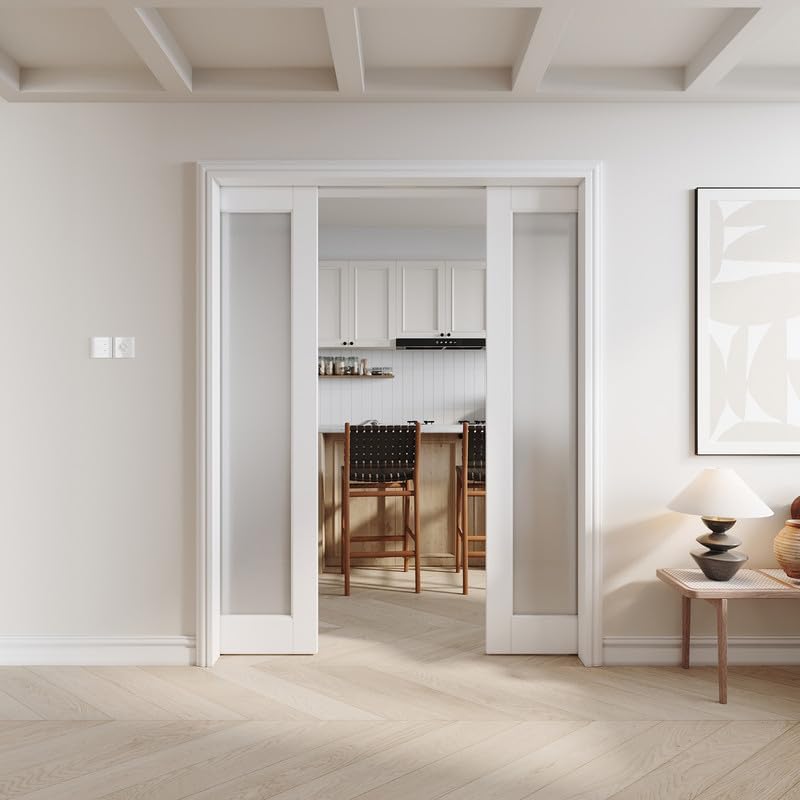

Your WIN STELLAR pocket doors are designed for smooth and quiet operation. To open the doors, gently slide them into the wall cavity. To close, pull them out until they meet in the center. The integrated soft-close mechanism will engage as the doors approach their fully closed position, ensuring a gentle and silent stop.
Frosted Glass Benefits:
The frosted glass panels are engineered to provide privacy without sacrificing natural light. They diffuse light, brightening your space while obscuring direct views, making them ideal for various rooms such as living rooms, kitchens, bathrooms, and dining areas.
7. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your pocket doors.
- Cleaning Glass: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive materials that could scratch the frosted surface.
- Cleaning Frame: Wipe the MDF frame with a damp cloth and mild soap if necessary. Dry immediately. Do not use excessive water or harsh cleaning agents.
- Track Maintenance: Periodically inspect the top track for any debris or obstructions. Clean with a dry cloth or vacuum. Avoid lubricating the track unless specifically recommended by the manufacturer, as this can attract dust.
- Hardware Check: Annually check all screws and fasteners for tightness. Tighten if necessary.
8. Troubleshooting
If you encounter issues with your pocket doors, refer to the common problems and solutions below. For persistent issues, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not slide smoothly. | Debris in track, misaligned rollers, loose hardware. | Clean track. Check roller alignment and tighten hardware. |
| Soft-close mechanism not engaging. | Incorrect adjustment, obstruction. | Refer to installation guide for soft-close adjustment. Check for obstructions. |
| Door rubs against frame. | Misalignment, frame not plumb. | Adjust door height/level using roller mechanisms. Verify frame plumbness. |
| Door is difficult to open/close. | Track damage, excessive friction. | Inspect track for damage. Ensure rollers are clean and functioning. |
9. Warranty & Customer Support
WIN STELLAR is committed to providing quality products and excellent customer service. Your pocket door system comes with a manufacturer's warranty covering defects in materials and workmanship. For specific warranty details, please refer to the documentation included with your purchase or contact our customer support team.
If you have any questions, require assistance with installation, or need to report a missing/damaged part, please do not hesitate to contact us. Our dedicated service team is ready to help solve your problem.
Contact Information:
- Website: Visit the WIN STELLAR Store on Amazon
- Email: [Please refer to your purchase documentation or the WIN STELLAR store page for direct email support]
- Phone: [Please refer to your purchase documentation or the WIN STELLAR store page for direct phone support]
