1. Introduction
Thank you for choosing the EMKE Towel Warmer Heating Element. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before installation and use, and retain it for future reference.
2. Safety Instructions
- Ensure the power supply matches the specifications of the heating element (230V ± 10%).
- Do not immerse the control unit in water. The device has an IPx4 waterproof rating, meaning it is protected against splashing water, but not full immersion.
- Keep the device away from flammable materials.
- Do not cover the heating element or towel warmer when in operation, as this may cause overheating.
- Always disconnect the power before cleaning or performing any maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Setup and Installation
The EMKE heating element is designed for integration with a bathroom towel warmer. Professional installation is recommended to ensure proper and safe operation.
3.1 Package Contents
- EMKE Towel Warmer Heating Element (300W)
- User Manual
3.2 Installation Steps (General Guidelines)
- Ensure the towel warmer is securely mounted and ready for the heating element.
- Carefully insert the heating rod into the designated opening of the towel warmer.
- Tighten the connection securely to prevent leaks.
- Connect the power cord to a suitable 230V power outlet. The power cord length is approximately 1400 mm.
- Verify all connections are secure before powering on the device.
4. Operating Instructions
The EMKE heating element features a user-friendly interface with a digital display and multiple operating modes.

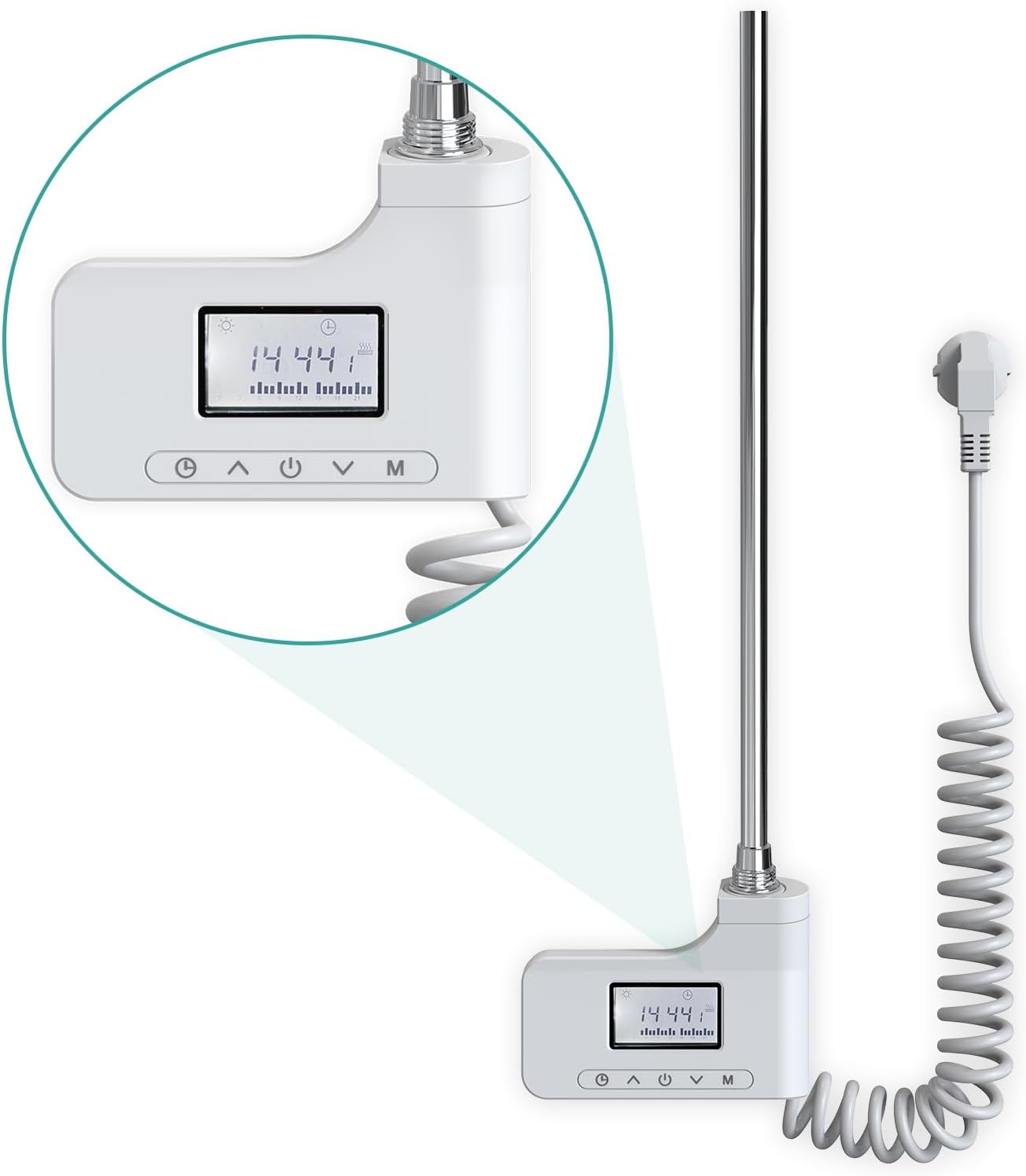

4.1 Control Panel Overview
4.2 Operating Modes
The device offers 6 operating modes to suit various needs:
- Comfort Mode: Default temperature is 19 °C, adjustable range 7 to 30 °C. Ideal for continuous comfortable warmth.
- Economic Mode: Default temperature is 15 °C, adjustable range 7 to 30 °C. Provides warmth while conserving energy.
- Antifreeze Mode: Temperature is fixed at 7 °C and not adjustable. Prevents pipes from freezing in cold environments.
- Timing Mode: Allows you to set the device to heat at regular, scheduled intervals.
- Boost Mode: Provides continuous heating for a set duration, adjustable from 30 minutes to 24 hours.
- Holiday Mode: Allows you to set a specific temperature for your device while you are away, along with the number of days you will be absent.
4.3 Thermostat and Timer Function
The integrated thermostat allows for precise temperature control within the adjustable range (7-30 °C). The timer function enables scheduled operation, enhancing convenience and energy efficiency.
4.4 Child Safety Function
The thermostatic heating rods are equipped with a touch-saver child safety function. This feature helps prevent accidental changes to settings and ensures a safe environment for children.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your EMKE heating element.
- Cleaning: Disconnect the power before cleaning. Wipe the control unit and heating rod with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Inspection: Periodically check the power cord and plug for any signs of damage. If damage is found, discontinue use and contact customer support.
- Storage: If the device will not be used for an extended period, disconnect it from the power supply and store it in a dry, safe place.
6. Troubleshooting
If you encounter issues with your EMKE heating element, refer to the following common problems and solutions:
- Device not heating:
- Check if the device is properly plugged into a working power outlet.
- Ensure the power switch (if any) is turned on.
- Verify that the temperature setting is above the current room temperature.
- Check if any timer or holiday mode settings are preventing heating.
- Display not working:
- Ensure the device is receiving power.
- Try unplugging and re-plugging the device to reset it.
- Inconsistent heating:
- Ensure the heating element is fully immersed in the towel warmer's fluid (if applicable).
- Check for proper ventilation around the towel warmer.
If the problem persists, please contact customer support.
7. Specifications
Below are the technical specifications for the EMKE Towel Warmer Heating Element (Model THE330W).
| Feature | Specification |
|---|---|
| Model Number | THE330W |
| Heating Power | 300 W |
| Operating Voltage | 230 V ± 10% |
| Waterproof Rating | IPx4 |
| Cable Length | 1400 ± 100 mm |
| Room Temperature Range | 7-30 °C |
| Material | SUS304 Stainless Steel + ABS |
| Color | White |
| Included Components | Electric heating rod |
| Package Dimensions | 51 x 19 x 6 cm |
| Package Weight | 800 g |
7.1 Recommended Heating Rod Selection
It is important to choose the correct heating rod power for your radiator to ensure optimal performance and safety. The power cord length is 1400 mm, and it features an EU plug for added safety.
| Radiator Power | Recommended Heating Element Power |
|---|---|
| Less than 600W | 300W |
| 600-900W | 600W |
| 900-1200W | 900W |
| 1200-1500W | 1200W |
8. Warranty
For warranty information, please refer to the documentation included with your purchase or contact EMKE customer service. Typically, warranty covers manufacturing defects under normal use conditions.
9. Support
If you have any questions, require technical assistance, or need to report an issue, please do not hesitate to contact EMKE customer service. Our dedicated team is ready to assist you.
