1. Introduction
Thank you for choosing the Lorelli Commode Cupboard. This versatile furniture piece is designed to provide practical storage and functionality for your child's room. It features four drawers and two doors with internal shelves, offering ample space for clothes, toys, and other accessories. The commode can be configured in multiple ways, serving as a changing table or a standard dresser with additional shelving options.
Please read this manual carefully before assembly and use to ensure safe operation and proper maintenance of your Lorelli Commode Cupboard.
2. Safety Information
- Always follow the assembly instructions precisely. Incorrect assembly can lead to instability and potential hazards.
- Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
- Do not allow children to climb on the commode. This product is not designed for climbing.
- If using as a changing table, always keep one hand on your child while changing. Never leave a child unattended on the changing surface.
- Keep small parts and assembly hardware out of reach of children to prevent choking hazards.
- Place the commode on a flat, stable surface.
- Attach the commode to the wall using the provided anti-tip kit to prevent tipping, especially in households with young children.
3. Parts List
Before beginning assembly, verify that all components are present and undamaged. Refer to the detailed parts diagram included in your packaging for specific identification. If any parts are missing or damaged, do not proceed with assembly. Contact Lorelli customer support for assistance.
Key Components:
- Top Panel
- Side Panels (Left & Right)
- Bottom Panel
- Back Panel
- Drawer Fronts (x4)
- Drawer Sides & Backs
- Drawer Bottoms
- Door Panels (x2)
- Internal Shelves
- Changing Table Top (if applicable)
- Handles/Knobs
- Drawer Slides
- Hinges
- Assembly Hardware (screws, dowels, cam locks, anti-tip kit)
Image 1: Overview of the Lorelli Commode Cupboard with the changing table top installed. This image shows the four drawers and two doors, along with the removable changing top accessory.
4. Setup & Assembly
Assembly requires two adults. Please follow the step-by-step instructions provided in the separate assembly manual included with your product. The following is a general overview:
- Prepare the Area: Clear a spacious, clean, and flat area for assembly. Lay down a blanket or cardboard to protect the furniture pieces and your floor.
- Identify Parts: Unpack all components and identify them using the parts list and diagrams.
- Assemble the Main Frame: Connect the side panels to the bottom and top panels using the provided hardware (dowels, cam locks, screws).
- Install Back Panel: Secure the back panel to the main frame.
- Assemble Drawers: Construct the four drawers by attaching the sides, back, and bottom to the drawer fronts. Install drawer slides onto the drawers and the commode frame.
- Install Doors: Attach hinges to the door panels and then to the commode frame. Insert internal shelves as desired.
- Attach Handles/Knobs: Secure the handles or knobs to the drawer fronts and door panels.
- Install Changing Table Top (Optional): If using the changing table feature, attach the changing table top to the commode's top panel. This can be configured for longitudinal or transversal use.
- Secure to Wall: For safety, always attach the commode to a wall using the anti-tip kit provided. This prevents accidental tipping.
Image 2: The Lorelli Commode Cupboard configured with the changing table top in a transversal orientation. This setup provides a wider changing surface.
Image 3: The Lorelli Commode Cupboard configured with the changing table top in a longitudinal orientation. This setup offers a longer changing surface.
5. Operating Instructions
The Lorelli Commode Cupboard is designed for versatile use in a child's room.
5.1. Storage Use
- Drawers: Use the four spacious drawers for organizing clothes, diapers, or small toys. Ensure drawers are not overloaded to allow for smooth opening and closing.
- Doors with Shelves: The two doors conceal internal shelves, ideal for larger items, books, or additional storage bins.
5.2. Changing Table Function (Optional)
If you have installed the changing table top, ensure it is securely fastened. Always use a changing pad (not included) that fits the dimensions of the changing surface. Always keep one hand on your child while changing. Never leave a child unattended on the changing surface.
5.3. Convertible Options
The commode offers several configurations:
- Changing Table: Can be set up with the changing mat support in either a longitudinal or transversal position.
- Decorative End: The changing table top can be removed, and a decorative end piece can be installed for a standard dresser appearance.
- Additional Shelves: The changing table top can be converted into two additional shelves for increased open storage.
Image 4: The Lorelli Commode Cupboard configured as a standard dresser with a decorative end piece, without the changing table top.

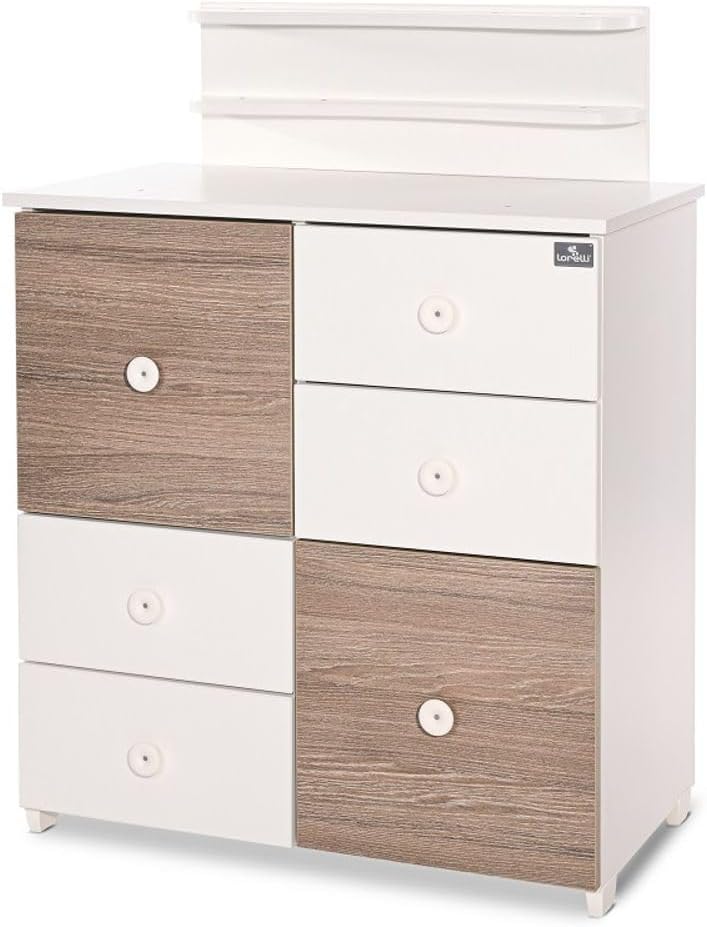

Image 5: The Lorelli Commode Cupboard configured with two additional open shelves, providing extra display or storage space.
6. Maintenance
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as they can damage the melamine finish.
- Hardware Check: Periodically check all screws, bolts, and fasteners to ensure they are tight. Re-tighten as needed to maintain stability and safety.
- Drawer Slides: If drawers become stiff, a small amount of silicone spray lubricant can be applied to the drawer slides.
- Avoid Moisture: Protect the commode from excessive moisture and direct sunlight to prevent warping or discoloration.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers stick or don't close smoothly. |
|
|
| Doors are misaligned or don't close properly. |
|
|
| Commode feels wobbly or unstable. |
|
|
8. Specifications
- Brand: Lorelli
- Model Number: 10170110042A
- Dimensions (L x W x H): 83 x 71 x 96 cm
- Material: 18 mm high-quality melamine particle board
- Color: Brown/White
- Number of Drawers: 4
- Number of Doors: 2 (with internal shelves)
- Features: Convertible design (changing table, decorative end, additional shelves)
- Assembly: Quick and easy, detailed step-by-step instructions included.
- Safety: Conforms to European safety standards. Anti-tip kit included.
9. Warranty & Support
Lorelli products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Lorelli website.
If you encounter any issues during assembly or use, or if you require replacement parts, please contact Lorelli customer support. Have your model number (10170110042A) and purchase details ready when contacting support.
Contact Information: Please refer to the contact details provided in your product packaging or on the official Lorelli website for the most up-to-date support information.
