1. Introduction
Thank you for choosing the Powrun P-ONE or P-ONE MAX Jump Starter. These powerful and versatile devices are designed to provide reliable jump-starting for your vehicle, serve as a portable power bank, and offer emergency lighting. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Powrun Jump Starter. Please read this manual thoroughly before first use and retain it for future reference.

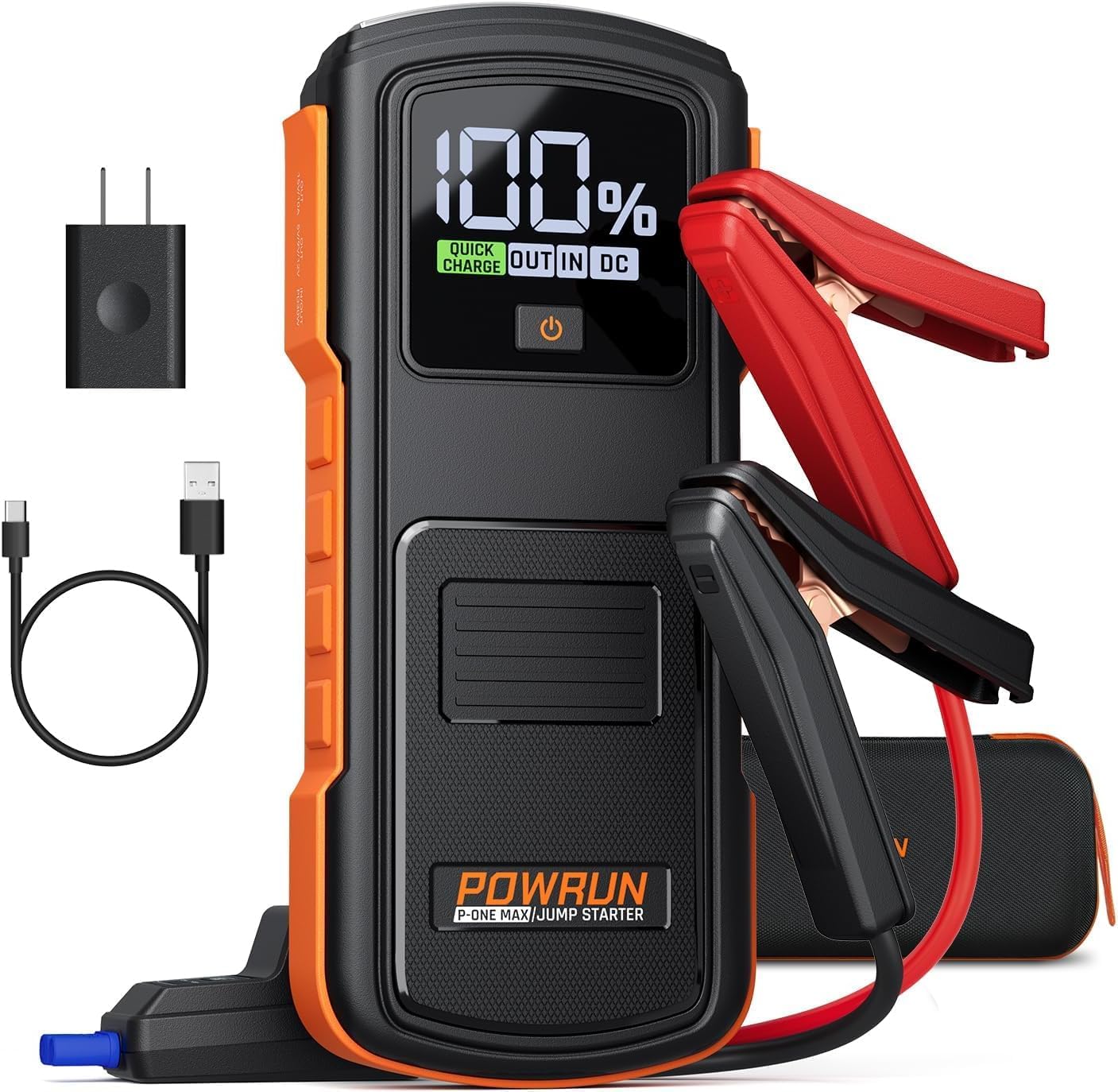

Image: The Powrun P-ONE MAX Jump Starter unit, smart jumper cables, wall charger, and USB cable, all neatly arranged with its EVA storage case.
2. Important Safety Instructions
Always observe the following safety precautions to prevent injury or damage to the device and vehicle.
- Read all instructions before using the product.
- Do not operate the unit if it has been damaged or modified.
- Do not immerse the unit in water or expose it to rain.
- Keep out of reach of children.
- Ensure proper ventilation during use.
- Do not short-circuit the output terminals.
- Do not attempt to jump start a frozen battery.
- Always connect the positive (+) clamp to the positive (+) battery terminal and the negative (-) clamp to the negative (-) battery terminal or a suitable ground point on the vehicle chassis.
- Disconnect the clamps in reverse order after jump starting.
- Operate within the specified temperature range (-4°F to 140°F).
3. Product Overview
3.1 Components and Features
Image: An overhead view of the Powrun P-ONE Jump Starter, highlighting its various components including the power button, LED light, emergency light, car jump start output, USB outputs, wall-charge input, 12V DC output, LCD screen, and an integrated compass.
- Power Button: Turns the unit on/off and cycles through LED light modes.
- LED Light: Provides illumination for various situations.
- Car Jump Start Output: Port for connecting the smart jumper cables.
- USB Outputs (5V/3A, 5V/2.1A): For charging mobile devices.
- Wall-Charge Input: For recharging the jump starter unit.
- 12V DC Output: For powering 12V accessories.
- LCD Screen: Displays battery level and operational status.
- Integrated Compass: (P-ONE model) For navigation assistance.
3.2 P-ONE vs. P-ONE MAX Comparison
The Powrun Jump Starter series includes two models: the P-ONE and the P-ONE MAX, each designed for different power requirements.
| Feature | P-ONE (2000A) | P-ONE MAX (4000A) |
|---|---|---|
| Peak Current | 2000 Amps | 4000 Amps |
| Engine Compatibility (Gas) | Up to 8.0 Liters | All Gasoline Engines |
| Engine Compatibility (Diesel) | Up to 6.5 Liters | All Diesel Engines up to 10.0 Liters |
| Starts Per Charge | Up to 25 times | Up to 40 times |
| Battery Capacity | 18000mAh | Not specified, but higher than P-ONE |
Image: The Powrun P-ONE Jump Starter with key specifications: 12 Volt, 25 Starts, 2000A Peak Current, 18000mAh Battery Capacity, suitable for 8.0L Gas and 6.5L Diesel engines, including motorcycles, cars, SUVs, and trucks.
Image: The Powrun P-ONE MAX Jump Starter with key specifications: 4000A Peak Current, 40 Starts, suitable for all 12V vehicles, all gasoline engines, and diesel engines up to 10.0 Liters.
4. Getting Started
4.1 Charging the Jump Starter
Before first use, fully charge your Powrun Jump Starter.
- Connect the provided wall charger to the "Wall-Charge Input" port on the jump starter.
- Plug the wall charger into a standard AC power outlet.
- The LCD screen will display the charging progress. Charge until the screen shows 100%.
- Once fully charged, disconnect the charger.
Image: A close-up of the Powrun P-ONE MAX Jump Starter's 4-inch display screen, showing "100%" charge, "QUICK CHARGE", and "OUT IN DC" indicators.
5. Operating Instructions
5.1 Jump Starting a Vehicle (Standard Mode)
Follow these steps to safely jump start a vehicle with a dead battery.
- Ensure the jump starter is sufficiently charged (at least 50%).
- Turn off the vehicle's ignition and all accessories.
- Connect the blue end of the smart jumper cables to the jump start output port on the Powrun unit.
- Connect the red (+) clamp to the positive (+) terminal of the vehicle's battery.
- Connect the black (-) clamp to the negative (-) terminal of the vehicle's battery or a suitable unpainted metal part of the engine block/chassis.
- Ensure the smart cable indicator light is green, indicating a correct connection.
- Start the vehicle's engine. If it doesn't start immediately, wait 30 seconds before trying again. Do not crank for more than 3 seconds.
- Once the vehicle starts, disconnect the black (-) clamp first, then the red (+) clamp from the battery.
- Disconnect the smart jumper cables from the Powrun unit.
5.2 Manual Forced Jump Start Mode (BOOST Function)
Use the BOOST function only when the vehicle battery voltage is extremely low (below 9V) and the standard jump start procedure does not work.
- Follow steps 1-5 from "Jump Starting a Vehicle (Standard Mode)".
- If the smart cable indicator light is not green (e.g., red or off), press and hold the "BOOST" button on the smart cable for 3-5 seconds until the green light flashes.
- Within 30 seconds of the green light flashing, start the vehicle's engine.
- Once the vehicle starts, immediately disconnect the black (-) clamp first, then the red (+) clamp from the battery.
- Disconnect the smart jumper cables from the Powrun unit.
Image: A hand pressing the "BOOST" button on the smart jumper cable connected to the Powrun P-ONE Jump Starter, illustrating the manual forced jump start mode for severely discharged batteries. The green "CORRECT" light is shown.
Image: A close-up of the Powrun P-ONE MAX Jump Starter's smart cable, showing the "BOOST" button and the green light flashing, indicating the boost function is active for low battery voltage.
5.3 Using as a Portable Power Bank
The Powrun Jump Starter can charge your electronic devices via its USB output ports.
- Connect your device's USB charging cable to one of the USB output ports (5V/3A or 5V/2.1A) on the jump starter.
- The jump starter will automatically begin charging your device.
- The Quick Charge 3.0 port provides faster charging for compatible devices.
5.4 Using the LED Emergency Lamp
The built-in LED light offers multiple modes for various situations.
- Press the Power Button once to turn on the LED light (Flash Light mode).
- Press again to cycle through modes: Strobe Light, SOS Light, Red Light.
- Press and hold the Power Button to turn off the LED light.
6. Maintenance
6.1 Care and Storage
- Store the jump starter in a cool, dry place away from direct sunlight and moisture.
- Avoid storing in temperatures outside the recommended range (-4°F to 140°F).
- Recharge the unit every 3-6 months, even if not used, to maintain battery health.
- Clean the unit with a dry, soft cloth. Do not use harsh chemicals or abrasives.
- Keep the ports free of dust and debris.
7. Troubleshooting
If you encounter issues with your Powrun Jump Starter, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Battery is completely discharged. | Charge the unit fully using the provided wall charger. |
| Vehicle does not jump start. | Incorrect clamp connection; Battery too low; Vehicle issue. | Check clamp polarity (red to +, black to -). Ensure smart cable indicator is green. If battery is extremely low, use BOOST function. Consult a mechanic if vehicle still won't start. |
| Smart cable indicator light is red/flashing. | Reverse polarity; Short circuit; Over-temperature. | Disconnect clamps and re-connect correctly. If red light persists, check for short circuits or allow unit to cool down. |
| USB charging not working. | Unit battery low; Cable issue; Device not compatible. | Ensure unit is charged. Try a different USB cable. Check device compatibility. |
8. Technical Specifications
| Specification | Value |
|---|---|
| Brand | Powrun |
| Model | P-ONE, P-ONE MAX |
| Peak Current (P-ONE) | 2000 Amps |
| Peak Current (P-ONE MAX) | 4000 Amps |
| Engine Compatibility (P-ONE) | Up to 8.0L Gas, 6.5L Diesel |
| Engine Compatibility (P-ONE MAX) | All Gas Engines, Up to 10.0L Diesel |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| USB Output 1 | 5V/3A (Quick Charge 3.0) |
| USB Output 2 | 5V/2.1A |
| Protection Systems | 8 types (e.g., reverse polarity, short circuit, over-temperature) |
9. Warranty and Customer Support
9.1 What You Get
Your Powrun Jump Starter package includes the following items:
Image: The complete contents of the Powrun P-ONE MAX Jump Starter package, including the jump starter unit, smart jumper cables, wall charger, USB-A to C cable, user manual, warranty card, and a carry bag.
- Powrun P-ONE / P-ONE MAX Jump Starter Unit
- Smart Jumper Cables / 12V Booster Clamps
- Wall Charger (5V/3A)
- USB Cable (USB-A to C)
- EVA Storage Case / Carry Bag
- User Manual (this document)
- Warranty Card
9.2 Warranty Information
Powrun products come with a warranty. Please refer to the included Warranty Card for specific terms, conditions, and duration of your product's warranty. Retain your proof of purchase for warranty claims.
9.3 Customer Support
For any questions, technical assistance, or warranty claims, please contact Powrun customer support.
- Visit the official Powrun Store on Amazon: Powrun Amazon Store
- Refer to the contact information provided on your Warranty Card or product packaging.
