Silvergear Electric Clothes Dryer with Heating

Introduction

Thank you for choosing the Silvergear Electric Clothes Dryer with Heating, Model 3683. This appliance is designed to efficiently dry your laundry using integrated heating elements. Please read this manual carefully before assembly, operation, or maintenance to ensure safe and optimal performance. Keep this manual for future reference.

Safety Instructions

• Always connect the appliance to a grounded power outlet.
• Do not operate the dryer with a damaged cord or plug. If damaged, contact qualified service personnel.
• Keep the appliance away from water or other liquids. Do not immerse the motor unit.
• Ensure adequate ventilation around the dryer during operation. Do not cover the air vents.
• The heated tubes are designed to remain at a safe temperature for hands and pets. However, avoid prolonged direct contact.
• Do not overload the drying racks. Distribute laundry evenly to prevent tipping.
• Unplug the appliance from the power outlet when not in use, before cleaning, or before moving.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Figure 1: The dryer's heated tubes maintain a safe temperature, suitable for households with children and pets, and will not damage clothes pegs.

Package Contents

Please check that all components are present and undamaged:

• Main Motor Unit with Power Cord
• Vertical Support Poles (2 sections)
• Horizontal Drying Racks (3 levels, foldable)
• Base with Wheels (4 wheels)
• Assembly Hardware (screws, connectors)
• User Manual

Setup and Assembly

Follow these steps to assemble your electric clothes dryer:

1. Attach Wheels: Securely attach the four wheels to the base unit. Ensure they are firmly in place for stability and mobility.
2. Assemble Vertical Poles: Connect the two sections of the vertical support poles. Insert the assembled pole into the main motor unit at the base.
3. Install Drying Racks: Attach the three foldable drying rack levels to the vertical support pole at the desired heights. Ensure they click into place securely.
4. Unfold Racks: Gently unfold the drying racks to their horizontal position.
5. Positioning: Place the assembled dryer on a flat, stable surface, ensuring it is near a grounded power outlet.

Figure 2: The dryer can be easily rolled into position, unfolded for use, and folded for compact storage.

Figure 3: The Silvergear Electric Clothes Dryer fully assembled and ready for use.

Operating Instructions

To operate your Silvergear Electric Clothes Dryer:

1. Load Laundry: Hang your damp clothes evenly across the heated bars of the drying racks. Avoid overcrowding to allow for optimal airflow and drying efficiency.
2. Connect Power: Plug the power cord into a suitable grounded electrical outlet.
3. Select Setting: Turn the control dial on the main motor unit to select one of the 6 available heat settings. The dryer will begin to emit warm air through the heated tubes.
4. Scented Cloth Compartment (Optional): For fresh-smelling laundry, open the designated compartment on the motor unit and insert a scented dryer sheet. The airflow will distribute the scent.
5. Drying Time: Drying time will vary depending on the type of fabric, load size, and selected heat setting. Monitor your laundry and remove items once dry.
6. Power Off: Once drying is complete, turn the control dial to the 'OFF' position and unplug the appliance from the power outlet.

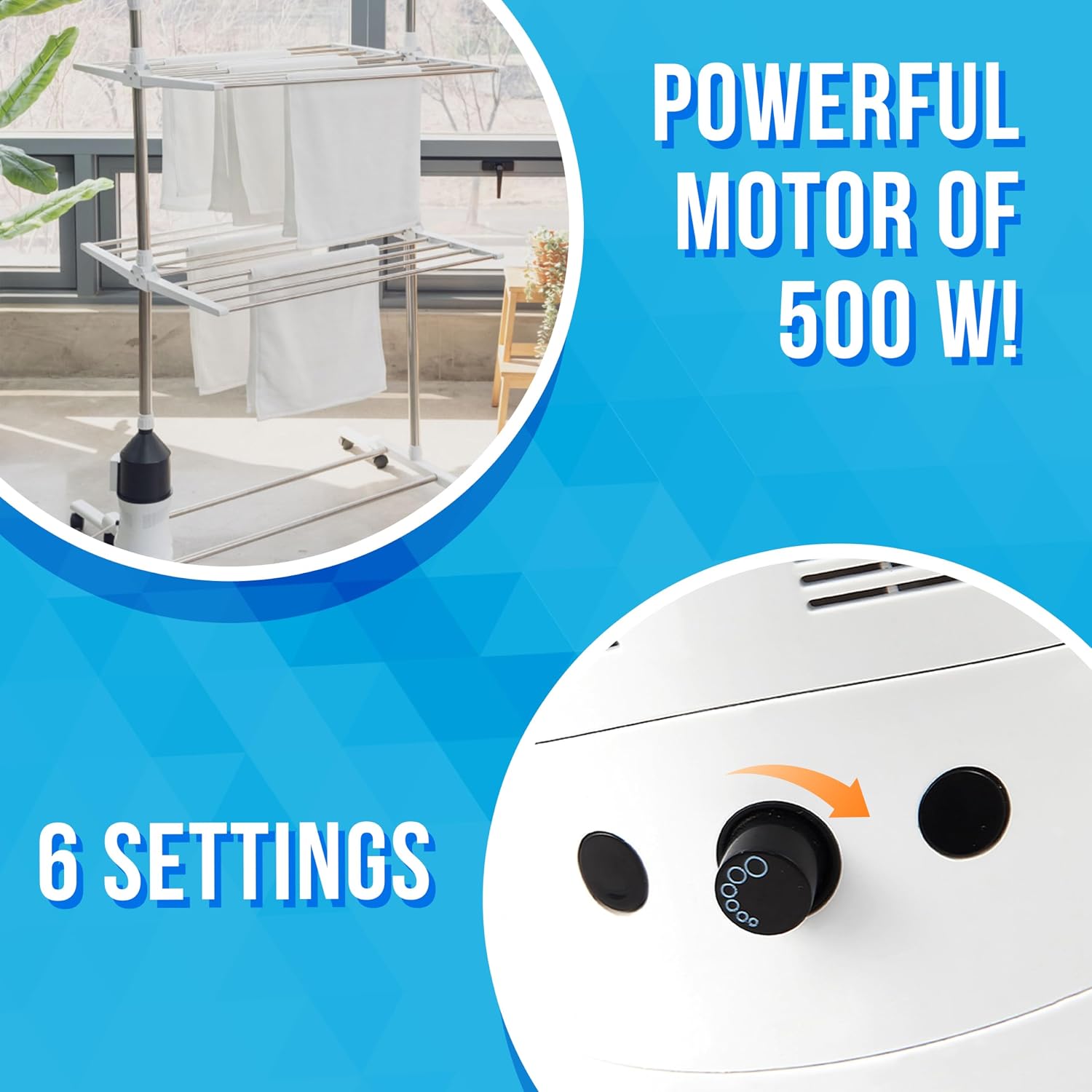

Figure 4: The control dial allows selection of 6 heat settings for the 500W motor.

Figure 5: The integrated compartment for scented dryer sheets enhances laundry freshness.

Maintenance and Care

Regular maintenance ensures the longevity and efficiency of your dryer:

• Cleaning: Before cleaning, always unplug the dryer. Wipe down the surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Dust Removal: Periodically check and clean any dust accumulation around the air intake and exhaust vents on the motor unit to maintain optimal airflow.
• Storage: When not in use, especially for extended periods, fold the drying racks for compact storage. Ensure the appliance is clean and dry before storing.

Figure 6: The dryer folds compactly for convenient storage when not in use.

Troubleshooting

If you encounter issues with your dryer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Silvergear customer support.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your purchase or contact your retailer. You may also visit the official Silvergear website for further assistance and contact details.
