HERO Maintenance Kit for Kawasaki KX300 Series Engine FH491V

Introduction

This manual provides essential information for the proper use and maintenance of your HERO Maintenance Kit for Kawasaki KX300 Series Engine FH491V. This kit is designed to help maintain your engine's performance and longevity by providing high-quality replacement components for routine service.

Kit Contents

The HERO Maintenance Kit includes the following components:

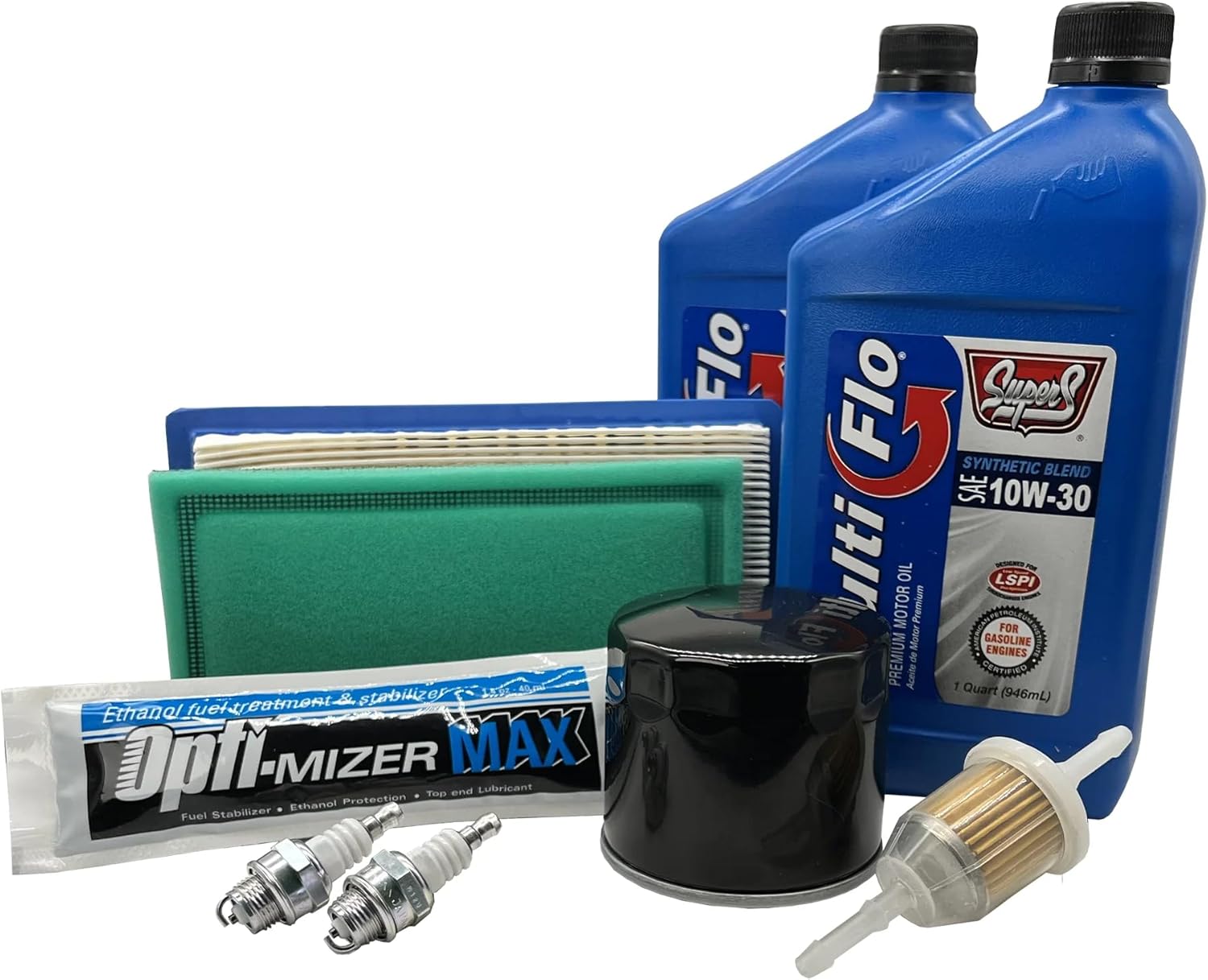

Image: All components of the HERO Maintenance Kit, including two bottles of SAE 10W30 engine oil, an air filter, a pre-filter, an oil filter, a fuel filter, a packet of Opti-Mizer MAX fuel stabilizer, and two spark plugs.

Note: While these components include OEM part numbers for reference, you will receive high-quality aftermarket replacements that meet or exceed manufacturer standards.

Compatibility

This maintenance kit is specifically designed for Kawasaki KX300 Series Engines, including the FH491V model. It is crucial to verify your engine model and existing part numbers against the components provided in this kit to ensure proper fitment and function. This kit is not universally compatible with all engine types, even if they share similar series designations.

Image: Cover art for the Kawasaki X300 Series Engine Maintenance Kit, featuring a green lawn tractor and the kit components, indicating compatibility with Kawasaki FH491V engines.

Setup and Installation

Before beginning any maintenance, ensure the engine is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting. Always refer to your specific Kawasaki engine's service manual for detailed, model-specific instructions and safety precautions.

General Guidelines:

1. Safety First: Wear appropriate personal protective equipment (PPE) such as gloves and eye protection.
2. Engine Cool Down: Allow the engine to cool completely before handling any components, especially oil and exhaust parts.
3. Disconnect Power: Disconnect the spark plug wire to prevent accidental engine startup.
4. Proper Disposal: Dispose of old oil, filters, and spark plugs according to local environmental regulations.

Image: A promotional image for the Complete Filter Kit, emphasizing the benefits of regular maintenance such as maximum power, performance, easy starts, and extended engine life.

Maintenance Procedures

Regular preventative maintenance is essential for optimal engine performance and longevity. The following procedures outline the replacement of components included in this kit.

1. Air Filter and Pre-Filter Replacement

1. Locate the air filter housing on your engine.
2. Open the housing and carefully remove the old air filter and pre-filter. Note their orientation.
3. Clean any debris from inside the air filter housing.
4. Install the new pre-filter (MIU10999) over the new air filter (MIU10998) as per the original setup.
5. Insert the new filter assembly into the housing, ensuring a snug fit, and close the housing securely.

2. Fuel Filter Replacement

1. Locate the in-line fuel filter (AM116304) between the fuel tank and the carburetor.
2. Use clamps to pinch the fuel lines on both sides of the filter to minimize fuel leakage.
3. Carefully remove the old filter by loosening the clamps and detaching the fuel lines. Be prepared for some fuel spillage.
4. Install the new fuel filter, ensuring the arrow on the filter points in the direction of fuel flow (towards the engine).
5. Secure the fuel lines with clamps and remove the pinching clamps. Check for leaks.

3. Oil Filter Replacement and Engine Oil Change

1. Place a drain pan beneath the engine's oil drain plug.
2. Remove the oil drain plug and allow all old engine oil to drain completely.
3. Once drained, replace the drain plug and tighten it to the manufacturer's specifications.
4. Position the drain pan under the oil filter (AM107423).
5. Unscrew the old oil filter. A filter wrench may be required.
6. Apply a thin film of new engine oil to the gasket of the new oil filter.
7. Screw on the new oil filter by hand until the gasket makes contact, then tighten an additional 1/2 to 3/4 turn. Do not overtighten.
8. Remove the oil fill cap/dipstick and slowly add the 2 quarts of SAE 10W30 engine oil.
9. Check the oil level using the dipstick, adding more if necessary, until it reaches the full mark.
10. Replace the oil fill cap.

4. Spark Plug Replacement

1. Carefully pull the spark plug wires from the old spark plugs.
2. Use a spark plug wrench to remove the old spark plugs.
3. Inspect the old spark plugs for signs of engine issues.
4. Gap the new spark plugs (BPMR6A or BPR4ES) to the specification found in your engine's service manual.
5. Thread the new spark plugs into the engine by hand to avoid cross-threading, then tighten with a wrench to the recommended torque.
6. Reconnect the spark plug wires firmly.

5. Fuel Stabilizer Usage

Add the Opti-Mizer MAX fuel stabilizer to your fuel tank according to the instructions on its packaging. This helps protect against fuel degradation, especially during storage, and maintains engine performance.

Troubleshooting

If you encounter issues after performing maintenance, consider the following:

• Engine Not Starting: Double-check spark plug connections, fuel filter orientation, and ensure adequate fuel supply. Verify spark plug gap.
• Rough Running Engine: Ensure air filter housing is sealed, spark plugs are correctly gapped and tightened, and fuel lines are free of air bubbles or leaks.
• Oil Leaks: Check the oil drain plug and oil filter for proper tightening. Ensure gaskets are seated correctly.
• Loss of Power: A clogged air filter or improperly installed fuel filter can restrict flow.

For persistent issues, consult your engine's service manual or a qualified service technician.

Specifications

• Brand: HERO
• Model Number: RSUKX300
• Engine Compatibility: Kawasaki KX300 Series Engine FH491V
• Engine Oil Type: SAE 10W30
• Spark Plug Options: BPMR6A, BPR4ES
• Manufacturer: Maintenance Solutions Unlimited
• Item Weight: Approximately 5.5 pounds

Image: A detailed graphic listing all components included in the maintenance kit, showing both OEM and RSU part numbers for air filter, pre-filter, fuel filter, oil filter, engine oil, fuel stabilizer, and spark plugs.

Warranty and Support

For information regarding the warranty of this HERO Maintenance Kit, please refer to the specific warranty documentation provided with your purchase or contact the manufacturer, Maintenance Solutions Unlimited, directly. Keep your proof of purchase for any warranty claims.

For technical support or further assistance, please contact the seller or manufacturer through the contact information provided at the time of purchase.
