Homeika H016PJ 20Kpa Cordless Stick Vacuum Cleaner User Manual

Introduction

Thank you for choosing the Homeika H016PJ 20Kpa Cordless Stick Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before first use and retain it for future reference.

This image displays the Homeika H016PJ cordless vacuum cleaner, illustrating its versatility. It shows the main unit with an LED display, the extension wand, and various interchangeable attachments including the floor brush, crevice tool, and dusting brush, highlighting its 8-in-1 functionality.

Important Safety Instructions

• Read all instructions before using the appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use without dust cup and/or filters in place.
• Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to battery pack, picking up or carrying the appliance.
• Recharge only with the charger specified by the manufacturer.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Do not use an appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose an appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C (265°F) may cause explosion.

Product Components

The Homeika H016PJ vacuum cleaner comes with several components designed for versatile cleaning:

• Main Motor Unit with LED Display
• Detachable Battery Pack
• Extension Wand
• Motorized Floor Brush Head with LED Lights
• Crevice Tool
• Dusting Brush / Sofa Brush
• Charger

This image showcases the Homeika H016PJ cordless vacuum cleaner along with its primary components, including the main unit, extension wand, and floor brush, ready for assembly.

Setup and Assembly

1. Battery Charging

Before first use, fully charge the detachable battery. Connect the charger to the battery pack and plug it into a power outlet. The LED display on the main unit will indicate charging status and battery level. A full charge takes approximately 4 hours and provides up to 30 minutes of runtime.

This image focuses on the detachable battery pack of the vacuum, detailing its specifications: 6*2200 mAh batteries, a 4-hour charging time, and a maximum run time of 30 minutes on a single charge.

2. Assembling the Vacuum

1. Attach the Extension Wand: Insert the extension wand into the main motor unit until it clicks securely into place.
2. Attach the Floor Brush: Connect the motorized floor brush head to the other end of the extension wand until it locks.
3. Attach Battery: Slide the charged battery pack into the main motor unit until it clicks.

3. Attaching Accessories

For handheld use or specific cleaning tasks, detach the extension wand and attach the desired accessory directly to the main motor unit:

• Crevice Tool: Ideal for narrow gaps, corners, and tight spaces.
• Dusting Brush / Sofa Brush: Suitable for upholstery, curtains, shelves, and delicate surfaces.

Operating Instructions

1. Power On/Off and Suction Modes

Press the power button to turn the vacuum on. The vacuum features two different power speeds. Press the button again to switch between the standard and maximum suction modes. The LED display will show the current battery level and brush operating status.

A detailed view of the vacuum's IQ LED display, which provides real-time information on the remaining battery runtime and the operational status of the brush head, ensuring users are informed during cleaning.

2. Cleaning Different Surfaces

The Homeika H016PJ is designed for effective cleaning on both hard floors and carpets. The motorized floor brush head includes LED lights to illuminate dust and debris in dimly lit areas.

• Hard Floors: Use the standard suction mode for daily cleaning. The soft roller brush is gentle on delicate surfaces.
• Carpets: Switch to maximum suction mode for deeper cleaning on carpets and rugs. The brush roll effectively agitates carpet fibers to lift embedded dirt and pet hair.

The vacuum is depicted cleaning both carpeted and hard floor surfaces, emphasizing its powerful performance with a 200W upgraded motor and 20Kpa suction, suitable for diverse flooring types.

3. Using Attachments for Versatile Cleaning

Utilize the various attachments for specialized cleaning tasks:

• Crevice Tool: Perfect for reaching into tight corners, along baseboards, and between sofa cushions.
• Dusting Brush / Sofa Brush: Use for dusting shelves, cleaning upholstery, car interiors, and pet hair on furniture.
• Extension Wand: Extends reach for high areas like ceilings or under low furniture.

This composite image illustrates the 8-in-1 cleaning capabilities of the Homeika H016PJ vacuum. It shows the vacuum being used to clean under low furniture, as a handheld unit for sofas, with the extension wand for high-reach areas, and with a brush attachment for upholstery.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

1. Emptying the Dust Cup

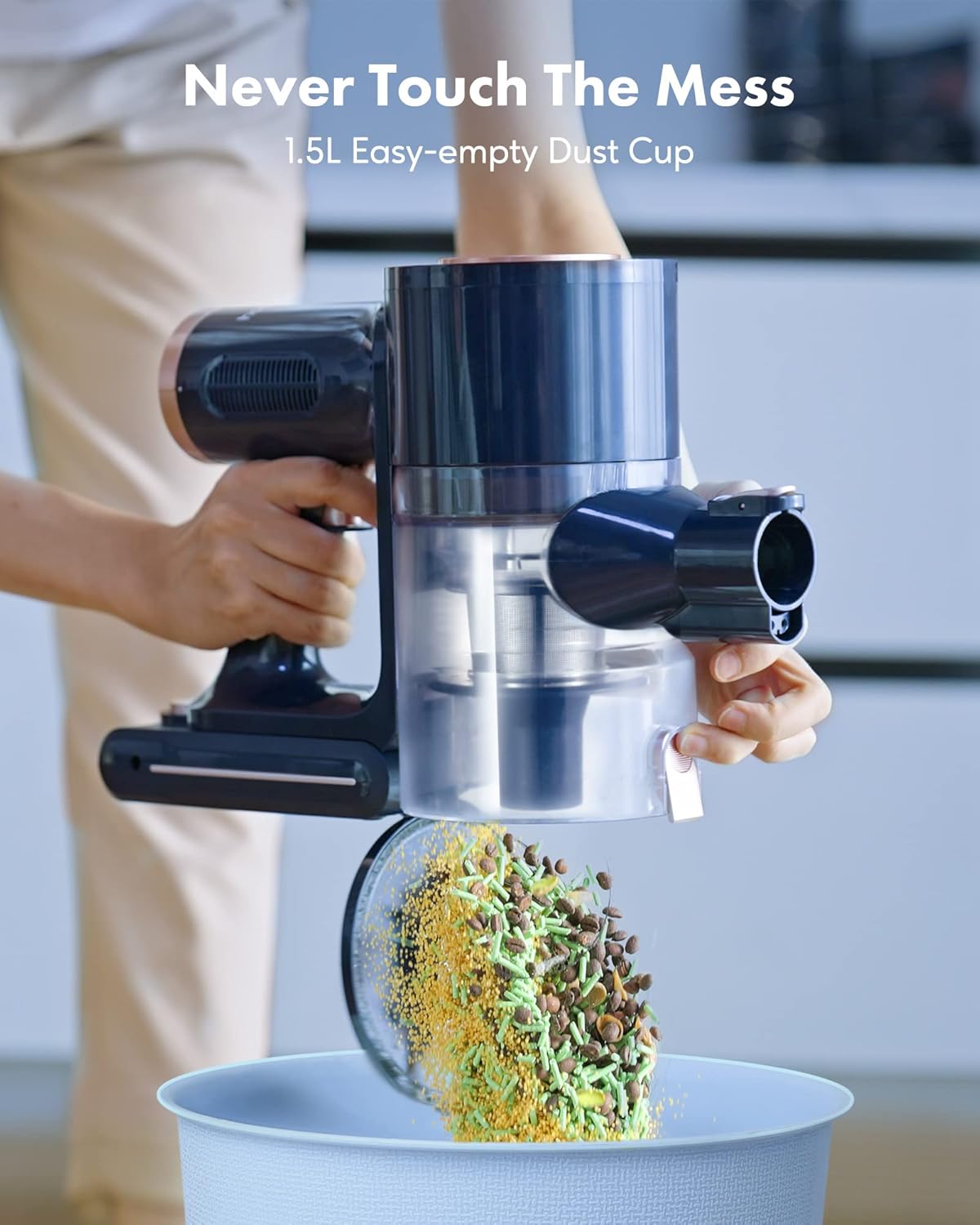

The vacuum features a 1.5-liter easy-empty dust cup. To empty, press the release button on the dust cup and tip its contents into a trash bin. It is recommended to empty the dust cup after each use or when the MAX fill line is reached.

2. Cleaning Filters

The Homeika H016PJ uses a HEPA filter system to trap fine dust and allergens. Regularly clean the filters to maintain suction power and air quality.

1. Remove Filters: Twist and pull to remove the filter assembly from the dust cup.
2. Clean: Tap off loose dirt. Rinse the HEPA filter and pre-filter under cold running water. Do not use detergent.
3. Dry: Allow filters to air dry completely for at least 24 hours before reassembling. Ensure they are completely dry to prevent damage to the motor.
4. Reassemble: Once dry, place the filters back into the dust cup and reattach the dust cup to the main unit.

An internal diagram of the vacuum's advanced filtration system, highlighting its ability to remove 99.99% of mites and effectively trap allergens and dirt, contributing to cleaner air.

3. Cleaning the Brush Roll

Periodically check the brush roll for tangled hair or debris. Use scissors to carefully cut away any tangled hair and remove it. Ensure the brush roll spins freely.

Troubleshooting

If you encounter issues with your Homeika H016PJ vacuum cleaner, please refer to the following common solutions:

• No Power / Not Turning On:
  • Ensure the battery is fully charged.
  • Check if the battery pack is securely inserted into the main unit.
• Loss of Suction:
  • Empty the dust cup if it is full.
  • Clean the HEPA and pre-filters as described in the Maintenance section.
  • Check for blockages in the extension wand, floor brush, or attachments.
• Brush Roll Not Spinning:
  • Ensure the floor brush is properly attached.
  • Check the brush roll for tangled hair or debris and clear any obstructions.
• Battery Not Charging / Display Flashes:
  • Ensure the charger is correctly connected to the battery and a working power outlet.
  • If the display flashes and the battery does not charge, this may indicate a battery or charger issue. Contact customer support for assistance.

Specifications

Warranty and Customer Support

For warranty information, product registration, or customer support, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for warranty claims.
