kleankin Wall-Mounted Bathroom Furniture Set (Model: 834-605V00GY) - Instruction Manual

1. Product Overview

This manual provides instructions for the assembly, operation, and maintenance of your kleankin Wall-Mounted Bathroom Furniture Set. This 3-piece set includes a mirror with a shelf, a vanity unit with a ceramic basin, and a tall cabinet, designed to enhance your bathroom's functionality and aesthetic.

Figure 1: kleankin Wall-Mounted Bathroom Furniture Set (Grey)

Figure 2: Components of the 3-piece set

2. Safety Information

Please read all safety instructions carefully before assembly and use. Retain this manual for future reference.

• Installation: Ensure that the furniture is installed strictly according to the provided assembly instructions. Improper installation can lead to instability and potential injury.
• Load Capacity: Observe the indicated maximum load capacity for each component. Overloading shelves or cabinets can cause damage or collapse.
• Wall Mounting: This furniture set is designed for wall mounting. Use appropriate hardware for your wall type to ensure secure attachment. If unsure, consult a qualified professional.
• Children: Keep small parts and packaging materials away from children during assembly. Do not allow children to climb on or play with the furniture.
• Water Exposure: While designed for bathroom use, avoid excessive water exposure to the furniture's particle board components to prevent damage.

3. Package Contents

The kleankin Wall-Mounted Bathroom Furniture Set includes the following main components:

• 1 x Mirror with integrated shelf
• 1 x Vanity Unit with ceramic basin
• 1 x Tall Cabinet with adjustable shelves
• All necessary assembly hardware and a detailed assembly manual.

Please check all components against the packing list in the separate assembly manual before beginning assembly.

4. Setup and Assembly

This bathroom furniture set requires self-assembly and wall mounting. A detailed assembly manual is included with your product. Please follow the step-by-step instructions provided in that manual carefully.

Key Assembly Considerations:

• Tools Required: Ensure you have the necessary tools as specified in the assembly manual (e.g., screwdriver, drill, level).
• Wall Type: The wall-mounted design allows for flexible height placement. Choose a suitable wall location and use appropriate wall anchors for your specific wall material (e.g., drywall, concrete, tile).
• Leveling: Use a spirit level to ensure all components are mounted straight and level for proper function and appearance.
• Water Connections: For the vanity unit, ensure proper plumbing connections for the ceramic basin. If you are not experienced with plumbing, it is recommended to consult a professional.

Figure 3: Wall-mounted design allows for customizable height

5. Operating Instructions (Usage)

Your kleankin bathroom furniture set is designed for efficient storage and daily use.

Storage Capacity:

• The vanity unit provides enclosed storage beneath the ceramic basin for larger items or cleaning supplies.
• The tall cabinet offers extensive storage with multiple compartments.
• The mirror includes a small shelf for frequently used items like toothbrushes or small toiletries.

Adjustable Shelves:

The shelves within the tall cabinet can be adjusted to three different positions. To adjust a shelf:

1. Empty the shelf of its contents.
2. Carefully remove the shelf from its current position.
3. Reinsert the shelf into the desired set of pre-drilled holes. Ensure it is securely seated on all four supports.

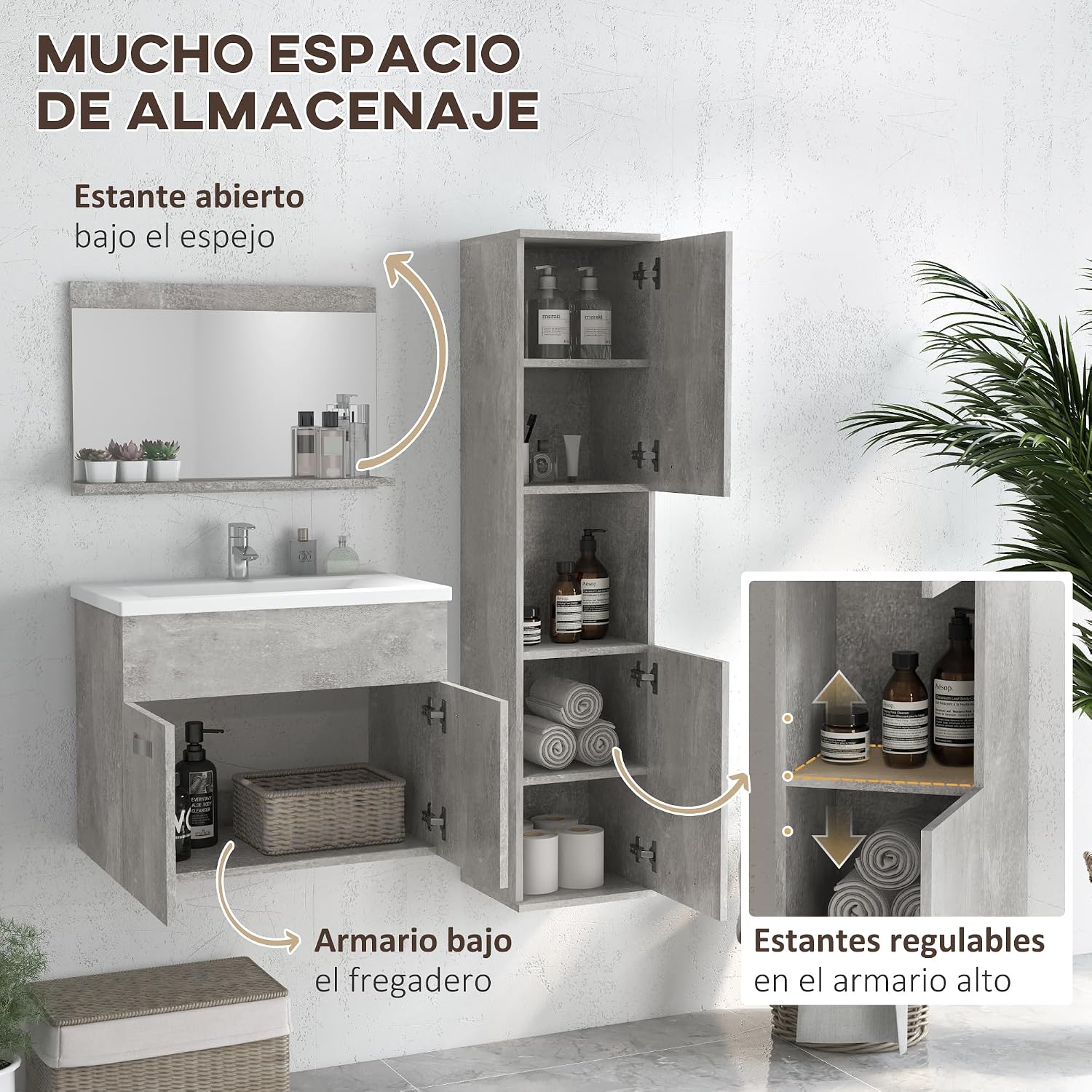

Figure 4: Ample storage and adjustable shelves

Figure 5: Interior of the tall cabinet

6. Maintenance

To ensure the longevity and appearance of your bathroom furniture set, follow these maintenance guidelines:

• Cleaning: Wipe all surfaces clean with a soft, damp cloth. For stubborn stains, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the finish.
• Drying: After cleaning, wipe surfaces dry with a clean cloth to prevent water spots or moisture damage, especially on particle board components.
• Spills: Promptly wipe up any water spills or splashes on the furniture to prevent moisture absorption.
• Mirror Care: Clean the mirror with a glass cleaner and a soft, lint-free cloth.

7. Troubleshooting

If you encounter any issues with your bathroom furniture set, refer to the following common solutions:

• Wobbly Cabinet/Mirror:
  • Ensure all wall mounting screws and internal assembly screws are tightened securely.
  • Verify that the wall anchors used are appropriate for your wall type and installed correctly.
  • Check if the wall surface is even. Shims may be needed for uneven surfaces.
• Doors Not Closing Properly:
  • Check the hinges for proper alignment and tightness. Adjust if necessary according to the assembly manual.
  • Ensure the cabinet itself is level and square.
• Water Leakage from Basin:
  • Inspect all plumbing connections for tightness.
  • Check the sealant around the drain and faucet for any gaps or cracks.
  • If issues persist, consult a qualified plumber.

For issues not covered here, please contact customer support.

8. Specifications

Detailed specifications for the kleankin Wall-Mounted Bathroom Furniture Set (Model: 834-605V00GY):

Figure 6: Product Dimensions

Figure 7: Ceramic basin with overflow protection

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact the retailer. For technical support or replacement parts, please contact kleankin customer service through the details provided on the product packaging or the retailer's website.
