Sandoo SC1050 Steam Mop

1. Introduction

Thank you for choosing the Sandoo SC1050 Steam Mop. This versatile appliance is designed to provide deep, chemical-free cleaning for a variety of surfaces in your home. Please read this manual thoroughly before first use to ensure safe and optimal operation.

2. Important Safety Instructions

• Always unplug the appliance from the electrical outlet when not in use and before performing any maintenance or cleaning.
• Do not leave the steam mop unattended while it is powered on.
• Use only distilled or demineralized water in the water tank to prevent mineral buildup and extend the life of the appliance.
• Keep the appliance out of reach of children and pets.
• Do not direct steam at people, animals, or electrical appliances.
• Ensure the power cord is not damaged or tangled during use.

3. Product Overview

3.1 Components

The Sandoo SC1050 Steam Mop comes with a range of accessories to tackle various cleaning tasks. The main components include:

• SC1050 Steamer Unit
• Measuring Cup
• Ironing Brush
• Window Squeegee
• Scraping Tool
• Round Brush
• White Pad (2 included)
• Blue Pad (2 included)
• Tray / Carpet Glider
• Accessory Adaptor
• Towel
• Angel Nozzle
• Flat Brush
• Large Round Brush

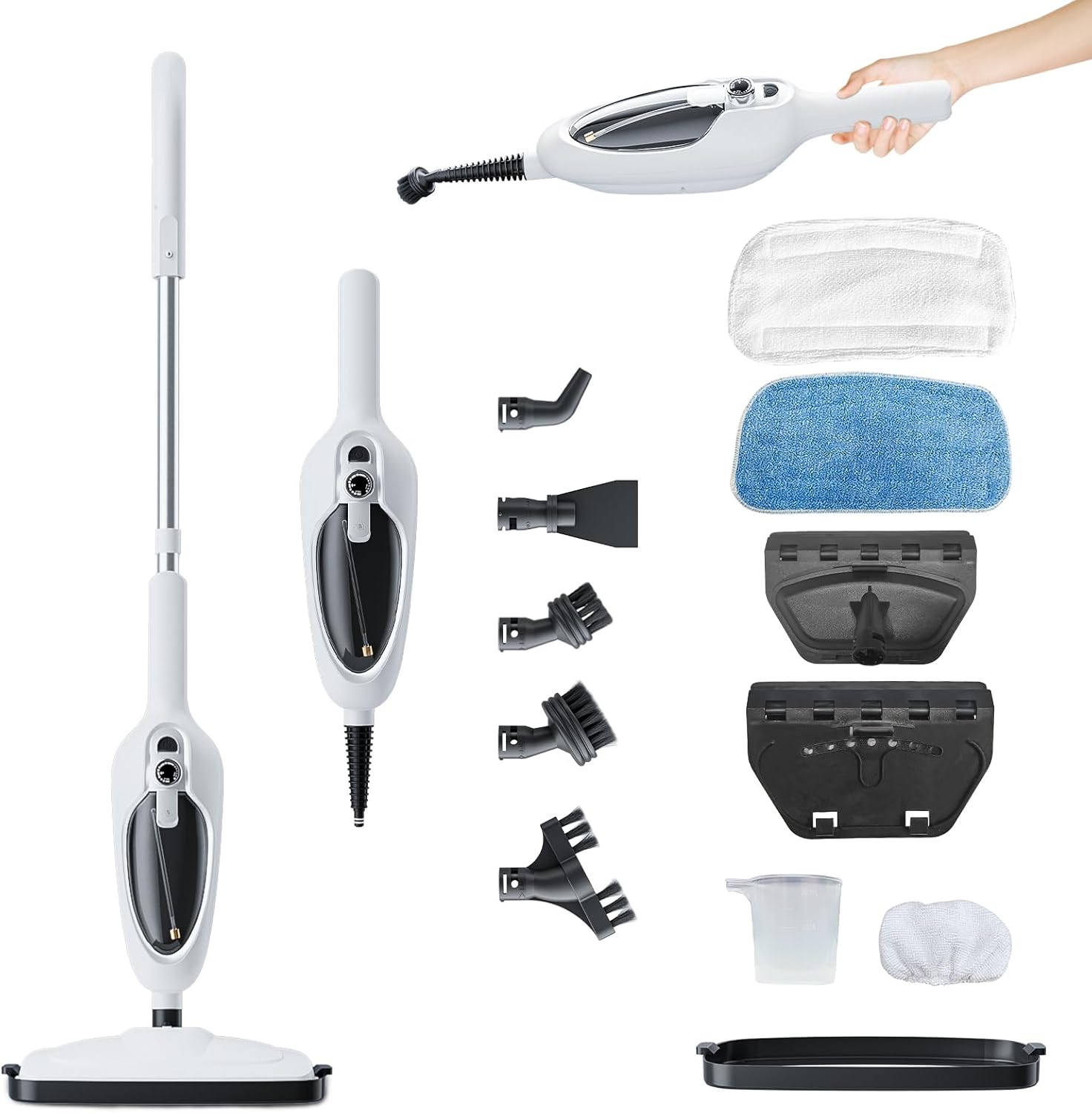

Figure 3.1: All components included with the Sandoo SC1050 Steam Mop.

3.2 Key Features

• Multifunctional Design: Combines floor mop and handheld steam cleaner functions.
• High Temperature Steam: 1200W power produces 105℃/221℉ chemical-free hot steam for deep cleaning.
• Versatile Floor Compatibility: Suitable for hardwood, laminate, tile, marble, vinyl floors, and carpets (with carpet glider).
• Fast Heat-Up: Ready to use in 15-18 seconds.
• Adjustable Steam Output: Control steam intensity for different cleaning needs.
• Large Water Tank: 300ml/10 oz capacity provides up to 20 minutes of continuous steaming.
• Long Power Cord: 20ft power cord for extended reach.
• 13-in-1 Attachments: Various nozzles and brushes for diverse cleaning tasks.

Figure 3.2: The Sandoo SC1050 Steam Mop and its versatile attachments.

Figure 3.3: The steam mop in action, demonstrating its cleaning capability.

Figure 3.4: The steam mop provides deep cleaning for a healthy home environment.

Figure 3.5: The adjustable steam feature allows for customized cleaning.

Figure 3.6: The steam mop is designed for fast drying on various floor types.

Figure 3.7: Various accessories for targeted cleaning of different surfaces.

4. Setup

4.1 Assembly

The Sandoo SC1050 Steam Mop requires minimal assembly. Simply connect the handle rod to the main body and then attach the mop head until they click securely into place.

4.2 Filling the Water Tank

1. Ensure the appliance is unplugged from the power outlet.
2. Open the water tank cap.
3. Using the provided measuring cup, carefully fill the 300ml water tank with distilled or demineralized water. Do not overfill.
4. Securely close the water tank cap.

4.3 Attaching Mop Pads

Align the microfiber mop pad with the mop head and press firmly to attach it using the hook-and-loop fasteners. For carpet cleaning, first attach a white pad, then place the carpet glider over the mop head and pad.

Figure 4.1: The steam mop with its included pads and accessories.

5. Operating Instructions

5.1 Powering On and Steam Adjustment

1. Plug the power cord into a grounded electrical outlet.
2. Press the power button to turn on the appliance. The indicator light will illuminate.
3. Allow 15-18 seconds for the steam mop to heat up.
4. Rotate the steam adjustment dial to select the desired steam level (Min to Max).

5.2 Using on Various Floor Types

• Hard Floors (Hardwood, Laminate, Tile, Marble, Vinyl): Move the steam mop slowly and steadily across the floor. The hot steam will clean and sanitize the surface.
• Carpets: Attach the white pad and the carpet glider. Move the steam mop over the carpet to refresh and sanitize. Note that the carpet glider is specifically for carpets/blankets.

5.3 Converting to Handheld Steam Cleaner

The steam mop can be easily converted into a handheld steam cleaner for targeted cleaning:

1. Press the button down to remove the mop head from the main body.
2. Connect the accessory adaptor (direct nozzle) to the main body.
3. Attach any desired nozzle accessory (e.g., flat brush, round brush, scraping tool) to the adaptor.
4. The handheld steam cleaner is now ready for use on various surfaces like grout, stovetops, or bathroom fixtures.

Figure 5.1: Step-by-step guide to transform the steam mop into a versatile handheld steam cleaner.

6. Maintenance and Cleaning

6.1 Cleaning Mop Pads

The included microfiber mop pads are washable and reusable. After each use, remove the pad from the mop head and wash it by hand or machine wash with mild detergent. Do not use bleach or fabric softener. Air dry the pads completely before reattaching.

Figure 6.1: Mop pads are washable and reusable for continued effective cleaning.

6.2 Draining Water Tank and Storage

After each use, turn off the appliance and unplug the power cord. Allow the unit to cool down completely. If there is any remaining water in the tank, it is recommended to drain it before storing the appliance. Store the steam mop in a cool, dry place.

7. Troubleshooting

Figure 7.1: Factory testing ensures product quality, which may result in minimal residual water in the tank.

8. Specifications

9. Warranty and Support

Specific warranty information is not provided in the available product data. Please refer to the product packaging or contact Sandoo customer support for details regarding warranty coverage and service.

For further assistance or inquiries, please visit the official Sandoo website or contact their customer service department. Contact information is typically found on the product packaging or within the purchase documentation.
