Otto Tech MiniFit Speakers & Receivers Unit Instruction Manual

1. Introduction

This manual provides essential information for the proper use, installation, and maintenance of your Otto Tech Genuine OEM MiniFit Speakers & Receivers Unit. This unit is designed as a replacement part for compatible hearing aids, ensuring optimal sound quality and performance. Please read these instructions carefully before attempting any installation or maintenance.

2. Product Overview

The Otto Tech MiniFit Speakers & Receivers Unit is a genuine OEM replacement component for various hearing aid brands, including Oticon, Bernafon, Sonic, and Philips. This specific unit is a Type 85 (Moderate power level), Size 2, and is intended for the Right ear (indicated by a red marking).

Image: The Otto Tech MiniFit Speakers & Receivers Unit, showing its design and red marking for the right ear.

Image: The product as it appears in its retail packaging, indicating compatibility and specifications.

2.1 Compatibility

This MiniFit receiver is compatible with a range of Oticon hearing aids, including Oticon Alta, Oticon Alta Pro, Oticon Real, Oticon Ria, Oticon More, Oticon Opn, Oticon Ruby, Oticon Opn S, Oticon Siya, Oticon miniRITE, Oticon Nera, Oticon Zircon, Oticon minirite t, Oticon Opn 1 miniRITE, and Oticon own 1. It is also compatible with Bernafon, Sonic, and Philips branded hearing aids that use the MiniFit system.

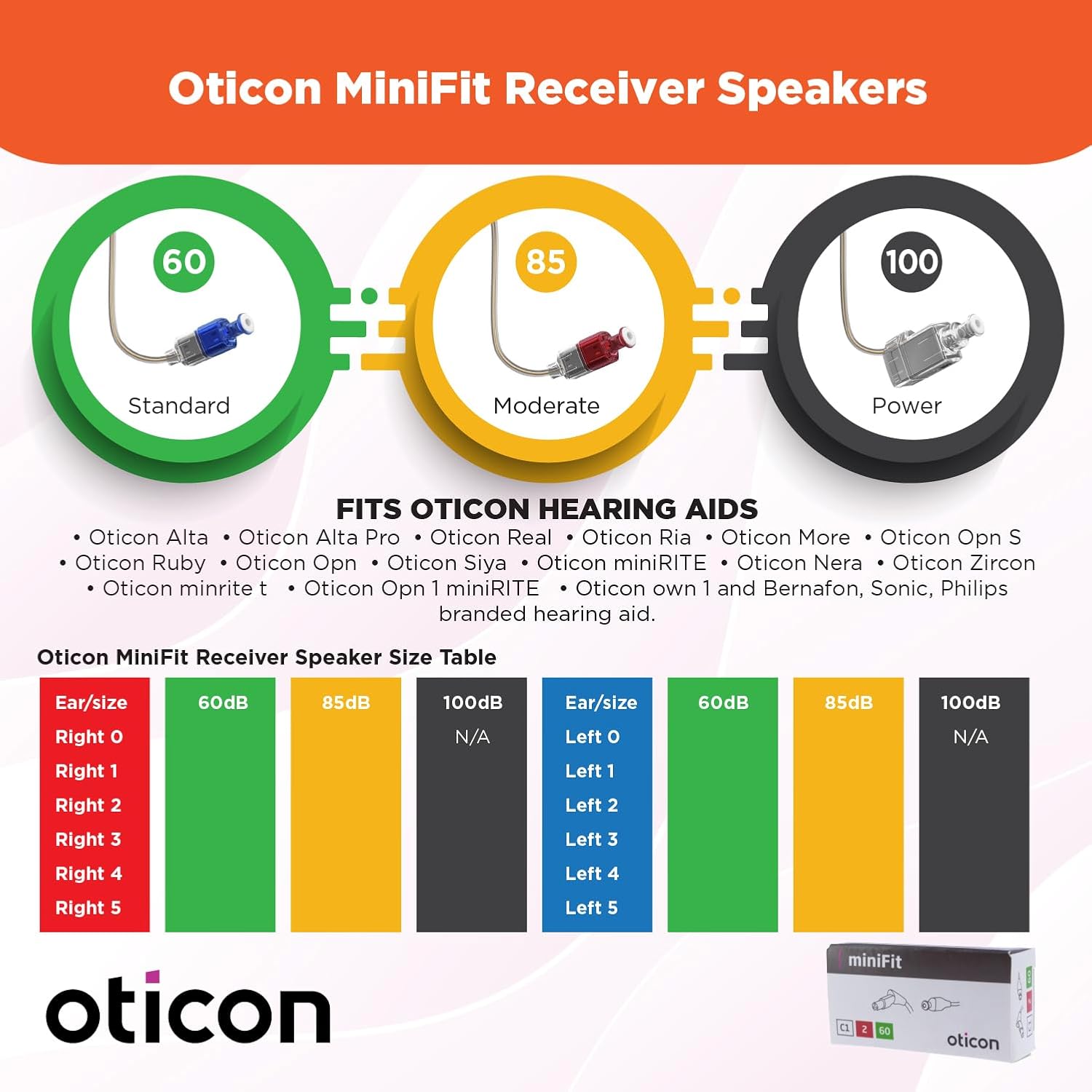

Image: Visual guide to Oticon MiniFit receiver types and a table detailing compatible hearing aid models and available sizes/power levels.

2.2 Identifying Your Receiver Wire

To ensure you have the correct replacement, identify the specifications of your current receiver wire:

• Power Level: The power level (e.g., 85dB for Moderate) is printed on one side of the receiver, often in orange for Type 85.
• Length/Size: A single number between 0-5 indicates the length you need. This number is also printed on the receiver.
• Side: Left-sided wires typically have a blue end, while right-sided wires have a red end.

Image: Guide on how to identify the power level, length, and side of your Oticon MiniFit receiver wire.

3. Setup and Installation

Replacing the receiver wire on your hearing aid requires careful handling. It is recommended to perform this task in a clean, well-lit area.

3.1 Tools Required

• The new Otto Tech MiniFit Speakers & Receivers Unit.
• A small removal tool (often provided with new receivers or hearing aid cleaning kits).
• A soft, clean cloth.

Image: The replacement receiver unit, cleaning cloth, and the specialized tool for removal and installation.

3.2 Installation Steps

1. Remove the Old Receiver: Gently pull the old receiver wire away from the hearing aid body. If it's difficult, use the small removal tool to carefully pry it out. The tool typically has a small hook or notch designed to fit into the connection point.
2. Clean the Connection Point: Use a soft, clean cloth to wipe any debris from the connection port on the hearing aid body.
3. Insert the New Receiver: Align the new receiver wire with the connection port on the hearing aid body. Push it firmly but gently until it clicks securely into place. Do not force it.
4. Verify Connection: Ensure the wire is fully seated and does not easily pull out.

3.3 Video Guide

For a visual demonstration of how to change your Oticon hearing aid receiver wire, please refer to the video below:

4. Operating and Care

Once installed, the receiver unit operates as part of your hearing aid system. Proper care extends the life of the unit.

• Handle with Care: Avoid pulling on the wire when removing the hearing aid. Always handle the hearing aid body.
• Keep Dry: Protect your hearing aid and receiver from moisture and humidity.
• Clean Regularly: Use a soft, dry cloth to gently wipe the receiver and wire daily to remove earwax or debris.

5. Maintenance

Regular inspection and timely replacement are crucial for maintaining optimal sound quality from your hearing aids.

• It is advisable to check your receiver every six months for signs of wear, damage, or reduced sound quality.
• Replace the receiver unit if you notice a significant decrease in sound clarity, intermittent sound, or if the wire appears visibly damaged or corroded.

Image: Visual reminder to regularly check and replace your receiver unit to ensure consistent sound quality.

6. Troubleshooting

If you experience issues with your hearing aid after replacing the receiver unit, consider the following:

• No Sound or Weak Sound: Ensure the receiver wire is fully inserted into the hearing aid body. Check for any visible blockages in the speaker tip (wax guard).
• Distorted Sound: This often indicates a failing receiver. If cleaning the speaker tip does not resolve the issue, the receiver may need replacement.
• Intermittent Sound: Check the connection of the receiver wire. If the problem persists, the wire may be damaged internally and require replacement.
• Incorrect Side/Size: Verify that you have installed the correct receiver type (e.g., Type 85), size (e.g., Size 2), and side (red for right, blue for left) for your specific hearing aid and ear.

If troubleshooting steps do not resolve the issue, consult with your audiologist or hearing aid professional.

7. Specifications

8. Warranty and Support

For specific warranty information regarding your Otto Tech MiniFit Speakers & Receivers Unit, please refer to the product packaging or contact the seller directly. As this is a replacement part, warranty terms may vary.

For technical support or further assistance, please reach out to the retailer or the manufacturer, Otto Tech, through their official support channels.
