1. Product Overview
The SunSun HW-4000 is an external canister filter designed for aquariums, featuring a 3-stage filtration system and an integrated 9W UV lamp. It incorporates a variable frequency water pump for stable and quiet operation, along with an external digital controller for precise adjustments.
Key Features:
- Integrated variable frequency water pump for stable and quiet performance.
- External digital display controller to adjust pump speed and UV lamp operating time.
- Durable ceramic shaft, resistant to wear and rust, suitable for both fresh and saltwater environments.
- Multi-layer filter basket design for various filter media, facilitating easy cleaning.
- Unique inlet and outlet design for secure attachment to the aquarium.
- Siphon principle for efficient air discharge during setup.
2. Product Components
Familiarize yourself with all the components included with your SunSun HW-4000 filter before beginning installation.
Image: Exploded view of the SunSun HW-4000 external canister filter showing all individual parts and their numbered labels.
- Inlet and outlet bending joint
- Lid
- Lid clamp
- Container (Main filter body)
- Smart controller
- Water filter basket (x3)
- Water pipe holder (x3)
- Pressing buckle (x6)
- Telescopic pipe
- Suction cup
- Water filter cover
- Flexible tube (1.5m x2)
- Three-way water outlet flange
- Outlet
- Dispressing water pipe (x4)

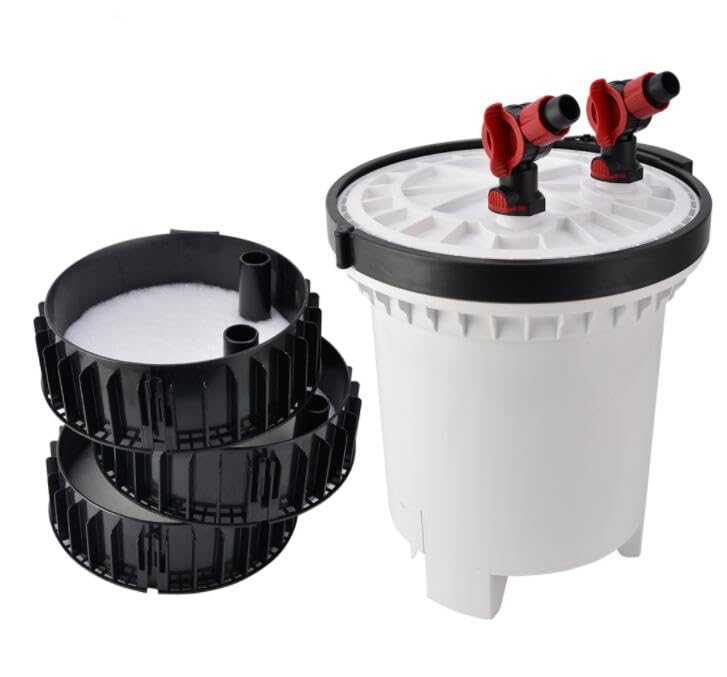

Image: The main filter unit alongside the three stackable filter media baskets, ready for media placement.
3. Installation and Setup
Follow these steps carefully to install and set up your SunSun HW-4000 external canister filter.
- Prepare Filter Media: Place your chosen biological, chemical, and mechanical filter media into the three filter baskets. Ensure the media is arranged to allow proper water flow.
- Assemble Filter Baskets: Stack the filled filter baskets inside the main filter container.
- Install Pipe Fittings: Attach the inlet and outlet bending joints to the filter lid. Securely connect the flexible tubes to these joints.
- Position Inlet and Outlet: Fix the water inlet and outlet pipes securely onto your fish tank using the provided water pipe holders and suction cups. Ensure the inlet is submerged and the outlet is positioned to create good water circulation.
- Close Inlet and Open Outlet: Before priming, ensure the inlet valve is closed and the outlet valve is open.
- Prime the Filter (Siphon Drainage):
- Unscrew the nut on the priming port and remove the water plug.
- Fill the hole with water until the pipe is full.
- Replace the water plug and screw the nut back tightly.
- Open the inlet valve. The siphon principle will automatically draw water into the filter barrel.
- Allow water to flow through the filter and discharge air from the water outlet hose until a steady stream of water emerges.
- Connect Power: Once water is flowing steadily and all air is expelled, switch on the power supply to the filter.

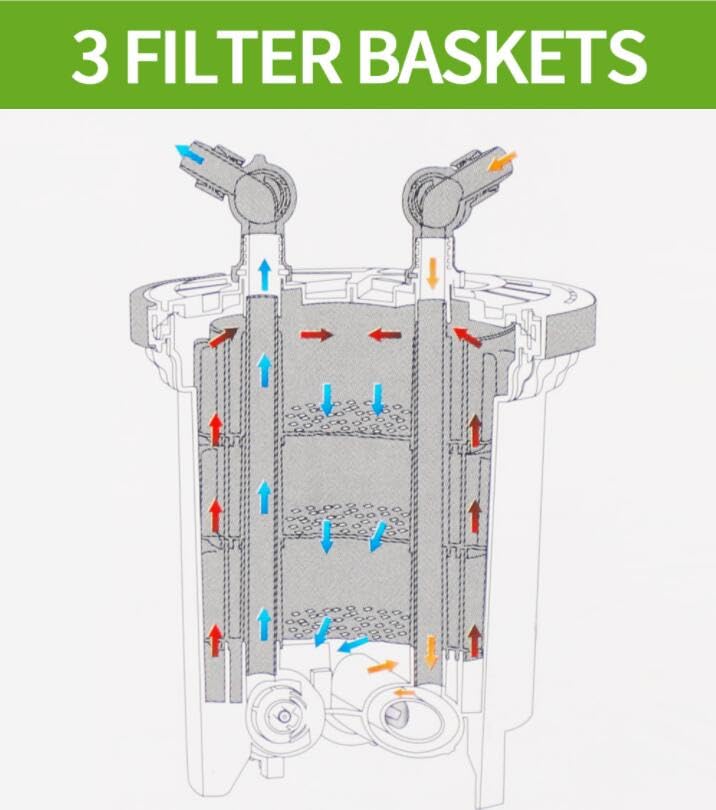

Image: An internal diagram illustrating the water flow path through the three filter baskets, highlighting the multi-stage filtration process.
4. Operation
The SunSun HW-4000 features an external digital controller for easy adjustment of its functions.
Image: The external digital controller for the SunSun HW-4000, showing the display and control buttons for adjusting pump speed and UV lamp settings.
- Pump Speed Adjustment: Use the buttons on the external digital display controller to adjust the gear position (speed) of the water pump. The HW-4000 model offers 7 levels of adjustment for optimal flow rate.
- UV Lamp Control: The controller also allows you to set the daily working time for the integrated 9W UV lamp. Refer to the controller's specific instructions for detailed programming.
- Monitoring: The digital display provides real-time information on the filter's operational status.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your SunSun HW-4000 filter.
- Filter Basket Cleaning: The multi-layer filter basket design allows for easy removal and cleaning of filter media. Periodically rinse or replace filter media as needed to prevent clogging and maintain water quality.
- Impeller Maintenance: The pump uses a ceramic shaft, which is wear-resistant and rust-free, contributing to a long service life. However, occasional inspection and cleaning of the impeller can prevent blockages and maintain optimal flow.
- UV Lamp Replacement: The 9W UV lamp has a limited lifespan. Replace it according to the manufacturer's recommendations or when its effectiveness diminishes. Always disconnect power before servicing the UV lamp.
- Hose and Connection Check: Regularly inspect hoses and connections for any signs of leaks, kinks, or wear. Ensure all clamps and fittings are secure.
6. Troubleshooting
If you encounter issues with your SunSun HW-4000 filter, refer to these common troubleshooting tips.
- Reduced Flow Rate: Check if filter media is clogged and requires cleaning or replacement. Inspect the impeller for obstructions. Ensure hoses are not kinked and inlet/outlet valves are fully open.
- Excessive Noise: Verify that the filter is properly primed and free of air pockets. Check the impeller for any foreign objects or damage. Ensure the filter is placed on a stable, level surface.
- Leaks: Inspect all O-rings and gaskets for proper seating and damage. Ensure all hose connections are tight and clamps are secure. Check the lid for proper sealing.
- UV Lamp Not Working: Check the power connection to the UV lamp. Ensure the UV lamp timer setting on the controller is active. The UV bulb may need replacement if it has reached the end of its lifespan.
- Filter Not Starting: Ensure the power cord is securely plugged in and the power outlet is functional. Check the controller for any error codes or power indicators.
7. Technical Specifications
Detailed specifications for the SunSun HW-4000 external canister filter.
Image: The SunSun HW-4000 filter unit with its approximate dimensions labeled: 40cm (width), 47cm (height), and 27cm (depth at base).
| Specification | Value |
|---|---|
| Model | HW-4000 |
| Voltage | 110V/220V/240V |
| Frequency | 50Hz/60Hz |
| Pump Speed Levels | 7 levels |
| UV Power | 9W |
| Power Consumption | 10W-35W |
| Max Head (H-max) | 1.3m~3.2m |
| Output (Flow Rate) | 1500L/h~3500L/h |
| Cable Length | 1.8m |
| Item Weight | 8 kg |
| Dimensions (L×W×H) | 300×300×508mm |
| Material | Stainless Steel (for certain components like shaft) |
| Colour | WHITE |
| Country of Origin | China |
8. Warranty and Support
For warranty information and customer support, please refer to the details below.
Warranty Information:
This product may be eligible for extended warranty plans. For example, a 1-Year Extended Warranty Plan by Onsitego may be available for purchase. Please check with your retailer or the manufacturer's official website for specific warranty terms and conditions applicable to your region.
Customer Support:
If you require technical assistance, have questions about installation, operation, or maintenance, please contact SunSun customer support through their official website or the contact information provided with your purchase. When contacting support, please have your product model number (HW-4000) and purchase details readily available.
