1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your AXA Blueline 50 Front Light. Please read this manual carefully before using the product to ensure proper function and safety.
The AXA Blueline 50 is a compact and robust front light designed for bicycles. It features a high light output of 50 Lux, ensuring excellent visibility and illumination. Its design incorporates clear lens technology for side visibility and an integrated retro reflector for enhanced safety from oncoming traffic.
Figure 1: Main view of the AXA Blueline 50 Front Light. This image shows the compact design with the main lens and side visibility elements.
2. Safety Instructions
- Always ensure the light is securely mounted before riding.
- Do not look directly into the light beam to avoid temporary vision impairment.
- Regularly check the light for damage or loose connections.
- Clean the lens periodically to maintain optimal light output.
- Adhere to local traffic regulations regarding bicycle lighting.
3. Package Contents
Verify that all components are present in the package:
- AXA Blueline 50 Front Light
- Mounting Bracket (2-axis steel bracket)
- Necessary fasteners for installation
4. Setup and Installation
The AXA Blueline 50 Front Light is designed for handlebar mounting and comes with a robust 2-axis steel bracket for secure attachment.
- Choose Mounting Location: Select a suitable position on your bicycle's handlebar or front fork crown that provides an unobstructed light path and does not interfere with steering or braking.
- Attach Bracket: Secure the 2-axis steel bracket to the chosen mounting point using the provided fasteners. Ensure it is tightened firmly to prevent movement during riding.
- Mount Light: Slide the AXA Blueline 50 Front Light onto the bracket and secure it. The 2-axis adjustment allows for precise aiming of the light beam.
- Connect Power:
- For Dynamo Systems: Connect the light's power cables to your bicycle's dynamo system. Ensure correct polarity if applicable.
- For E-bike Systems: The light is compatible with 6V e-bike batteries. Connect the light's power cables to the designated 6V output of your e-bike battery system. Consult your e-bike manual for specific connection points.
- Adjust Beam Angle: With the bicycle upright, adjust the light's angle so that the beam illuminates the road ahead without blinding oncoming traffic.

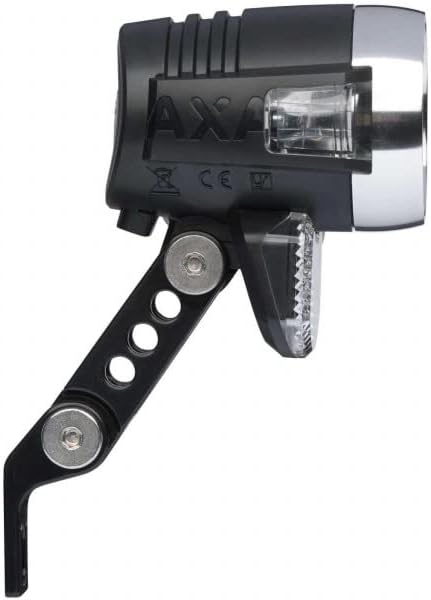

Figure 2: Side view of the AXA Blueline 50 Front Light, illustrating the 2-axis steel mounting bracket.
5. Operating Instructions
The AXA Blueline 50 is a dynamo-powered front light, meaning it generates power from your bicycle's movement. For e-bike installations, it draws power from the e-bike battery.
- Activation:
- Dynamo: The light will activate automatically when the bicycle is in motion and the dynamo is engaged.
- E-bike: The light will activate when the e-bike system is powered on and the light function is enabled (if applicable via e-bike controls).
- Visibility Features: The light incorporates clear lens technology, allowing light to be visible from the sides, increasing your safety. An integrated retro reflector further enhances visibility to oncoming traffic.
- Light Output: The 50 Lux LED provides a strong and consistent beam for illuminating your path.
Figure 3: Front view of the AXA Blueline 50 Front Light, highlighting the integrated retro reflector and clear lens.
6. Maintenance
- Cleaning: Use a soft, damp cloth to clean the light housing and lens. Avoid abrasive cleaners or solvents that could damage the plastic.
- Inspection: Periodically check all mounting screws and electrical connections to ensure they are secure.
- LED Lifespan: The high-power LED has a lifespan of over 50,000 hours, minimizing the need for replacement.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on (Dynamo) | Bicycle not moving, dynamo not engaged, loose connection, faulty wiring. | Ensure bicycle is in motion. Check dynamo engagement. Inspect all electrical connections for tightness and correct wiring. |
| Light does not turn on (E-bike) | E-bike system off, light function disabled, loose connection, faulty wiring. | Ensure e-bike system is powered on. Check e-bike controls for light activation. Inspect all electrical connections for tightness and correct wiring. |
| Light flickers or is dim | Loose connection, dirty dynamo contact (if applicable), insufficient power. | Check all electrical connections. Clean dynamo contacts. Ensure sufficient power supply from dynamo or e-bike battery. |
8. Specifications
Figure 4: Dimensions of the AXA Blueline 50 Front Light, showing approximate size relative to a hand.
| Feature | Detail |
|---|---|
| Model Name | Blueline 50 |
| Brand | AXA |
| Brightness | 50 Lux |
| Power Source | Dynamo / 6V E-bike Battery Compatible |
| Material | Plastic |
| Color | Black |
| Mounting Type | Handlebar Mount (2-axis steel bracket) |
| Water Resistance Level | Water Resistant (IPX4) |
| Item Weight | 160 Grams |
| Product Dimensions (LxWxH) | 3.94" x 1.97" x 1.18" (10cm x 5cm x 3cm) |
| LED Lifespan | > 50,000 hours |
| Included Components | Bike Light |
| GTIN | 03379399395200 |
9. Warranty Information
The AXA Blueline 50 Front Light comes with a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear.
Please retain your proof of purchase for any warranty claims.
10. Support and Contact
For further assistance, technical support, or warranty inquiries, please contact your retailer or the official AXA customer service. Refer to the AXA website for the most up-to-date contact information.
