Pride Mobility PX4 Mobility Scooter User Manual

Introduction

This manual provides essential information for the safe and effective operation, maintenance, and care of your Pride Mobility PX4 Mobility Scooter. Please read this manual thoroughly before operating the scooter to ensure proper usage and to maximize its lifespan. The PX4 is designed for adults requiring mobility assistance, offering a robust 500-pound weight capacity, a top speed of 9.3 mph, and a range of up to 23.4 miles per charge. It features an NFC key fob for enhanced security, full suspension, and memory foam seating for comfort across various terrains.

Image: Front-side view of the Pride Mobility PX4 Mobility Scooter, showcasing its robust design and four-wheel configuration.

1. Setup and Initial Preparation

1. Unpacking: Carefully remove the Pride Mobility PX4 Mobility Scooter from its packaging. Retain all packaging materials for future transport or storage.
2. Initial Charging: Before first use, fully charge the scooter's batteries. Connect the charger to a standard electrical outlet and then to the charging port on the scooter. Refer to the charging indicator for status.
3. NFC Key Fob Activation: The PX4 utilizes Near-Field Communication (NFC) technology for its ignition system. To start the scooter, place or tap the NFC key fob near the designated receiver on the side of the tiller. Each fob is unique to its unit, providing enhanced security.
4. Seat Adjustment: Adjust the memory foam seat to your preferred height and position using the 6-inch slider for optimal comfort and control. Ensure the seat is securely locked in place before operation.
5. Tiller Adjustment: Adjust the tiller angle for comfortable steering. Ensure all locking mechanisms are engaged.

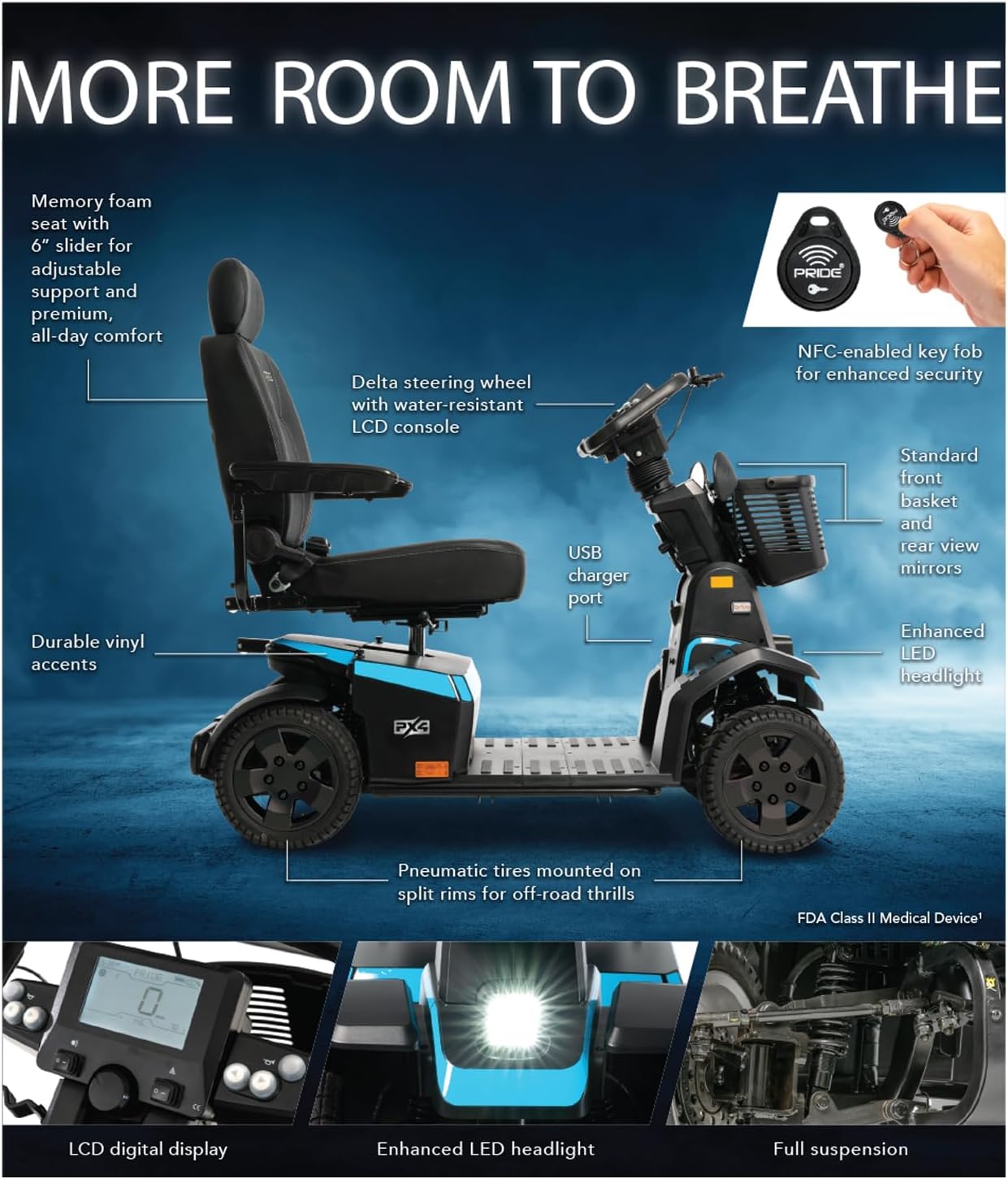

Image: Detailed diagram highlighting key features of the PX4 scooter, such as the adjustable memory foam seat, delta steering wheel with LCD console, USB charger port, standard front basket, rear view mirrors, enhanced LED headlight, and pneumatic tires.

2. Operating Instructions

1. Starting the Scooter: With the NFC key fob tapped to the receiver, the scooter will power on. The LCD digital display on the delta steering wheel console will illuminate.
2. Driving: Use the throttle control levers on the tiller to move forward or backward. Gently press the right lever for forward motion and the left lever for reverse. Release the levers to stop.
3. Braking: The scooter features a supplemental hand brake for smooth and controlled stops, in addition to the automatic regenerative and electromechanical braking system. Apply the hand brake gently when needed.
4. Steering: Use the delta steering wheel to navigate. The full suspension system and pneumatic tires are designed to provide a smooth ride over various hard-packed surfaces.
5. Lighting System: The full LED light package includes headlights, directional signals, and brake lights. Activate these as needed for enhanced visibility, especially in low-light conditions.
6. USB Charging Port: A USB charging port is integrated into the tiller for convenient charging of personal electronic devices.

Image: An individual comfortably operating the Pride Mobility PX4 Mobility Scooter in an outdoor setting, demonstrating its ease of use and maneuverability.

3. Maintenance

• Battery Care: Always charge the batteries fully after each use. Avoid deep discharges. Store the scooter with fully charged batteries if not in use for extended periods.
• Cleaning: Wipe down the scooter regularly with a damp cloth. Avoid using abrasive cleaners or excessive water, which can damage electronic components.
• Tire Pressure: Periodically check the tire pressure and inflate to the recommended levels specified in the specifications section to ensure optimal performance and range.
• General Inspection: Regularly inspect all moving parts, connections, and fasteners for wear or looseness. Contact an authorized service technician for any necessary repairs or adjustments.

4. Troubleshooting

• Scooter Not Powering On: Ensure the NFC key fob is correctly tapped to the receiver. Check battery charge level. Verify all connections are secure.
• Reduced Range or Speed: This may indicate low tire pressure, an undercharged battery, or an aging battery. Check tire pressure and ensure batteries are fully charged.
• Unusual Noises: If you hear unusual noises, stop the scooter immediately and inspect for loose parts or obstructions. Do not operate if a mechanical issue is suspected.
• Braking Issues: If the brakes feel unresponsive or inconsistent, cease operation and have the scooter inspected by a qualified technician.
• Error Codes: If an error code appears on the LCD display, consult the full product manual or contact customer support for specific guidance.

5. Specifications

Image: A comprehensive table outlining the technical specifications of the Pride Mobility PX4 Mobility Scooter, including dimensions, weight, speed, and battery details.

6. Warranty Information

The Pride Mobility PX4 Mobility Scooter comes with the following limited warranty:

• Drivetrain: 2-year limited warranty
• Electronics: 2-year limited warranty
• Battery: 6-month limited warranty

For detailed terms and conditions, please refer to the warranty document included with your purchase or contact Pride Mobility customer support.

7. Customer Support

Should you require assistance, have questions, or need to report an issue with your Pride Mobility PX4 Mobility Scooter, please contact Pride Mobility customer support. You can find contact information on the official Pride Mobility website or in the documentation provided with your scooter.
