Audizio Frisco Turntable User Manual

1. Introduction

Thank you for purchasing the Audizio Frisco Turntable. This multifunctional audio system combines vintage aesthetics with modern technology, allowing you to enjoy your vinyl collection, digital radio, and streaming services. This manual provides essential information for safe operation, setup, and maintenance of your device. Please read it thoroughly before use and retain it for future reference.

2. Safety Instructions

• Power Source: Ensure the power supply voltage matches the rating label on the unit. Use only the provided power cable.
• Water and Moisture: Do not expose the unit to rain, moisture, dripping, or splashing. Do not place objects filled with liquids, such as vases, on the unit.
• Ventilation: Ensure adequate ventilation. Do not cover ventilation openings with items like newspapers, tablecloths, or curtains.
• Heat: Do not place the unit near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Cleaning: Clean only with a dry cloth.
• Servicing: Do not attempt to service the unit yourself. Refer all servicing to qualified service personnel.
• Placement: Place the unit on a stable, level surface to prevent damage from falling.

3. Package Contents

Carefully unpack your Audizio Frisco Turntable and ensure all items are present and in good condition.

• Audizio Frisco Turntable Unit
• Power Cable
• User Manual (this document)

4. Product Overview

Familiarize yourself with the various parts and controls of your Audizio Frisco Turntable.

4.1 Front Panel Controls

This image displays the front panel of the Audizio Frisco turntable, highlighting the control knobs for volume and tuning/selection, along with buttons for power, scan, menu, info, alarm, mode, and preset. The central display shows 'BBC WS WORLD SERVICE' and 'DAB', indicating DAB+ radio functionality.

• POWER Button: Turns the unit on or off.
• SCAN Button: Initiates scanning for radio stations.
• MENU Button: Accesses the menu options.
• INFO Button: Displays information about the current track or station.
• ALARM Button: Sets and manages alarm functions.
• MODE Button: Switches between different input modes (Phono, DAB+, FM, Bluetooth, USB, AUX).
• PRESET Button: Accesses saved radio presets.
• VOLUME Knob: Adjusts the audio output level.
• TUNE / SELECT Knob: Tunes radio frequencies or navigates menu options and confirms selections.
• Display Screen: Shows current mode, station information, track details, and menu options.

4.2 Turntable Components

This image provides a close-up view of the turntable's platter area, showing the speed selector switch (33, 45, 78 RPM) and the auto-stop switch (ON/OFF). These controls are essential for proper vinyl playback.

• Dust Cover: Protects the turntable from dust when not in use.
• Platter: The rotating platform where records are placed.
• Spindle: Holds the record in place on the platter.
• Tonearm: Holds the stylus and tracks the record grooves.
• Stylus (Needle): The component that reads the record grooves.
• Tonearm Lift Lever: Raises and lowers the tonearm.
• Speed Selector Switch: Allows selection of 33, 45, or 78 RPM playback speeds.
• Auto-Stop Switch: When ON, the platter stops rotating automatically at the end of a record. When OFF, the platter continues to rotate.

4.3 Rear Connections

• USB Port: For connecting USB storage devices for playback.
• AUX IN Jack: For connecting external audio devices via a 3.5mm audio cable.
• Headphone Jack: For connecting headphones for private listening.
• Power Input: For connecting the power cable.

5. Setup

5.1 Unpacking and Placement

1. Carefully remove the unit from its packaging.
2. Place the turntable on a stable, level surface away from direct sunlight, heat sources, and excessive dust or vibration.
3. Ensure there is adequate space around the unit for ventilation.

This image shows the Audizio Frisco turntable positioned on a cabinet in a living room, demonstrating a typical setup environment. The dust cover is open, and the unit is ready for use.

5.2 Power Connection

1. Connect the provided power cable to the Power Input on the rear of the unit.
2. Plug the other end of the power cable into a suitable wall outlet.

5.3 Initial Power On

1. Press the POWER button on the front panel to turn on the unit.
2. The display screen will illuminate.

6. Operating Instructions

6.1 Vinyl Playback

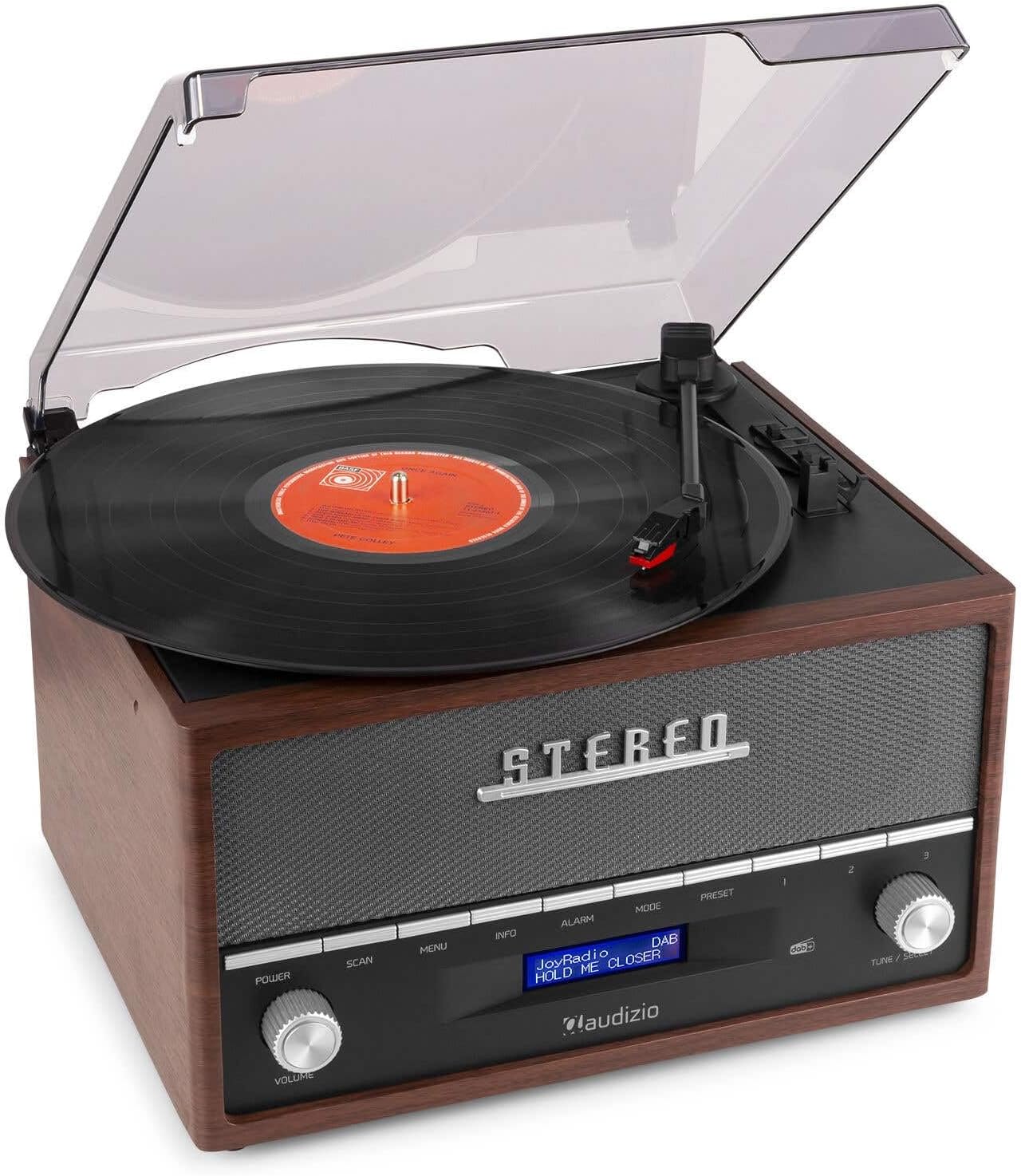

This image shows a vinyl record spinning on the Audizio Frisco turntable, with the tonearm positioned over the record, indicating active playback.

1. Open the dust cover.
2. Place a vinyl record on the platter.
3. Select the correct speed (33, 45, or 78 RPM) using the Speed Selector Switch. For 45 RPM records, place the included adapter on the spindle if needed.
4. Set the Auto-Stop Switch to ON if you want the platter to stop automatically at the end of the record, or OFF for continuous rotation.
5. Gently move the tonearm over the record and use the Tonearm Lift Lever to lower the stylus onto the desired track.
6. Adjust the volume using the VOLUME knob.
7. At the end of the record, lift the tonearm using the lever and return it to its rest.

6.2 DAB+ / FM Digital Radio

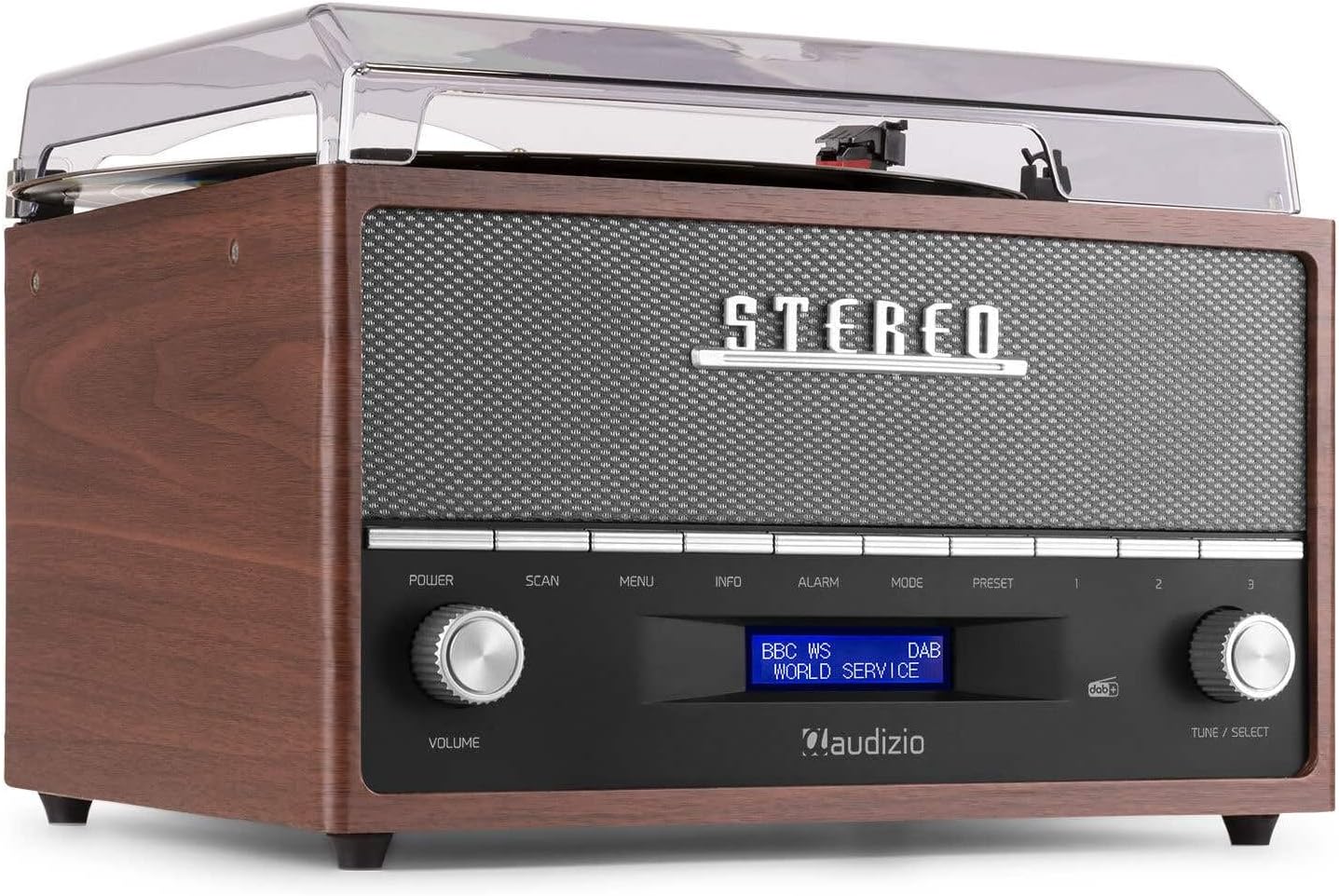

This image focuses on the display screen of the Audizio Frisco turntable, showing 'BBC WS WORLD SERVICE' and 'DAB', confirming active DAB+ radio reception and station identification.

1. Press the MODE button to select DAB+ or FM radio mode.
2. In DAB+ mode, press the SCAN button to perform an auto-scan for available stations.
3. In FM mode, use the TUNE / SELECT knob to manually tune to a station or press SCAN for auto-scan.
4. To save a preset, tune to the desired station, then press and hold the PRESET button. Use the TUNE / SELECT knob to choose a preset number, then press the knob to confirm.
5. To recall a preset, press the PRESET button, then use the TUNE / SELECT knob to select the desired preset.

6.3 Bluetooth Streaming

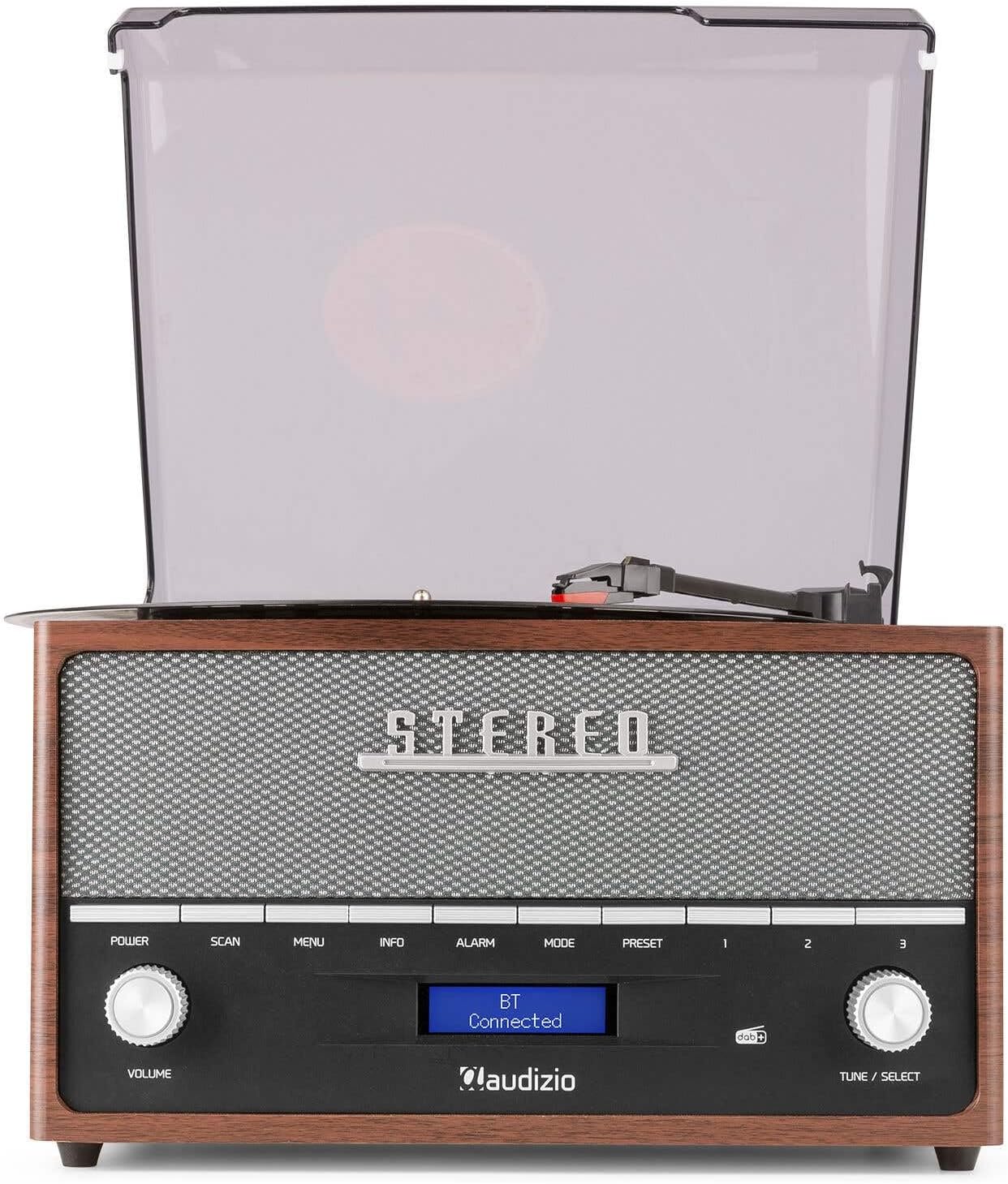

This image shows the Audizio Frisco turntable's display screen indicating 'BT Connected', signifying a successful Bluetooth connection with an external device.

1. Press the MODE button to select Bluetooth mode. The display will show "BT Pairing" or similar.
2. On your smartphone or other Bluetooth device, enable Bluetooth and search for available devices.
3. Select "Audizio Frisco" from the list of devices.
4. Once connected, the display will show "BT Connected". You can now play audio from your device through the turntable's speakers.

6.4 USB Playback

1. Insert a USB flash drive into the USB port on the rear of the unit.
2. Press the MODE button to select USB mode.
3. The unit will automatically begin playing compatible audio files from the USB drive.
4. Use the TUNE / SELECT knob to navigate tracks or folders.

6.5 AUX Input

1. Connect an external audio device (e.g., MP3 player, CD player) to the AUX IN jack on the rear of the unit using a 3.5mm audio cable (not included).
2. Press the MODE button to select AUX mode.
3. Play audio from your external device. The sound will be output through the turntable's speakers.

6.6 Alarm Clock Function

1. Press the ALARM button to access alarm settings.
2. Use the TUNE / SELECT knob to set the alarm time and select the alarm source (e.g., DAB+, FM, Buzzer).
3. You can set alarms for daily, weekend, or specific days of the week. Follow the on-screen prompts and use the TUNE / SELECT knob to confirm your selections.

7. Maintenance

7.1 Cleaning the Unit

• Always unplug the unit from the power outlet before cleaning.
• Use a soft, dry cloth to wipe the exterior surfaces.
• Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
• For the dust cover, use a soft cloth and a mild, non-abrasive cleaner if necessary.

7.2 Stylus Care

• The stylus is a delicate component. Handle it with care.
• Clean the stylus periodically using a soft brush, brushing gently from back to front.
• A worn or damaged stylus can harm your records and degrade sound quality. Replace the stylus when necessary.

8. Troubleshooting

9. Specifications

10. Warranty Information

This product is designed and manufactured to the highest quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or the retailer's policy where the product was acquired. Information regarding the availability of spare parts is typically for a period of 2 years from the date of purchase.

11. Customer Support

If you encounter any issues or have questions regarding your Audizio Frisco Turntable that are not covered in this manual, please contact your retailer or the manufacturer's customer support for assistance. Please have your model number (Frisco, 102.200) and purchase details ready when contacting support.
