AKORD S90 Wardrobe with Extension - Instruction Manual

Safety Warnings

Assemble with caution: This furniture is heavy and bulky. It is strongly recommended to use two people for assembly to prevent injury and damage. Always follow the provided assembly instructions carefully.

• Ensure all components are present before beginning assembly.
• Use appropriate tools as specified in the assembly guide.
• Do not overtighten screws, as this may damage the material.
• Place the wardrobe on a level surface to prevent tipping.
• Secure the wardrobe to a wall using anti-tip hardware (if included) to prevent serious injury from tipping.
• Keep small parts away from children during assembly.

Product Overview

The AKORD S90 Wardrobe with Extension is a functional and elegant storage solution designed for various spaces such as bedrooms, hallways, or offices. It features a thoughtful interior layout to accommodate clothing and linens efficiently.

Key features include:

• Spacious Interior: Designed to hold clothes and linens.
• Versatile Storage: Equipped with shelves, a hanging rail for garments, and two integrated drawers.
• Durable Construction: Made from wear-resistant Kronospan laminated board, featuring robust hinges and GTV drawer runners.
• Modern Design: A simple body and universal color (white) allow it to blend seamlessly with both modern and classic interiors.

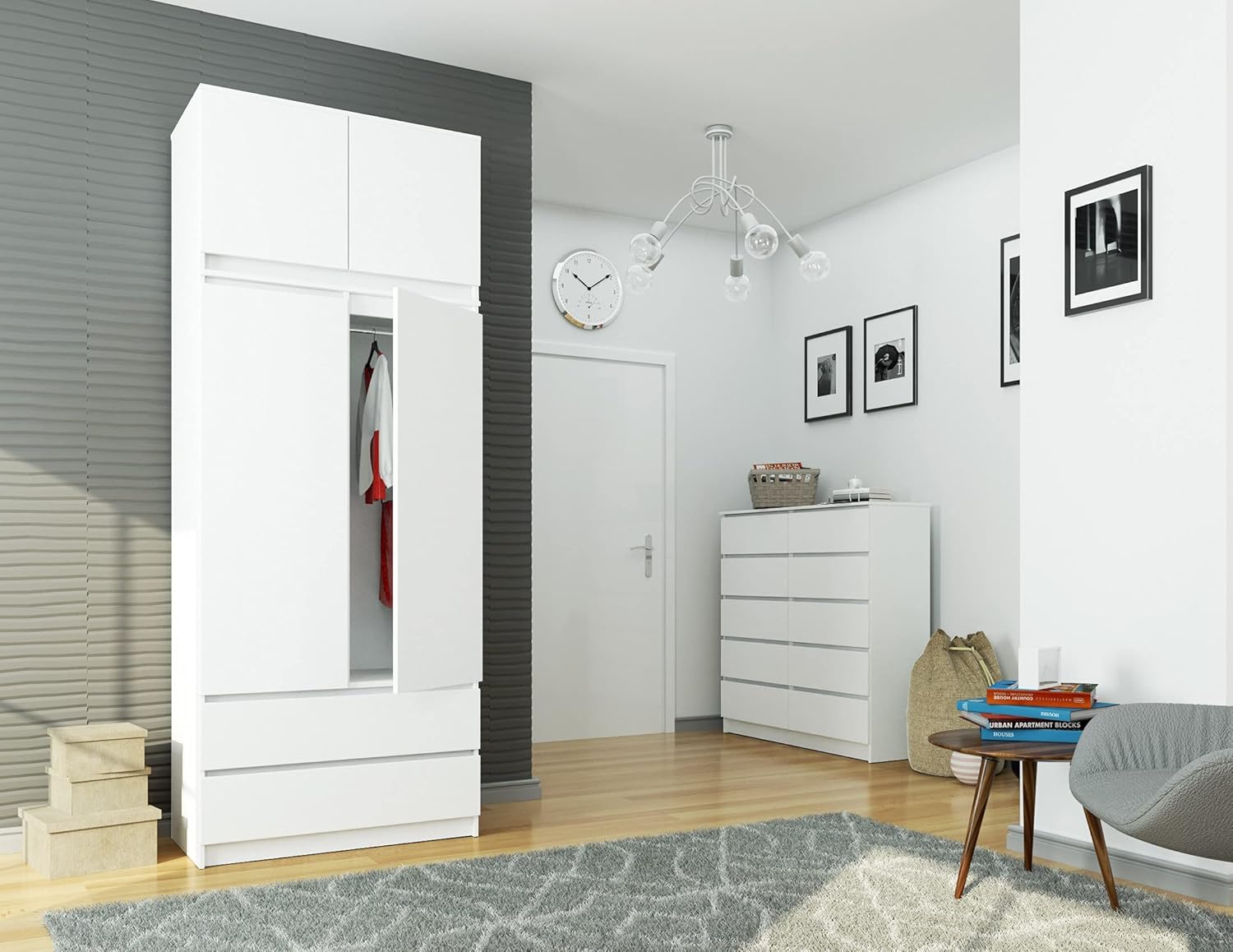

Image: The AKORD S90 Wardrobe with Extension, showcasing its full size and design within a room environment.

Specifications

Image: Technical drawing illustrating the precise dimensions of the AKORD S90 Wardrobe with Extension.

Setup & Assembly

This wardrobe requires assembly. Due to its size and weight, two people are required for safe and efficient assembly. Please ensure you have sufficient space and all necessary tools before starting.

General Assembly Guidelines:

1. Unpack and Identify Parts: Carefully unpack all components and hardware. Refer to the included assembly manual (not provided in this document) to identify each part.
2. Prepare the Area: Clear a spacious, clean, and level area for assembly. Lay down a blanket or cardboard to protect the furniture pieces and your floor.
3. Assemble the Base: Begin by assembling the base frame according to the instructions. Ensure all connections are secure.
4. Attach Side Panels: Connect the side panels to the base. Pay attention to the orientation of the panels.
5. Install Shelves and Dividers: Insert shelves and internal dividers as indicated in the manual.
6. Mount Back Panel: Secure the back panel to the frame. This often involves small nails or screws.
7. Assemble and Install Drawers: Assemble the drawer boxes and install the GTV drawer runners. Then, slide the drawers into their designated slots.
8. Attach Doors and Hinges: Mount the hinges to the doors and then attach the doors to the wardrobe frame. Adjust hinges for proper alignment.
9. Install Hanging Rail: Secure the hanging rail within the designated section.
10. Attach Extension Unit: If assembling the extension unit, follow its specific instructions to attach it securely to the main wardrobe body.
11. Final Checks and Wall Anchoring: Ensure all screws are tightened, and the wardrobe is stable. Crucially, attach the wardrobe to the wall using the provided anti-tip hardware to prevent tipping accidents.

Always refer to the detailed, step-by-step assembly instructions provided in the product packaging for precise guidance.

Operating Instructions

The AKORD S90 Wardrobe is designed for straightforward use. Follow these guidelines for optimal functionality:

Doors:

• Open and close doors gently to prevent wear on hinges and potential damage.
• Avoid hanging heavy items on the inside of the doors, as this can strain the hinges.

Drawers:

• Pull drawers out smoothly using the integrated handles.
• Do not overload drawers beyond the recommended weight capacity of 15 kg (33 lbs) to ensure smooth operation of the GTV runners.
• Push drawers fully closed to prevent them from accidentally opening.

Shelves and Hanging Rail:

• Distribute weight evenly on shelves to prevent bowing or collapse.
• Do not exceed the maximum weight capacity for individual shelves or the hanging rail.
• Use appropriate hangers for the hanging rail to maximize space and prevent damage.

Image: The interior of the AKORD S90 Wardrobe, illustrating the arrangement of shelves, hanging space, and drawers.

Maintenance

Proper care will extend the life and appearance of your AKORD S90 Wardrobe.

Cleaning:

• Wipe surfaces with a soft, damp cloth.
• For stubborn marks, use a mild, non-abrasive cleaner specifically designed for laminated furniture.
• Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• Dry surfaces immediately after cleaning to prevent moisture damage.

General Care:

• Periodically check all screws and fittings to ensure they remain tight. Retighten if necessary, but do not overtighten.
• Keep the wardrobe away from direct sunlight and heat sources to prevent fading or warping.
• Avoid placing hot or wet items directly on the surface without protection.
• If drawer runners become stiff, a small amount of silicone-based lubricant can be applied, but avoid oil-based lubricants which can attract dust.

Image: A close-up view of the GTV drawer runners, highlighting their mechanism for smooth drawer operation.

Troubleshooting

Here are solutions to common issues you might encounter with your wardrobe:

Wobbly Wardrobe:

• Check Level Surface: Ensure the wardrobe is placed on a completely flat and level floor. Use shims if necessary.
• Tighten Fasteners: Re-check and tighten all assembly screws and bolts. Do not overtighten.
• Wall Anchoring: Confirm that the anti-tip wall anchoring hardware is correctly installed and securely fastened to both the wardrobe and the wall.

Doors Not Closing Properly or Misaligned:

• Adjust Hinges: Most wardrobe hinges allow for adjustment. Refer to the original assembly manual for specific hinge adjustment instructions.
• Obstruction: Check for any items inside the wardrobe that might be blocking the door's path.
• Leveling: Ensure the wardrobe itself is level, as an unlevel unit can cause door misalignment.

Drawers Sticking or Not Sliding Smoothly:

• Overload: Reduce the weight in the drawer. Ensure it is not exceeding the 15 kg capacity.
• Obstruction: Check for any items caught in the drawer runners.
• Lubrication: Apply a small amount of silicone spray to the drawer runners if they are dry.
• Runner Alignment: Ensure the drawer runners are correctly installed and aligned on both the drawer box and the wardrobe frame.

Warranty & Support

For specific warranty information regarding your AKORD S90 Wardrobe, please refer to the documentation included with your purchase or contact the retailer where the product was acquired.

If you require further assistance, have questions about assembly, or need to report a missing/damaged part, please contact AKORD customer support or your point of purchase. When contacting support, please have your model number (SP0PSYSBIANADKOM010) and purchase details readily available.

Manufacturer: Akord
