1. Introduction
Thank you for choosing the Misolant Tall Office Chair, Model Charles. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions carefully before assembly and retain them for future reference to ensure optimal performance and longevity of your product.
2. Safety Information
Important Safety Warnings:
- This chair has a maximum weight capacity of 136 kg (300 lbs). Do not exceed this limit.
- Ensure that all parts are securely fastened during assembly. Loose parts can lead to instability and injury.
- When adjusting the height or lumbar support, ensure the chair is stable and does not tip over.
- Adult supervision is recommended during assembly and for children using the chair.
- This chair is designed for indoor use only.
- Avoid standing on the chair or using it as a step stool.
- Keep fingers and clothing clear of moving parts during adjustments.
3. Package Contents
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Misolant customer service immediately.
- Chair Backrest (1)
- Seat Cushion (1)
- Armrests (2)
- Gas Lift Cylinder (1)
- Gas Lift Cover (1)
- Chair Base (5-star) (1)
- Casters (5)
- Foot Ring (1)
- Mechanism Plate (1)
- Screws and Allen Wrench (Installation Hardware)
- User Manual (1)
Image: Various components of the Misolant Tall Office Chair, including the seat, armrests, and base.
4. Assembly Instructions
Assembly typically takes about 20 minutes. Follow these steps carefully:
- Attach Casters to Base: Insert the five casters into the holes at the end of each leg of the chair base. Push firmly until they click into place.
- Install Gas Lift: Place the gas lift cylinder into the center hole of the chair base. Cover it with the gas lift cover.
- Attach Mechanism Plate to Seat: Align the mechanism plate with the screw holes on the underside of the seat cushion. Ensure the front of the mechanism faces the front of the seat. Secure with screws using the provided Allen wrench.
- Attach Armrests to Seat: Secure the armrests to the sides of the seat cushion using the designated screws.
- Attach Backrest to Seat: Connect the backrest to the seat assembly, aligning the brackets and securing with screws.
- Assemble Foot Ring: Slide the foot ring onto the gas lift cylinder and secure it at your desired height using the adjustment knob.
- Connect Seat Assembly to Gas Lift: Carefully place the assembled seat onto the gas lift cylinder, ensuring it is centered and stable.
Image: A diagram illustrating the key dimensions of the Misolant Tall Office Chair, including overall height, seat height, and seat width.
Image: The Misolant Tall Office Chair in a typical office setting, paired with a standing desk, demonstrating its intended use.
5. Operating Instructions
Your Misolant Tall Office Chair offers several adjustable features to customize your seating experience:
- Chair Height Adjustment: Use the lever located under the seat on the right side. Pull the lever up to raise the chair; sit on the chair and pull the lever up to lower it. Release the lever to lock the height.
- Lumbar Support Adjustment: The lumbar support can be adjusted vertically by 2 inches. Gently push or pull the lumbar support pad on the backrest to find your most comfortable position. This helps reduce strain on your lower back.
- Flip-Up Armrests: The armrests can be flipped up 90 degrees. This feature allows you to push the chair closer to your desk or save space when not in use.
- Foot Ring Adjustment: Loosen the knob on the foot ring to slide it up or down the gas lift cylinder. Tighten the knob firmly at your desired height to provide support for your feet and promote blood circulation.
- Back Tilt Angle Adjustment: The chair offers three back tilt angles:
- 90° (Work): Upright position for focused tasks.
- 105° (Relax): Slightly reclined for a comfortable break.
- 115° (Nap): Further reclined for resting.
- Tilt Tension Adjustment: The round knob located under the seat allows you to adjust the tension of the chair's rocking motion. Turn clockwise to increase tension (making it harder to recline) and counter-clockwise to decrease tension (making it easier to recline).
Image: Detailed view of the ergonomic backrest and its 2-inch adjustable lumbar support feature.
Image: Visual guide demonstrating the 90°, 105°, and 115° back tilt angle adjustments, along with the handle and tilt tension controls.
Image: Close-up showing the 90° flip-up armrests and the robust metal 5-star base with smooth-rolling casters.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your chair:
- Cleaning: Wipe the PU leather and mesh surfaces with a soft, damp cloth. For stubborn stains, use a mild soap solution and dry immediately. Avoid harsh chemicals or abrasive cleaners.
- Check Fasteners: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
- Caster Care: Keep casters free of hair and debris to ensure smooth rolling.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the PU leather to fade or crack.
7. Troubleshooting
If you encounter any issues with your Misolant Tall Office Chair, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height | Gas lift lever not engaged or gas lift faulty. | Ensure the lever is fully pulled up. If the issue persists, the gas lift may need replacement. Contact customer service. |
| Chair is wobbly or unstable | Loose screws or improper assembly. | Check and tighten all screws, especially those connecting the mechanism plate to the seat and the backrest. Ensure casters are fully inserted. |
| Casters do not roll smoothly | Debris caught in casters. | Remove any hair, dust, or debris from the caster wheels. |
| Backrest does not lock in position | Tilt lock handle not fully engaged. | Ensure the tilt lock handle is pushed inward completely after selecting the desired angle. |
| Chair squeaks | Loose connections or friction between parts. | Tighten all screws. Apply a small amount of silicone lubricant to moving parts if necessary, avoiding contact with upholstery. |
If these solutions do not resolve the issue, please contact Misolant customer service for further assistance.
8. Specifications
- Brand: Misolant
- Model Name: Charles
- Color: Black
- Product Dimensions: 21.3"D x 25.2"W x 51.8"H
- Chair Height Range: 46.5 to 54.3 inches
- Cushion Height from Floor: 23.8 to 31.7 inches
- Armrest Height from Floor: 34.1 to 41.9 inches
- Seat Depth: 21.3 inches
- Seat Width: 20.9 inches
- Item Weight: 40.8 pounds
- Maximum Weight Capacity: 300 lbs (136 kg)
- Back Style: Solid Back with Mesh
- Special Feature: Adjustable Height, Adjustable Lumbar Support, Flip-up Armrests, Adjustable Foot Ring, Recline Function
- Seat Material Type: PU Leather, High-elasticity Natural Sponge
- Backrest Material: Breathable Mesh
- Base Material: Sturdy Metal 5-star base
- Casters: Wear-resistant, silent PU casters
- Gas Lift: Industrial-grade Class-4 gas lift (SGS certified)
- Recommended Uses: Drafting, Office, Standing Desk
- Indoor/Outdoor Usage: Indoor

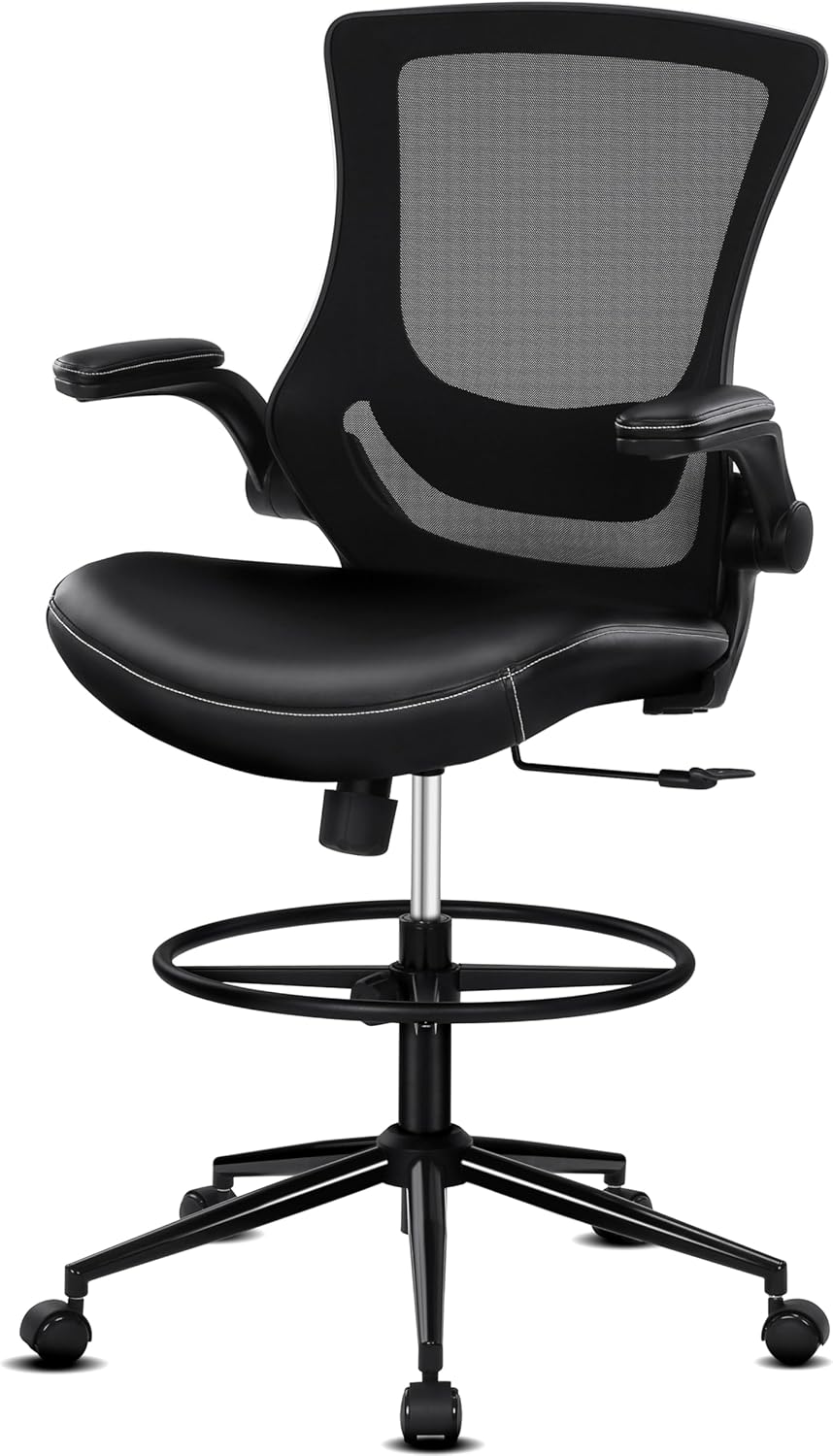

Image: A full front view of the Misolant Tall Office Chair, highlighting its design and features.
9. Warranty and Customer Support
The Misolant Tall Office Chair comes with a one-year quality guarantee from the date of purchase.
Misolant is committed to providing excellent customer service. If you have any questions, concerns, or require assistance with chair accessories, please do not hesitate to contact our professional customer service team. We are dedicated to providing proactive solutions and ensuring your satisfaction.
For support, please refer to the contact information provided on your purchase receipt or visit the official Misolant website.
