Mayer 3.8L Electric Air Pot MMAP380 Instruction Manual

Introduction

Thank you for purchasing the Mayer 3.8L Electric Air Pot MMAP380. This appliance is designed to provide hot water efficiently and safely. Please read this instruction manual thoroughly before operating the appliance to ensure proper use and to prevent damage or injury. Keep this manual for future reference.

Important Safety Precautions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Do not immerse the appliance, cord, or plug in water or other liquids.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Keep the appliance out of reach of children.
• Place the appliance on a stable, flat, heat-resistant surface.
• Do not fill above the maximum water level indicator.
• Exercise extreme caution when dispensing hot water.
• Unplug from the outlet when not in use and before cleaning.
• This appliance is for household use only.
• The appliance features overheating and boil-dry protection. If the pot boils dry, it will automatically shut off.
• Utilize the child-lock safety feature to prevent accidental dispensing.

Product Overview

The Mayer 3.8L Electric Air Pot MMAP380 is designed for convenience and safety. Key features include a 3.8L capacity, SUS304 food-grade stainless steel inner pot, and multiple dispensing methods.

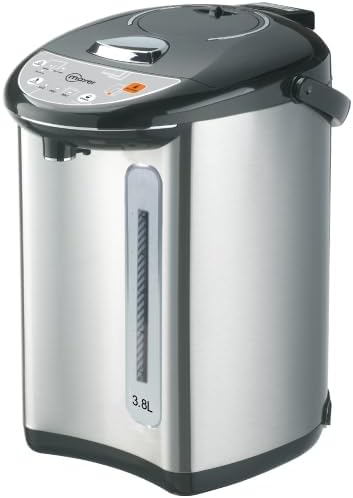

Image: Front view of the Mayer 3.8L Electric Air Pot MMAP380, showing the control panel, dispensing spout, and water level indicator.

Image: Close-up of the control panel on the Mayer 3.8L Electric Air Pot MMAP380, displaying buttons for various functions.

Components:

• Control Panel: Buttons for temperature settings, dispensing, and child lock.
• Dispensing Spout: Where hot water is dispensed.
• Water Level Indicator: Transparent window to view current water volume.
• Detachable Lid: For easy refilling and cleaning.
• Carrying Handle: For safe transportation (when empty).
• 360° Swivel Base: Allows for easy rotation of the unit.
• Power Cord: For connecting to an electrical outlet.

Setup

1. Unpacking: Carefully remove the air pot from its packaging. Retain packaging for future storage or transport.
2. Initial Cleaning: Before first use, clean the inner pot and lid with warm water and a mild detergent. Rinse thoroughly and wipe dry.
3. Placement: Place the air pot on a stable, level, and heat-resistant surface, away from walls or other appliances to allow for proper ventilation.
4. Power Connection: Ensure the power cord is securely plugged into the air pot and then into a grounded electrical outlet.

Operating Instructions

1. Filling with Water

1. Ensure the air pot is unplugged.
2. Open the detachable lid.
3. Fill the inner pot with fresh, clean water. Do not exceed the "MAX" fill line indicated on the water level indicator.
4. Close the lid securely.

2. Boiling Water

1. Plug the air pot into a power outlet. The appliance will automatically begin heating the water to boiling point (98°C).
2. The boiling process is indicated by a light on the control panel.
3. Once the water has boiled, the air pot will automatically switch to the keep-warm function.

3. Setting Keep-Warm Temperatures

The Mayer MMAP380 offers three adjustable keep-warm temperatures: 65°C, 85°C, and 98°C.

1. After boiling, the air pot will maintain a default keep-warm temperature.
2. Press the "Temperature" or "Keep Warm" button on the control panel to cycle through the available temperature settings (65°C, 85°C, 98°C).
3. The selected temperature will be indicated by a corresponding light on the control panel.

4. Dispensing Methods

The air pot provides three methods for dispensing hot water:

• Auto-Dispensing: Press the "Dispense" button on the control panel. Ensure the child lock is disengaged if active.
• Manual Dispensing: Press the manual pump button located on the top of the lid.
• Cup Touch Switch: Gently press a cup against the lever behind the dispensing spout.

Caution: Hot steam may escape during dispensing. Keep hands and face clear of the spout.

5. Child-Lock Safety Feature

To prevent accidental dispensing, especially by children, activate the child-lock feature.

• To engage the child lock: Press the "Lock" button on the control panel. A lock indicator light will illuminate.
• To disengage the child lock: Press the "Unlock" button (or the same "Lock" button again) to allow dispensing. The lock indicator light will turn off.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your air pot.

1. Unplug and Cool: Always unplug the air pot from the power outlet and allow it to cool completely before cleaning.
2. Exterior Cleaning: Wipe the exterior with a damp cloth. Do not use abrasive cleaners or scourers.
3. Inner Pot Cleaning: The SUS304 food-grade stainless steel inner pot can be cleaned with warm water and a mild detergent. For stubborn mineral deposits (limescale), use a descaling solution suitable for kitchen appliances or a mixture of water and vinegar. Follow the descaling product's instructions. Rinse thoroughly multiple times to remove all residue.
4. Detachable Lid: The lid is detachable for easy cleaning. Wash it with warm, soapy water, rinse, and dry thoroughly before reattaching.
5. Storage: When not in use for an extended period, ensure the air pot is clean and dry. Store it in a cool, dry place.

Image: Side view of the Mayer 3.8L Electric Air Pot MMAP380 with the lid open, showing the inner pot for cleaning and refilling.

Troubleshooting

If the problem persists after attempting these solutions, please contact customer support.

Specifications

• Model: MMAP380
• Brand: Mayer
• Capacity: 3.8 Liters
• Material: SUS304 Food-grade Stainless Steel (Inner Pot)
• Voltage: 750 Volts
• Keep Warm Temperatures: 65°C, 85°C, 98°C
• Dispensing Methods: Auto-dispensing, Manual dispensing, Cup touch switch
• Safety Features: Overheating and boil-dry protection, Child-lock safety feature
• Additional Features: Water level indicator, Detachable lid, 360° Swivel base
• Product Dimensions: 26.5L x 26.5W x 35H centimetres

Image: The Mayer 3.8L Electric Air Pot MMAP380 with indicated dimensions: 26.5cm length, 26.5cm width, and 35cm height.

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact Mayer customer service directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Mayer

Date First Available: 7 September 2023
