MUista Air Suspension Compressor Pump User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your MUista Air Suspension Compressor Pump. This component is crucial for maintaining the air suspension system in compatible vehicles, ensuring optimal ride comfort and vehicle stability. Please read this manual thoroughly before installation and use.

2. Safety Information

• Professional Installation Recommended: Due to the complexity of automotive suspension systems, professional installation by a qualified technician is highly recommended.
• Disconnect Battery: Always disconnect the vehicle's battery before performing any electrical work or component replacement to prevent electrical shock or damage.
• Wear Protective Gear: Use appropriate personal protective equipment, including safety glasses and gloves, during installation.
• Vehicle Support: Ensure the vehicle is securely supported on jack stands or a lift before working underneath it. Never rely solely on a jack.
• Air Pressure: Air suspension systems operate under high pressure. Exercise caution when working with air lines and components.

3. Package Contents

Verify that your package contains the following item:

• One (1) MUista Air Suspension Compressor Pump

4. Product Overview and Compatibility

The MUista Air Suspension Compressor Pump is a direct replacement component designed to restore the functionality of your vehicle's air suspension system. It is responsible for generating and regulating the air pressure required to adjust the vehicle's ride height and damping characteristics.

Image: Front view of the MUista Air Suspension Compressor Pump, showing the main housing and electrical connections.

Compatible OEM Part Numbers:

• 4H0616005A
• 4H0616005B
• 4H0616005C
• 4H0616005D
• 4G0616005C
• 4G0616005B
• 4G0616005D

Compatible Vehicle Models:

• Audi A7 (2010-2017)
• Audi A6 (2010-2017)
• Audi A8 (2010-2017)

Please verify the OEM part number on your existing compressor or consult your vehicle's service manual to ensure compatibility before installation.

5. Setup and Installation

The installation of an air suspension compressor pump typically involves working with electrical connections, air lines, and vehicle undercarriage components. For safety and proper function, professional installation is strongly advised.

General Installation Steps (Consult a professional for detailed instructions):

1. Prepare Vehicle: Park the vehicle on a level surface, engage the parking brake, and disconnect the negative terminal of the battery.
2. Access Compressor: Locate the existing air suspension compressor. This may require removing trim panels or accessing from underneath the vehicle.
3. Disconnect Components: Carefully disconnect all electrical connectors and air lines from the old compressor. Note their positions for reinstallation.
4. Remove Old Compressor: Unbolt and remove the old compressor unit from its mounting bracket.
5. Install New Compressor: Mount the new MUista compressor pump onto the bracket. Ensure all mounting bolts are securely tightened.
6. Reconnect Components: Reconnect all air lines and electrical connectors to the new compressor. Ensure air lines are properly seated and secured to prevent leaks.
7. Reconnect Battery: Reconnect the vehicle's battery.
8. Test System: Start the vehicle and allow the air suspension system to pressurize. Check for proper operation, including ride height adjustment and any error codes.

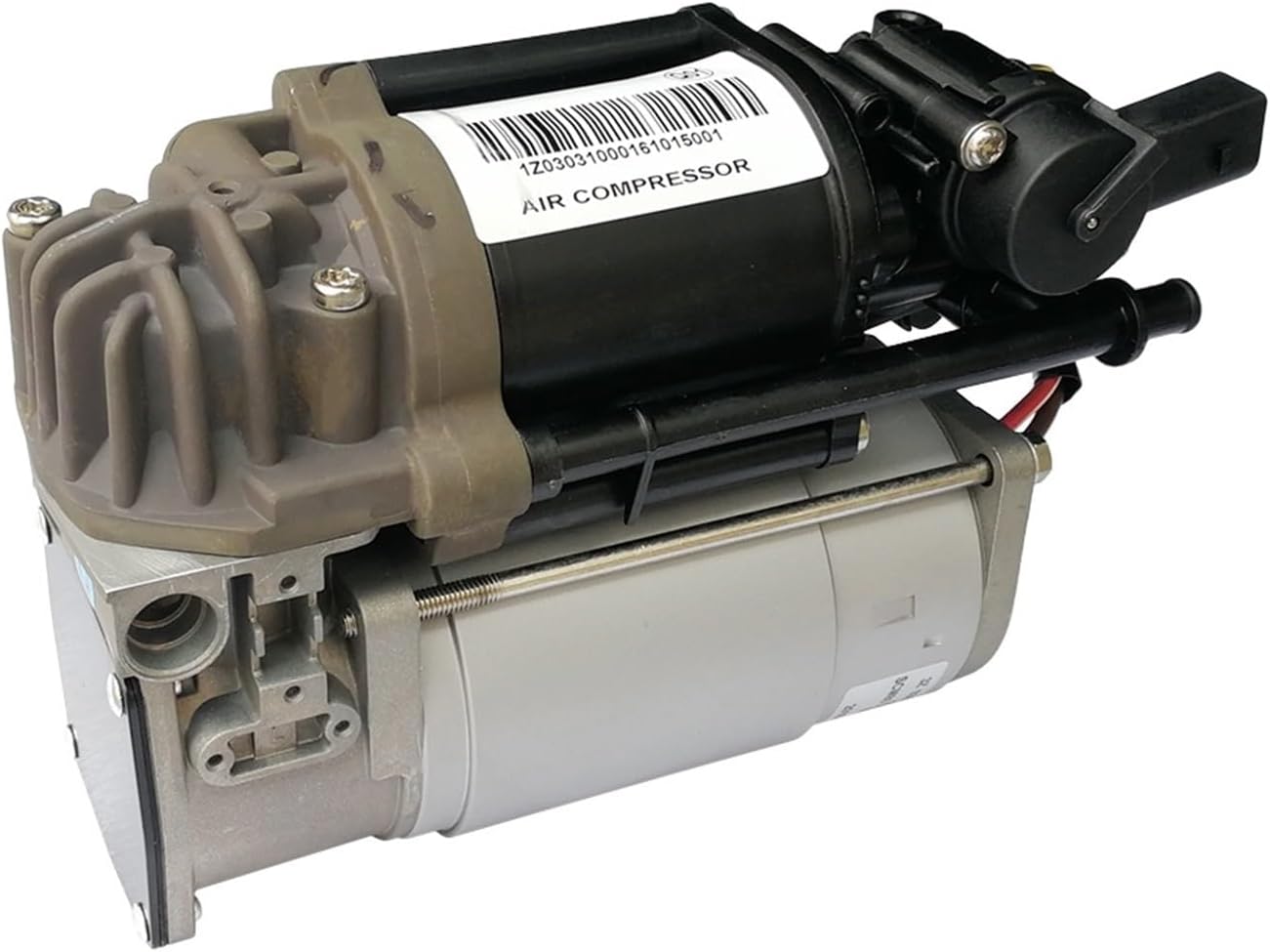

Image: Side view of the compressor, highlighting mounting points and various ports.

6. Operating Instructions

The air suspension compressor operates automatically as part of your vehicle's integrated suspension system. It responds to sensor inputs to maintain optimal ride characteristics. Key functions include:

• Adjustable Body Height: The compressor allows the vehicle's control unit to adjust the body height as required. This enables the driver to select appropriate suspension heights for different road conditions, such as lowering for improved stability or raising for increased ground clearance over uneven terrain.
• Improved Ride Comfort: By actively adjusting air pressure in the suspension, the compressor helps the system better absorb road imperfections and shocks. This results in a more stable and comfortable ride, reducing vehicle body movement and passenger fatigue.
• Enhanced Vehicle Stability: The compressor contributes to more stable vehicle handling by allowing the suspension system to dynamically adjust based on sensor feedback. This minimizes body roll during turns and improves overall responsiveness.
• Dynamic Load Adjustment: The air suspension compressor can dynamically adjust to changes in vehicle load (e.g., passengers or cargo). This ensures that the proper suspension height and stability are maintained, contributing to driving safety and consistent suspension performance regardless of load.

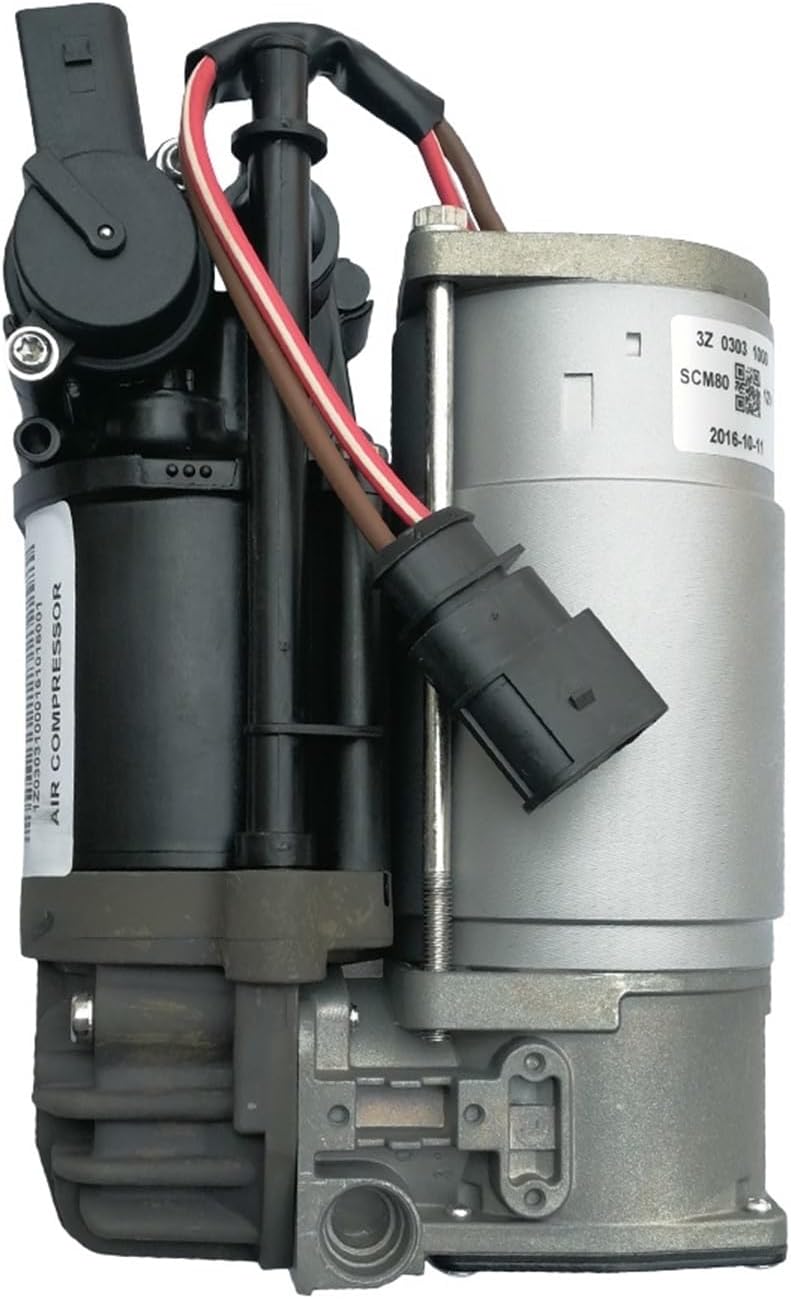

Image: Detailed view of the electrical connector on the compressor, crucial for system communication.

7. Maintenance

Regular inspection and maintenance can prolong the life of your air suspension compressor and ensure optimal system performance.

• Visual Inspection: Periodically inspect the compressor and surrounding air lines for any signs of damage, wear, or air leaks.
• Electrical Connections: Ensure all electrical connections are secure and free from corrosion.
• Cleanliness: Keep the area around the compressor clean and free of debris that could impede airflow or cause damage.
• Cooling System: Some air suspension compressors are equipped with an automatic cooling system. Ensure that any vents or cooling fins are not obstructed to allow for proper heat dissipation, especially after extended operation.
• Professional Check-ups: Consider having your air suspension system professionally inspected during routine vehicle maintenance.

8. Troubleshooting

If you experience issues with your air suspension system, consider the following common troubleshooting steps. For complex problems, consult a qualified technician.

Common Issues and Potential Solutions:

• System Not Inflating / Vehicle Sagging:
  • Check the vehicle's fuses related to the air suspension system.
  • Inspect air lines for visible leaks or damage.
  • Ensure electrical connections to the compressor are secure.
• Compressor Running Constantly or Excessively Loud:
  • This often indicates an air leak in the system, causing the compressor to overwork. Inspect air springs, air lines, and valve block for leaks.
  • A constantly running compressor can also indicate a failing pressure sensor or relay.
• Error Messages on Dashboard:
  • Use an OBD-II scanner to retrieve diagnostic trouble codes (DTCs) from the vehicle's control unit. These codes can pinpoint the specific issue.
  • Consult your vehicle's service manual for interpretation of specific error codes.

If these steps do not resolve the issue, professional diagnosis and repair are recommended.

9. Specifications

Technical specifications for the MUista Air Suspension Compressor Pump:

10. Warranty and Support

This MUista Air Suspension Compressor Pump is covered by a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase.

For warranty claims, technical assistance, or further support, please contact your original retailer or the manufacturer directly. Provide your product model number (YANZI363MALL) and purchase details when seeking support.
