Introduction
This manual provides instructions for the ALLIMITY AKB76037001 Replacement Remote Control. This remote is designed as a direct replacement for original AKB76037001 remote controls used with Oscar, LG, and Q.Bell LCD LED TVs. It offers a seamless user experience without the need for complex setup or programming.
Please read this manual carefully to ensure proper use and to maximize the lifespan of your remote control.
Setup
Battery Installation
The AKB76037001 remote control requires two (2) 1.5V AAA alkaline batteries for operation. Batteries are not included with the remote control.
- Locate the battery compartment on the back of the remote control.
- Slide the battery compartment cover downwards to open it.
- Insert two (2) AAA batteries, ensuring that the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery compartment cover back into place until it clicks securely.
Figure 1: Battery compartment with AAA batteries inserted.
Once batteries are installed, the remote control is ready for use. No additional setup or programming is required.
Operating Instructions
Basic Operation
The AKB76037001 remote control functions identically to the original remote it replaces. Simply point the remote control towards your television and press the desired buttons.
- Power Button: Turns the TV on or off.
- Number Buttons (0-9): For direct channel input.
- Volume Up/Down: Adjusts the sound level.
- Channel Up/Down: Changes TV channels.
- Mute Button: Silences the TV audio.
- Navigation Buttons (Up, Down, Left, Right, OK): For menu navigation and selection.
- Home Button: Accesses the TV's smart home or main menu.
- Back Button: Returns to the previous screen or menu.
- Netflix / Prime Video Buttons: Direct access to streaming services (functionality depends on TV model).

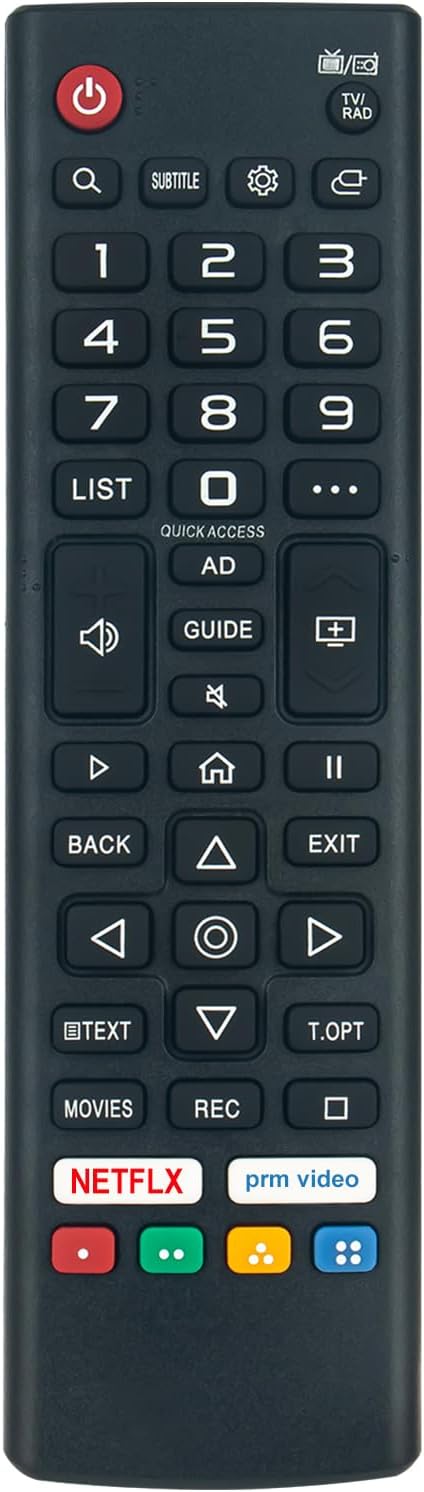

Figure 2: Front view of the remote control with button layout.
Compatible Models
This replacement remote control is compatible with the following Oscar, LG, and Q.Bell LCD LED TV models:
- B219
- IHC13FA401
- QT45WX73
- QT39WY73
- QT32WY73
- QT50WX73
- QT43WK73
If your original remote control was AKB76037001, this replacement should work without issues.
Maintenance
Proper care and maintenance will extend the life of your remote control.
- Cleaning: Use a soft, dry cloth to clean the surface of the remote. Do not use liquid cleaners or abrasive materials.
- Battery Replacement: Replace batteries when the remote's response becomes sluggish or stops working. Always replace both batteries at the same time with new ones.
- Storage: If the remote will not be used for an extended period, remove the batteries to prevent leakage and potential damage. Store in a cool, dry place.
- Avoid Damage: Do not drop the remote, expose it to extreme temperatures, or immerse it in water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote not working. | Dead or incorrectly inserted batteries. | Replace batteries with new 1.5V AAA alkaline batteries. Ensure correct polarity (+/-). |
| Remote has limited range or intermittent response. | Weak batteries; Obstruction between remote and TV; Infrared sensor on TV is blocked. | Replace batteries. Ensure a clear line of sight to the TV's infrared sensor. Remove any obstructions. |
| Specific buttons not responding. | Button malfunction; TV model incompatibility for specific advanced functions. | Check if the button is physically stuck. Verify if your TV model supports the specific function (e.g., direct streaming buttons). |
| Remote works for some TVs but not mine. | TV model is not compatible. | Refer to the "Compatible Models" section to confirm your TV model is listed. This remote is a direct replacement for AKB76037001. |
Specifications
| Model Number | AKB76037001 |
| Brand | ALLIMITY |
| Compatible Devices | Oscar/LG/Q.Bell LCD LED Televisions (Specific models listed in Operating Instructions) |
| Power Supply | 2 x 1.5V AAA Batteries (Not Included) |
| Product Dimensions | 6.5 x 1.38 x 0.72 inches (16.5 x 3.5 x 1.8 cm) |
| Item Weight | 1.59 ounces (45 grams) |
| Color | Black |
| Special Feature | No Programming Required |
Warranty and Support
Information regarding product warranty and specific customer support contacts is not provided in the available product data. For any issues or inquiries, please refer to the seller or the platform where the product was purchased.
For general troubleshooting, please refer to the "Troubleshooting" section of this manual or consult your television's user manual for remote control compatibility and settings.
