Subcold Pro10 Luxury Mini Fridge Cooler User Manual

Introduction

Thank you for choosing the Subcold Pro10 Luxury Mini Fridge Cooler. This compact and versatile appliance is designed for efficient and quiet cooling, making it ideal for various personal and professional settings, including bedrooms, offices, beauty spaces, and vehicles. This manual provides essential information for the safe and optimal operation, maintenance, and troubleshooting of your new mini fridge.

Safety Information

Please read all safety instructions carefully before using the appliance to prevent injury or damage.

• Ensure the power supply voltage matches the appliance's requirements (12V DC or 110V AC).
• Do not block ventilation openings. Maintain adequate space around the unit for proper airflow.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Unplug the appliance from the power outlet before cleaning or performing any maintenance.
• Keep the appliance away from direct sunlight, heat sources, and flammable materials.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Product Overview

The Subcold Pro10 is a 10-liter compact mini fridge designed for portability and efficiency. It features a durable exterior, a convenient carrying handle, and a spacious interior with adjustable shelving.

Components:

• Main Unit (Chequer Grey finish)
• Removable/Adjustable Shelves (2)
• Door Shelf/Basket
• Integrated Leather Handle
• Power Input Ports (AC/DC)
• Cooling Fan and Vents (Rear)

Figure 1: Front view of the Subcold Pro10 Mini Fridge, showcasing its Chequer Grey finish and chrome handle.

Figure 2: Interior view of the Subcold Pro10, showing the two removable plastic shelves and the door basket, designed for efficient storage.

Figure 3: Rear view of the Subcold Pro10, highlighting the semiconductor cooling chip and quiet operating DC fan for efficient and low-noise performance.

Setup

Unpacking:

1. Carefully remove the mini fridge from its packaging.
2. Inspect the unit for any signs of damage. If damaged, do not use and contact customer support.
3. Remove all internal packaging materials, including any protective films or tapes.

Placement:

• Place the mini fridge on a flat, stable surface.
• Ensure there is at least 10 cm (4 inches) of space around all sides of the unit, especially the rear, for proper ventilation.
• Avoid placing the unit in direct sunlight or near heat-emitting appliances (e.g., ovens, radiators).

Power Connection:

• For AC (Home/Office) Use: Connect the provided AC power cable to the AC input port on the back of the fridge, then plug it into a standard 110V AC wall outlet.
• For DC (Car/Portable) Use: Connect the provided DC power cable (if included, typically a car charger) to the DC input port on the back of the fridge, then plug it into a 12V car cigarette lighter socket.

Figure 4: The Subcold Pro10 with its 12V DC power adapter and US AC power plug, illustrating dual voltage capability for home or car use.

Operating Instructions

Turning On/Off:

• Locate the power switch on the back of the unit.
• Flip the switch to the "ON" position to begin cooling. The internal fan will start operating.
• Flip the switch to the "OFF" position to turn off the unit.

Loading Contents:

• Open the fridge door.
• Arrange items inside, ensuring not to overfill, which can impede airflow and cooling efficiency.
• The shelves can be removed or adjusted to accommodate taller items.
• Close the door firmly to maintain the internal temperature.

Figure 5: The interior of the Subcold Pro10 filled with beverages, demonstrating its 10-liter capacity, suitable for approximately 10 standard 330ml cans.

Cooling Performance:

• The Pro10 uses a semiconductor cooling system, designed for quiet and efficient operation.
• It is designed to cool items, not freeze them. The internal temperature will be approximately 15-20°C (59-68°F) below the ambient room temperature, down to a minimum of 3°C (37°F).
• For best results, place pre-chilled items into the fridge.

Maintenance

Cleaning:

• Always unplug the unit before cleaning.
• Wipe the interior and exterior surfaces with a soft cloth dampened with mild soap and water.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surfaces.
• Ensure the unit is completely dry before plugging it back in.

Defrosting:

• The Pro10 features a semi-automatic defrost system.
• If ice buildup occurs on the cooling plate, unplug the unit and allow the ice to melt naturally.
• Wipe away any melted water with a clean cloth.

Storage:

• If storing the unit for an extended period, ensure it is clean and dry.
• Store in a cool, dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

Specifications

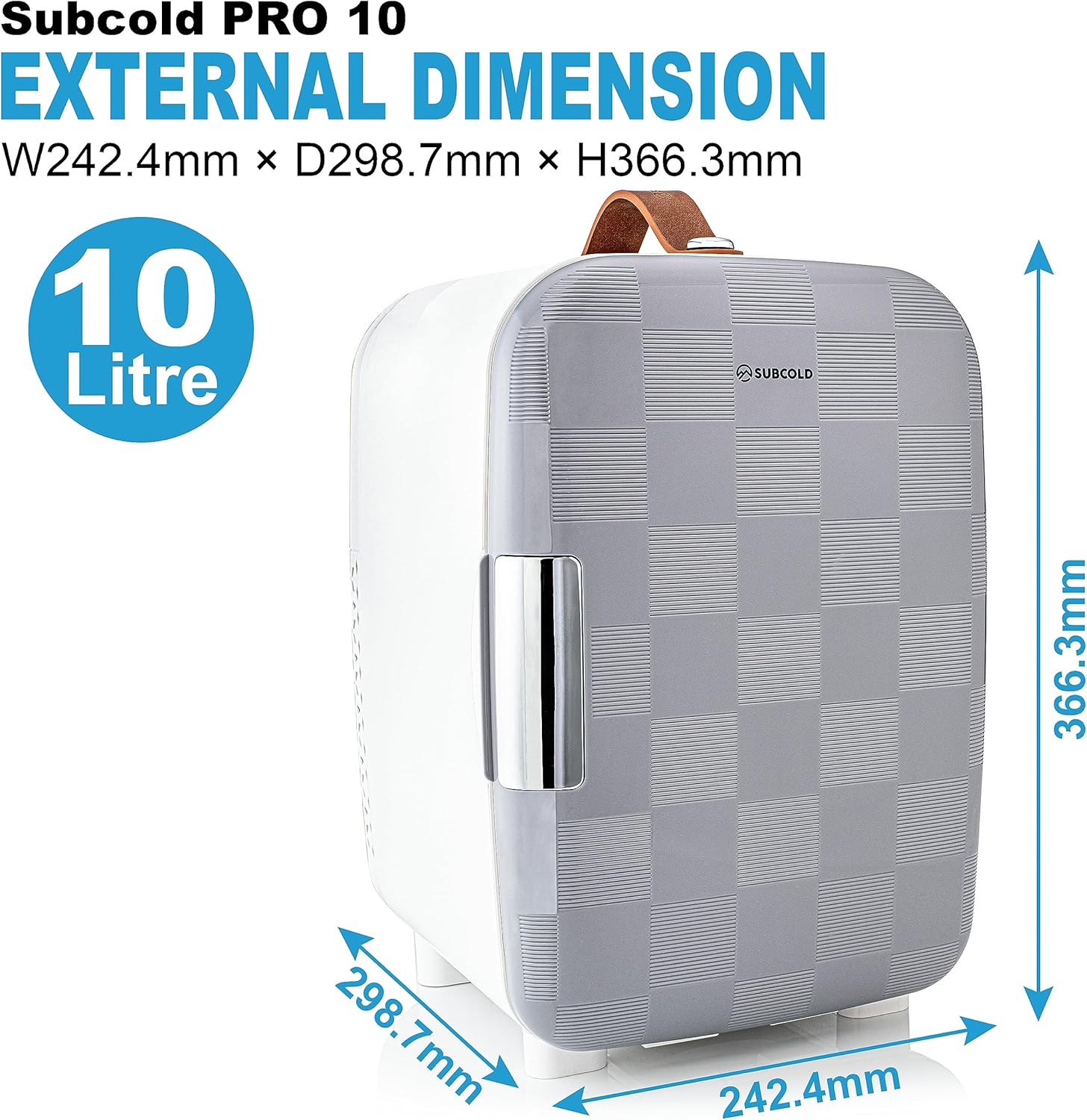

Figure 6: External dimensions of the Subcold Pro10 Mini Fridge, showing width, depth, and height measurements.

Warranty and Support

The Subcold Pro10 Mini Fridge Cooler comes with a manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions, including the warranty period and coverage details. Typically, the minimum duration of the guarantee offered by the manufacturer is 12 months.

For technical support, troubleshooting assistance, or warranty claims, please contact Subcold customer service. You can find contact information on the official Subcold website or through your purchase retailer.

Official website: www.subcold.com
