1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your SCS Sentinel MCO0062 12V Sliding Gate Motorization system and the AAM0049 4-Channel Remote Control. Please read these instructions carefully before beginning any procedures to ensure proper functionality and to prevent damage or injury.

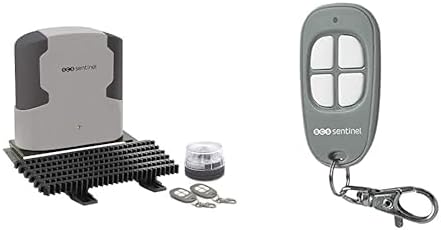

Figure 1: SCS Sentinel MCO0062 Sliding Gate Motorization unit and AAM0049 Remote Control. This image displays the complete kit, including the motorization unit, a beacon, and two remote controls.

2. Safety Information

Always observe the following safety precautions to reduce the risk of injury or damage:

• Ensure all electrical connections are made by a qualified professional and comply with local regulations.
• Disconnect power before performing any maintenance or repair work.
• Keep children and pets away from the gate area during operation.
• Do not attempt to repair or modify the system components yourself. Contact qualified service personnel.
• Ensure the gate operates smoothly and is properly balanced before installing the motorization system.

3. Package Contents

Verify that all components are present and undamaged upon unpacking:

• SCS Sentinel MCO0062 12V Sliding Gate Motorization Unit
• Rack sections for gate attachment
• Warning Beacon
• Two (2) AAM0049 4-Channel Remote Controls
• Two (2) CR2016 Lithium Batteries (pre-installed in remotes or supplied separately)
• Mounting hardware and accessories (refer to detailed parts list in the separate installation guide)

Figure 2: Components of the SCS Sentinel MCO0062 Sliding Gate Motorization kit. This image shows the motorization unit, rack, beacon, and two remote controls.

4. Setup and Installation

The SCS Sentinel MCO0062 system is designed for easy installation. However, professional installation is recommended for optimal safety and performance, especially for electrical connections.

4.1 Gate Requirements

• The motorization system is suitable for sliding gates up to 4 meters in length.
• Maximum gate weight supported is 400 kg.
• Ensure the gate slides freely without obstruction and is level.

4.2 Electrical Connection

The system operates on a 12V power supply. Refer to the detailed wiring diagrams provided in the separate installation guide for specific electrical connection instructions. Ensure the power source is stable and protected.

4.3 Motor and Rack Installation

Mount the motorization unit securely on a stable base next to the gate. Attach the rack sections to the bottom edge of the gate, ensuring proper alignment with the motor's gear. Detailed steps for mounting and alignment are provided in the comprehensive installation manual.

Figure 3: Product packaging indicating maximum gate length of 4 meters and maximum weight of 400 kg for the SCS Sentinel MCO0062 system.

5. Operating Instructions

The SCS Sentinel MCO0062 system features a silent electrical operation and is controlled via the AAM0049 4-channel remote control.

5.1 Remote Control (AAM0049)

• The AAM0049 remote control operates on an emission frequency of 433.92 Mhz.
• It features 4 channels, allowing control of multiple functions or gates if programmed accordingly.
• For optimal security, the remote utilizes a rolling code technology to prevent unauthorized access.
• To operate the gate, press the designated button on the remote control. A single press typically initiates the gate movement (open or close). Pressing again during movement will stop the gate.

Figure 4: SCS Sentinel AAM0049 4-Channel Remote Control. This remote features four distinct buttons for controlling gate functions.

5.2 Manual Override

In case of power failure or system malfunction, the gate can typically be disengaged for manual operation. Refer to the specific instructions in your detailed installation guide for the manual release mechanism.

6. Maintenance

Regular maintenance ensures the longevity and reliable operation of your gate motorization system.

• Monthly: Inspect the gate's movement for any obstructions, excessive friction, or unusual noises. Clean the rack and gear to remove debris.
• Quarterly: Check all mounting hardware for tightness. Inspect electrical cables for wear or damage. Test the safety features, such as obstacle detection (if applicable).
• Annually: Have the system professionally inspected to ensure all components are functioning correctly and safely.
• Remote Control Batteries: The AAM0049 remote control is powered by two CR2016 lithium batteries. Replace them when the remote's range decreases or it stops responding.

7. Troubleshooting

If you encounter issues with your SCS Sentinel gate motorization system, refer to the following common troubleshooting steps:

• Gate not responding to remote: Check remote control batteries. Ensure the remote is within range and properly programmed. Verify the main power supply to the motorization unit.
• Gate stops unexpectedly: Check for physical obstructions in the gate's path. Inspect the rack and gear for debris or damage.
• Unusual noises during operation: This may indicate wear on mechanical parts or a need for lubrication. Disengage the motor and manually check the gate's movement for friction points.
• Beacon not flashing: Check the beacon's power connection and bulb/LED functionality.

For persistent issues, consult the comprehensive troubleshooting guide in your full product manual or contact SCS Sentinel customer support.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support, please reach out to SCS Sentinel customer service through their official website or the contact details provided in your product packaging.
