1. Introduction
Thank you for choosing the Pomya 1080P Body Camera. This compact and versatile device is designed for reliable video and photo capture, offering features such as Full 1080P video recording, 12MP photo resolution, infrared night vision, and continuous loop recording. With its 1000mAh battery, it provides up to 5 hours of continuous operation, making it suitable for various applications including law enforcement and security monitoring.
2. Product Overview
Familiarize yourself with the components of your Pomya Body Camera.

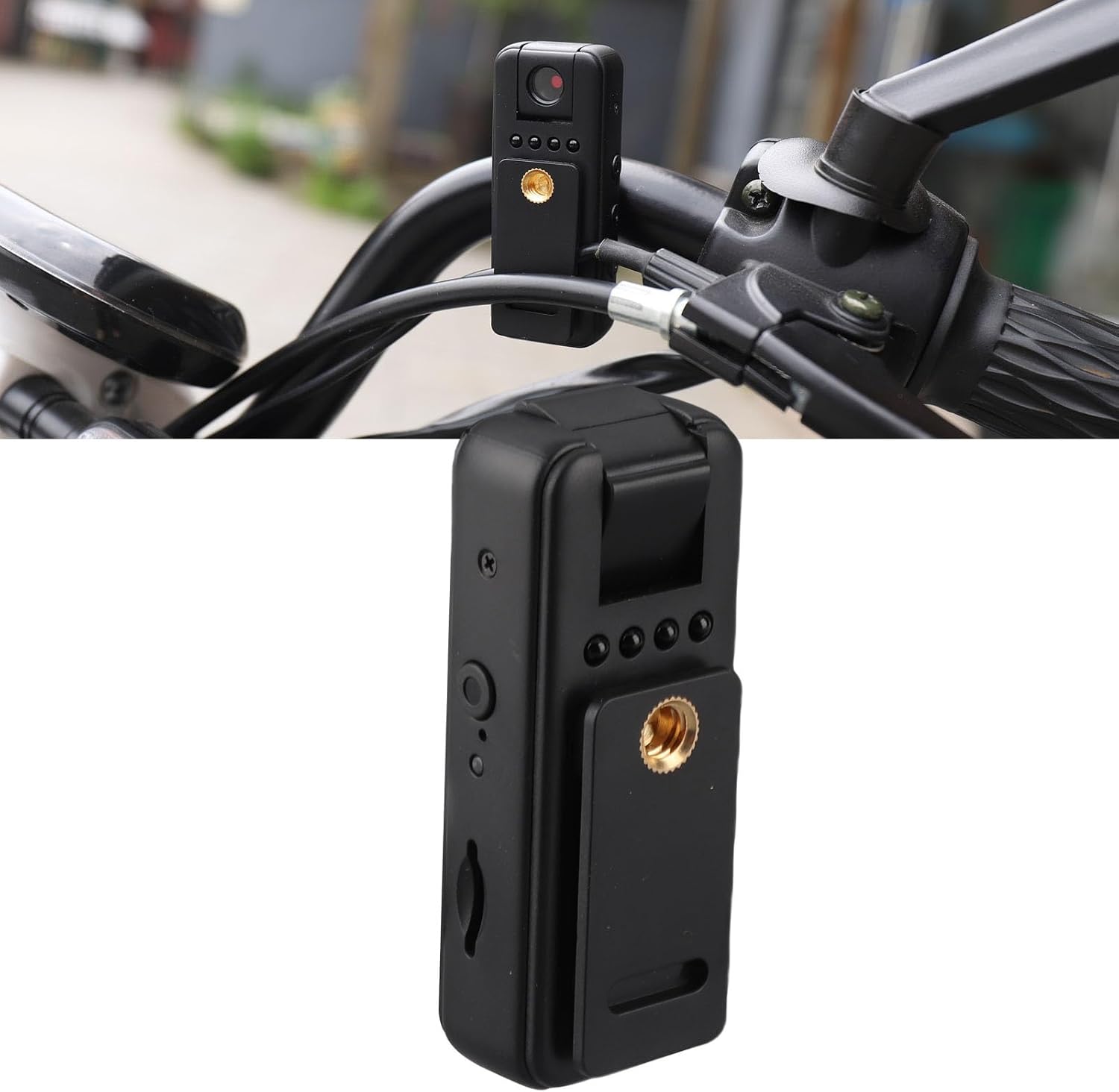

Figure 2.1: The Pomya 1080P Body Camera shown mounted, highlighting its compact design.

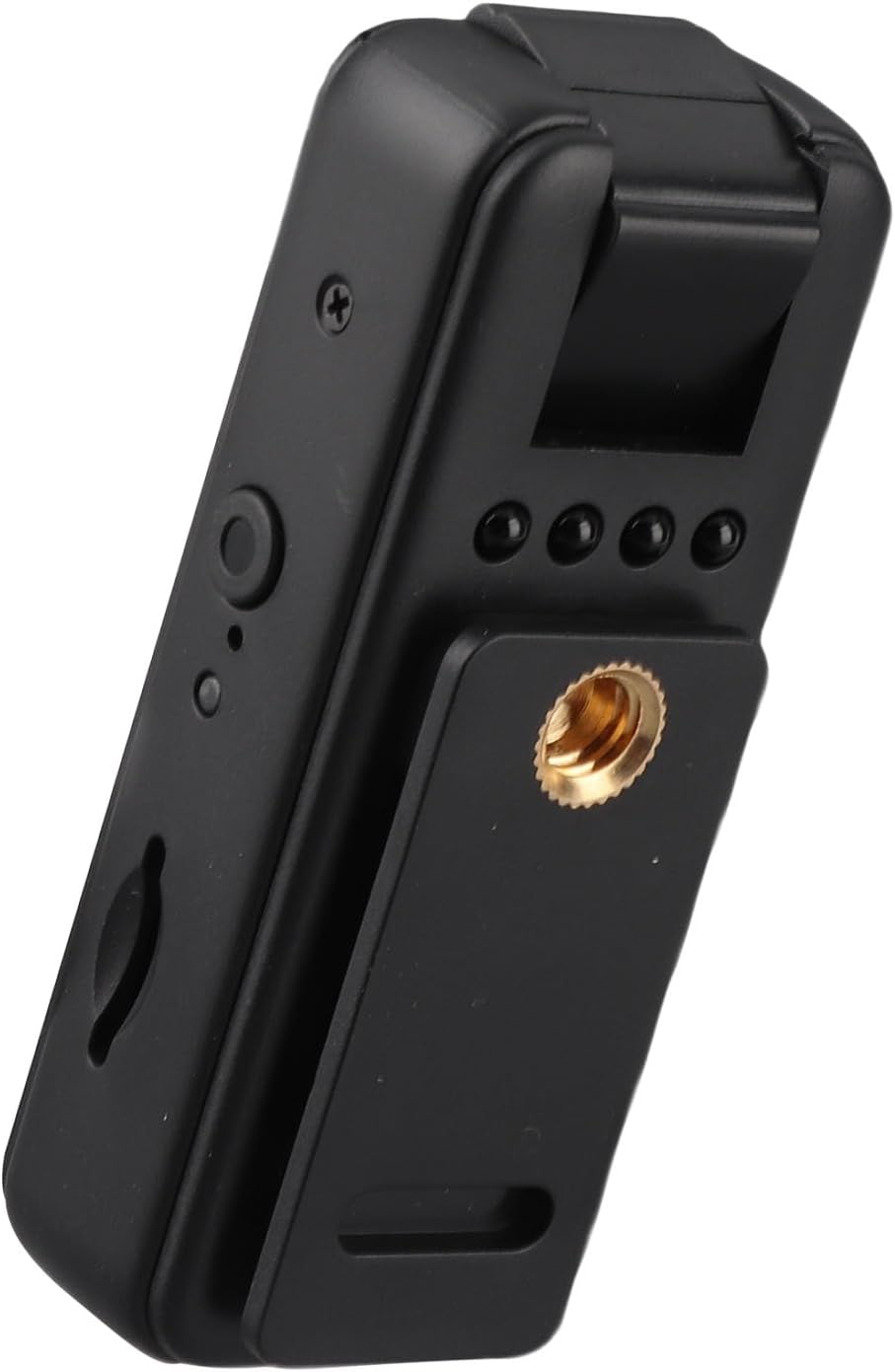

Figure 2.2: Side view of the camera, illustrating the control buttons and the memory card slot.
Figure 2.3: Bottom view of the camera, featuring the USB-C charging port.
Figure 2.4: Back view of the camera, showing the rotating clip, tripod mount, and the included USB-C charging cable.
Video 2.1: An overview of the Pomya 1080P Body Camera, demonstrating its features and compact size.
3. Setup
- Insert Memory Card: The camera requires a Micro Storage Card (not included) for recording. Locate the memory card slot on the side of the device (refer to Figure 2.2) and insert the card until it clicks into place. The camera supports up to 256GB Micro Storage cards.
- Charge the Battery: Before first use, fully charge the camera. Connect the included USB-C cable to the camera's USB-C port (refer to Figure 2.3) and the other end to a USB power adapter (not included) or a computer. The charging indicator light will show the charging status. A full charge provides up to 5 hours of continuous video recording.
4. Operating Instructions
4.1 Power On/Off
- Power On: Press and hold the Power button for a few seconds until the indicator light illuminates.
- Power Off: Press and hold the Power button again until the indicator light turns off.
4.2 Video Recording
- To start 1080P video recording, press the Video Record button once. The indicator light will change to confirm recording has begun.
- To stop recording, press the Video Record button again. The indicator light will revert to standby mode.
4.3 Photo Capture
- To take a 4K resolution photo, press the Photo Capture button once. The camera will briefly flash or indicate a successful capture.
4.4 Night Vision
- The camera supports infrared night vision for clear recording in low-light conditions. The night vision feature activates automatically or can be manually toggled via a dedicated button (refer to product diagram for exact button location).
4.5 Loop Recording
- The camera features loop recording. When the memory card reaches its storage capacity, the camera will automatically overwrite the oldest video files to save new recordings. Ensure important footage is backed up regularly.
4.6 Audio Recording
- The camera supports one-touch audio recording with an intelligent noise reduction chip, enhancing sound clarity.
5. Maintenance
- Keep the camera lens clean using a soft, lint-free cloth.
- Avoid exposing the camera to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.
- Store the camera in a cool, dry place when not in use.
- Regularly back up your recorded data to prevent loss.
6. Troubleshooting
| Problem | Possible Solution |
|---|---|
| Camera not turning on | Ensure the battery is charged. Connect to a power source and try again. |
| Cannot record video/take photos | Check if a memory card is inserted and if it has sufficient free space. Format the memory card if necessary (this will erase all data). |
| Poor video/photo quality | Ensure the lens is clean. Check lighting conditions; activate night vision if in a dark environment. |
| Camera freezes or becomes unresponsive | Perform a soft reset by pressing and holding the Power button until the device powers off, then restart. |
7. Specifications
| Feature | Detail |
|---|---|
| Video Format | AVI |
| Photo Format | JPG |
| Recording Format | WAV 512kbps |
| Pixel | 12 Million (Effective Still Resolution) |
| USB Interface | USB2.0 Type C |
| Storage Support | Up to 256GB Micro Storage Card (not included) |
| Battery Capacity | 1000mAh Lithium Battery |
| Working Time | Up to 5 hours continuous video recording |
| Video Capture Resolution | 1080P (Full HD) |
| Night Vision | Supported (Infrared) |
| Loop Recording | Supported |
| Noise Reduction | Intelligent chip for improved sound clarity |
| Model Number | Pomyag4mqnk79cy |
| Brand | Pomya |
8. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact Pomya customer service through the retailer where the product was purchased. Keep your purchase receipt for warranty claims.
For additional assistance, you may visit the Pomya Store on Amazon.
