Introduction
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your ANCTOR Queen Bed Frame. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and longevity of your product.
Setup and Assembly
Your ANCTOR Queen Bed Frame is designed for straightforward assembly. Each package includes all essential components, necessary tools, and comprehensive instructions to guide you through the setup process. While assembly can be managed by one person, having two individuals may expedite the process due to the weight of some components.
Before You Begin:
- Verify all parts are present according to the packing list provided in your package.
- Clear an adequate space for assembly.
- Keep children and pets away from the assembly area.
- Use the provided tools or your own appropriate tools.
Assembly Steps:
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Follow the step-by-step instructions provided in the separate assembly guide included with your product.
- Ensure all connections are secure and tightened before placing a mattress on the frame.
Figure 1: Queen Bed Frame Dimensions. This diagram illustrates the overall dimensions of the bed frame (83.4"L x 62.2"W x 44"H) and the length of the power cord (72.8").
Figure 2: Stable Structure and Noise-Free Design. This image highlights the robust wooden slats, reinforced metal supports, and widened legs that contribute to the bed frame's stability and noise-free operation.
Operating Instructions
Hidden Storage Space:
The headboard of your ANCTOR bed frame features integrated storage shelves and a large hidden compartment. This design allows for convenient storage of items such as books, magazines, and other personal belongings, helping to keep your bedroom organized and clutter-free.
Figure 3: Headboard Storage and Comfort. This image shows the hidden storage compartments within the headboard, along with the skin-friendly linen fabric and soft high-density foam for comfort.
RGB LED Lights:
The headboard is equipped with RGB LED lights, allowing you to customize the ambiance of your bedroom. The smart lighting system offers a variety of light modes and over 60,000 colors, which can be controlled via a remote or a dedicated mobile application. Features include custom styles, mic mode (lights react to sound), timing functions, and music mode.
Figure 4: LED Light Control Options. This image displays the remote control and mobile app interface for managing the RGB LED lights, highlighting features like color selection, custom styles, mic mode, timing, and music mode.
Integrated Charging Station:
For your convenience, the headboard includes two built-in USB ports and two standard power outlets. This allows you to charge your electronic devices directly from your bed, eliminating the need for additional adapters or searching for wall outlets.

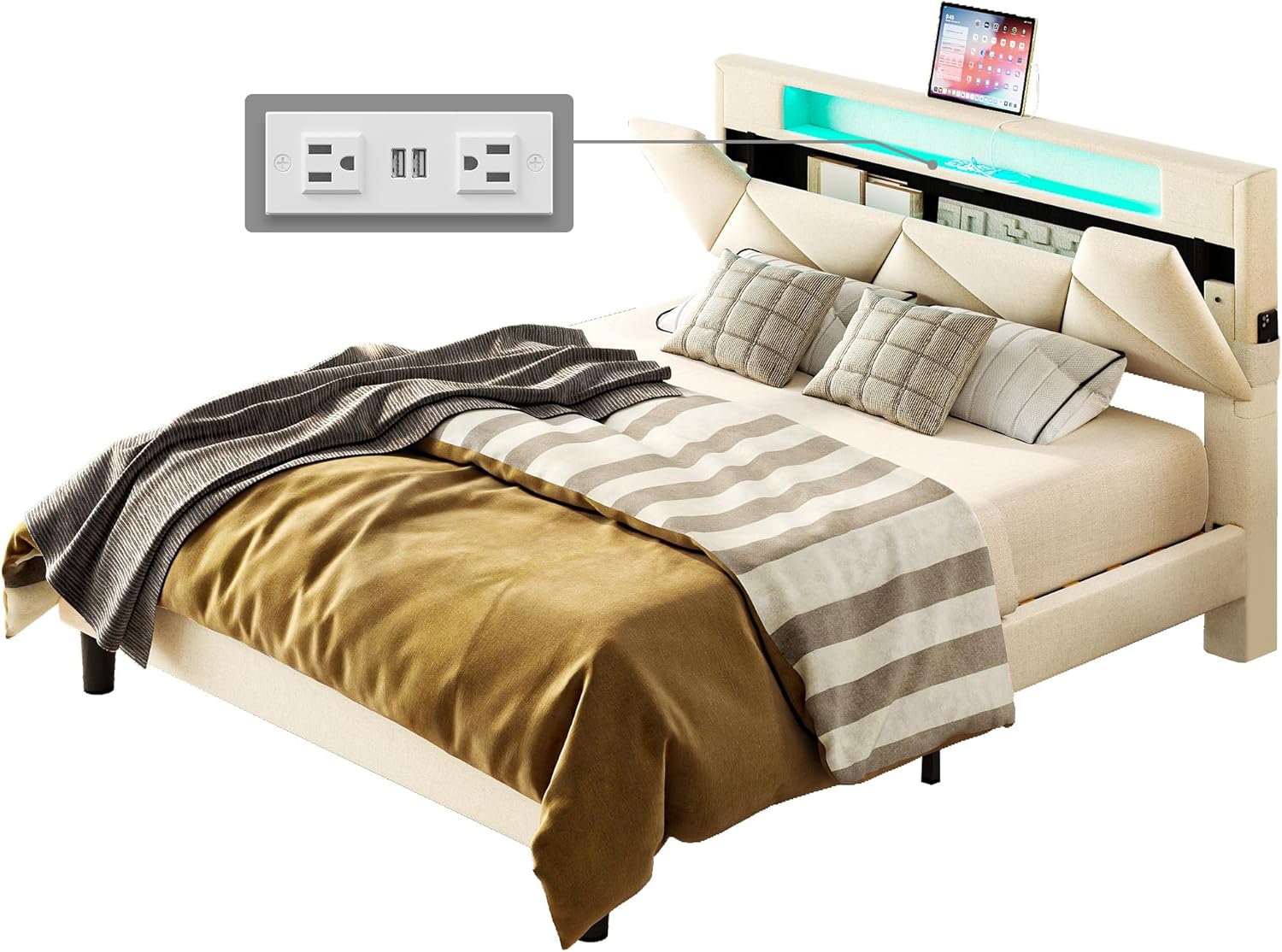

Figure 5: Headboard Charging Station. This image shows the integrated USB ports and power outlets conveniently located on the headboard for easy device charging.
Maintenance
Upholstery Care:
- Regularly vacuum the upholstered surfaces using a soft brush attachment to remove dust and debris.
- For spills, blot immediately with a clean, dry cloth. Do not rub.
- For stubborn stains, consult a professional upholstery cleaner or use a mild fabric cleaner suitable for linen, testing on an inconspicuous area first.
- Avoid direct sunlight exposure to prevent fading.
Frame and Slats:
- Periodically check all bolts and screws to ensure they remain tight. Retighten as necessary to maintain stability and prevent noise.
- Wipe down metal and wood components with a damp cloth. Avoid harsh chemicals.
LED Lights and Charging Ports:
- Keep the LED light strip and charging ports free from dust and liquids.
- Ensure cables are not pinched or damaged.
- If the LED lights or charging ports malfunction, refer to the troubleshooting section or contact customer support.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is noisy/squeaky. | Loose bolts or connections; friction between components. | Check and tighten all assembly bolts. Ensure silent material (if applicable) is properly placed between slats and frame. |
| LED lights are not working. | Power connection issue; remote control battery low; LED strip damage. | Ensure the power adapter is securely plugged into the wall outlet and the headboard. Check remote control battery and replace if necessary. If issues persist, contact customer support. |
| Charging ports (USB/Outlets) are not working. | Power connection issue; device compatibility. | Ensure the bed frame's power cord is fully plugged into a functional wall outlet. Test with a different device or cable. If still not working, contact customer support. |
| Headboard storage compartment not closing smoothly. | Obstruction; hinge issue. | Check for any items obstructing the closing mechanism. Inspect hinges for damage or misalignment. |
Specifications
| Feature | Detail |
|---|---|
| Brand | ANCTOR |
| Model Number | HK-QBF-2M |
| Size | Queen |
| Product Dimensions (L x W x H) | 83.4" x 62.2" x 44" |
| Color | Beige |
| Finish Type | Wood |
| Included Components | Headboard, Frame, Slats, Assembly Hardware |
| Special Features | No Box Spring Needed, Integrated LED Light Strip, Storage Headboard, Built-in Power Outlet (2x USB, 2x AC) |
| Compatible Mattress Size | Queen |
| Assembly Required | Yes |
| Item Weight | 88 pounds |
Warranty and Support
ANCTOR is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, we encourage you to retain your proof of purchase for any warranty claims.
If you encounter any problems during assembly, operation, or have questions regarding your ANCTOR Queen Bed Frame, please do not hesitate to contact our customer support team. We are here to assist you.
For support, please refer to the contact information provided on your purchase receipt or the ANCTOR official website.
