Product Overview
These Winjet Full LED tail lights are designed for specific Dodge Ram and Ram 1500 Classic models. They offer enhanced visibility and durability compared to conventional incandescent lamps.
- Compatibility: Compatible with 2009-2018 Dodge Ram 1500/2500/3500 with Factory Halogen Headlights and 2019-2023 Ram 1500 Classic (Not suitable for New Body models).
- Enhanced Lighting: High-intensity LEDs provide brighter and clearer lighting for improved safety and visibility in various weather conditions.

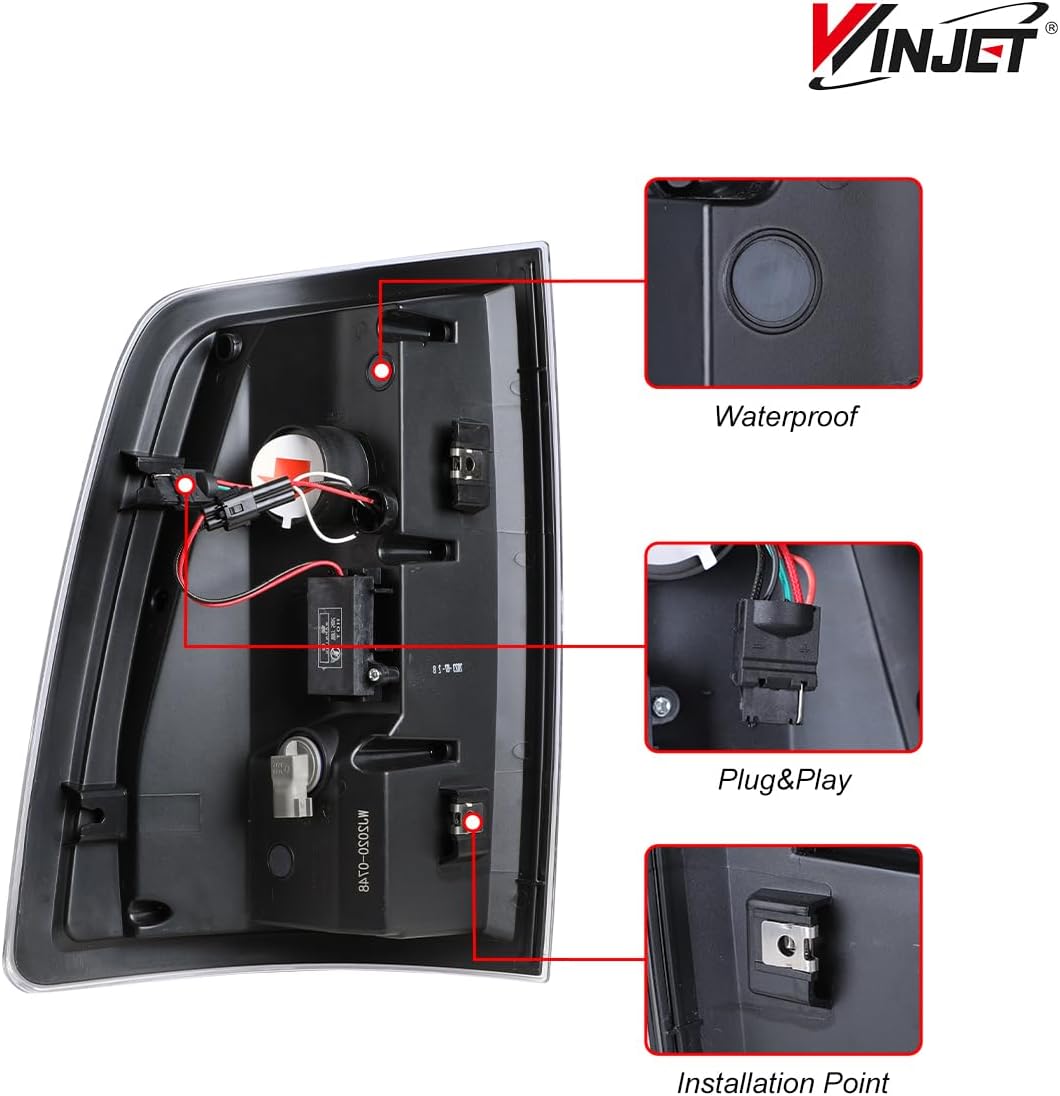

- Durable Construction: Made from OEM grade ABS plastic housing and a fully sealed beam with a durable PMMA lens, ensuring IP66 waterproof and dustproof performance. Designed to withstand rigorous weather.
- Heat Dissipation: Features a well-designed breather for effective heat dissipation, contributing to a longer service life.
Installation Guide
The Winjet LED Tail Lights are designed for a straightforward, plug-and-play installation, requiring no drilling or modifications to your vehicle.
Before Installation:
- Ensure your vehicle is turned off and the parking brake is engaged.
- Verify that your vehicle model is compatible with these tail lights (2009-2018 Dodge Ram 1500/2500/3500 with Factory Halogen Headlights, or 2019-2023 Ram 1500 Classic).
- Gather necessary tools, typically a screwdriver and possibly a socket wrench.
Installation Steps:
- Remove Old Tail Light: Carefully unbolt and remove the existing tail light assembly from your vehicle. Disconnect the wiring harness.
- Connect New Tail Light: Connect the wiring harness of the new Winjet LED Tail Light to your vehicle's existing harness. The design ensures a perfect fit without special wiring.
- Secure New Tail Light: Position the new LED tail light assembly into the opening and secure it using the factory bolt-on points. Ensure it is firmly in place.
- Test Functionality: Before fully tightening, test all light functions (running lights, brake lights, turn signals, and reverse lights) to ensure proper operation.
- Final Tightening: Once all functions are confirmed, fully tighten the mounting bolts.
Operating Instructions
The Winjet LED Tail Lights operate automatically with your vehicle's existing lighting system. No special controls are required.
- Running Lights: Activate when your vehicle's headlights or parking lights are on.
- Brake Lights: Illuminate brightly when the brake pedal is pressed.
- Turn Signals: Flash when the turn signal lever is engaged.
- Reverse Lights: Activate when the vehicle is shifted into reverse.
Visual Demonstration:
This video demonstrates the various light functions of the Winjet LED Tail Lights, including running lights, turn signals, brake lights, and reverse lights.
Maintenance
Winjet LED Tail Lights are designed for minimal maintenance. Follow these general guidelines to ensure longevity and optimal performance:
- Regular Cleaning: Clean the lens with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the lens material.
- Inspect for Damage: Periodically check the tail light assemblies for any signs of cracks, moisture intrusion, or loose connections. Address any issues promptly.
- Wiring Check: Ensure all wiring connections remain secure and free from corrosion.
Troubleshooting
If you encounter any issues with your Winjet LED Tail Lights, consider the following troubleshooting steps:
- Lights Not Working:
- Check all wiring connections to ensure they are securely plugged in.
- Inspect vehicle fuses related to tail lights.
- Ensure the vehicle's light switch is in the correct position.
- Flickering Lights:
- Verify stable electrical connections.
- Check for any loose wires or corrosion.
- Moisture Inside Lens:
- Small amounts of condensation can occur due to temperature changes and usually dissipate.
- If significant moisture or water accumulation is present, inspect the seal around the lens and housing for damage.
If these steps do not resolve the issue, please contact Winjet customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | Winjet |
| Model Number | WJ2020-0748-16-FBM |
| Color | Black Housing Clear Lens |
| Specific Uses | Rear Lights |
| Vehicle Service Type | 2009-2018 Dodge Ram 1500/2500/3500 with Factory Halogen Headlights, 2019-2023 Ram 1500 Classic (Not fit for New Body models) |
| Special Feature | Waterproof |
| Light Source Type | LED |
| Voltage | 12 Volts (DC) |
| Auto Part Position | Rear |
| Lens Material | Acrylic |
| Item Dimensions (L x W x H) | 16.54 x 11.81 x 11.02 inches |
| Item Weight | 5.95 pounds |
| OEM Part Number | L: 55277415AF, R: 55277414AF |
Warranty and Support
All Winjet products come with a one-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures product quality.
- Warranty Period: One year from the purchase date.
- Customer Support: Winjet provides 24/7 technical support for all customers.
- Contact: For any issues regarding purchase, installation, or after-sales support during the warranty period, please contact Winjet customer service.
