Introduction
Thank you for purchasing the ELCO Lighting EL417CT5 4-inch Integrated LED Recessed Trim. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before installation and retain them for future reference.
Safety Information
- WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installation or servicing.
- Installation must be performed by a qualified electrician in accordance with all national and local electrical codes.
- Ensure the supply voltage is 120V AC. Connecting to an improper voltage may damage the fixture and void the warranty.
- Do not modify or alter the fixture. Any modifications may compromise safety and performance.
- This fixture is rated for installation in wet locations. Ensure all connections are properly sealed if installed in such environments.
- Wear safety glasses and gloves during installation.
Package Contents
Verify that all components are present before beginning installation:
- ELCO Lighting EL417CT5 Integrated LED Recessed Trim
- Medium Base Adapter (PSA30) for E26 Base housings
- Instruction Manual (this document)
Setup and Installation
The EL417CT5 is designed for easy retrofit installation into existing 4-inch recessed housings or for new construction with compatible ELCO housings.
- Turn Off Power: Before starting, ensure the power supply to the fixture location is turned off at the circuit breaker or fuse box.
- Prepare Housing: If retrofitting an existing housing, remove the old trim and bulb. Ensure the housing is clean and free of debris.
- Select Color Temperature (CCT): Locate the manual switch on the driver unit of the EL417CT5. Select your desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K) before proceeding with the electrical connection. This setting cannot be changed easily after installation.
- Connect Wiring:
- For Retrofit (E26 Base): Screw the provided Medium Base Adapter (PSA30) into the existing E26 socket in the recessed housing. Connect the quick connector from the EL417CT5 trim to the adapter.
- For New Construction/Compatible Housings: Connect the quick connector from the EL417CT5 trim directly to the quick connect receptacle in the compatible ELCO housing.
- Insert Trim: Gently push the EL417CT5 trim into the recessed housing until the springs securely hold it in place, flush with the ceiling.
- Restore Power: Turn the power back on at the circuit breaker.

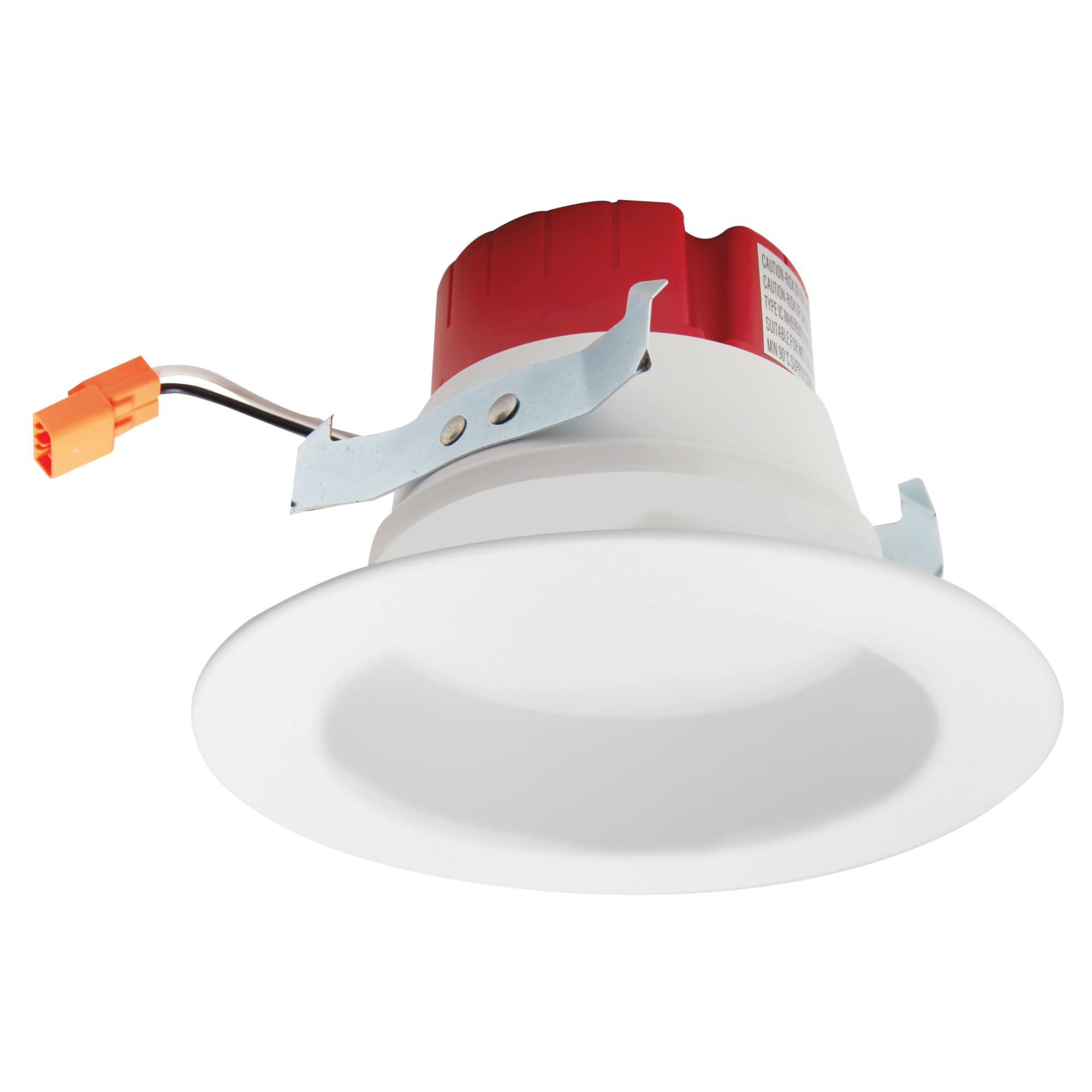

This image shows the ELCO Lighting EL417CT5 4-inch Integrated LED Recessed Trim. It features a white finish and a frosted lens, designed for flush mounting into a 4-inch recessed housing.
Operating Instructions
The EL417CT5 operates like a standard light fixture once installed.
- Power On/Off: Use your wall switch to turn the light fixture on or off.
- Color Temperature (CCT) Selection: The desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K) is set via a manual switch on the driver unit during installation. It is not intended for frequent adjustment after installation.
- Dimming: This fixture is compatible with most Triac/ELV dimmers, allowing smooth dimming down to 10% of its full brightness. Ensure your dimmer switch is compatible with LED lighting.
Maintenance
The ELCO Lighting EL417CT5 LED Recessed Trim requires minimal maintenance.
- Cleaning: Ensure power is off before cleaning. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or electrical components.
- No User-Serviceable Parts: The integrated LED light source is designed for a long lifespan (50,000 hours). There are no user-serviceable parts inside the fixture. Do not attempt to open or repair the unit.
Troubleshooting
If you experience issues with your EL417CT5 fixture, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture; Loose wiring connection; Incorrect CCT switch setting. | Check circuit breaker/fuse. Verify all wiring connections are secure. Ensure CCT switch is set to a valid position. |
| Light flickers or dims improperly | Incompatible dimmer switch; Loose wiring. | Ensure dimmer is LED compatible (Triac/ELV). Check wiring connections. |
| Light output is too low/high | Incorrect CCT setting; Dimmer setting. | Adjust dimmer to desired level. Verify CCT switch is set to preferred color temperature. |
If troubleshooting steps do not resolve the issue, contact ELCO Lighting customer support.
Specifications
| Feature | Specification |
|---|---|
| Model Number | EL417CT5 |
| Trim Size | 4 inches |
| Wattage | 14 Watts |
| Lumen Output | 1000 Lumens |
| Color Temperature (CCT) | Selectable: 2700K, 3000K, 3500K, 4000K, 5000K |
| Color Rendering Index (CRI) | 93+ |
| Average Rated Life | 50,000 Hours (L70) |
| Voltage | 120 Volts |
| Dimming | Triac/ELV Dimmable (down to 10%) |
| Dimensions (L x W x H) | 5.5" x 5.5" x 3.25" |
| Weight | 11.2 ounces (0.7 lbs) |
| Material | Copper |
| Finish Color | White |
| Certifications | Energy Star Certified, Title 24 JA8-2019 Compliant |
| Location Rating | Wet Location Rated |
| Installation Type | Flush Mount, Retrofit (E26 Base) |
Warranty and Support
The ELCO Lighting EL417CT5 Integrated LED Recessed Trim is covered by ELCO Lighting's 5-year limited manufacturer warranty. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or further assistance, please contact ELCO Lighting customer service or visit their official website. You can also find more information at the ELCO Lighting Store on Amazon.
