ELCO Lighting ELK4741 Koto System 4" Square Reflector Trim User Manual

Introduction

Thank you for choosing the ELCO Lighting ELK4741 Koto System 4" Square Reflector Trim. This trim is designed to integrate seamlessly with compatible 4-inch recessed lighting housings, providing a clean, modern aesthetic and efficient light distribution. This manual provides essential information for safe installation, operation, and maintenance of your product.

Safety Information

• WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.
• Installation should be performed by a qualified electrician in accordance with all local electrical codes and ordinances.
• Ensure the voltage supply is compatible with the recessed housing and light source being used.
• Do not install this trim in locations where it may be exposed to direct water spray unless the associated recessed housing is also rated for such conditions. This trim is rated for wet locations when used with an appropriately rated housing.
• Handle the trim with care to avoid damage to the finish or reflector.

Package Contents

Verify that all components are present before beginning installation:

• ELCO Lighting ELK4741 Koto System 4" Square Reflector Trim (1 unit)

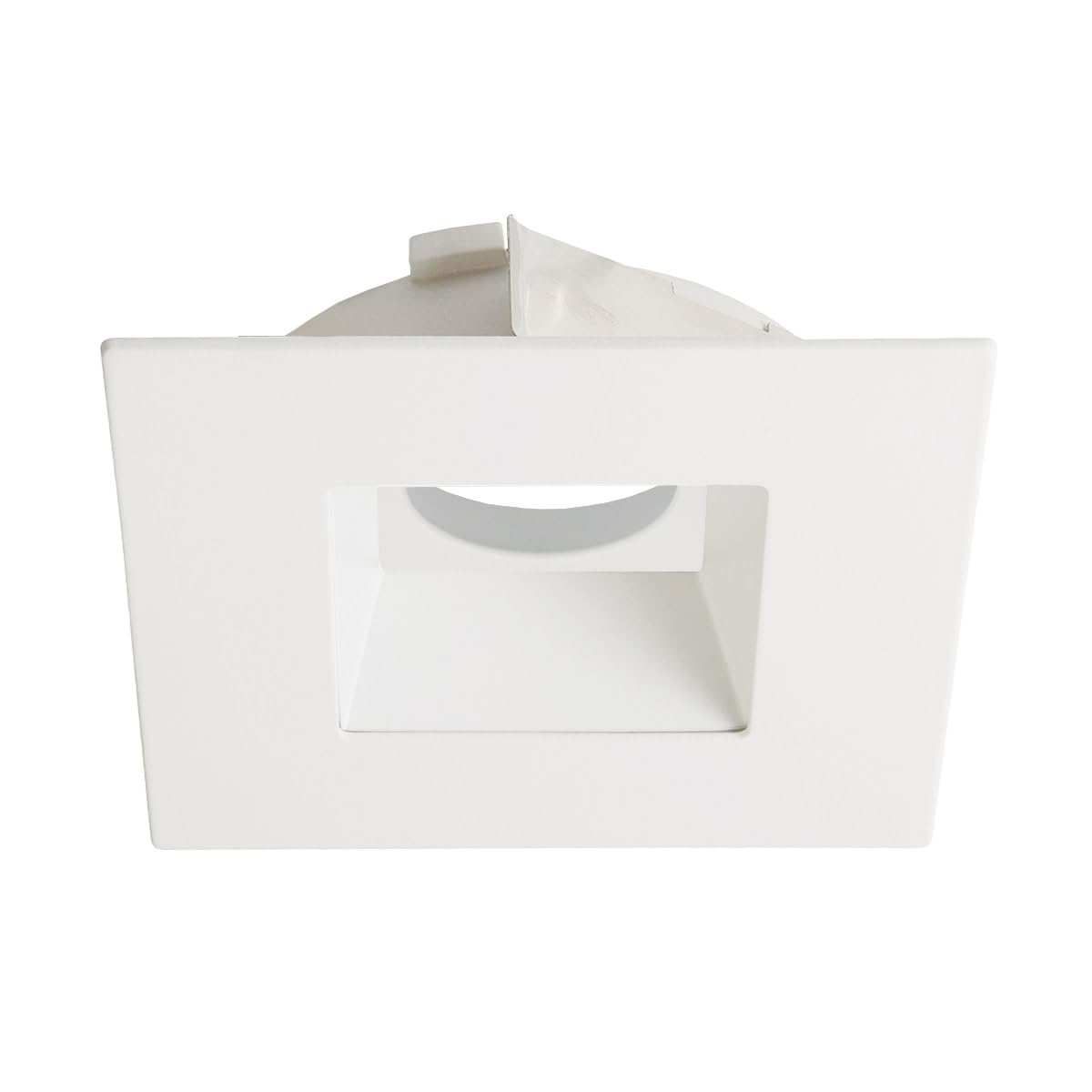

Image showing the ELCO Lighting ELK4741 Koto System 4 inch Square Reflector Trim, a white square trim designed for recessed lighting fixtures.

Setup and Installation

This trim is designed for flush mount, ceiling mount installation with a compatible 4-inch recessed housing (sold separately). No assembly is required for the trim itself.

1. Turn Off Power: Before starting, ensure the power to the circuit where the recessed light will be installed is turned off at the circuit breaker or fuse box.
2. Prepare Housing: Install the compatible 4-inch recessed lighting housing according to its specific instructions. Ensure all electrical connections are secure and properly insulated.
3. Install Light Source: Insert the appropriate GX53 base LED light source into the recessed housing socket.
4. Install Trim: Align the ELK4741 trim with the recessed housing opening. Gently push the trim upwards until its retention clips engage with the housing, securing it flush against the ceiling. Ensure the trim is seated evenly.
5. Restore Power: Once the trim is securely installed, restore power to the circuit.

Operating Instructions

The ELK4741 trim itself does not have operational controls. Its function is to provide a finished appearance and direct light from the installed light source. The operation of the light fixture (on/off, dimming) is controlled by the wall switch or dimmer connected to the recessed housing circuit.

Maintenance

To maintain the appearance and performance of your ELK4741 trim:

• Cleaning: Ensure power is off before cleaning. Wipe the trim with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes, as these can damage the finish.
• Bulb Replacement: If the light source needs replacement, turn off power at the circuit breaker. Carefully remove the trim by gently pulling it down from the ceiling. Replace the GX53 LED bulb, then re-install the trim as per the installation instructions.

Troubleshooting

If the light fixture is not functioning after trim installation, consider the following:

• No Light:
  • Check if the circuit breaker is tripped or if the fuse is blown.
  • Ensure the wall switch is in the 'ON' position.
  • Verify that the light source (bulb) is correctly seated in the socket and is not faulty.
  • Confirm that the recessed housing is properly wired and receiving power.
• Trim Not Flush:
  • Ensure the retention clips are fully engaged with the recessed housing.
  • Check for any obstructions preventing the trim from seating correctly.

If issues persist, consult a qualified electrician.

Specifications

Warranty and Support

This ELCO Lighting product is covered by a 5-year limited warranty. This warranty covers defects in materials and workmanship under normal use and service.

For warranty claims, technical support, or further assistance, please contact ELCO Lighting customer service or visit their official website. Please have your model number (ELK4741) and proof of purchase available.

ELCO Lighting Website: www.elcolighting.com
