CBBEXP 6EP1333-1LB00 PSU100L 24V/5A Stabilized Power Supply User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your CBBEXP 6EP1333-1LB00 PSU100L 24V/5A Stabilized Power Supply. Please read these instructions carefully before installation and operation, and retain them for future reference.

2. Product Overview

The CBBEXP 6EP1333-1LB00 PSU100L is a high-quality, stabilized power supply designed for industrial applications, specifically as a Programmable Logic Control (PLC) product. It delivers a stable 24V output with a 5A current capacity, providing reliable power for sensitive electronic components. This unit is engineered for durability and consistent performance.

• Model: 6EP1333-1LB00
• Type: Programmable Logic Control Product
• Output: 24V/5A
• Output Wattage: 100 Watts

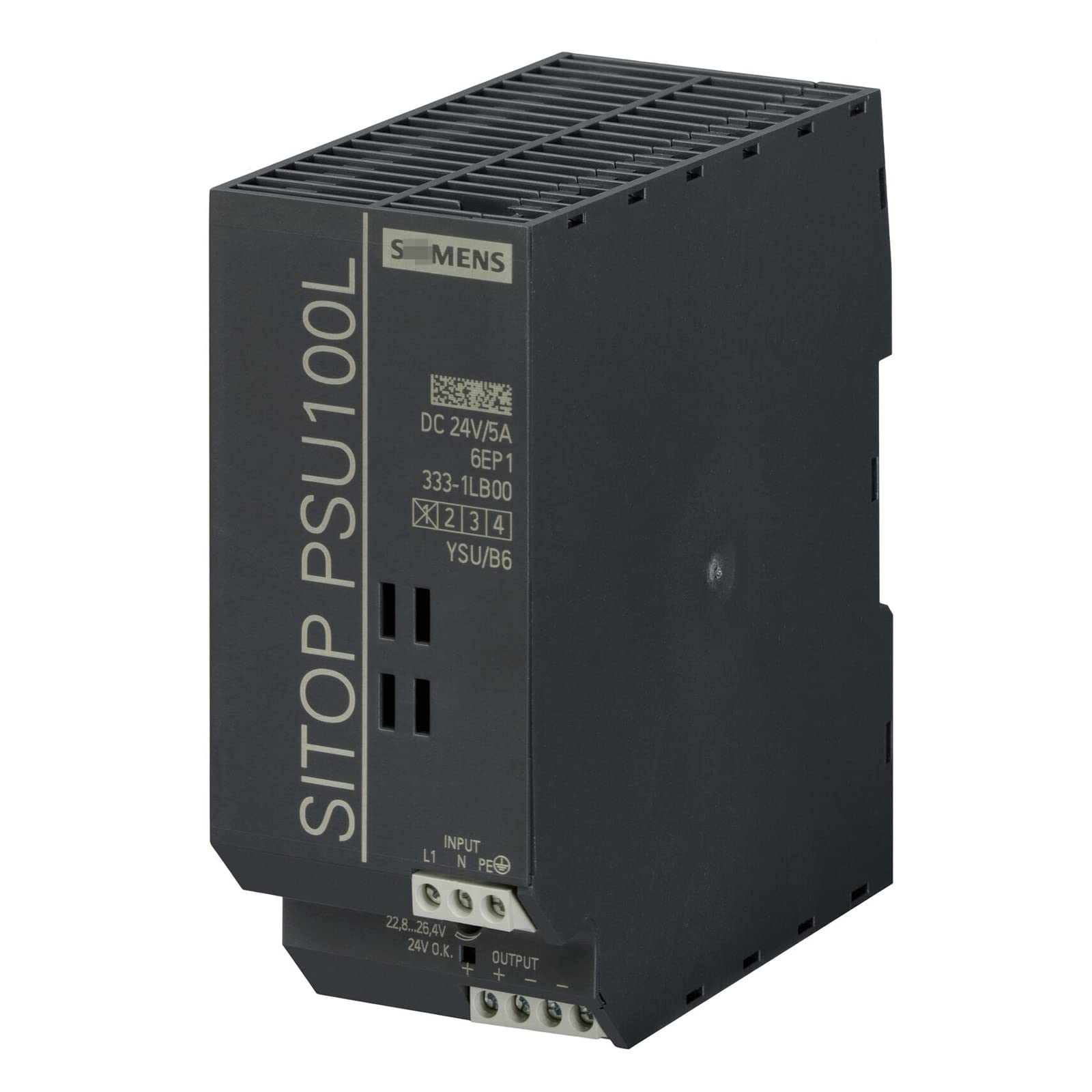

An image showing the CBBEXP 6EP1333-1LB00 PSU100L 24V/5A Stabilized Power Supply. The unit is typically rectangular, designed for industrial mounting, with terminals for input and output connections.

3. Safety Instructions

Always observe the following safety precautions to prevent injury or damage to the device and connected equipment.

• Disconnect power before installation or maintenance.
• Ensure proper grounding to prevent electrical shock.
• Do not operate in wet or damp conditions.
• Avoid exceeding the specified input voltage and output current ratings.
• Only qualified personnel should perform installation and servicing.
• Keep ventilation openings clear to prevent overheating.

4. Setup

Follow these steps for proper installation of the power supply.

1. Mounting: Securely mount the power supply in a well-ventilated enclosure, ensuring adequate space for air circulation around the unit.
2. Input Wiring: Connect the AC input power to the designated terminals. Ensure correct polarity (Line, Neutral, Ground) and that the input voltage matches the power supply's rating.
3. Output Wiring: Connect the DC output terminals to your load. Observe correct polarity (+24V, 0V). Ensure the load current does not exceed 5A.
4. Verification: Double-check all connections for tightness and correct wiring before applying power.

5. Operating Instructions

Once installed and wired correctly, the power supply operates automatically.

• Power On: Apply AC input power. The power supply will begin to deliver a stable 24V DC output.
• Status Indicator: Observe any status LEDs (if present) to confirm normal operation. Refer to the device's specific LED indicators for detailed status information.
• Power Off: To shut down, disconnect the AC input power. The output will cease immediately.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your power supply.

• Cleaning: Periodically clean the exterior of the unit and ventilation openings to prevent dust accumulation. Use a soft, dry cloth. Do not use liquid cleaners.
• Connection Check: Annually inspect all wiring connections for tightness and signs of corrosion. Re-tighten if necessary.
• Environmental Check: Ensure the operating environment remains within specified temperature and humidity ranges.

7. Troubleshooting

This section provides solutions to common issues.

• No Output Voltage:
  • Check input power connection and fuse/breaker.
  • Verify input voltage is within specified range.
  • Ensure output connections are not short-circuited.
• Output Voltage Too Low:
  • Check if the load current exceeds the 5A rating.
  • Inspect for loose connections or damaged wiring.
• Overheating:
  • Ensure adequate ventilation and clear airflow around the unit.
  • Reduce ambient temperature if possible.
  • Verify the load is not drawing excessive current.

8. Specifications

Detailed technical specifications for the CBBEXP 6EP1333-1LB00 PSU100L.

9. Warranty and Support

The CBBEXP 6EP1333-1LB00 PSU100L comes with a One-Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For technical support, warranty claims, or service inquiries, please contact your vendor or the manufacturer directly. Please have your model number (6EP1333-1LB00) and purchase date available when contacting support.
