1. Important Safety Information
Please read and understand all instructions before assembly and use of this product. Keep this manual for future reference.
- Adult Assembly Required: This product contains small parts and sharp edges. Assembly should be performed by adults.
- Anti-Tip Device: An anti-tipping device is provided to prevent serious injury from furniture tip-over. Always secure the dresser to the wall using the provided hardware.
- Weight Limits: Do not exceed the specified weight limits for the tabletop and drawers.
- Placement: Place the dresser on a flat, level surface.
- Children Safety: Do not allow children to climb on or play with the dresser. Keep small parts away from children during assembly.
2. Product Overview

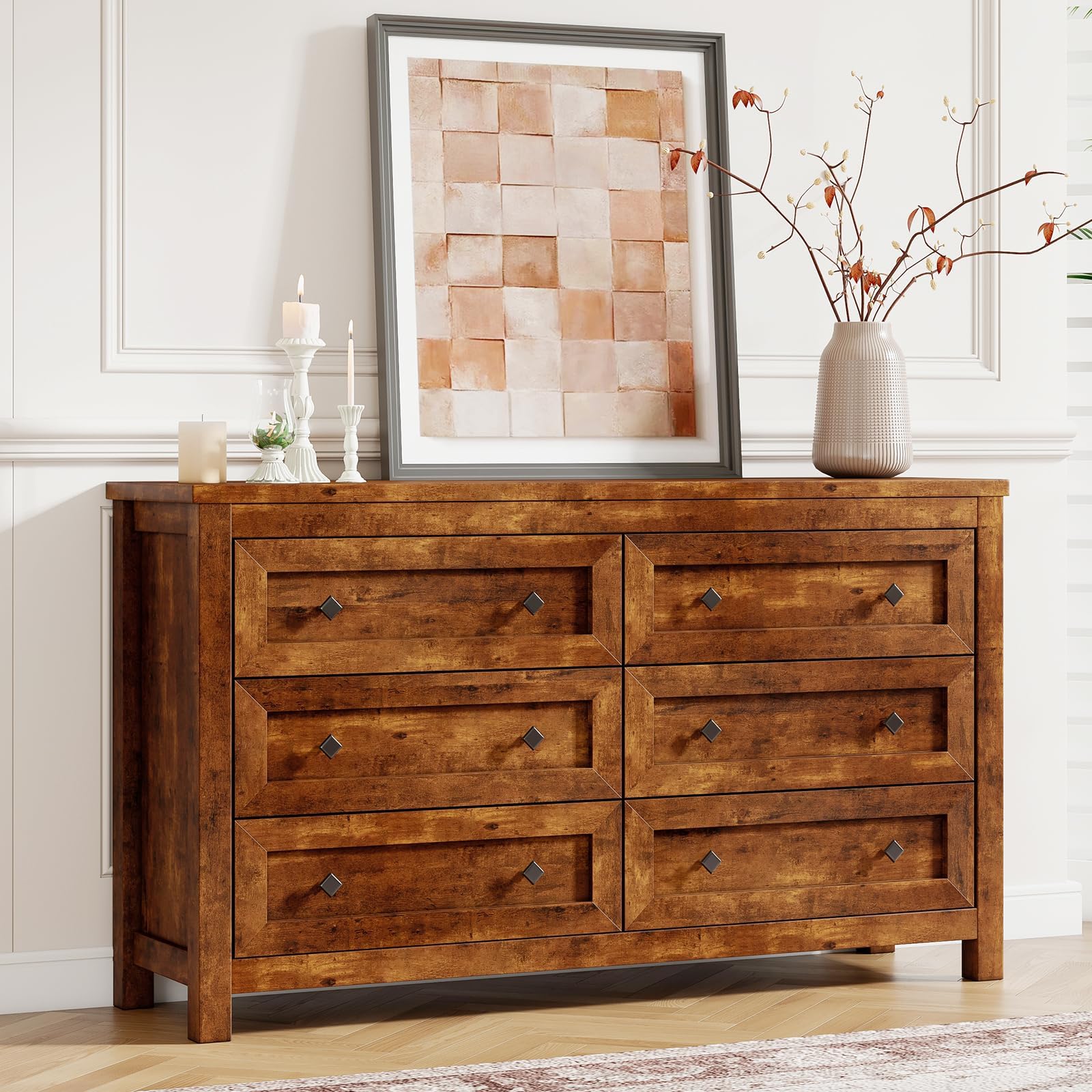

The LUXOAK Farmhouse 6-Drawer Dresser is designed for bedroom, living room, or hallway storage. It features a rustic wood grain finish and six spacious drawers.
- Material: Engineered Wood with WoodGrain finish.
- Drawers: Six drawers equipped with pre-installed metal sliding rails for smooth operation.
- Handles: Stylish black metal handles.
- Stability: Features a 1" thick tabletop, 2" wide wooden base, and widened 2" solid wood legs for enhanced durability and stability.
3. Assembly Instructions
This dresser requires assembly. Please ensure you have all parts and tools before beginning. It is recommended that two people assemble this dresser. Refer to the detailed diagrams and instructions included in your physical product manual for precise guidance.
3.1. General Assembly Steps
- Unpack and Identify Parts: Carefully unpack all components and hardware. Verify that all parts listed in your manual are present and undamaged.
- Prepare Panels: Attach cam bolts and wooden dowels to the main panels as indicated in your manual's diagrams.
- Assemble Main Frame: Connect the side and bottom panels using cam locks and screws. Ensure all connections are secure and aligned.
- Install Drawer Rails: Attach the pre-installed metal sliding rails to the interior of the dresser frame.
- Assemble Drawers: Construct each drawer by attaching the front, back, and side panels, then sliding in the bottom panel. Secure with screws.
- Attach Drawer Handles: Fasten the metal handles to the front of each assembled drawer.
- Insert Drawers: Carefully align and insert each assembled drawer into its respective slot in the dresser frame. Gently open and close each drawer a few times to ensure smooth operation and proper seating of the ball bearings.
- Attach Back Panel: Secure the back panel to the dresser frame using the provided screws and plastic anchors.
- Install Anti-Tip Kit: Securely attach the anti-tip device to the back of the dresser and to a wall stud, following the instructions in your manual. This is a critical safety step.
3.2. Video Overview
While not a step-by-step assembly guide, this video provides a visual overview of the dresser's features and design, which may assist in understanding the final product:
Video 1: LUXOAK Farmhouse 6-Drawer Dresser Product Overview. This video showcases the dresser's design, features, and various uses, offering a helpful visual context for the assembled product.
4. Operating Instructions
- Opening/Closing Drawers: Use the metal handles to gently pull or push the drawers. The pre-installed sliding rails ensure smooth and quiet operation.
- Loading Drawers: Distribute weight evenly within each drawer. Do not overload drawers beyond the specified weight limit of 34 lbs per drawer.
- Tabletop Use: The tabletop can support up to 220 lbs. Avoid placing excessively heavy items or items with sharp edges directly on the surface to prevent damage.
5. Maintenance
- Cleaning: Wipe the dresser with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
- Spills: Immediately wipe up any spills to prevent staining or water damage.
- Hardware: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
- Sunlight Exposure: Avoid prolonged exposure to direct sunlight to prevent fading or warping of the wood finish.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not slide smoothly. | Misaligned rails or unseated ball bearings. | Remove the drawer, ensure the rails are clean, and re-insert, gently opening and closing it several times to seat the ball bearings. |
| Dresser feels wobbly or unstable. | Loose fasteners or uneven placement. | Check and tighten all assembly screws. Ensure the dresser is on a level surface. Install the anti-tip device if not already done. |
| Parts are missing or damaged. | Manufacturing or shipping error. | Contact customer support with your purchase details and the specific parts needed. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Name | CNS005-02 |
| Brand | LUXOAK |
| Overall Dimensions | 54"W x 15.7"D x 31.4"H |
| Drawer Inner Size | 22.4"W x 13.4"D x 4.6"H |
| Number of Drawers | 6 |
| Material | Engineered Wood |
| Finish Type | WoodGrain (Rustic Brown) |
| Item Weight | 102 Pounds |
| Desktop Load Capacity | 220 LB |
| Drawer Load Capacity | 34 LB (per drawer) |
| Assembly Required | Yes |
| Product Care Instructions | Wipe with Dry Cloth |
8. Warranty & Support
LUXOAK is committed to providing high-quality products. For any questions, missing parts, or concerns regarding your dresser, please contact our customer support team. Refer to your purchase documentation for specific warranty details and contact information.
We aim to provide prompt and helpful assistance to ensure your satisfaction.
