1. Introduction
Thank you for choosing the Yaheetech Metal Bed Frame. This manual provides detailed instructions for assembly, usage, maintenance, and troubleshooting to ensure safe and optimal performance of your bed frame. Please read this manual thoroughly before assembly and retain it for future reference.

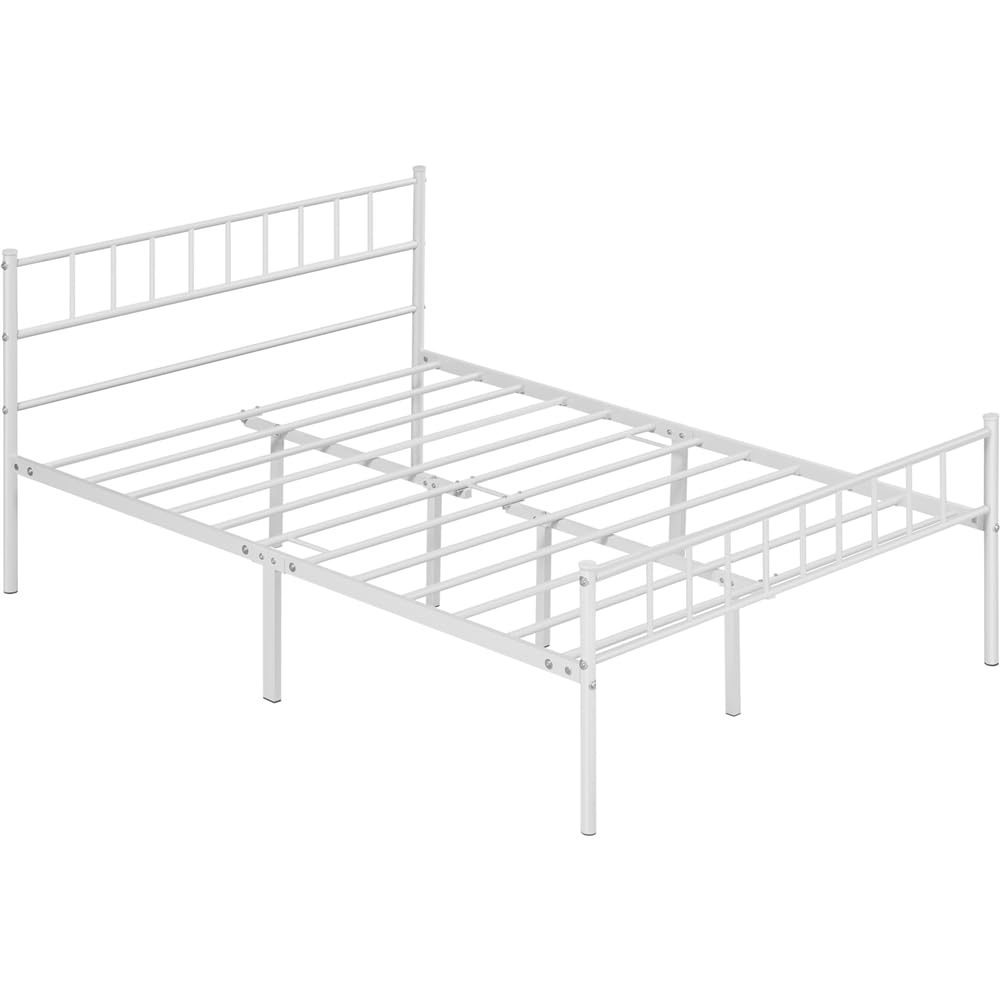

Image 1: Yaheetech Metal Bed Frame 140x200cm in a bedroom setting.
2. Safety Information
- Do not exceed the recommended maximum load of 360 kg to ensure the stability and safety of the bed.
- Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
- Keep small parts away from children during assembly to prevent choking hazards.
- Assemble the bed frame on a soft, clean surface to prevent scratching or damage to the product or your floor.
- Do not stand on the bed frame or use it as a ladder.
3. Package Contents
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Headboard and Footboard sections
- Side rails
- Support legs
- Metal slats
- Assembly hardware (bolts, washers, nuts, Allen key)
- Instruction manual
4. Setup (Assembly)
Follow these steps carefully for proper assembly. It is recommended to have two people for assembly.
- Unpack and Identify Parts: Lay out all components on a soft, clean surface. Refer to the parts list to identify each piece.
- Attach Side Rails: Connect the side rails to the headboard and footboard using the provided hardware. Ensure all connections are finger-tightened initially.
- Install Support Legs: Attach the central support legs to the bed frame. These legs provide additional stability.
- Secure Slats: Place the metal slats onto the designated supports on the side rails. Ensure each slat is properly seated and secured. Some slats may require aiming the iron pipe at the notch and pressing firmly to fix.
Image 2: Assembly step illustrating how to align and secure metal pipes into the frame's notches.
- Final Tightening: Once all parts are in place, use the Allen key to fully tighten all bolts and screws. Do not overtighten.
- Check Stability: Gently shake the assembled bed frame to ensure it is stable and all connections are secure.
Image 3: Diagram highlighting the 10 solid support legs for enhanced stability.
5. Operating (Usage)
Your Yaheetech Metal Bed Frame is designed for comfortable and stable use with a compatible mattress.
- Mattress Placement: Place your 140 x 200 cm mattress directly onto the metal slats. No box spring is required.
- Under-Bed Storage: The bed frame provides 32 cm of clearance underneath, offering ample space for storage boxes or other items.
Image 4: Close-up view illustrating the 32 cm under-bed storage space.
- Weight Capacity: The bed frame supports a maximum weight of 360 kg (793.66 pounds). Do not exceed this limit.
- Protective Pads: The feet of the bed frame are equipped with protective pads to prevent scratching your floor and reduce noise.
Image 5: Detail of the protective pads located on the bed frame legs.
6. Maintenance
Regular maintenance will prolong the life and appearance of your bed frame.
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
- Inspection: Periodically check all bolts and connections to ensure they remain tight. Re-tighten if any looseness is detected.
- Avoid Moisture: Keep the bed frame in a dry environment to prevent rust or corrosion.
7. Troubleshooting
If you encounter any issues with your bed frame, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose bolts or incorrect assembly. | Check all connections and tighten any loose bolts. Ensure all parts are assembled according to the instructions. |
| Squeaking noises. | Loose connections or friction between metal parts. | Tighten all bolts. Apply a small amount of lubricant (e.g., silicone spray) to points of friction if necessary. |
| Slats are not staying in place. | Improper slat installation. | Ensure each slat is fully inserted into its designated slot or notch. |
If the problem persists, please contact Yaheetech customer support for assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 613687 |
| Overall Dimensions (L x W x H) | 208 x 146 x 89 cm (approx.) |
| Applicable Mattress Size | 140 x 200 cm |
| Under-Bed Clearance | 32 cm |
| Maximum Weight Capacity | 360 kg (793.66 lbs) |
| Material | Metal |
| Color | White |
Image 6: Detailed dimensions diagram of the Yaheetech Metal Bed Frame.
9. Warranty & Support
Yaheetech products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official Yaheetech website.
If you require assistance with assembly, have questions about your product, or need to report a missing/damaged part, please contact Yaheetech customer support:
- Online Support: Visit the Yaheetech Brand Store on Amazon for FAQs and contact options.
- Email: Refer to your purchase documentation for direct email support.
