1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Yaheetech 160x200 cm Metal Double Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

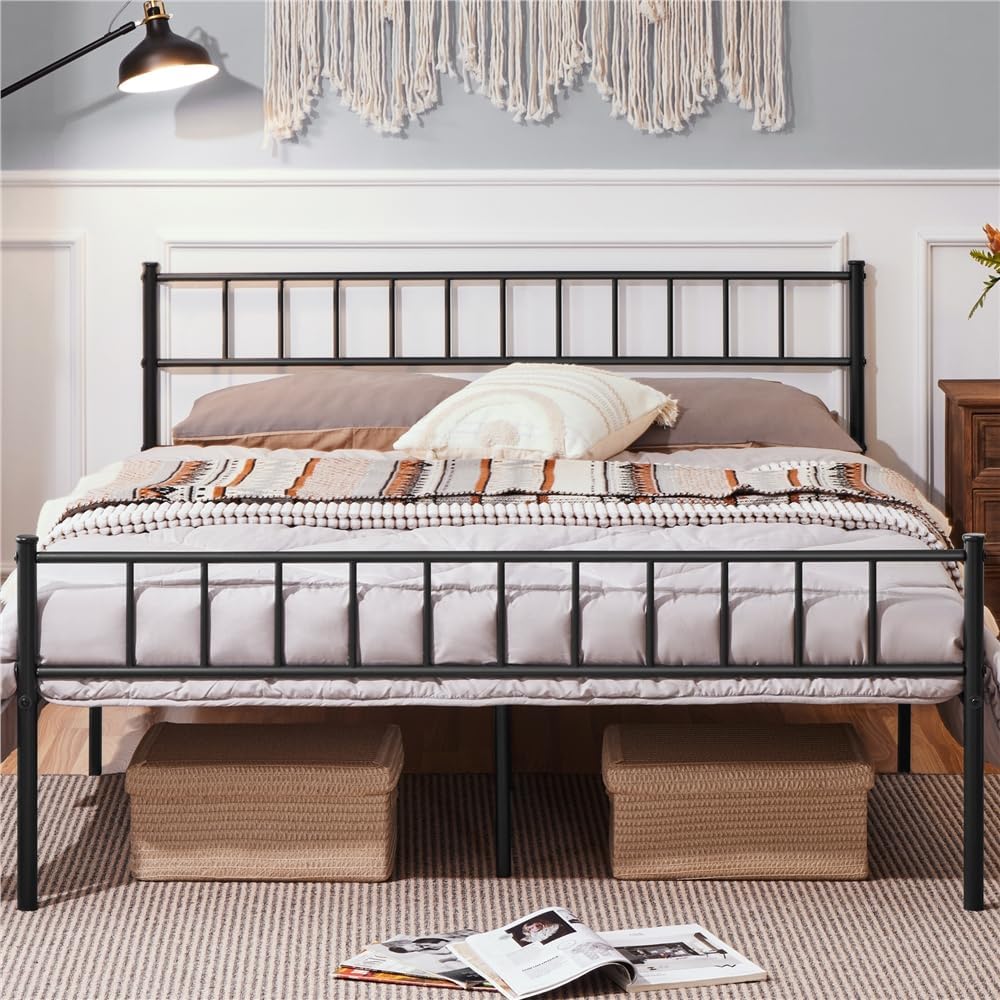

Image 1.1: Assembled Yaheetech 160x200 cm Metal Double Bed Frame.
The Yaheetech metal bed frame is designed for stability and durability, featuring a robust metal construction with a treated coating for rust resistance. It offers a practical storage space underneath and a high headboard for comfort. The frame is compatible with a 160 cm x 200 cm mattress.
2. Safety Information
To ensure safe use of your bed frame, please observe the following safety guidelines:
- Correct Assembly: Ensure all components are correctly assembled according to the instructions to prevent instability or collapse.
- Weight Capacity: Do not exceed the maximum load capacity of 340 kg (750 lbs) to avoid structural damage or injury.
- Pinch Points: Be aware of potential pinch points and sharp edges during assembly and use. Handle all parts with care.
- Rust Resistance: The bed frame is treated for rust resistance, contributing to its longevity and safety.
- Regular Checks: Periodically check all screws and connections to ensure they remain tight. Loose connections can compromise stability.
3. Package Contents
Before starting assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Headboard components
- Footboard components
- Side rails
- Metal slats
- Support legs
- Hardware pack (screws, bolts, Allen key)
- Assembly instructions
Image 3.1: Reinforced support structure with 10 solid support legs.
4. Assembly Instructions
Assembly is required for this bed frame. It is recommended to have two people for easier and safer assembly. Please follow the numbered steps provided in the included instruction manual. The general steps are outlined below:
- Unpack Components: Carefully unpack all parts and lay them out on a clean, soft surface to prevent scratches. Verify against the package contents list.
- Assemble Headboard and Footboard: Connect the headboard and footboard sections using the provided hardware. Ensure all connections are secure but do not fully tighten screws until the frame is fully assembled.
- Attach Side Rails: Connect the side rails to the assembled headboard and footboard. Use the L-shaped plates and screws to fasten them securely.
- Install Support Legs: Attach the central support legs to the frame. These legs are crucial for stability and weight distribution.
- Place Slats: Position the metal slats onto the designated supports on the side rails. Ensure each slat is properly seated and secured. The built-in slats are designed to prevent the mattress from sliding.
- Final Tightening: Once all components are in place and aligned, fully tighten all screws and bolts. Do not overtighten.
Image 4.1: Assembly detail - Aim the iron pipe at the notch and press to fix.
Image 4.2: Connections fastened with L-shaped plates for a stable structure.
5. Operating Instructions
Once assembled, your Yaheetech bed frame is ready for use.
- Mattress Placement: Place a compatible mattress (160 cm x 200 cm) directly onto the metal slats. The design helps prevent mattress sliding.
- Weight Distribution: Ensure weight is distributed evenly across the bed frame. Avoid concentrating heavy loads in one small area.
- Under-Bed Storage: Utilize the 32 cm (12.6 inches) clearance between the floor and the bed frame for convenient storage of items like suitcases or storage boxes.

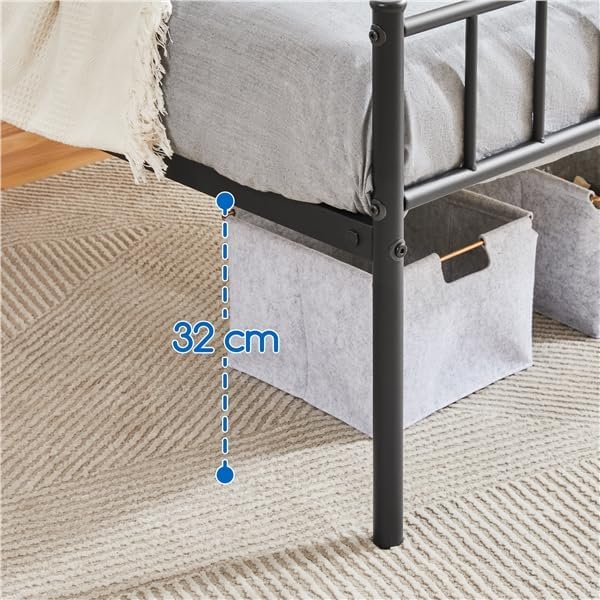

Image 5.1: Under-bed storage space of 32 cm.

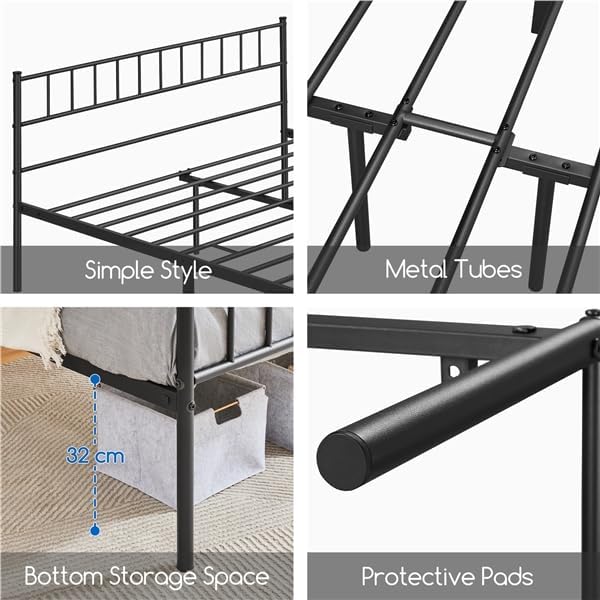

Image 5.2: Built-in slats prevent mattress sliding.
6. Maintenance
Proper maintenance will extend the lifespan of your bed frame:
- Cleaning: The treated coating makes the frame easy to clean. Wipe with a damp cloth and mild detergent if necessary. Avoid abrasive cleaners.
- Rust Resistance: The frame is designed to be rust-resistant. Avoid prolonged exposure to moisture to maintain this property.
- Tighten Connections: Periodically (e.g., every 3-6 months) check and retighten all screws and bolts to ensure the frame remains stable and secure.
- Under-Bed Cleaning: The 32 cm ground clearance allows for easy cleaning underneath the bed, including access for robotic vacuum cleaners.
7. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame feels unstable or wobbly. | Loose screws or incorrect assembly. | Check all connections and tighten any loose screws. Ensure all parts are correctly aligned as per assembly instructions. |
| Squeaking noises from the bed frame. | Loose connections, friction between metal parts, or mattress movement. | Retighten all bolts. Apply a small amount of lubricant (e.g., silicone spray) to connection points if noise persists. Ensure the mattress is properly seated. |
| Mattress slides on the frame. | Improper mattress fit or lack of friction. | Ensure the mattress dimensions match the frame (160x200 cm). The built-in slats are designed to prevent sliding; if it still occurs, consider using a non-slip mat between the mattress and slats. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 613687 |
| Brand | Yaheetech |
| Color | Black |
| Material | Metal |
| Finish Type | Powder Coating |
| Overall Dimensions (L x W x H) | 207 x 166 x 88.5 cm (81.5 x 65.4 x 34.8 inches) |
| Compatible Mattress Size | 160 x 200 cm (Queen) |
| Under-Bed Clearance | 32 cm (12.6 inches) |
| Maximum Load Capacity | 340 kg (750 lbs) |
| Assembly Required | Yes |
| Special Feature | Rust Resistant |

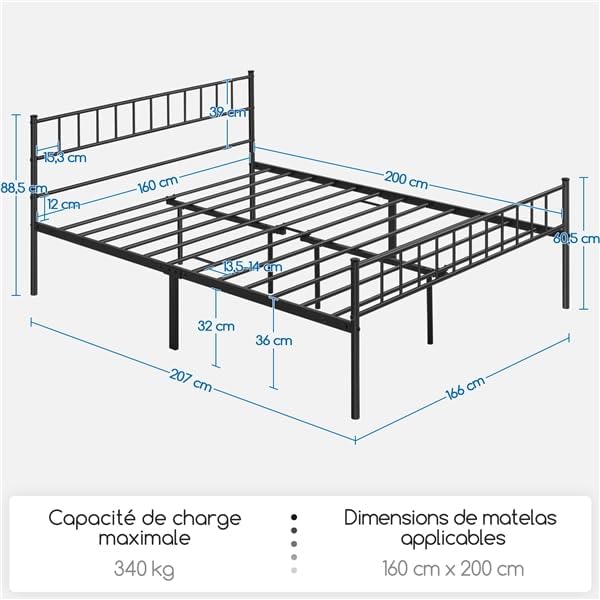

Image 8.1: Dimensional overview of the bed frame.
9. Warranty and Support
Information regarding specific warranty terms and customer support contact details is not available in the provided product data. For warranty claims or technical assistance, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly.
You can visit the official Yaheetech store for more information: Yaheetech Store
