Mloong Baby Playpen with Play Mat (150x150x65cm) Instruction Manual

1. Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Mloong Baby Playpen with Play Mat. Please read this manual thoroughly before use and retain it for future reference.

The Mloong Baby Playpen is designed to provide a secure and spacious environment for your child to play. It features a sturdy structure, durable materials, and includes a comfortable play mat.

Image: Mloong Baby Playpen in use, demonstrating its spacious interior for a child and adult.

2. Safety Warnings

• Always ensure all parts are correctly assembled and securely locked before placing a child inside.
• Do not leave children unattended in the playpen. Constant supervision is required.
• The playpen is constructed with sturdy steel pipes and T-shaped joints for enhanced stability. The height of 65cm is designed to prevent children from climbing out.
• The fabric is 320D Oxford material, CPSC certified, non-toxic, odorless, and free from BPA and PVC. The upper frame is covered with foam to prevent injury.
• Ensure the playpen is placed on a flat, stable surface. The four corner joints include large suction cups for increased slip resistance.
• Keep the playpen away from open flames, heaters, or other heat sources.
• Regularly inspect the playpen for any signs of wear, damage, or loose parts. Discontinue use if any damage is found.

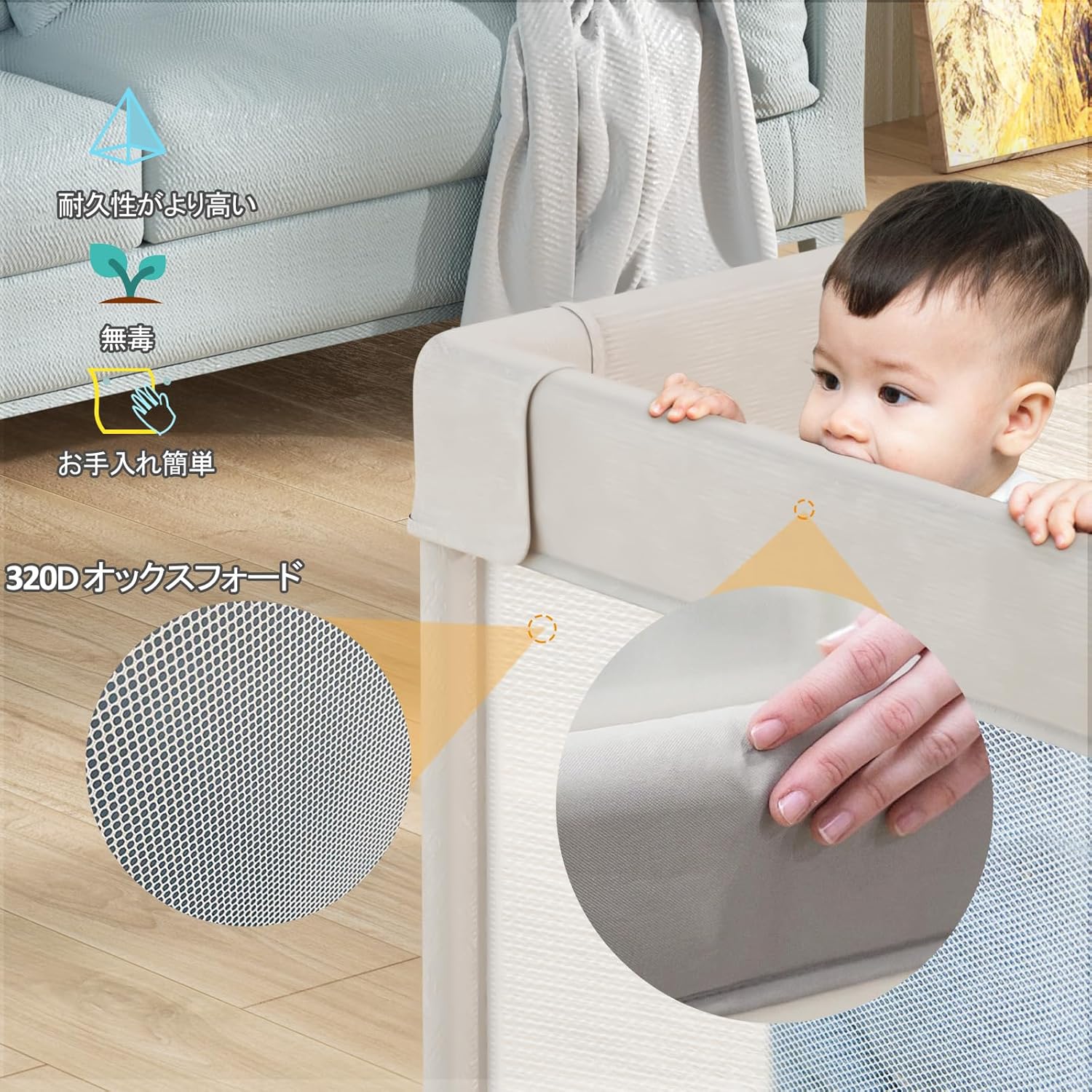

Image: Detailed view of the playpen's mesh, padded frame, and steel pipe construction, highlighting safety features.

3. Package Contents

Please check that all the following items are included in your package:

• Playpen Frame Components (Steel Pipes)
• Playpen Mesh Fabric Cover
• Play Mat (150x150x1cm)
• T-shaped Joints with Suction Cups
• Hanging Rings (x4)

Image: All components included in the Mloong Baby Playpen package.

4. Setup Instructions

Follow these steps to assemble your Mloong Baby Playpen:

1. Unpack the Playpen: Remove all components from the travel bag.
2. Lay out the Fabric Cover: Spread the mesh fabric cover on a flat surface with the hook-and-loop fasteners facing upwards and the bottom sleeves facing outwards.
3. Insert Bottom Frames: Insert the long (A) and short (B) frame pipes into the corresponding bottom sleeves of the fabric cover.
4. Connect Bottom Joints: Connect the frame pipes using the T-shaped joints with suction cups. Ensure the fixed screws on the joints are loosened to allow rotation. Rotate the movable joints to be horizontal.
5. Insert Side Frames: Insert the side frame pipes (E) into the vertical sleeves of the fabric cover. Push the pin on the side frame into the pinhole of the T-shaped joint until it clicks into place.
6. Connect Top Joints: Attach the top joints (without suction cups) to the upper ends of the side frames.
7. Secure Top Frames: Insert the remaining long (C) and short (D) frame pipes (with cushions) into the top sleeves of the fabric cover and connect them to the top joints.
8. Tighten Joints: Once all frames are in place, tighten the fixed screws on all T-shaped joints by turning them clockwise to secure the structure.
9. Cover Corners: Fold the fabric flaps over the top corner joints and secure them with the hook-and-loop fasteners.
10. Place Play Mat: Lay the included play mat inside the assembled playpen.

Setup Demonstration Video

Video: A demonstration of how to set up a foldable baby playpen, showing the steps from unpacking to full assembly. This video is for a similar product and illustrates the general assembly process.

Detailed Assembly Steps (Visual Guide)

Image: Breakdown of playpen components and materials.

Image: Visual guide to the playpen's height and stable base with suction cups.

5. Operating Instructions

• Access Door: The playpen features a zippered door for easy access. Ensure the zipper is fully closed when the child is inside to prevent them from exiting unsupervised.
• Play Mat Usage: The included play mat provides a soft surface for your child. It is reversible and can also be used independently as a yoga mat, gym mat, or picnic mat.
• Visibility: The mesh sides allow for clear visibility of your child from outside the playpen, providing peace of mind.
• Hanging Rings: Utilize the four included hanging rings to assist your child with standing and walking practice.

Image: Playpen with baby and adult, showcasing the play mat's features.

Image: Reversible design of the play mat.

6. Maintenance

• Cleaning the Fabric: The 320D Oxford fabric can be easily wiped clean with a damp cloth and mild soap. Allow to air dry completely. Do not machine wash or tumble dry.
• Cleaning the Mat: The play mat is also easy to clean. Wipe with a damp cloth and mild soap, then air dry.
• Frame Cleaning: Wipe the frame components with a damp cloth as needed.
• Storage: When not in use, disassemble the playpen and store it in its original travel bag in a cool, dry place away from direct sunlight.

Folding Demonstration Video

Video: A demonstration of how to fold a baby playpen for storage. This video is for a similar product and illustrates the general folding process.

7. Troubleshooting

• Playpen feels unstable: Ensure all frame pipes are fully inserted into the joints and all fixed screws on the T-shaped joints are tightened. Check that the suction cups at the base are firmly attached to the floor.
• Child can climb out: The playpen is 65cm high. Ensure your child is not tall enough to climb over the top rail. Always supervise your child.
• Mat feels too thin: The included play mat provides basic cushioning. For additional comfort or impact absorption, an extra padded mat can be placed underneath the provided mat.

8. Specifications

Image: Playpen dimensions.

9. Warranty and Support

For any questions, concerns, or support regarding your Mloong Baby Playpen, please contact the seller directly through your purchase platform. Please refer to your purchase documentation for specific warranty details, as these may vary.
