Product Overview
This manual provides essential information for the installation, maintenance, and troubleshooting of the WAO ZONE Washer Drive Belt, model WH01X24697. This drive belt is designed as a replacement part for compatible GE and Hotpoint top-load washing machines.

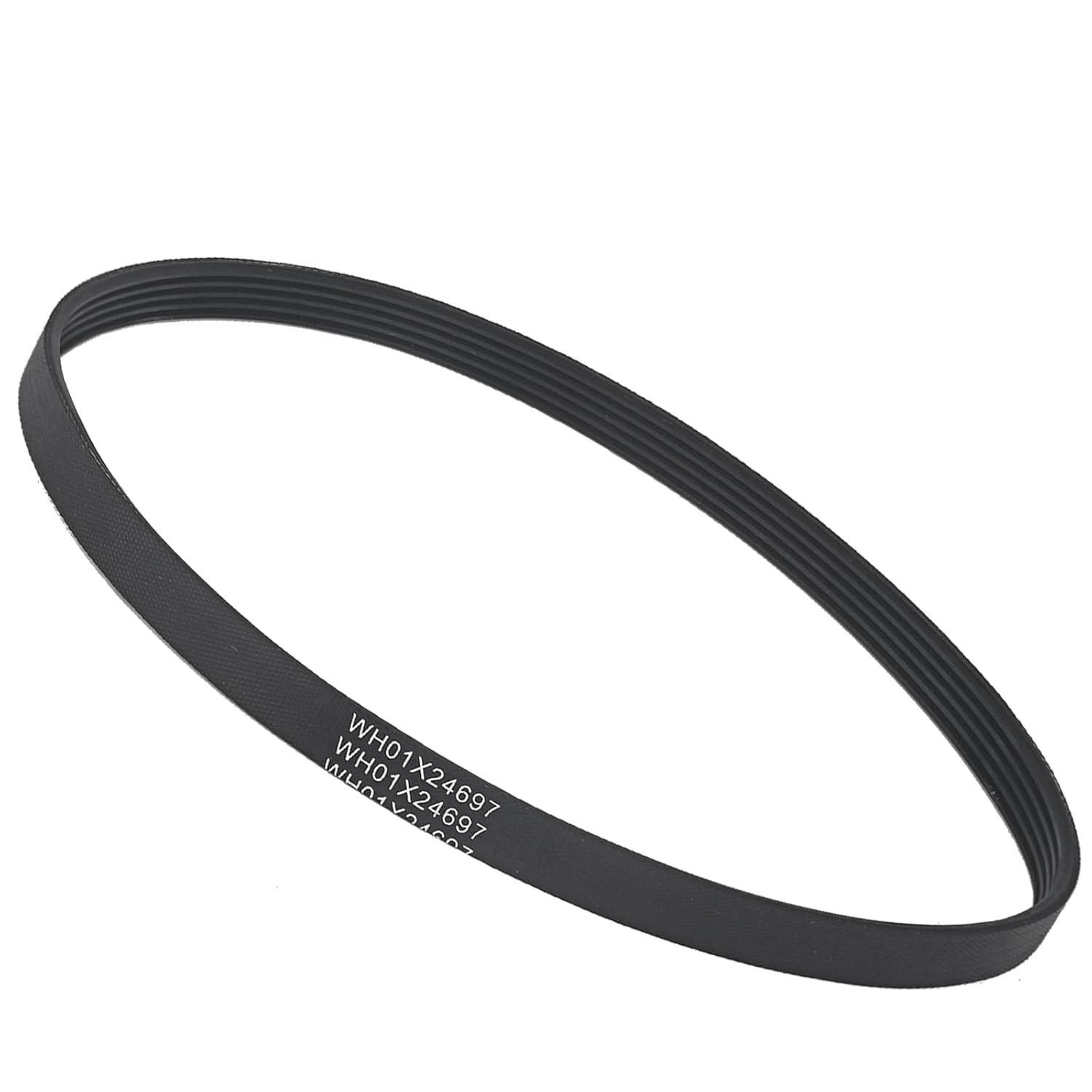

Figure 1: WAO ZONE Washer Drive Belt (WH01X24697)
The image displays the WAO ZONE Washer Drive Belt, a black, flat serpentine belt designed for washing machines. It features multiple ribs on its inner surface, indicating its multi-groove design for efficient power transmission.
Key Features and Design
- Dimensions: The belt measures approximately 20.4 inches in length and 0.5 inches in width.
- Rib and Groove Design: It features 5 ribs and 4 grooves on the inside surface, engineered for optimal grip and smooth operation within the washing machine's pulley system.
- Material: Constructed from durable rubber, designed for resistance and long operational lifetime.
- Compatibility: This belt is a direct replacement for GE and Hotpoint top-load washing machines, including models beginning with GTW and HTW.

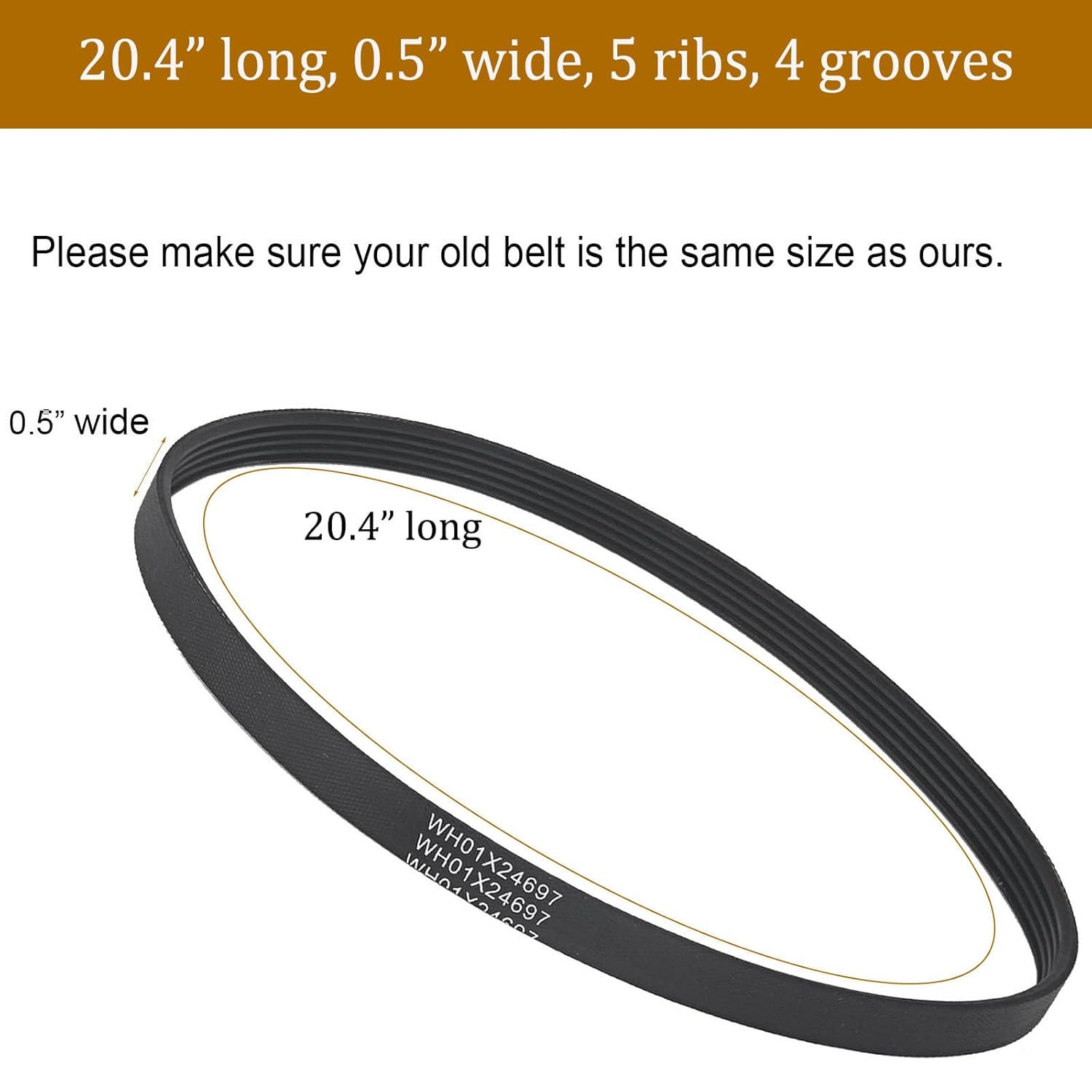

Figure 2: Belt Dimensions
This image illustrates the key dimensions of the drive belt: 20.4 inches long and 0.5 inches wide. It also notes the presence of 5 ribs and 4 grooves, emphasizing the importance of matching these specifications with the original belt.

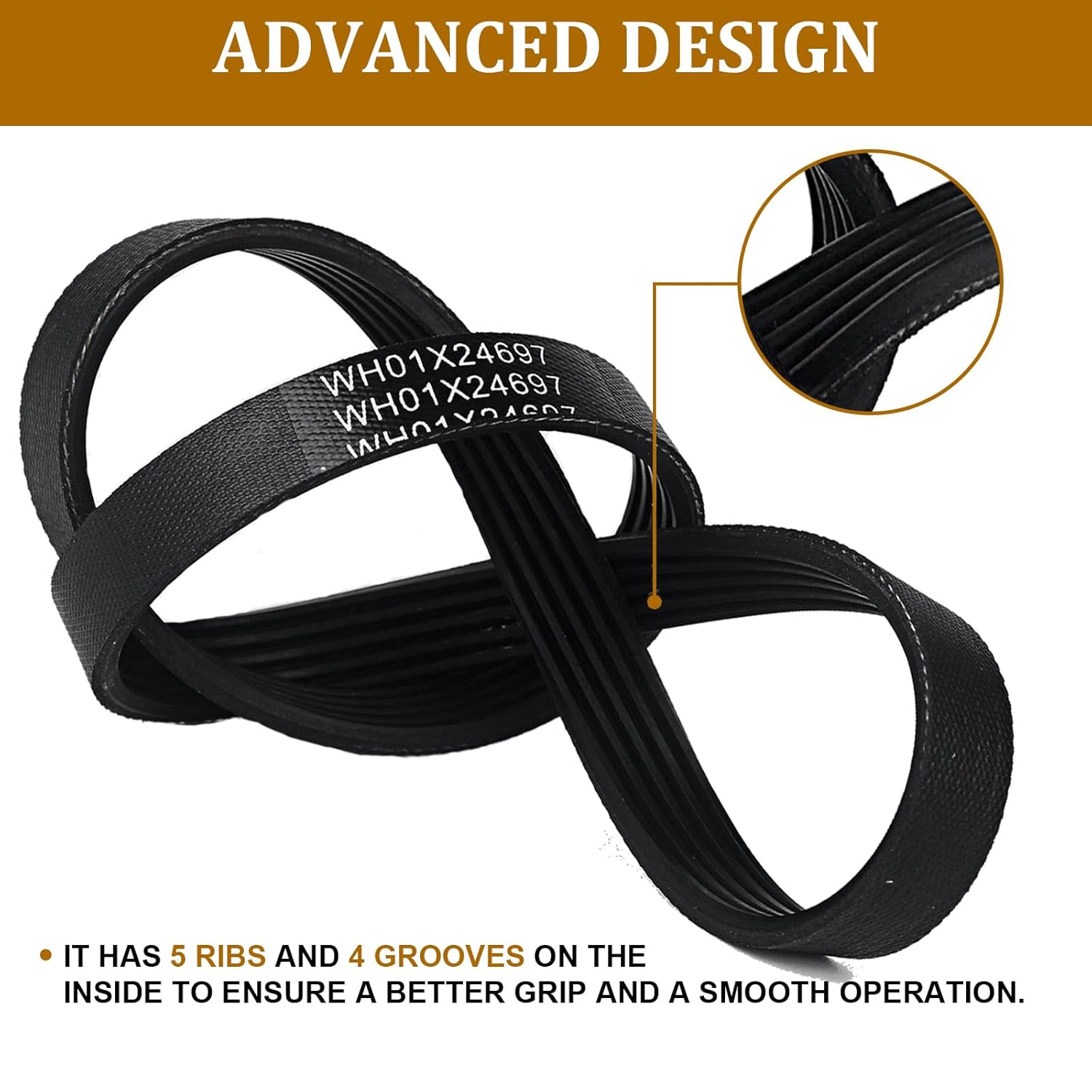

Figure 3: Advanced Belt Design
The image highlights the advanced design of the belt, specifically pointing out the 5 ribs and 4 grooves on its inner surface. This design is crucial for ensuring a secure grip and smooth power transmission within the washing machine's drive system.

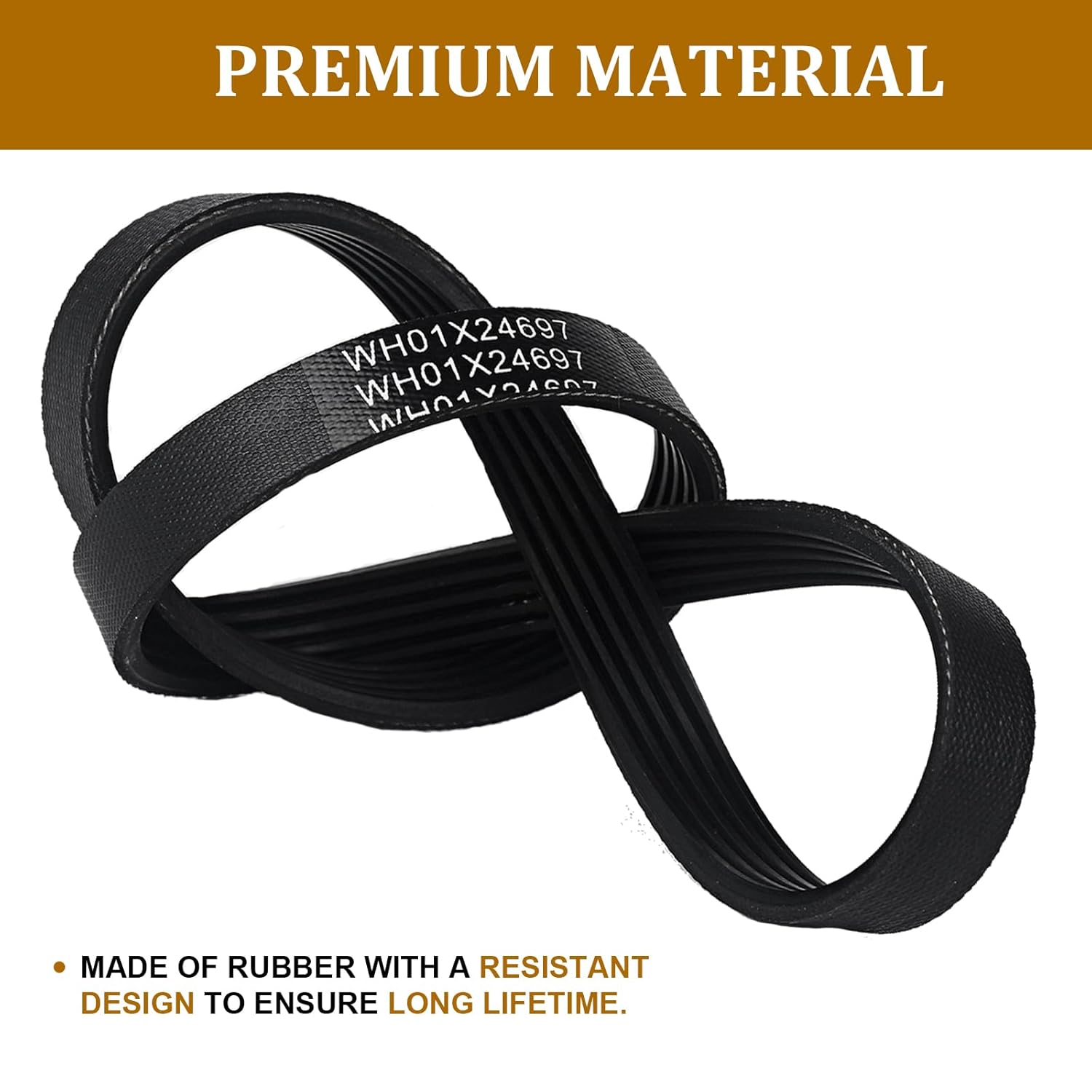

Figure 4: Premium Belt Material
This image emphasizes the premium material used for the drive belt, stating it is made of rubber with a resistant design. This material choice is intended to ensure a long lifetime and reliable performance.

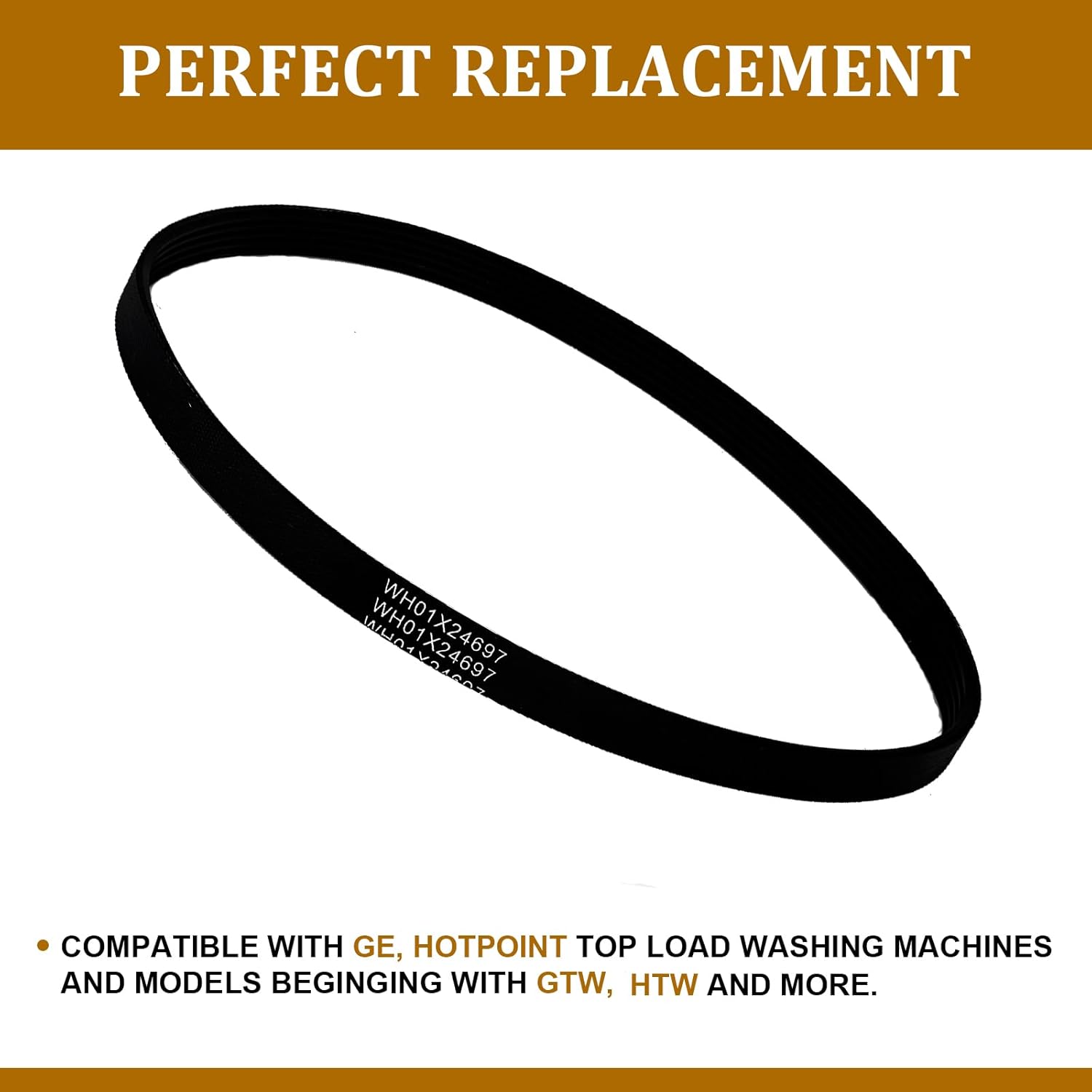

Figure 5: Product Compatibility
The image states that the belt is a "Perfect Replacement" and is compatible with GE and Hotpoint top-load washing machines, specifically mentioning models starting with GTW and HTW.
Installation (Setup)
Replacing a washing machine drive belt requires careful attention to safety and proper procedure. It is recommended to consult your washing machine's specific service manual for detailed instructions relevant to your model. The following are general guidelines:
- Safety First: Before beginning any repair, ensure the washing machine is unplugged from the power outlet and the water supply is turned off.
- Access the Drive System: Depending on your washing machine model, you may need to remove the back panel, front panel, or tilt the machine to access the motor and transmission area where the drive belt is located.
- Remove Old Belt: Carefully remove the old or broken drive belt from the pulleys. Note how it was routed.
- Inspect Pulleys: Check the motor pulley and transmission pulley for any damage, wear, or debris that could affect the new belt. Clean if necessary.
- Install New Belt:
- Route the new belt around the larger transmission pulley first.
- Next, partially place the belt onto the smaller motor pulley.
- While rotating the larger pulley by hand, carefully work the belt onto the motor pulley until it is fully seated. The belt should be snug.
- Tip: Some users find that gently warming the new belt with a blow dryer for a short period can make it more pliable and easier to stretch onto the pulleys, especially if it feels very tight.
- Verify Alignment: Ensure the belt is properly seated in all grooves on both pulleys and is not twisted.
- Reassemble: Reattach any panels removed during the process.
- Test: Plug the washing machine back in and turn on the water supply. Run a short cycle to ensure the belt operates correctly and the machine functions as expected.
Figure 6: Drive Belt Installation Context
This image depicts a person's hands working inside a washing machine drum, suggesting the context of repair or maintenance. While not showing the belt directly, it illustrates the environment where the drive belt installation would take place, emphasizing the need to access internal components.
Operating Principle
The drive belt is a critical component in a washing machine's mechanical system. Its primary function is to transmit rotational power from the motor to the transmission, which in turn drives the agitator and/or spin basket. When the motor operates, the belt's friction against the pulleys ensures efficient transfer of motion, allowing the washing machine to perform its wash and spin cycles.
A properly installed and tensioned drive belt ensures smooth and effective operation of the washing machine, contributing to consistent performance during various cycles.
Maintenance
While drive belts are designed for durability, periodic inspection can help prolong their lifespan and prevent unexpected failures:
- Visual Inspection: Annually, or if you notice unusual noises, inspect the belt for signs of wear, cracking, fraying, or glazing.
- Tension Check: Ensure the belt has appropriate tension. It should be snug but not excessively tight, allowing for a small amount of deflection when pressed. Refer to your washing machine's service manual for specific tensioning guidelines if available.
- Cleanliness: Keep the area around the belt and pulleys free from lint, dirt, or detergent residue, which can cause premature wear.
- Avoid Overloading: Consistently overloading the washing machine can put excessive strain on the drive belt, leading to premature wear or breakage.
Troubleshooting
If your washing machine is experiencing issues related to its drive system, the belt may be a contributing factor. Here are common symptoms and potential causes:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Washing machine not spinning or agitating | Broken, stretched, or slipped drive belt. | Inspect and replace the belt if broken or excessively stretched. Re-seat if slipped. |
| Loud squealing or grinding noise during operation | Worn, glazed, or misaligned belt; worn pulleys. | Inspect belt for wear and replace if necessary. Check pulley alignment and condition. |
| Burning rubber smell | Belt slipping due to improper tension, overload, or worn surface. | Check belt tension. Reduce load size. Replace belt if glazed or worn. |
| Motor pulley warping or wedging | Belt is too short or excessively tight, causing undue tension on the motor shaft. | Ensure the replacement belt is the correct length and type for your specific washing machine model. Avoid forcing a belt that feels excessively tight. Consider alternative compatible belt numbers if this issue persists (e.g., WH01X27538 if WH01X24697 is too short for certain models). |
Note: Always disconnect power before inspecting or working on internal components of the washing machine.
Specifications
| Attribute | Detail |
|---|---|
| Brand | WAO ZONE |
| Model Number | Washer Drive Belt (WH01X24697) |
| Item Weight | 32 g (0.03 Kilograms) |
| Product Dimensions (LxWxH) | 55.88 x 1.27 x 0.1 cm (22.0 x 0.5 x 0.04 inches) |
| Belt Style | Flat belt with 5 ribs and 4 grooves |
| Material | Rubber |
| ASIN | B0CGZ4P88R |
| Date First Available | 12 September 2023 |
Warranty and Support
Information regarding the specific warranty terms for the WAO ZONE Washer Drive Belt (WH01X24697) is not provided in this manual. For warranty claims, technical support, or further assistance, please contact the seller or manufacturer directly through their official channels. Keep your purchase receipt as proof of purchase.
