Introduction
Thank you for choosing the Yaheetech Metal Double Bed Frame. This manual provides essential information for the safe assembly, proper use, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
This bed frame features an elegant design with a curved headboard and footboard, providing reliable support for your mattress without the need for a box spring. It also offers convenient under-bed storage space.
Image: Fully assembled Yaheetech Metal Double Bed Frame, showcasing its design and under-bed storage capability.
Safety Information
- Maximum Weight Capacity: Do not exceed the maximum weight capacity of 363 kg (approximately 800 lbs) for this bed frame. Exceeding this limit may cause structural damage and risk of injury.
- Sharp Edges: Exercise caution and pay attention to sharp edges on metal components during assembly and handling to prevent cuts or injuries.
- Assembly: Assemble the bed frame on a soft, clean surface (e.g., carpet) to prevent scratching the product or your floor. Ensure all bolts and screws are securely tightened before use.
- Children: Keep small parts and packaging materials away from children during assembly to avoid choking hazards.
- Regular Checks: Periodically check all connections and fasteners to ensure they remain tight and secure.
Package Contents
Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Headboard components
- Footboard components
- Side rails
- Metal support slats (12 integrated steel slats)
- Center support legs (9 robust legs)
- Hardware pack (bolts, washers, Allen key)
- Instruction manual
Setup and Assembly
Assembly is required. It is recommended to have two people for easier and safer assembly. Please follow the steps below carefully.
Step 1: Identify Components and Prepare Area
Unpack all parts and lay them out on a soft, clean surface. Refer to the parts list in your included manual to identify each component. Ensure you have the provided tools (Allen key) or your own suitable tools.
Image: Overview of bed frame dimensions and key structural components.
Step 2: Assemble Headboard and Footboard
Connect the headboard and footboard sections according to the diagrams in your manual. Ensure all bolts are finger-tightened initially.
Image: Detail of the curved headboard design, showing connection points.
Step 3: Attach Side Rails and Center Supports
Attach the side rails to the assembled headboard and footboard. Then, install the center support legs and beams. These components are crucial for the bed frame's stability and weight capacity.
Image: T-shaped brackets reinforce joints for extra stability, ensuring a sturdy frame.
Step 4: Install Metal Slats
Carefully place the metal slats into the designated slots on the side rails. Ensure each slat is properly seated and secured. The 12 integrated steel slats provide optimal support for your mattress.
Image: Guide on how to position the slat with the notch and push down to fix it in place.
Step 5: Final Tightening
Once all components are in place, go back and securely tighten all bolts and screws using the provided Allen key. Do not overtighten. Ensure the frame is stable and level.
Operating Instructions
Placing Your Mattress
Place your mattress directly onto the installed metal slats. No box spring is required. The bed frame is designed with anti-slip baffles and slightly raised side rails to prevent the mattress from sliding.
Image: Illustration demonstrating how anti-slip baffles prevent significant mattress sliding, ensuring stability.
Utilizing Under-Bed Storage
The bed frame offers 32 cm (approximately 12.6 inches) of clearance from the floor, providing ample space for storage boxes, bins, or other items. This maximizes your bedroom's storage potential.

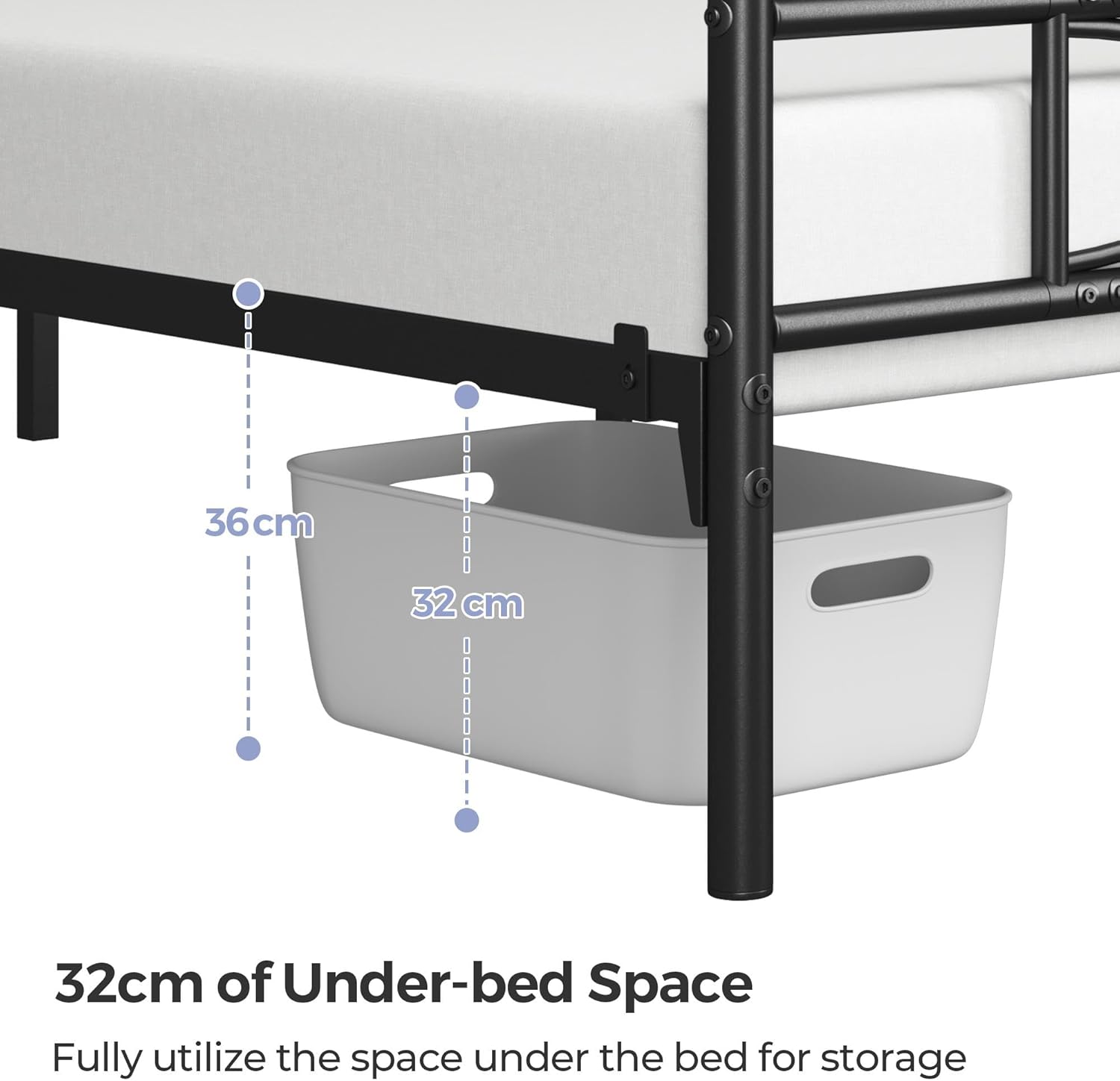

Image: A visual representation of the 32 cm under-bed clearance, ideal for storing various items.
Floor Protection
The bed frame is equipped with protective foot pads on its legs to prevent scratches and damage to your flooring.
Image: Detail of the protective foot pads designed to safeguard your floors.
Maintenance
- Cleaning: Wipe the metal frame with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners, which can damage the powder-coated finish.
- Fastener Checks: Periodically (e.g., every 3-6 months) inspect all bolts and connections to ensure they are still tight. Re-tighten if necessary to maintain stability and prevent squeaking.
- Movement: When moving the bed frame, lift it rather than dragging it to prevent damage to the frame or your floor.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame squeaks or wobbles | Loose bolts or connections. Uneven floor surface. | Ensure all bolts are securely tightened. Check if the bed frame is on a level surface; use shims if necessary. |
| Mattress slides on the frame | Mattress not properly seated. Anti-slip features not engaged. | Ensure the mattress is centered and fully within the frame's edges. Verify that the anti-slip baffles are correctly positioned. |
| Difficulty assembling parts | Incorrect orientation of parts. Missing hardware. | Refer to the assembly diagrams carefully. Do not force parts. Contact customer support if parts are missing or damaged. |
Specifications
- Model Number: MM-00128481
- Size: Full (Double)
- Material: Iron
- Color: Black
- Overall Dimensions (L x W x H): 197 cm x 138 cm x 88.5 cm (77.6 in x 54.3 in x 34.8 in)
- Applicable Mattress Size: 190 cm L x 135 cm W (74.8 in L x 53.1 in W)
- Ground Clearance (Under-bed Storage Height): 32 cm (12.6 in)
- Maximum Weight Capacity: 363 kg (800 lbs)
- Number of Slats: 12 integrated steel slats
- Finish Type: Powder coating
- Assembly Required: Yes
- Care Instructions: Wipe with a dry cloth
Image: Key features of the bed frame, highlighting curved design, anti-slip elements, under-bed storage, and protective foot pads.
Customer Support
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Yaheetech customer service. Refer to your purchase documentation for contact details.
