1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your RYOBI 8 in. 6 Amp Electric Pole Saw Chainsaw. This tool is designed for trimming high branches without requiring a ladder, offering an extended reach of up to 9 feet for otherwise inaccessible areas. It features an instant-starting 6 amp electric motor and an automatic oiler system for convenience and precise pruning.
Image 1.1: The RYOBI 8 in. 6 Amp Electric Pole Saw Chainsaw, fully assembled and ready for use.
2. Important Safety Instructions
Always read and understand all safety warnings and instructions before operating this electric pole saw. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Read the Entire Manual: Familiarize yourself with the controls and proper use of the tool.
- Wear Personal Protective Equipment (PPE): Always wear safety glasses or goggles, hearing protection, heavy-duty gloves, and a hard hat when operating the pole saw.
- Inspect the Work Area: Ensure the area is clear of bystanders, pets, and obstacles. Check for power lines or other utilities before cutting.
- Maintain Proper Footing: Always stand on firm, level ground. Do not overreach.
- Avoid Wet Conditions: Do not operate the pole saw in rain or damp conditions.
- Unplug When Not in Use: Disconnect the pole saw from the power source before making adjustments, changing accessories, or storing the tool.
- Use Both Hands: Always grip the pole saw firmly with both hands during operation.
3. Package Contents
Verify that all items listed below are included in your package. If any parts are missing or damaged, do not operate the tool and contact customer support.
- Electric Pole Saw
- 8 in. Chainsaw Blade Cover
- Tool Tensioning Hex Key
- Bar & Chain Lubricant (small starter bottle)
- Operator's Manual (this document)
4. Assembly and Setup
Follow these steps to assemble and prepare your pole saw for operation.
- Unpack Components: Carefully remove all items from the packaging.
- Assemble Pole Sections: If your model has multiple pole sections, align the arrows and securely connect them until they click into place. Ensure the connection is firm and stable.
- Install Chain and Bar: Refer to the detailed instructions in the included Operator's Manual for proper installation of the 8-inch chain and guide bar. Ensure the chain is correctly oriented and tensioned.
- Fill Oil Reservoir: Locate the oil reservoir cap. Fill the reservoir with the provided bar and chain lubricant. Do not overfill. Regularly check the oil level during operation.
- Connect to Power: Ensure the pole saw is switched off before connecting it to a 110-volt power outlet using a suitable outdoor-rated extension cord.

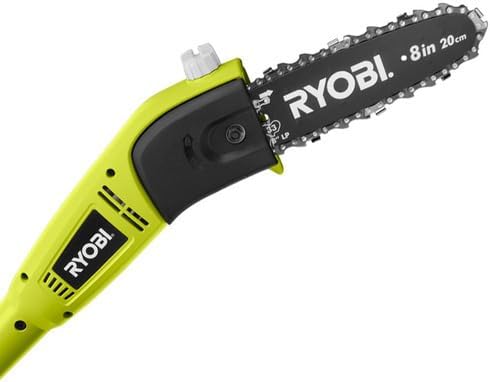

Image 4.1: Close-up view of the 8-inch chain and guide bar assembly on the RYOBI pole saw head.
5. Operating Instructions
Proper operation ensures safety and efficiency when trimming branches.
- Pre-Operation Checks: Before each use, inspect the chain for sharpness and tension, check the oil level, and ensure all fasteners are tight.
- Starting the Saw: With both hands firmly gripping the pole saw, press the safety lock-out button and then squeeze the trigger switch to start the motor.
- Cutting Techniques:
- Undercut First: For larger branches, make a small undercut on the underside of the branch to prevent bark stripping.
- Top Cut: Position the saw on top of the branch, slightly further out from the undercut, and allow the weight of the saw to assist in cutting. Do not force the saw.
- Avoid Kickback: Be aware of the kickback zone at the tip of the guide bar. Avoid contact with this area.
- Adjusting Reach: The adjustable shaft allows for varying lengths up to 9 feet. Adjust the pole length as needed for the branch height, ensuring a comfortable and stable operating position.
- Stopping the Saw: Release the trigger switch to stop the motor. Always engage the blade cover when the saw is not in use.

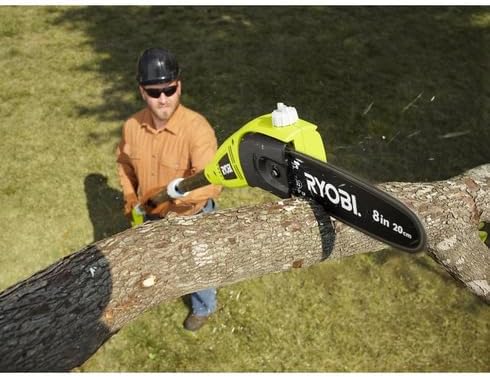

Image 5.1: A user demonstrating the RYOBI pole saw in action, cutting a tree branch from a safe distance.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your pole saw.
- Chain Sharpening: A dull chain requires more effort and can be dangerous. Sharpen the chain regularly or replace it when necessary.
- Chain Tensioning: Check chain tension frequently. A properly tensioned chain should be snug but still able to be pulled freely around the guide bar by hand. Use the provided hex key for adjustments.
- Bar Maintenance: Clean the guide bar groove and oil holes regularly. Flip the guide bar periodically to ensure even wear.
- Cleaning: After each use, clean the pole saw, removing sawdust, debris, and sap from the chain, bar, and motor housing.
- Lubrication: Ensure the automatic oiler system is functioning correctly and keep the oil reservoir filled with appropriate bar and chain lubricant.
- Storage: Store the pole saw in a dry, secure location, out of reach of children. Always attach the blade cover before storage.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Saw does not start | No power, safety lock-out not engaged, faulty switch | Check power connection, ensure safety lock-out is pressed, contact service if switch is faulty. |
| Chain not cutting effectively | Dull chain, incorrect chain tension, chain installed backward | Sharpen or replace chain, adjust chain tension, ensure chain is installed correctly. |
| Saw overheats | Overuse, blocked ventilation, dull chain | Allow saw to cool, clear ventilation openings, sharpen chain. |
| No oil reaching chain | Empty oil reservoir, clogged oil port | Refill oil reservoir, clean oil port and guide bar groove. |
8. Specifications
- Brand: RYOBI
- Model Number: RY43161
- Power Source: Corded Electric
- Voltage: 110 Volts
- Amperage: 6 Amp
- Blade Length: 8 inches
- Maximum Reach: Up to 9 feet
- Item Weight: Approximately 9.78 pounds
- Product Dimensions: 112 x 8 x 6 inches (assembled)
9. Warranty and Support
The RYOBI 8 in. 6 Amp Electric Pole Saw Chainsaw is backed by a 3-year warranty. For warranty claims, technical assistance, or to order replacement parts, please contact RYOBI customer support. Keep your purchase receipt as proof of purchase.
For further assistance, please visit the official RYOBI website or contact their customer service department.
