Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
Product Overview
The SOKANY SK-223 is a versatile 850-watt electric appliance designed for indoor grilling, panini pressing, and sandwich making. It features non-stick coated plates for easy cooking and cleaning, indicator lights for operational status, and a cool-touch handle for safe use.

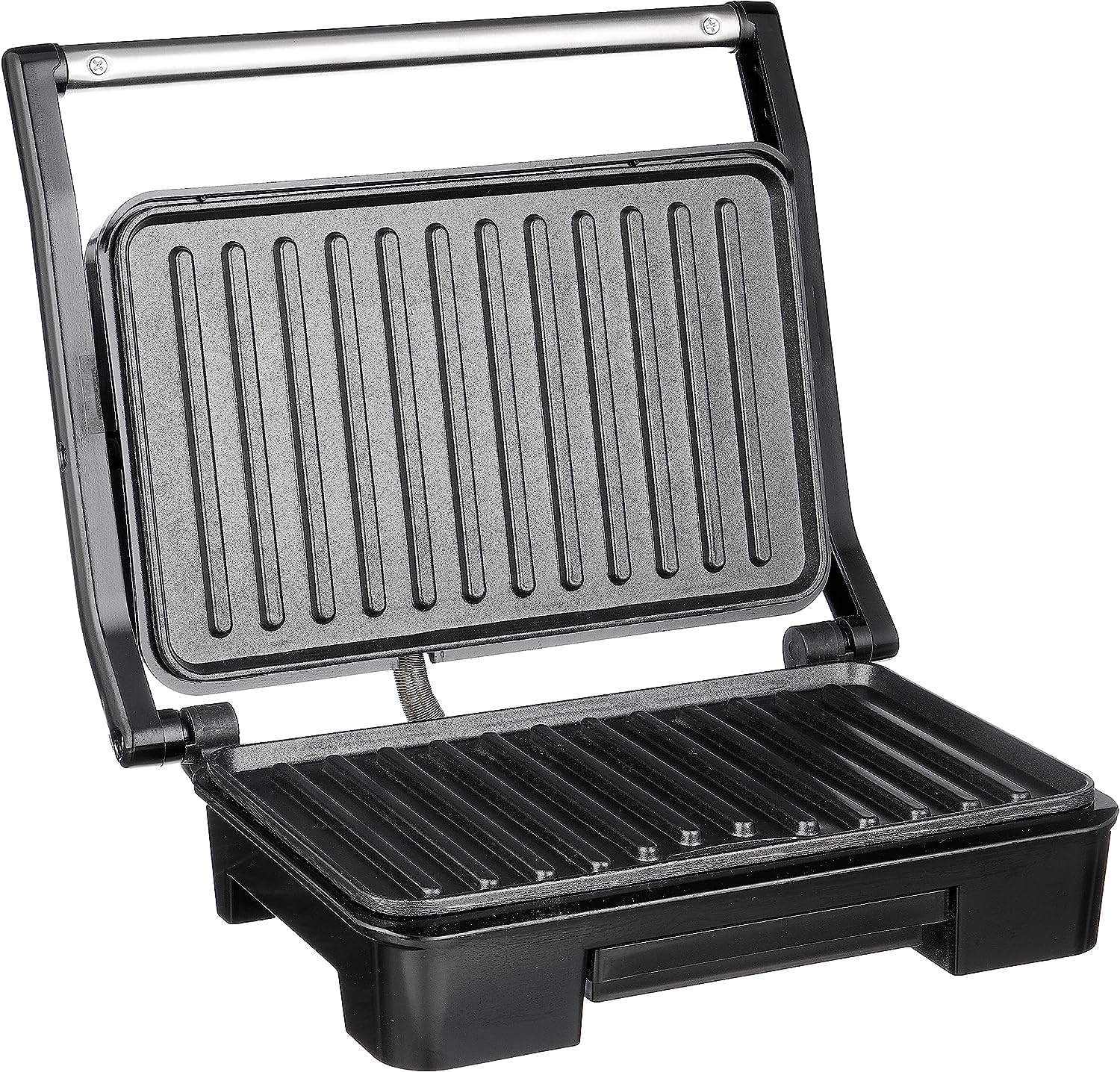

Figure 1: Front view of the SOKANY SK-223 appliance.
Key Features:
- 850 Watt Heating Element: Provides rapid and efficient heating for quick cooking.
- Non-Stick Coated Plates: Ensures food does not stick and simplifies cleaning.
- Indicator Lights: Red light for power, Green light for heating/ready status.
- Cool-Touch Handle: Designed for safe handling during operation.
- Compact Design: Space-saving for various kitchen sizes.
Figure 2: Close-up of the indicator lights (Red: Power, Green: Heating/Ready) and the cool-touch handle.
Setup
- Unpacking: Carefully remove the appliance and all packaging materials. Retain packaging for future storage or transport if needed.
- Initial Cleaning: Before first use, wipe the non-stick cooking plates with a damp cloth or sponge. Dry thoroughly. Wipe the exterior with a soft, damp cloth. Do not immerse the appliance in water.
- Placement: Place the appliance on a stable, heat-resistant, and dry surface, away from walls and other heat-sensitive materials. Ensure adequate ventilation around the unit.
- Power Connection: Ensure the appliance is unplugged before placing it. The unit operates on 110 Volts.
Operating Instructions
Preheating the Appliance:
- Close the lid of the appliance.
- Plug the power cord into a standard 110V electrical outlet. The red power indicator light will illuminate, indicating the appliance is receiving power.
- The green heating indicator light will also illuminate, indicating the appliance is preheating.
- Allow the appliance to preheat for approximately 3-5 minutes. The green light will turn off when the desired cooking temperature is reached, indicating it is ready for use. The green light may cycle on and off during cooking to maintain temperature.
Figure 3: The appliance preheating, showing the internal heating elements and indicator lights.
Cooking with the Appliance:
Once preheated, the SOKANY SK-223 can be used for various cooking tasks:
- Grilling Meats/Vegetables: Open the lid. Carefully place food items such as steaks, chicken, or vegetables onto the bottom cooking plate. Close the lid. The floating hinge design allows for even pressure on thicker items. Cook until desired doneness is achieved.
- Panini/Sandwich Making: Place your assembled sandwich or panini onto the bottom cooking plate. Close the lid, pressing down gently to ensure even contact. Cook until the bread is toasted and fillings are heated through.
Cooking times will vary depending on the type of food, thickness, and desired doneness. Monitor food closely to prevent overcooking.

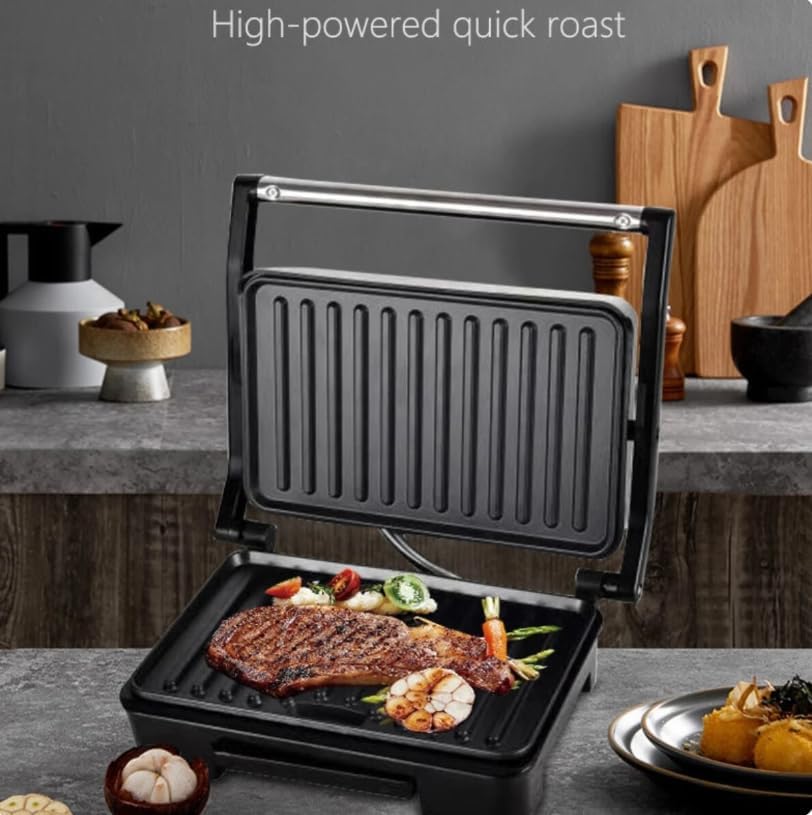

Figure 4: The appliance in use, grilling a steak and vegetables.
After Cooking:
- Carefully remove cooked food using heat-resistant plastic or wooden utensils to avoid scratching the non-stick coating.
- Unplug the appliance from the wall outlet.
- Allow the appliance to cool completely before cleaning or storing.
Cleaning and Maintenance
Proper cleaning and maintenance will ensure the longevity and optimal performance of your SOKANY SK-223 appliance.
- Always Unplug: Ensure the appliance is unplugged and completely cool before cleaning.
- Cleaning Cooking Plates: Wipe the non-stick cooking plates with a soft, damp cloth or sponge. For stubborn food residue, dampen a cloth with warm, soapy water and gently wipe. Avoid abrasive cleaners, scouring pads, or metal utensils, as these can damage the non-stick coating.
- Cleaning Exterior: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners.
- Do Not Immerse: Never immerse the appliance, power cord, or plug in water or any other liquid.
- Storage: Once clean and dry, store the appliance in a cool, dry place. The compact design allows for easy storage.
Figure 5: Demonstrating the cleaning of the non-stick cooking plates with a soft cloth.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction. | Ensure the power cord is securely plugged into a working 110V outlet. Check the circuit breaker. |
| Food is not cooking evenly. | Appliance not fully preheated; food placed unevenly. | Allow the appliance to fully preheat until the green indicator light turns off. Ensure food is spread evenly on the cooking plates. |
| Food sticks to the plates. | Plates not properly cleaned; excessive sugar in food; non-stick coating wear. | Ensure plates are clean before use. Lightly brush plates with cooking oil if needed. Avoid using metal utensils. |
| Smoke or unusual odor during first use. | Protective oils burning off. | This is normal for first use. Ensure good ventilation. If smoke persists after initial use, unplug and contact support. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | SK-223 |
| Brand | Sokany |
| Power | 850 Watts |
| Voltage | 110 Volts |
| Material | Metal, Plastic |
| Color | Black |
| Product Dimensions (L x W x H) | 9.8"D x 10.5"W x 3.45"H |
| Item Weight | 3.45 pounds |
| Special Features | Cool Touch Handle, Non-Stick Coating, Indicator Lights |
Figure 6: Diagram showing the dimensions of the SOKANY SK-223 appliance.
Warranty and Support
This SOKANY SK-223 appliance comes with a limited warranty. For specific warranty details, please refer to the documentation included with your purchase or contact SOKANY customer support.
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact SOKANY customer support through the retailer where the product was purchased or visit the official SOKANY website for contact information.
Please have your model number (SK-223) and purchase information ready when contacting support.
