OUTON B0CGX5PMQX
OUTON Floor Lamp with Remote Control
Model: B0CGX5PMQX
Introduction
Thank you for purchasing the OUTON Floor Lamp. This modern arched lamp features three adjustable lights, remote control operation, and dimmable brightness with adjustable color temperature. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your new floor lamp.
Safety Information
- Read all instructions carefully before assembly and use.
- Ensure the power supply is disconnected before assembly, cleaning, or replacing bulbs.
- Use only bulbs of the specified type and wattage (E26 base, 60W MAX equivalent).
- Do not operate the lamp with a damaged cord or plug.
- Keep the lamp away from water and moisture. This product is for indoor use only.
- Place the lamp on a stable, level surface to prevent tipping. The base is designed for stability.
- Do not attempt to modify or repair the lamp yourself. Contact qualified service personnel for repairs.
Package Contents
Verify that all components are present before beginning assembly:
- Floor Lamp Components (Base, Pole Sections, Arc Arms, Lamp Holders)
- 3 x Light Shades
- 3 x LED Bulbs
- 1 x Remote Control
- User Manual (this document)
Setup and Assembly
Follow these steps to assemble your OUTON Floor Lamp:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
- Connect Lamp Cap and Thin Rod: Pull up the lamp cap and link the thin rod. Ensure a secure connection.
- Tighten Arc Parts: Use the provided tools (if any) to tighten the arc parts securely.
- Link Arc Part and Support Rod: Twist and link the arc part to the support rod part. Ensure the connections are firm.
- Assemble the Base: Attach the main pole to the heavy base. Ensure it is tightened securely to provide maximum stability.
- Assemble the Lampshades: The shades may come flat. Wrap them into their cylindrical shape and attach them using the Velcro strip or clips provided.
- Assemble the Bulbs: Carefully screw the included LED bulbs into the lamp holders.
Image: Step-by-step visual guide for assembling the OUTON Floor Lamp, showing the connection of lamp parts, base, and shades.
Operating Instructions
Your OUTON Floor Lamp can be controlled via the included remote control or a knob on the lamp pole.
Remote Control Functions:
- Power On/Off: Press the power button to turn the lamp on or off.
- Brightness Adjustment (0%-100%): Use the '+' and '-' buttons to increase or decrease the brightness.
- Color Temperature Adjustment (3000K-6500K): Use the 'K+' and 'K-' buttons to cycle through warm white (3000K), warm white (4000K), daylight (5000K), and cool white (6500K) settings.
- Individual Light Control: Buttons 1, 2, and 3 allow you to turn on 1, 2, or all 3 lights independently.
- Timing Settings: Set a timer for 30 or 60 minutes using the dedicated buttons.
- Magnetic Design: The remote control can be conveniently attached to the lamp pole or any metal surface.
Image: The OUTON Floor Lamp in a living room, demonstrating the use of the remote control to adjust lighting.
Image: Visual representation of the lamp's ability to adjust between 3000K (warm) and 6000K (cool) color temperatures, and stepless dimming from 1% to 100% brightness.
Adjustable Arc Arms:
The arched branches of the OUTON arc floor lamp can rotate 360 degrees. This allows you to direct light precisely where needed, providing versatile illumination for various activities such as relaxing, reading, or working.

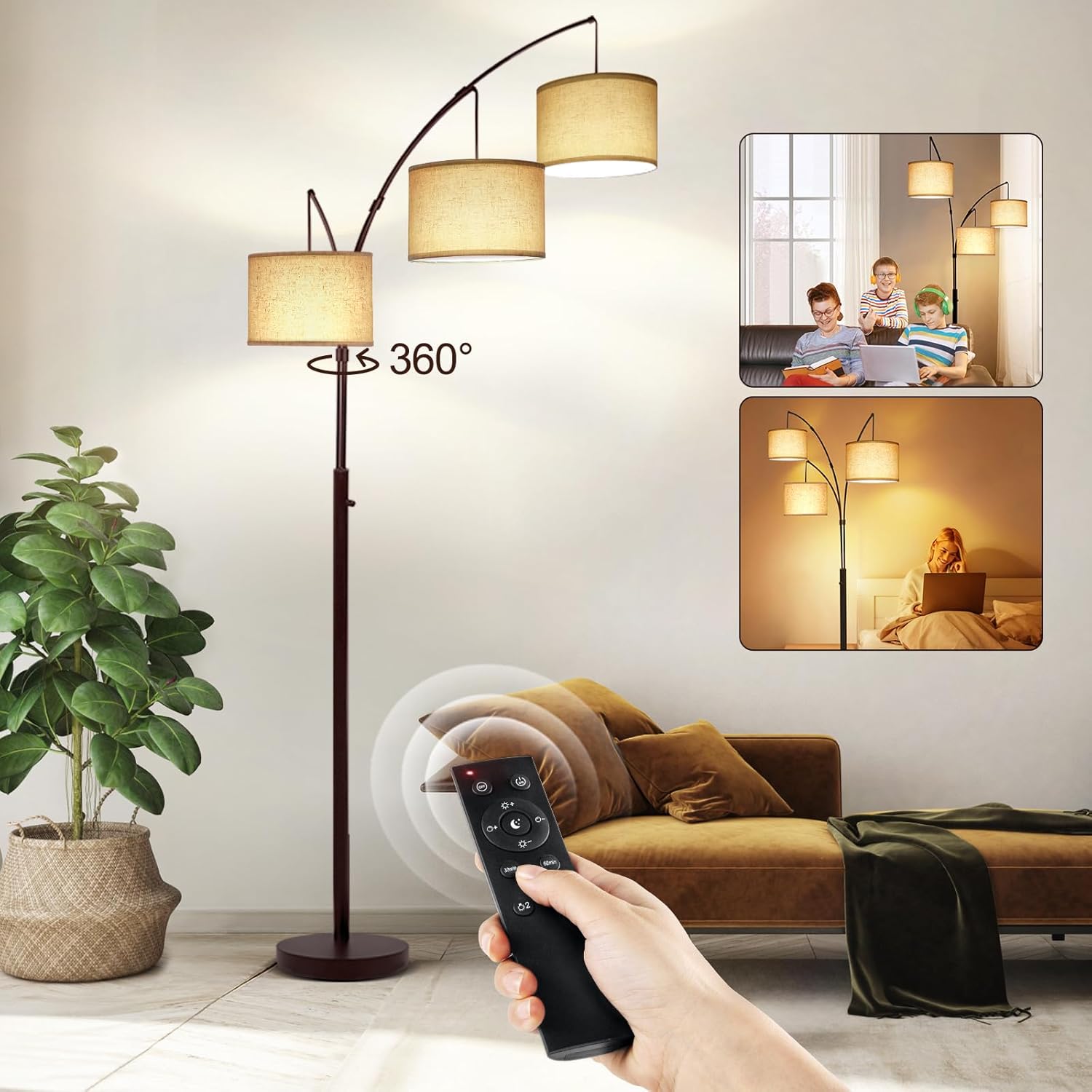

Image: The OUTON Floor Lamp with an arrow indicating the 360-degree rotation capability of its branches, allowing for flexible light positioning.
Maintenance
- Cleaning: Disconnect the power before cleaning. Wipe the lamp and shades with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Bulb Replacement: Ensure the lamp is unplugged and cool before replacing bulbs. Use E26 base LED bulbs, up to 60W equivalent.
- General Care: Regularly check the power cord for any damage. Ensure all connections remain secure.
Image: A visual guide illustrating different E26 bulb types (Vintage, Flame, Tube, A19, CFL, RGB) that are compatible with the OUTON Floor Lamp, indicating a maximum of 60W equivalent.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | No power, loose connection, faulty bulb, remote battery dead. | Check power outlet, ensure all lamp sections are securely connected, replace bulbs, replace remote battery. |
| Remote control not working. | Remote battery dead, remote not paired, obstruction. | Replace remote battery. Ensure line of sight to the lamp's receiver. Refer to remote pairing instructions if available (not detailed in current data). |
| Lights flicker or dim unexpectedly. | Loose bulb, unstable power supply, incompatible dimmer. | Tighten bulbs. Ensure stable power. This lamp has built-in dimming; do not use with external dimmer switches. |
| Lamp is unstable. | Base not properly assembled or tightened. | Ensure the base is fully tightened to the main pole and placed on a flat surface. |
Specifications
| Feature | Detail |
|---|---|
| Brand | OUTON |
| Model | B0CGX5PMQX |
| Product Dimensions | 11"D x 11"W x 80"H |
| Item Weight | 18.06 pounds |
| Material | Iron (Finish Type), Metal (Base Material), Line (Shade Material) |
| Light Source Type | LED |
| Number of Light Sources | 3 |
| Wattage | 16 watts (total) |
| Voltage | 120 Volts (AC) |
| Control Method | Remote |
| Special Feature | Cordless Remote Control, Dimmable, Adjustable Color Temperature, 360° Rotatable Branches |
| Indoor/Outdoor Usage | Indoor |
Image: A technical drawing of the OUTON Floor Lamp with key dimensions labeled, including height (81 inches), base diameter (11 inches), and arc arm length (40 inches).
Warranty and Support
OUTON products are designed for quality and reliability. For specific warranty details, please refer to the warranty card included with your product or contact OUTON customer support.
Customer Support:
If you encounter any issues or have questions regarding your OUTON Floor Lamp, please contact our customer support team. We aim to provide quick replies within 12 hours.
For further assistance, visit the official OUTON store on Amazon: OUTON Store
