1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Bosch 11003806 Dryer Heat Exchanger Condenser Complete. The 11003806 is a genuine OEM Bosch part designed to efficiently remove moisture from the heated air within your dryer. It is a complete unit, replacing previous part numbers 00747405, 00752390, 747405, and 752390.
For optimal performance and safety, please read these instructions carefully before proceeding with any procedures.
2. Safety Information
Always observe the following safety precautions when handling or installing appliance parts:
- Disconnect Power: Before attempting any installation, maintenance, or repair, ensure the dryer is completely disconnected from its power source to prevent electric shock.
- Consult Appliance Manual: Always refer to your specific dryer's service manual for detailed instructions and safety warnings pertinent to your appliance model.
- Professional Assistance: If you are unsure about any step or procedure, it is highly recommended to contact a qualified appliance service professional.
- Genuine Parts: Use only genuine replacement parts to ensure compatibility and maintain appliance safety and performance.
- Sharp Edges: Be aware of potential sharp edges on appliance components. Wear appropriate protective gloves if necessary.
3. Installation
The Bosch 11003806 Heat Exchanger Condenser is a complete replacement unit. Proper installation is crucial for the efficient operation of your dryer.
- Preparation:
- Ensure the dryer is unplugged from the electrical outlet.
- Locate the condenser housing on your dryer. This is typically accessible from the front or side of the appliance.
- Refer to your dryer's specific service manual for exact access and removal procedures for the old condenser.
- Removal of Old Condenser:
- Carefully unlatch or unclip any retaining mechanisms holding the existing condenser in place.
- Gently pull the old condenser unit out of its housing. Be prepared for residual water or lint.
- Installation of New Condenser:
- Inspect the new Bosch 11003806 condenser for any shipping damage.
- Align the new condenser with the opening in the dryer's housing.
- Push the condenser firmly and evenly into place until it is fully seated. Ensure any locking mechanisms click into position. The unit is designed for a precise fit.
- Final Steps:
- Close any access panels or covers that were removed.
- Reconnect the dryer to its power source.
- Perform a test cycle to ensure proper operation and check for any leaks or unusual noises.

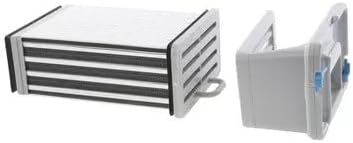

Image 1: The Bosch 11003806 Heat Exchanger Condenser (left) and its corresponding housing (right), illustrating the complete unit.
4. Operation
The Bosch 11003806 Heat Exchanger Condenser operates as an integral component of your dryer's drying system. Its primary function is to condense moisture from the heated air, allowing it to be collected and drained, thus drying your laundry.
Once correctly installed, the condenser works automatically with your dryer's cycles. Ensure that the condenser is fully seated and secured in its compartment before operating the dryer. The "easy clean handle" feature is designed for convenient removal during maintenance, not for operational adjustments.
5. Maintenance
Regular cleaning of the heat exchanger condenser is essential for maintaining your dryer's efficiency and preventing issues. The Bosch 11003806 features an "easy clean handle" to facilitate this process.
- Frequency: Consult your dryer's main instruction manual for recommended cleaning intervals. Typically, condensers should be cleaned every few months, or more frequently if you notice reduced drying performance.
- Access:
- Ensure the dryer is unplugged from the power supply.
- Open the condenser access panel on your dryer.
- Removal:
- Grasp the "easy clean handle" on the condenser unit.
- Carefully pull the condenser straight out of its compartment.
- Cleaning:
- Rinse the condenser thoroughly under running water, preferably a shower head, to remove all lint and debris from between the fins.
- Ensure water flows freely through all channels.
- Do not use harsh chemicals or abrasive brushes, as these can damage the fins.
- Allow the condenser to air dry completely before reinstallation.
- Reinstallation:
- Once dry, slide the condenser back into its compartment, ensuring it is fully seated and secured.
- Close the access panel.
- Reconnect the dryer to power.
Image 2: The Bosch 11003806 Heat Exchanger Condenser, showing the integrated easy clean handle for convenient removal and maintenance.
6. Troubleshooting
The Bosch 11003806 Heat Exchanger Condenser is a passive component. Most issues related to its function will manifest as reduced drying efficiency or error codes on your dryer.
- Reduced Drying Performance: If your dryer is taking longer than usual to dry clothes, or clothes are still damp after a cycle, the condenser may be clogged with lint. Refer to the Maintenance section for cleaning instructions.
- Error Codes: Some dryers may display specific error codes related to the condenser or moisture removal system. Consult your dryer's main instruction manual for the meaning of these codes and recommended solutions.
- Water Leaks: Ensure the condenser is properly seated and secured in its compartment. Check the seals around the condenser for any damage.
- Unusual Noises: If you hear rattling or vibrating noises, ensure the condenser is firmly in place and not loose.
If troubleshooting steps do not resolve the issue, or if you suspect a defect with the condenser itself, contact a qualified service professional or Bosch customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 11003806 |
| Brand | Bosch |
| Part Type | Dryer Heat Exchanger Condenser Complete |
| Replaces Part Numbers | 00747405, 00752390, 747405, 752390 |
| Product Dimensions | 1 x 1 x 1 inches (Approximate, refer to actual product for precise measurements) |
| Item Weight | 4.35 pounds |
| Compatibility | Fits Bosch brand dryers. Always verify with your appliance service manual. |
8. Support & Warranty
For technical assistance, service, or inquiries regarding your Bosch 11003806 Dryer Heat Exchanger Condenser, please contact Bosch customer support or a qualified appliance service professional.
Warranty Information: Specific warranty terms for replacement parts can vary. Please retain your proof of purchase and consult the official Bosch warranty documentation provided with your original appliance or contact Bosch directly for details regarding the warranty coverage for this genuine replacement part.
You can often find support contact information on the official Bosch website or within your dryer's main instruction manual.
