RuggedGrade 40W Rotate IV Series LED Wall Pack Instruction Manual

1. Product Overview

The RuggedGrade 40W Rotate IV Series LED Wall Pack is an outdoor lighting fixture designed for durability and optimal light distribution. It features a fully adjustable LED head, allowing for precise light aiming. This model delivers 5,800 lumens of 5000K bright white light and includes a wattage-selectable feature for energy efficiency. Its robust construction ensures reliable performance in various outdoor conditions.

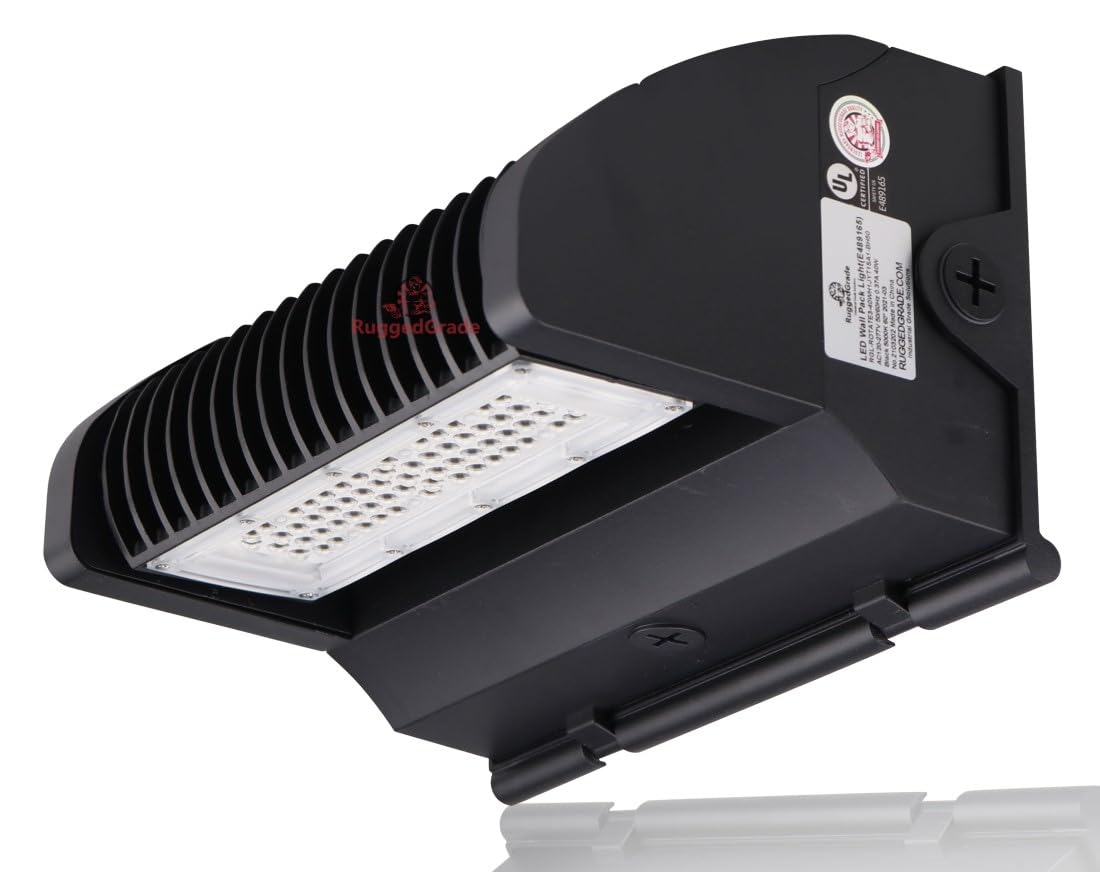

Figure 1: RuggedGrade 40W Rotate IV Series LED Wall Pack, showing its black housing and adjustable LED head.

2. Key Features

• Adjustable LED Head: The Rotate IV Series features a fully adjustable LED head, allowing users to direct light downward, outward, or at a specific angle for optimal coverage.
• High Efficiency Illumination: This 40W unit provides 5,800 lumens with an efficiency of approximately 140 lumens per watt, offering significant energy savings compared to traditional lighting.
• Wattage Selectable: The fixture includes a wattage-selectable feature, enabling adjustment of light output to match specific area requirements.
• Dimmable Functionality: Equipped with a 0-10V RuggedGrade driver for smooth dimming, compatible with external 0-10V and PWM devices.
• Durable Construction: Engineered with industrial-grade LEDs rated for 100,000 hours and advanced heat sink technology for prolonged lifespan.
• Weatherproof Design: IP65 waterproof housing provides protection against rain, dust, and harsh outdoor conditions.
• Certifications: UL Listed and DLC 5.1 Premium verified, ensuring safety, quality, and eligibility for energy rebates.

Figure 2: Overview of key features including available wattages, IP65 weatherproofing, tunable Kelvin color, 0-10V dimmable, and UL & DLC Premium 5.1 certifications.

Figure 3: Illustration of the die-cast aluminum construction for durability and long service life, featuring an optical grade polycarbonate cover and acrylic lenses.

3. Specifications

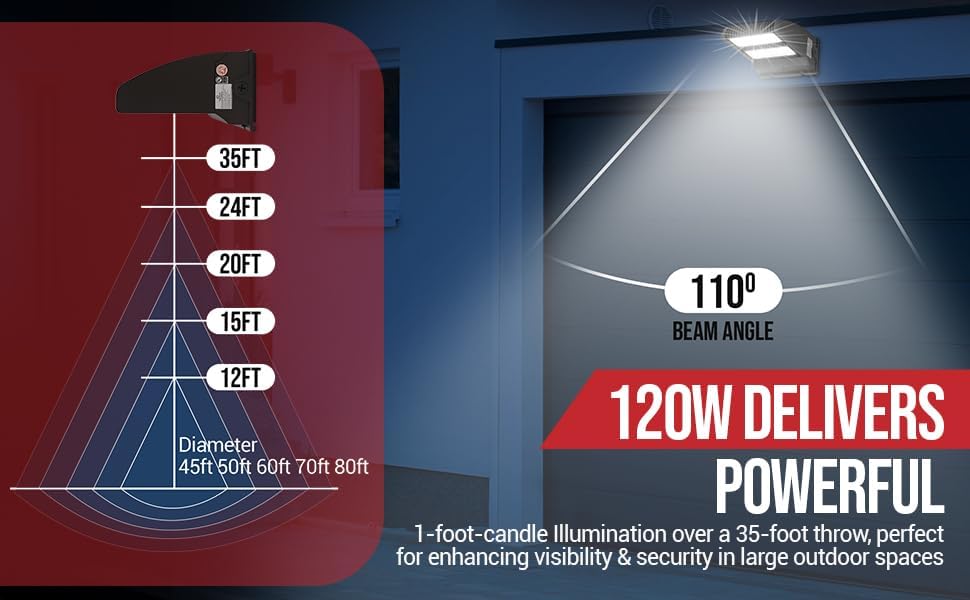

Figure 4: Illustration of the light distribution and beam angle, demonstrating effective coverage for outdoor spaces.

4. Installation Instructions

This LED wall pack is designed for standard junction box or conduit installation with a 3-wire connection. Ensure power is disconnected before beginning installation.

4.1 Safety Precautions

• Always turn off power at the circuit breaker before installation or servicing.
• Consult a qualified electrician if you are not familiar with electrical wiring.
• Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves.
• Ensure the mounting surface can support the weight of the fixture.

4.2 Mounting the Fixture

1. Mark the desired mounting location on the wall.
2. Drill pilot holes for the mounting screws, ensuring they align with the fixture's mounting points.
3. Secure the mounting plate or fixture base to the wall using appropriate hardware.
4. Connect the electrical wires (live, neutral, ground) from the supply to the fixture's corresponding wires. Ensure all connections are secure and properly insulated.
5. Attach the fixture body to the mounted base, ensuring a tight seal to maintain IP65 rating.
6. Adjust the LED head to the desired angle for optimal light direction.

5. Operating Instructions

5.1 Wattage Selection

The fixture allows for wattage selection to adjust the light output. Refer to the internal switch or mechanism within the fixture to select the desired wattage (e.g., 40W, 30W, 25W for the 40W model). Ensure power is off before making any adjustments.

5.2 Color Temperature (CCT) Selection (if applicable)

While this specific model is 5000K Bright White, other Rotate IV Series models may offer color temperature selection (e.g., 3000K, 4000K, 5000K). If your model supports CCT selection, locate the internal switch and choose your preferred color temperature. Ensure power is off before making any adjustments.

Figure 5: Visual representation of wattage and color temperature selection options available on some RuggedGrade fixtures, allowing customization of light output and ambiance.

5.3 Dimming

This fixture is 0-10V dimmable. Connect a compatible 0-10V dimmer or PWM device to the fixture's dimming wires to control the brightness level. Follow the dimmer manufacturer's instructions for proper connection and operation.

5.4 Photocell Operation (if equipped)

If your fixture includes a photocell, it will automatically turn the light on at dusk and off at dawn. Ensure the photocell sensor is not obstructed by any objects or debris to ensure proper function.

Figure 6: Diagram illustrating the automatic dusk-to-dawn operation when the fixture is equipped with a photocell.

6. Maintenance

The RuggedGrade LED Wall Pack requires minimal maintenance due to its durable design and long-lasting LED components.

• Cleaning: Periodically clean the exterior of the fixture with a soft, damp cloth to remove dirt, dust, and debris. Avoid using abrasive cleaners or solvents that could damage the finish or optical components.
• Inspection: Annually inspect the fixture for any signs of damage, loose connections, or wear. Ensure all seals are intact to maintain the IP65 rating.
• Obstruction: If your fixture has a photocell, ensure it remains free from obstructions (e.g., leaves, snow, paint) that could interfere with its light-sensing capabilities.

7. Troubleshooting

If you encounter issues with your LED wall pack, refer to the following common troubleshooting steps:

If these steps do not resolve the issue, please contact RuggedGrade customer support.

8. Warranty & Support

The RuggedGrade 40W Rotate IV Series LED Wall Pack is backed by a 5-Year Rock Solid Warranty. This warranty covers defects in materials and workmanship under normal use and service.

For warranty claims, technical assistance, or any questions regarding your product, please contact RuggedGrade customer support. Keep your purchase receipt as proof of purchase for warranty validation.

Manufacturer: RuggedGrade
