Ingco CM30-1E Electric Concrete Mixer 180L User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Ingco CM30-1E Electric Concrete Mixer. Please read these instructions thoroughly before initial use and retain them for future reference. This concrete mixer is designed for mixing cement mortar, screed, or plaster.

Figure 1.1: Assembled Ingco CM30-1E Electric Concrete Mixer. This image shows the complete mixer with its drum, motor housing, frame, wheels, and control handle.

2. Safety Instructions

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using this appliance. Failure to follow these instructions may result in serious injury or damage to the equipment.

• Read the Manual: Familiarize yourself with the controls and proper use of the equipment.
• Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, sturdy footwear, and appropriate work clothing. A dust mask is recommended when handling dry cement.
• Work Area: Keep the work area clean, well-lit, and free from obstructions. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety:
  • Ensure the power supply matches the voltage specified on the mixer (220-240V / 50/60Hz).
  • Use a residual current device (RCD) for added protection against electric shock.
  • Do not expose the mixer to rain or wet conditions. Water entering an electrical appliance will increase the risk of electric shock.
  • Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges, or moving parts.
• Stability: Ensure the mixer is placed on a firm, level surface before operation to prevent tipping.
• Moving Parts: Keep hands, feet, and clothing away from all moving parts, especially the mixing drum and gear mechanism, during operation.
• Children and Bystanders: Keep children and bystanders away while operating the concrete mixer.
• Maintenance: Disconnect the power plug from the power source before making any adjustments, changing accessories, or storing the appliance.
• Overloading: Do not overload the mixer. Respect the maximum mixing capacity of 135L.
• Emergency Stop: Know how to stop the machine quickly in an emergency.

Figure 2.1: Packaging displaying CE certification and safety symbols, indicating compliance with European safety standards and recommending personal protective equipment.

3. Package Contents

The Ingco CM30-1E Electric Concrete Mixer is shipped disassembled for transport. Carefully unpack all components and check against the following list. If any parts are missing or damaged, contact your supplier immediately.

• Mixing Drum (Upper and Lower sections)
• Motor Unit (800W Aluminum Induction Motor)
• Main Frame and Support Legs
• Wheels (2x) and Axle
• Tilting Handle with Spring-Loaded Mechanism
• Gear Ring (Cast Iron)
• Fasteners and Hardware (bolts, nuts, washers)
• Power Cable
• User Manual (this document)

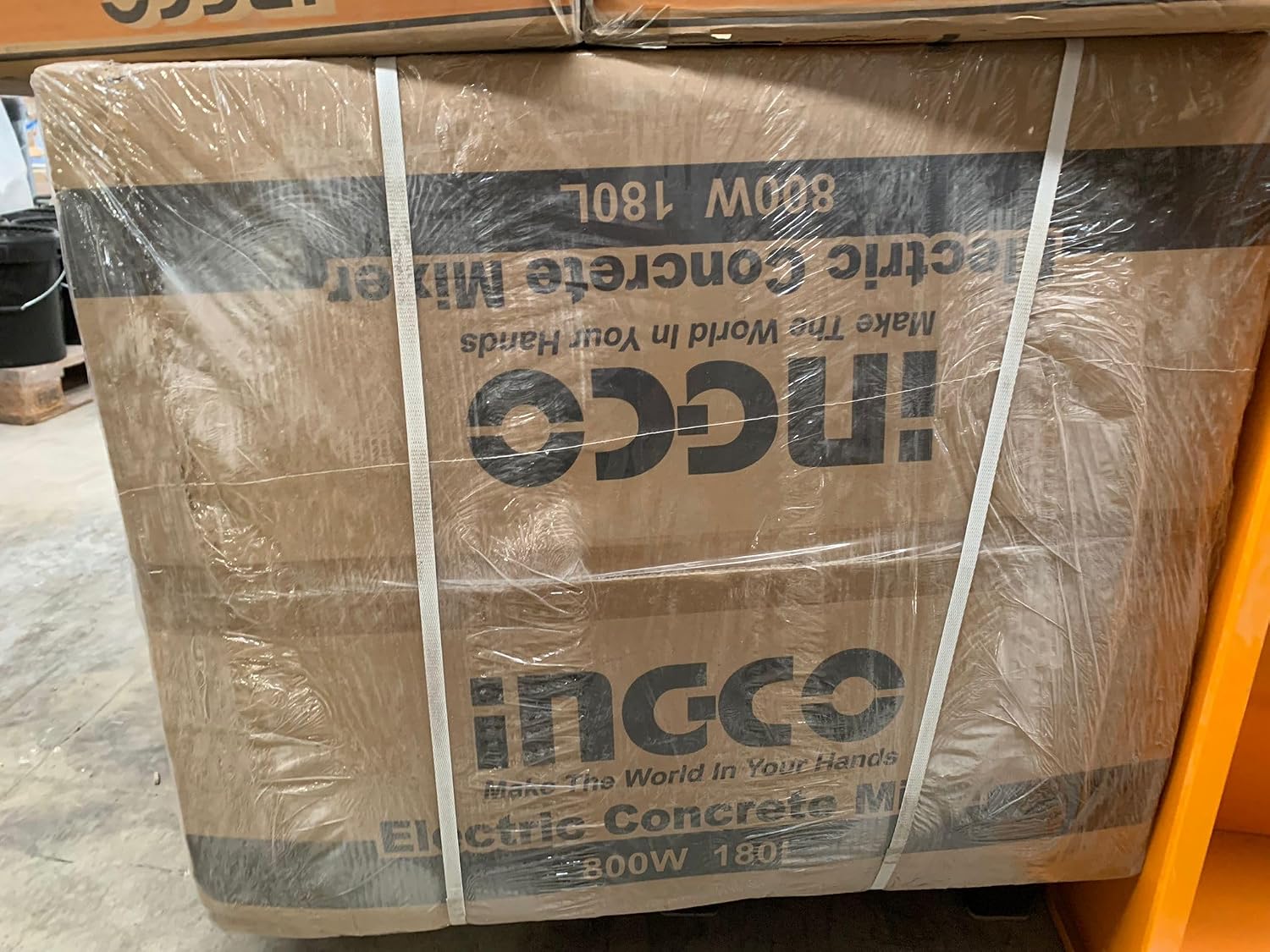

Figure 3.1: The product as received in its packaging, indicating it is an Electric Concrete Mixer with 180L capacity and 800W power.

4. Assembly Instructions

Assembly requires basic tools (not included) such as wrenches and screwdrivers. Follow these steps carefully to ensure proper and safe assembly.

1. Attach Wheels: Secure the wheels to the axle, then attach the axle assembly to the main frame.
2. Assemble Frame: Connect the support legs to the main frame using the provided fasteners. Ensure all connections are tight and stable.
3. Mount Motor Unit: Attach the motor unit to the designated position on the frame. Ensure the motor's gear aligns correctly with the drum's gear ring.
4. Assemble Mixing Drum: Join the upper and lower sections of the mixing drum. Secure them firmly with the provided bolts.
5. Attach Drum to Frame: Mount the assembled mixing drum onto the main frame, ensuring it pivots freely and securely. Connect the drum to the motor's drive mechanism.
6. Install Tilting Handle: Attach the spring-loaded tilting handle to the drum support. This handle allows for easy adjustment and locking of the drum's angle.
7. Final Check: Before connecting to power, visually inspect all connections, bolts, and moving parts to ensure they are correctly assembled and tightened. Ensure the power cable is not pinched or damaged.

Figure 4.1: Front view of the fully assembled concrete mixer, showing the drum, motor housing, and control wheel. This image serves as a reference for correct assembly.

5. Operating Instructions

Follow these steps for safe and effective operation of your concrete mixer.

1. Positioning: Place the mixer on a stable, level surface. Ensure there is enough space around the mixer for safe operation and material handling.
2. Power Connection: Connect the mixer to a suitable power outlet (220-240V / 50/60Hz) with RCD protection.
3. Starting the Mixer: Turn on the mixer using the power switch. Allow the drum to reach full operating speed before adding materials.
4. Loading Materials:
   • First, add a small amount of water to the rotating drum to prevent dry mix from sticking.
   • Gradually add aggregates (sand, gravel), then cement, and finally the remaining water.
   • Add materials slowly and evenly to avoid overloading the motor and to ensure thorough mixing.
   • Do not exceed the maximum mixing capacity of 135L.
5. Mixing: Allow the materials to mix until a consistent, uniform consistency is achieved. The mixing time will vary depending on the type of mix and materials.
6. Unloading: Once mixing is complete, turn off the mixer. Use the tilting handle to carefully tilt the drum and discharge the mixed material into a wheelbarrow or container.
7. Stopping the Mixer: After unloading, return the drum to its upright position and turn off the power switch. Disconnect the mixer from the power supply.

Figure 5.1: Rear view of the assembled mixer, highlighting the motor housing and power cable connection point. Ensure the power cable is securely connected and free from damage before operation.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your concrete mixer. Always disconnect the power supply before performing any maintenance.

• Cleaning:
  • Immediately after each use, clean the inside and outside of the mixing drum thoroughly with water. Do not allow concrete or mortar to dry and harden inside the drum.
  • Avoid spraying water directly onto the motor housing or electrical components.
  • Remove any build-up from the mixing paddles and drum interior.
• Lubrication: Periodically check and lubricate moving parts, especially the gear ring and drum pivot points, according to manufacturer recommendations (if specified, otherwise use general-purpose grease).
• Inspection:
  • Regularly inspect the power cable for cuts, fraying, or damage. Replace if necessary.
  • Check all bolts and fasteners for tightness. Re-tighten as needed.
  • Inspect the mixing paddles for wear or damage.
  • Ensure the wheels rotate freely and are in good condition.
• Storage: Store the mixer in a dry, protected area when not in use. If storing outdoors, cover it to protect from weather elements.

7. Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, contact customer support.

8. Specifications

Technical specifications for the Ingco CM30-1E Electric Concrete Mixer:

• Model: CM30-1E
• Voltage: 220-240V / 50/60Hz
• Input Power: 0.8 kW (800W / 1.1 HP)
• Motor Type: Aluminum Induction Motor
• Gear Ring: Cast Iron
• Drum Capacity: 180 Liters
• Max Mixing Quantity: 135 Liters
• Drum Thickness (Upper): 1.5 mm
• Drum Thickness (Lower): 2.0 mm
• Drum Diameter: 390 mm
• Drum Speed: 28 revolutions/min
• Net Weight: 57 kg
• Assembled Product Dimensions (L x W x H): 119 cm x 71 cm x 139 cm

9. Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact your retailer or the Ingco customer service department. Keep your purchase receipt as proof of purchase.

Manufacturer: INGCO

ASIN: B0CGRTTLZ5
