Introduction
Thank you for choosing the TOMEEM Electric Salt and Pepper Grinder Set. This manual provides detailed instructions for the safe and efficient use of your new appliance. Please read it thoroughly before first use and retain it for future reference.
Image: The TOMEEM Electric Salt and Pepper Grinder, accompanied by a small wooden spoon, a cleaning brush, and a USB-C charging cable.
Product Components
- Electric Grinder Unit (x2 for set)
- Transparent Spice Container
- USB Type-C Charging Cable
- Cleaning Brush
- Small Wooden Spoon (for filling)
Setup and First Use
1. Charging the Grinder
Before first use, fully charge the grinder. Connect the provided USB Type-C cable to the charging port on the top of the grinder and to a suitable USB power source (e.g., wall adapter, computer USB port). The charging indicator light will show the charging status.
Image: The top of the TOMEEM electric grinder showing the USB-C charging port with a cable connected, indicating fast charging capabilities and battery capacity.
- A full charge allows grinding over 60g of spices.
- Charging time is approximately 60 minutes.
- Battery capacity: 500mAh.
2. Filling the Spice Container
- Gently twist and unlock the transparent spice container from the main grinder body.
- Using the provided wooden spoon, fill the container with your desired spices. The container has a large capacity, holding up to 46g of spices.
- Align the transparent container with the main body and twist to lock it securely in place. Ensure the inverted triangle logo on the container aligns perfectly with the lock symbol on the grinder body until you hear a "click." This ensures proper function and LED light operation.
Image: A TOMEEM electric grinder with its transparent spice container detached and being filled with peppercorns using a small spoon. The image highlights the container's capacity.
Operating Instructions
1. Grinding Spices
To operate the grinder, simply press and hold the button located on the top of the main unit. The grinder will activate, and a soft, warm yellow LED light will illuminate the grinding area, making the amount of spice visible.
Image: A TOMEEM electric grinder actively grinding spices onto a sliced steak, with its integrated LED light illuminating the food.
2. Adjusting Grind Finesse
The grinder features a ceramic grinding mechanism with 6 adjustable levels of coarseness. To adjust, turn the knob at the bottom of the grinder:
- Turn clockwise for a finer grind.
- Turn counter-clockwise for a coarser grind.

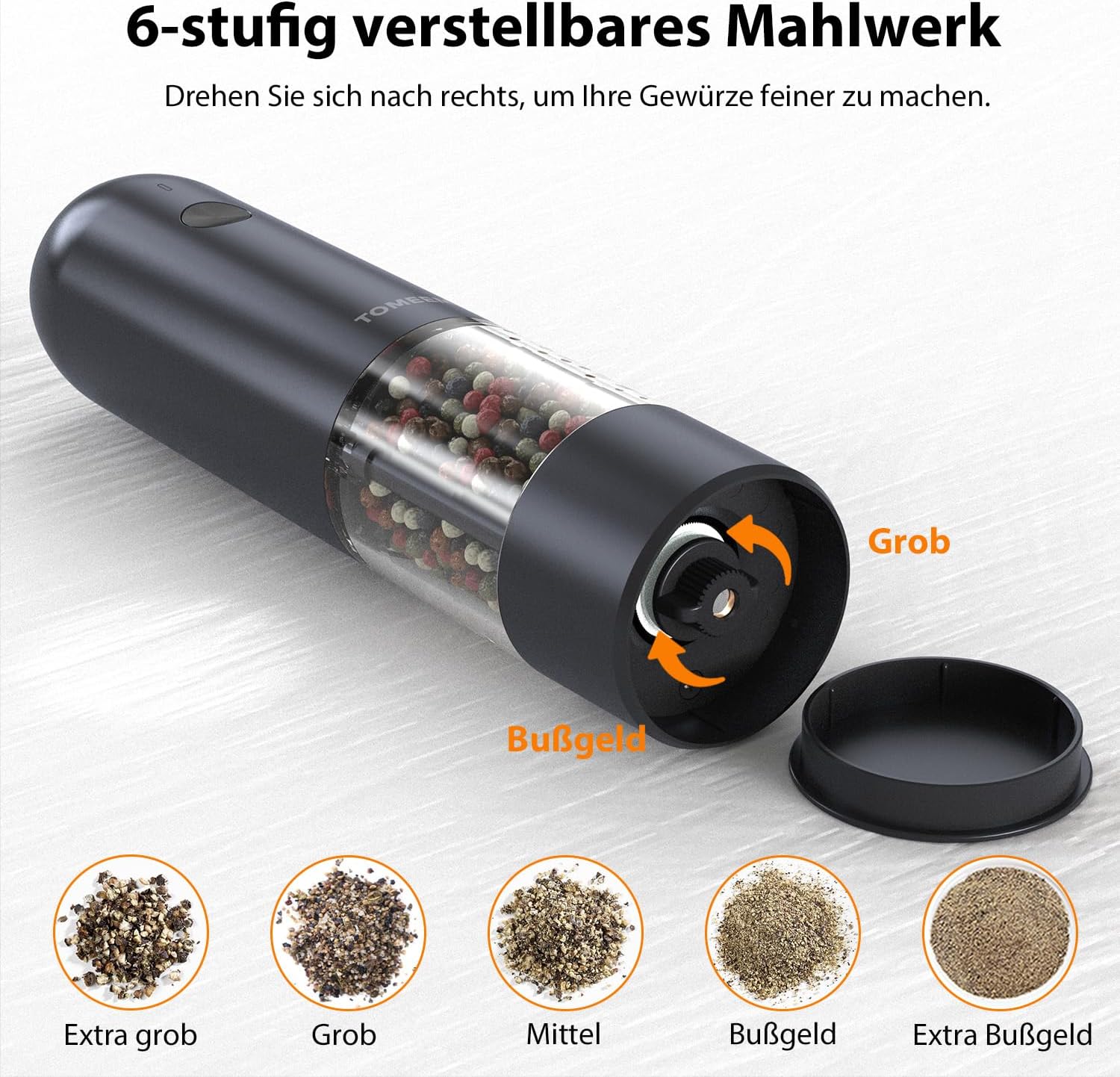

Image: The bottom of the TOMEEM electric grinder, illustrating the 6-level adjustable ceramic grinding mechanism. Examples of different grind sizes from extra coarse to extra fine are shown.
3. Compatible Spices
This grinder is suitable for a variety of dry spices, including but not limited to:
- Black Pepper
- White Pepper
- Sea Salt
- Himalayan Salt
- Red Pepper Flakes
- Rosemary
- Anise Seeds
- Flax Seeds
- Cumin Seeds
Image: A TOMEEM electric grinder positioned next to a selection of spices, including peppercorns, salt, and chili flakes, demonstrating its versatility.
Do not use with wet or oily spices, or spices larger than 5mm in diameter, as this may damage the grinding mechanism.
Maintenance and Care
1. Cleaning
To ensure optimal performance and hygiene, clean your grinder regularly:
- Unplug the grinder before cleaning.
- Empty any remaining spices from the transparent container.
- Use the provided cleaning brush to remove spice residue from the grinding mechanism.
- Wipe the exterior of the grinder with a damp cloth. Do not immerse the grinder in water.
- The transparent container can be gently washed with mild soap and water, then thoroughly dried before reattaching.
- This product is not dishwasher safe.
2. Recharging
When the battery indicator light signals low power, recharge the grinder using the USB Type-C cable as described in the "Setup" section. Regular recharging helps maintain battery health.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Grinder not operating. | Low battery or improper assembly. | Charge the grinder fully. Ensure the spice container is securely locked onto the main body (listen for a "click" and check alignment of the inverted triangle logo with the lock symbol). |
| LED light not working. | Improper assembly of the spice container. | Ensure the transparent container is perfectly aligned and locked onto the main body. The inverted triangle logo must align with the lock symbol. |
| Grinding mechanism jammed. | Large or inappropriate spices. | Empty the container and use the cleaning brush to clear any blockages. Ensure only compatible spices are used. |
| Spices not grinding to desired finesse. | Grind adjustment setting. | Adjust the coarseness knob at the bottom of the grinder. Turn clockwise for finer, counter-clockwise for coarser. |
Specifications
- Brand: TOMEEM
- Model Number: NDYMQ05
- Color: Black
- Material: Plastic (body), Ceramic (grinder)
- Item Weight: 350 grams
- Package Dimensions: 19.8 x 6.7 x 5.4 cm
- Charging: USB Type-C
- Battery Capacity: 500mAh
- Spice Container Capacity: Up to 46g
- Grind Settings: 6 adjustable levels
Image: A visual comparison of two TOMEEM electric grinders, illustrating different sizes and their respective dimensions and spice capacities.
Warranty and Support
TOMEEM is committed to customer satisfaction. If you encounter any issues or have questions regarding your Electric Salt and Pepper Grinder Set, please do not hesitate to contact our customer support. We are dedicated to providing prompt assistance.
For support, please refer to the contact information provided with your purchase or visit the official TOMEEM website.
