1. Introduction
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your X-PRO 200 Utility ATV. Please read this manual thoroughly before operating the vehicle to ensure proper use and to prevent injury or damage.
The X-PRO 200 Utility ATV is designed for off-road use and features a 177.3cc engine with an automatic transmission and reverse capability, equipped with large 23"/22" wheels for enhanced performance.
2. Safety Information
Operating an ATV can be hazardous. Always follow these safety guidelines:
- Always wear an approved helmet, eye protection, and protective clothing.
- Never operate the ATV under the influence of alcohol or drugs.
- Do not carry passengers on a single-rider ATV.
- Operate at a safe speed and avoid excessive speeds.
- Be aware of your surroundings and potential hazards.
- Regularly inspect the ATV for proper operating condition before each use.
- This ATV is not intended for use on public roads.
Warning: This ATV cannot be sold to California due to state regulations.
3. Setup and Assembly
The X-PRO 200 Utility ATV requires some assembly upon delivery. The following components typically require installation:
- All four wheels
- Rear shock absorber
- Gas tank
- Roll cage bars (if applicable)
- Steering wheel/handlebars
- Seats
- Gas lines
- Battery
Refer to the detailed assembly instructions included in the packaging for step-by-step guidance. Ensure all fasteners are tightened to the manufacturer's specifications.
Figure 3.1: The X-PRO 200 Utility ATV as it arrives in its shipping box, requiring assembly.
Before initial operation, verify all fluid levels (engine oil, brake fluid), tire pressure, and the proper function of brakes and throttle.
4. Operating Instructions
4.1 Starting the Engine
- Ensure the ATV is on a level surface and the parking brake is engaged.
- Turn the ignition key to the "ON" position.
- Apply the brake lever and press the electric start button.
- Allow the engine to warm up for a few moments before riding.
4.2 Transmission and Controls
The X-PRO 200 features an automatic transmission with a reverse gear. Familiarize yourself with the gear selector and throttle control before riding.
- Throttle: Located on the right handlebar, controls engine speed.
- Brakes: Hand levers for front and rear brakes, and a foot brake (if equipped).
- Gear Selector: Use to engage Forward, Neutral, or Reverse. Always come to a complete stop before shifting.
Figure 4.1: Front-side view of the X-PRO 200 Utility ATV, showing handlebars and general layout.
Figure 4.2: Side view of the X-PRO 200 Utility ATV, highlighting the engine and wheel size.
5. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your ATV. Refer to the separate service manual for detailed procedures and schedules.
5.1 Pre-Ride Inspection
- Check tire pressure and condition.
- Verify brake function and fluid levels.
- Inspect throttle operation and ensure it returns smoothly.
- Check engine oil level.
- Ensure all lights and indicators are working.
5.2 Scheduled Maintenance
- Engine Oil Change: Follow recommended intervals in the service manual.
- Air Filter Cleaning/Replacement: Inspect regularly, especially in dusty conditions.
- Spark Plug Inspection/Replacement: Check condition and gap periodically.
- Brake System: Inspect pads, discs, and fluid lines.
- Chassis Lubrication: Lubricate pivot points as specified.
Figure 5.1: The 177.3cc engine of the X-PRO 200 ATV features a built-in balance shaft, designed to reduce vibration and enhance riding comfort.
6. Troubleshooting
This section provides basic troubleshooting steps for common issues. For complex problems, consult a qualified technician or contact X-PRO support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, weak battery, fouled spark plug, kill switch engaged. | Check fuel level, charge/replace battery, inspect/replace spark plug, disengage kill switch. |
| Loss of power | Clogged air filter, fuel system issue, spark plug issue. | Clean/replace air filter, check fuel lines and filter, inspect spark plug. |
| Brakes feel spongy | Low brake fluid, air in brake lines, worn brake pads. | Check/add brake fluid, bleed brake lines, inspect/replace brake pads. |
7. Specifications
| Feature | Detail |
|---|---|
| Model | ATV-P5 |
| Engine Displacement | 177.3cc |
| Engine Features | Built-in Balance Shaft for reduced vibration |
| Transmission | Automatic with Reverse |
| Wheels | 23" front / 22" rear steel tires |
| Trim | Decorative plastic trim for protection |
| Racks | Front and rear iron frames with plastic covers |

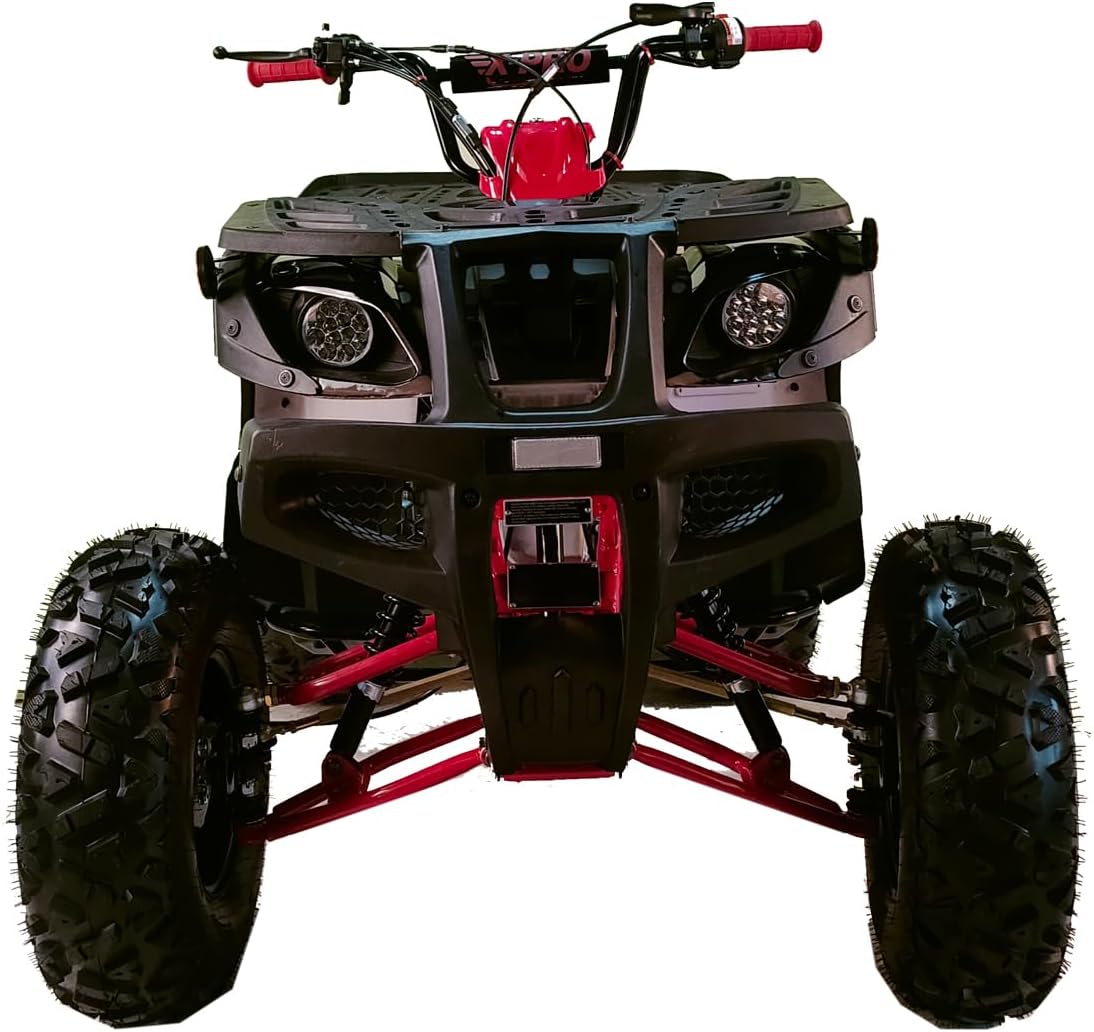

Figure 7.1: Front view of the X-PRO 200 Utility ATV, showcasing the headlights and front bumper.
Figure 7.2: Rear-side view of the X-PRO 200 Utility ATV, showing the rear rack and taillight.
8. Warranty Information
Specific warranty details for the X-PRO 200 Utility ATV are typically provided with the purchase documentation. Please refer to the warranty card or contact the seller, XPROUSA, directly for comprehensive information regarding coverage, terms, and conditions.
Protection plans may be available for purchase separately. Consult your retailer for options such as 2-Year or 3-Year Protection Plans.
9. Support and Contact
For technical assistance, parts inquiries, or any questions regarding your X-PRO 200 Utility ATV, please contact the manufacturer or authorized seller, XPROUSA.
XPROUSA is committed to providing reliable supply chains and maintaining warehouses stocked with a wide range of components for their vehicles. Their skilled technicians are available to ensure parts match correctly and to offer professional technical support.
Figure 9.1: The X-PRO 200 ATV includes separate black plastic trim, which protects the underlying components and enhances the vehicle's appearance.
Figure 9.2: The X-PRO 200 ATV features upgraded front and rear iron frames with plastic covers, providing both durability and an improved aesthetic.
Figure 9.3: The X-PRO 200 ATV includes X-PRO branding on the body plastic, engine cover, and seat, indicating genuine X-PRO components.
Figure 9.4: XPROUSA offers dedicated after-sales support, including professional technical assistance and fast service response for parts and advice.
