Cuisinart TOB-1300FR Convection Toaster Oven Instruction Manual

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plug, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by Cuisinart may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not use appliance for other than intended use.
• Extreme caution should be exercised when using containers constructed of other than metal or glass in the oven.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, or any materials that may catch fire or melt.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
• Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the toaster oven is covered or touching flammable material, including curtains, drapes, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
• Do not attempt to dislodge food when the appliance is plugged into an electrical outlet.
• To disconnect, turn any control to OFF, then remove plug from wall outlet.
• Do not operate your appliance in an appliance garage or under a wall cabinet.

Components and Features

Familiarize yourself with the parts of your Cuisinart Convection Toaster Oven for optimal use.

• Oven Rack: Positioned to hold food items.
• Baking Pan/Drip Tray: Collects crumbs and can be used for baking.
• Crumb Tray: Located at the bottom, slides out for easy cleaning.
• Control Panel: Features digital display, preset function buttons (Toast, Bagel, Conv. Bake, Bake, Pizza, Broil), and a multi-function dial.
• Start/Stop Button: Initiates or cancels cooking cycles.
• Digital Display: Shows time, temperature, and selected functions.

Image 1: Front view of the Cuisinart TOB-1300FR Convection Toaster Oven. The digital display shows "12:00" and the control panel with various function buttons and a dial is visible on the right.

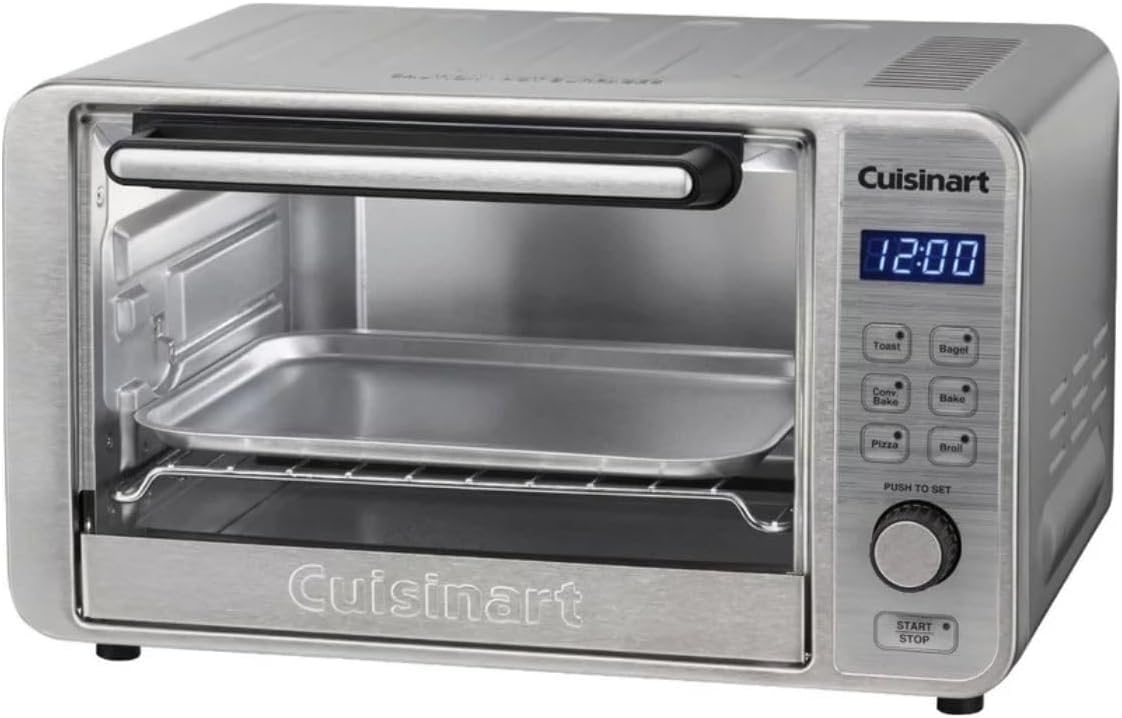

Image 2: Interior view of the Cuisinart TOB-1300FR Convection Toaster Oven with the door open. The oven rack is visible above a baking pan, which rests on a lower support. The crumb tray is at the very bottom.

Image 3: Side view of the Cuisinart TOB-1300FR Convection Toaster Oven with approximate dimensions: 20.5 inches wide, 10.75 inches high, and 17.38 inches deep.

Setup and First Use

1. Unpacking: Remove all packaging materials and any promotional labels or stickers from your toaster oven. Ensure all parts are accounted for.
2. Placement: Place the toaster oven on a flat, stable, heat-resistant surface. Ensure there is adequate ventilation around the appliance. Do not place it directly under a wall cabinet or near flammable materials.
3. Cleaning: Wipe the exterior with a damp cloth. Wash the oven rack, baking pan, and crumb tray in warm, soapy water. Rinse and dry thoroughly.
4. Initial Burn-in: Before first use, operate the oven empty for approximately 15 minutes at 450°F (230°C) on the "Bake" setting. This will burn off any manufacturing oils and eliminate any odors. A slight odor and smoke are normal during this process.
5. Power Connection: Plug the power cord into a standard electrical outlet.

Operating Instructions

Your Cuisinart Convection Toaster Oven offers various cooking functions. Follow these steps for general operation:

General Use:

1. Place Food: Position the oven rack and baking pan as needed for your food item. Place food inside the oven.
2. Select Function: Press the desired function button on the control panel (e.g., Toast, Bagel, Conv. Bake, Bake, Pizza, Broil). The corresponding indicator light will illuminate.
3. Adjust Settings: Use the multi-function dial to adjust the temperature (for Bake, Conv. Bake, Broil) or shade/slices (for Toast, Bagel) and cooking time. The digital display will show the current setting.
4. Confirm Settings: Press the multi-function dial to confirm your selection.
5. Start Cooking: Press the "Start/Stop" button to begin the cooking cycle. The oven will preheat if necessary, and then the timer will begin counting down.
6. Monitor Progress: The oven light (if applicable) and clear door allow you to monitor cooking progress.
7. End of Cycle: The oven will beep when the cooking cycle is complete. Press "Start/Stop" to cancel at any time.

Specific Functions:

• Toast/Bagel: Select the function, then use the dial to choose the desired shade level (light to dark) and number of slices. Press the dial to confirm, then Start/Stop.
• Bake/Convection Bake: Select the function. Use the dial to set the desired temperature and cooking time. Press the dial to confirm, then Start/Stop. Convection Bake uses a fan for faster, more even cooking.
• Pizza: Select the function. Use the dial to set the desired temperature and cooking time, typically based on pizza size and thickness. Press the dial to confirm, then Start/Stop.
• Broil: Select the function. Use the dial to set the desired temperature and cooking time. Broiling requires close supervision to prevent burning. Press the dial to confirm, then Start/Stop.

Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your toaster oven.

1. Unplug and Cool: Always unplug the appliance from the electrical outlet and allow it to cool completely before cleaning.
2. Crumb Tray: Slide out the crumb tray from the bottom of the oven. Discard crumbs and wash the tray in warm, soapy water. Rinse and dry thoroughly before returning it to the oven.
3. Oven Rack and Baking Pan: These accessories can be washed in warm, soapy water. For stubborn food residue, soak them before scrubbing. Rinse and dry completely.
4. Interior: Wipe the interior walls with a damp cloth and a mild liquid detergent. Avoid abrasive cleaners or scouring pads, as they can damage the non-stick coating.
5. Exterior: Clean the exterior surface with a damp cloth. Do not use abrasive cleaners or metal scouring pads.
6. Door: Clean the glass door with a glass cleaner or a damp cloth. Avoid harsh chemicals that could damage the door seal.

Troubleshooting

Specifications

• Brand: Cuisinart
• Model: TOB-1300FR
• Capacity: 0.6 Cu.Ft
• Door Style: Dropdown Door
• Finish Type: Painted
• Door Material: Stainless Steel
• Power Source: AC adapter or DC power supply (standard household outlet)
• Number of Shelves: 1 (adjustable)
• GTIN (UPC): 086279118073

Warranty and Support

For warranty information, product registration, or customer support, please refer to the official Cuisinart website or contact their customer service department. Keep your purchase receipt for warranty claims.

Online Support: Visit www.cuisinart.com
