1. Safety Information
Before using your Livoo DOC283C Ceramic Kamado BBQ, please read all safety instructions carefully. Failure to follow these instructions may result in property damage, personal injury, or death.
- Outdoor Use Only: This Kamado BBQ is designed for outdoor use in a well-ventilated area. Do not use indoors or in enclosed spaces.
- Stable Surface: Always place the BBQ on a stable, level, non-combustible surface.
- Clearance: Maintain a minimum distance of 1 meter (3 feet) from combustible materials (e.g., wooden decks, fences, trees, bushes).
- Children and Pets: Keep children and pets away from the hot BBQ.
- Hot Surfaces: The ceramic body and metal components become extremely hot during use. Always use heat-resistant gloves when handling hot parts.
- Fuel: Use only lump charcoal or briquettes designed for BBQ use. Do not use gasoline, kerosene, or alcohol to light or relight charcoal.
- Ash Disposal: Allow ashes to cool completely before disposal.
- Lid Handling: When opening the lid during cooking, open it slowly to allow heat to escape gradually and prevent a sudden flare-up (flashback).
2. Product Components
Familiarize yourself with the components of your Livoo DOC283C Kamado BBQ.
Image: Exploded view showing the main components of the Livoo DOC283C Kamado BBQ, including the cooking grate, charcoal tray, ceramic firebox, ceramic body, lid, and stand.
- Ceramic Body and Lid: The main structure providing excellent heat retention.
- Cooking Grate: Removable stainless steel grate for placing food. (Diameter: ø27 cm)
- Charcoal Tray (Firebox): Ceramic container for holding charcoal.
- Bottom Vent: Adjustable vent at the base for controlling airflow to the charcoal.
- Top Vent (Daisy Wheel): Adjustable vent on the lid for controlling exhaust airflow.
- Integrated Thermometer: Located on the lid to monitor internal cooking temperature.
- Stand: Sturdy metal stand to support the Kamado BBQ.
- Handle: Wooden handle for lifting the lid.
3. Setup and Initial Use
3.1 Unpacking and Assembly
Your Livoo DOC283C Kamado BBQ requires minimal assembly. Carefully remove all components from the packaging.
- Place the metal stand on a stable, level surface.
- Carefully place the ceramic body of the Kamado onto the stand, ensuring it is seated securely.
- Insert the ceramic charcoal tray (firebox) into the bottom of the ceramic body.
- Place the cooking grate on top of the charcoal tray.
- Ensure the lid is properly aligned and the hinges operate smoothly.
3.2 First Burn-In
Before cooking food, perform an initial burn-in to cure the ceramic and burn off any manufacturing residues.
- Add a small amount of charcoal (approximately 0.5 kg) to the charcoal tray.
- Light the charcoal using a natural fire starter. Avoid chemical starters.
- Close the lid, open both the top and bottom vents slightly.
- Allow the BBQ to heat up slowly to about 150°C (300°F) and maintain this temperature for 1-2 hours.
- Let the BBQ cool down completely before its first cooking use.
4. Operating Instructions
4.1 Lighting the Charcoal
- Open the lid and remove the cooking grate.
- Place lump charcoal or briquettes in the charcoal tray. Do not overfill; leave space for airflow.
- Place a natural fire starter among the charcoal.
- Light the fire starter. Allow the charcoal to ignite for 10-15 minutes with the lid open and bottom vent fully open.
- Once a small area of charcoal is glowing, replace the cooking grate and close the lid.
4.2 Temperature Control
The Kamado's ceramic construction and adjustable vents allow for precise temperature control.
Image: Close-up view of the thermometer on the Kamado lid, indicating temperature ranges for various cooking methods.
- Increasing Temperature: Open both the bottom and top vents wider to increase airflow, which fuels the charcoal and raises the temperature.
- Decreasing Temperature: Close both vents partially to restrict airflow, which reduces the charcoal's heat output and lowers the temperature.
- Fine-Tuning: Make small adjustments to the vents and wait 10-15 minutes for the temperature to stabilize before making further changes.
- Monitoring: Use the integrated lid thermometer to monitor the internal temperature.
4.3 Cooking Methods
The Livoo DOC283C is versatile for various cooking styles:
Image: The Kamado BBQ with its lid open, revealing a piece of meat cooking on the grate, demonstrating its grilling capability.
- Grilling (High Heat): For searing steaks, burgers, and quick cooks. Aim for temperatures between 200-350°C (400-650°F). Keep vents more open.
- Roasting (Medium Heat): For poultry, larger cuts of meat, or vegetables. Aim for 150-200°C (300-400°F). Adjust vents to maintain steady heat.
- Smoking (Low Heat): For tender, flavorful results. Aim for 90-120°C (200-250°F). Use minimal vent openings and consider adding wood chips for flavor.

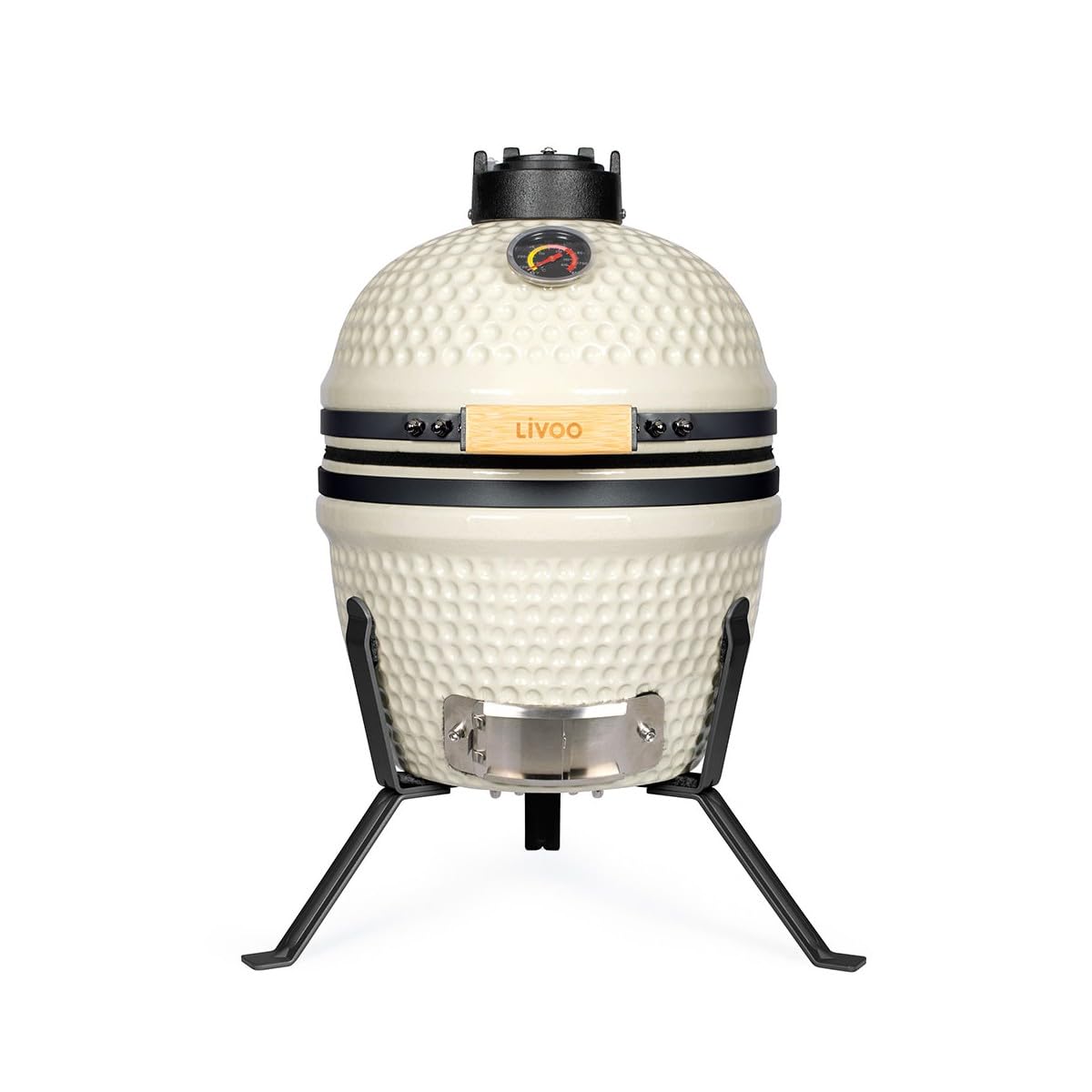

Image: The Livoo Kamado BBQ in an outdoor setting, actively smoking, indicating its use for low-and-slow cooking.
5. Maintenance and Cleaning
Regular maintenance ensures the longevity and optimal performance of your Kamado BBQ.
5.1 After Each Use
- Ash Removal: Once the BBQ has completely cooled, remove the cooking grate and charcoal tray. Carefully scoop out any remaining ash from the bottom of the ceramic body.
- Grate Cleaning: Scrape off any food residue from the cooking grate using a grill brush. For stubborn residue, wash with warm soapy water and rinse thoroughly.
- Ceramic Interior: The interior ceramic is self-cleaning at high temperatures. Any food residue will burn off. Do not use water or harsh chemicals on the interior ceramic.
5.2 Periodic Maintenance
- Exterior Cleaning: Wipe the exterior ceramic surface with a damp cloth. For tougher stains, use a mild ceramic cleaner. Avoid abrasive cleaners.
- Gasket Inspection: Periodically check the felt gasket around the lid for wear and tear. A good seal is crucial for temperature control. Replace if necessary.
- Hinge Lubrication: Apply a small amount of high-temperature lubricant to the lid hinges if they become stiff.
- Storage: Store the Kamado BBQ in a dry, covered area when not in use, especially during adverse weather conditions, to protect the ceramic and metal components.
6. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Temperature too low | Insufficient airflow; too little charcoal; wet charcoal. | Open vents wider; add more charcoal; ensure charcoal is dry. |
| Temperature too high | Too much airflow; too much charcoal. | Close vents partially; reduce charcoal amount for next cook. |
| Excessive smoke | Improper lighting; too much wood added; fat dripping onto coals. | Ensure charcoal is fully lit before closing lid; use less wood; use a drip pan. |
| Lid difficult to open/close | Stiff hinges; misaligned lid. | Lubricate hinges; check lid alignment and adjust if necessary. |
7. Specifications
Key technical details for the Livoo DOC283C Ceramic Kamado BBQ:
- Model Number: DOC283C
- Product Dimensions: 35 x 40.5 x 55 cm (Length x Width x Height)
- Weight: 25.1 kg
- Cooking Grate Diameter: ø27 cm
- Material: Ceramic (body, handle), Stainless Steel (grate), Metal (stand)
- Fuel Type: Charcoal
- Color: Cream
- Special Features: Adjustable ventilation openings, integrated thermometer, removable cooking grates, durable ceramic housing.
- Recommended Use: Outdoors
8. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms may vary by region and retailer.
If you require technical assistance or have questions not covered in this manual, please contact the retailer where you purchased the Livoo DOC283C Kamado BBQ or visit the official Livoo website for customer support options.
