Introduction
The Coby Ultimate Wireless Speaker is designed to deliver a powerful and immersive audio experience, complemented by dynamic light-up modes. This portable speaker is engineered for high-fidelity sound, ensuring crisp highs, rich mids, and deep bass. With its travel-friendly design and extended battery life, it is suitable for various environments, from personal listening to social gatherings.
Image: The Coby Ultimate Wireless Speaker, showcasing its vibrant, multi-color light display on the front grille. The speaker is black with a robust, portable design.
Product Overview and Controls
Familiarize yourself with the speaker's layout and controls for optimal use.

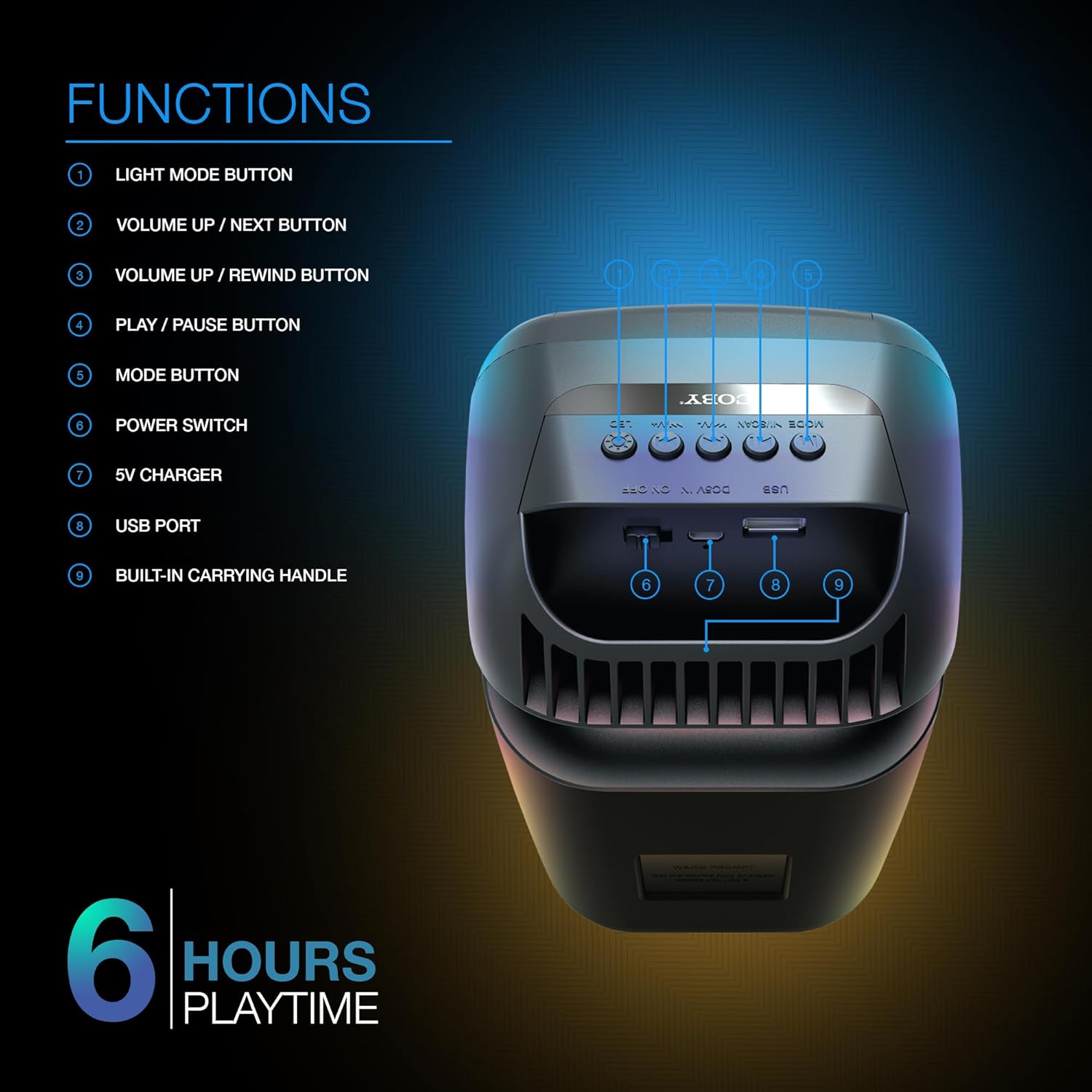

Image: A detailed diagram illustrating the top and rear controls of the Coby Ultimate Wireless Speaker. Numbered labels point to each function: Light Mode Button, Volume Up/Next, Volume Up/Rewind, Play/Pause, Mode Button, Power Switch, 5V Charger Port, USB Port, and Built-in Carrying Handle.
Control Functions:
- Light Mode Button: Cycles through the 5 dazzling light-up modes.
- Volume Up / Next Button: Increases volume or skips to the next track.
- Volume Up / Rewind Button: Decreases volume or rewinds the current track.
- Play / Pause Button: Starts or pauses audio playback.
- Mode Button: Switches between different input modes (e.g., Bluetooth, FM Radio).
- Power Switch: Turns the speaker on or off.
- 5V Charger: Port for connecting the charging cable.
- USB Port: For USB media playback or charging external devices (if supported).
- Built-in Carrying Handle: For easy portability.
Setup
1. Charging the Speaker
Before first use, fully charge the speaker. Connect the provided 5V charging cable to the 5V Charger port on the speaker and plug the other end into a compatible USB power adapter (not included). The charging indicator light will show the charging status. A full charge provides up to 6 hours of playtime.
2. Powering On/Off
Locate the Power Switch on the speaker. Slide the switch to the 'ON' position to power on the device. Slide it to the 'OFF' position to power off.
3. Bluetooth Pairing
- Ensure the speaker is powered on and in Bluetooth mode (indicated by the Mode button).
- On your mobile device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
- Select "Coby CPA9000" or a similar name from the list of found devices.
- Once connected, the speaker will emit an audible confirmation, and you can begin streaming audio.
The speaker features Bluetooth version 5.3 for fast pairing and stable audio streaming.
Operation
1. Audio Playback
- Play/Pause: Press the Play/Pause button to start or pause the current track.
- Volume Adjustment: Use the Volume Up / Next and Volume Up / Rewind buttons to adjust the playback volume.
- Track Navigation: Briefly press the Volume Up / Next button to skip to the next track. Briefly press the Volume Up / Rewind button to go to the previous track.
2. Light-Up Modes
The speaker features 5 dazzling light-up modes that synchronize with your music. Press the Light Mode Button to cycle through the available light patterns and effects. Choose the mode that best suits your mood or environment.
Image: Five Coby Ultimate Wireless Speakers arranged in a row, each displaying a different vibrant light mode, illustrating the variety of visual effects available.
3. FM Radio Function
To use the FM Radio, press the Mode button until you hear the FM radio signal. The speaker will automatically scan and tune into available stations. Use the Volume Up / Next and Volume Up / Rewind buttons to navigate between stations.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the speaker's exterior. Do not use abrasive cleaners or solvents.
- Storage: Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the speaker regularly, even if not in constant use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker does not power on. | Battery is depleted. | Charge the speaker fully using the provided charging cable. |
| No sound from speaker. | Volume is too low or muted; Device not paired correctly; Incorrect mode selected. | Increase volume on both speaker and connected device. Re-pair Bluetooth. Press Mode button to select correct input. |
| Bluetooth connection is unstable. | Device is out of range; Interference from other devices. | Move the connected device closer to the speaker. Avoid placing speaker near other wireless devices. |
| Light modes are not working. | Light mode feature is off. | Press the Light Mode Button to activate and cycle through modes. |
Specifications
Image: The Coby Ultimate Wireless Speaker shown with its dimensions: 9.46 inches height, 4.92 inches width, and 4.33 inches depth.
| Feature | Detail |
|---|---|
| Model Name | CPA9000 FLAME |
| Speaker Type | Subwoofer |
| Connectivity Technology | Bluetooth |
| Wireless Communication Technology | Bluetooth 5.3 |
| Audio Output Mode | Stereo |
| Battery Life | Up to 6 Hours |
| Power Source | Battery Powered (1 Lithium Ion battery included) |
| Product Dimensions (D x W x H) | 4.33" x 4.92" x 9.46" |
| Item Weight | 14.1 Ounces |
| Special Feature | USB Port, Light-Up Modes, Built-in Handle, FM Radio |
| Compatible Devices | Smartphone, Tablet |
| Control Method | Buttons on device |
| Is Waterproof | FALSE |
| UPC | 810071493751 |
Warranty and Support
The Coby Ultimate Wireless Speaker comes with a limited warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Coby website. For technical support or further assistance, please contact Coby customer service.
