Introduction
The OxiPro TH1 Thermometer is a high-precision infrared thermometer designed for fast and accurate temperature measurement. It offers four distinct modes: In-Ear, Child Forehead, Adult Forehead, and Surface, making it suitable for a wide range of applications from monitoring body temperature in infants and adults to checking the temperature of objects like baby bottles or bath water. This device is clinically validated and CE approved, ensuring reliable performance for home and clinical use.
Important Safety Information
- Always read the instruction manual thoroughly before first use.
- This thermometer is intended for household use and should not replace a consultation with a medical professional.
- Keep the device out of reach of children.
- Do not immerse the thermometer in water or other liquids.
- Avoid dropping the device or subjecting it to strong impacts.
- Do not attempt to disassemble or repair the thermometer yourself.
- Ensure the probe is clean before each use, especially for in-ear measurements.
What's in the Box
- OxiPro Thermometer
- 2 x AAA Batteries
- Instruction Manual
- Quick Start Guide
Product Features and Components
The OxiPro TH1 Thermometer is designed for ease of use and versatility. Key components include:
- Infrared Sensor: For accurate non-contact and contact measurements.
- Magnetic Probe Cap: Easily removable for switching between forehead/surface and in-ear modes.
- Large LCD Display: Clear digital readout with color-coded backlight.
- Measurement Button: Initiates temperature readings.
- Mode Button: For selecting different measurement modes (if applicable, though mode changes automatically with cap).

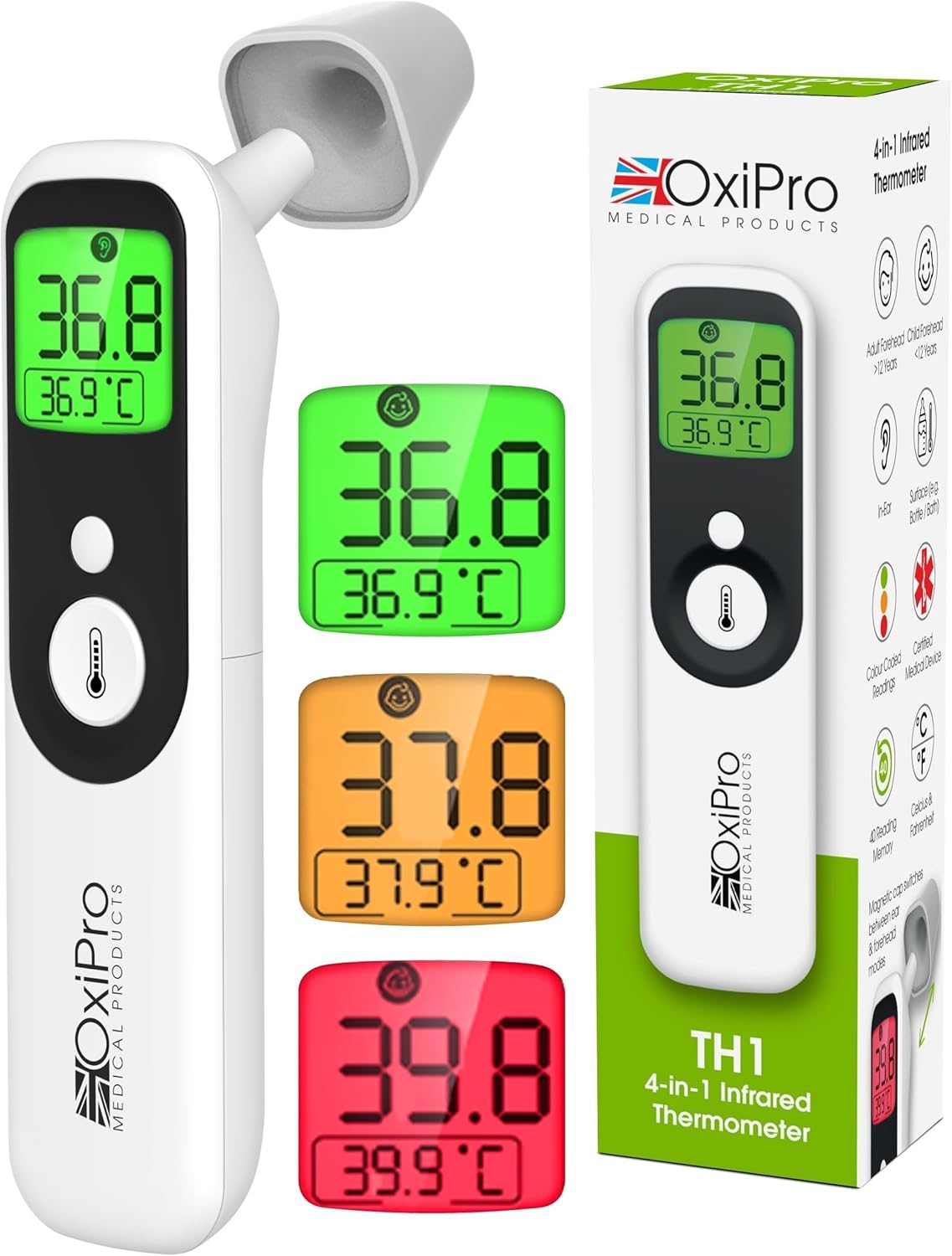

Image: The OxiPro TH1 Thermometer, its packaging, and examples of its color-coded display for different temperature ranges.
Image: Visual representation of the four measurement modes: Adult Forehead, Child Forehead, In-Ear, and Surface (for objects like bottles or baths).
Setup
- Install Batteries: Open the battery compartment cover on the back of the thermometer. Insert the two AAA batteries, ensuring correct polarity (+/-). Close the cover securely.
- Power On: Press the measurement button once to turn on the thermometer. The display will light up.
- Select Unit (Celsius/Fahrenheit): While the device is off, press and hold the measurement button for approximately 5 seconds until the unit symbol (°C or °F) flashes. Press the button again to toggle between Celsius and Fahrenheit. Release the button to confirm your selection.
Operating Instructions
Taking a Measurement
The OxiPro TH1 automatically detects the mode based on whether the magnetic cap is attached or removed.
1. Forehead Mode (Cap Attached)
This mode is suitable for measuring body temperature from the forehead, for both adults and children. It is a non-contact method.
- Ensure the magnetic cap is securely attached to the probe.
- Point the thermometer at the center of the forehead, approximately 1-3 cm away.
- Press the measurement button once. The reading will appear on the display within one second.
Image: A father taking a forehead temperature reading from a baby using the OxiPro TH1 Thermometer.
2. In-Ear Mode (Cap Removed)
This mode provides a highly accurate body temperature reading from the ear canal.
- Gently remove the magnetic cap from the probe. The thermometer will automatically switch to In-Ear mode.
- Carefully insert the probe into the ear canal. For children, gently pull the earlobe back to straighten the canal.
- Press the measurement button once. The reading will appear on the display within one second.
Image: A user demonstrating the removal of the magnetic cap to switch to In-Ear mode.
3. Surface Mode (Cap Attached)
This mode is used to measure the temperature of objects or liquids, such as baby formula, bath water, or room temperature.
- Ensure the magnetic cap is attached.
- Point the thermometer at the surface of the object or liquid you wish to measure, holding it close but not touching.
- Press the measurement button once. The reading will appear on the display.
Image: A hand using the OxiPro TH1 Thermometer to measure the temperature of a baby bottle.
Interpreting Results with Color-Coded Backlight
The OxiPro TH1 features a smart color-coded backlight system to help you quickly understand the temperature reading:
- Green Backlight: Indicates a normal temperature.
- Orange Backlight: Indicates a slightly raised temperature.
- Red Backlight: Indicates a fever.
Refer to medical guidelines for specific temperature ranges that define normal, raised, or fever conditions.
Maintenance and Care
- Cleaning: Wipe the thermometer body with a soft, dry cloth. For the probe, especially after in-ear use, gently wipe with an alcohol swab or a cloth dampened with rubbing alcohol. Allow to air dry completely before storage. Do not use abrasive cleaners or immerse the device in water.
- Storage: Store the thermometer in a cool, dry place, away from direct sunlight and extreme temperatures. Keep the magnetic cap on the probe when not in use to protect the sensor.
- Battery Replacement: Replace batteries when the low battery indicator appears on the display. Dispose of used batteries according to local regulations.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Thermometer does not turn on. | Dead or incorrectly installed batteries. | Check battery polarity or replace with new AAA batteries. |
| Inaccurate readings. | Dirty probe, incorrect measurement technique, or environmental factors. | Clean the probe. Ensure correct distance/insertion. Avoid drafts or extreme temperatures. Allow thermometer to acclimatize to room temperature for 30 minutes if moved from a different environment. |
| Display shows "Lo" or "Hi". | Temperature is outside the measurable range. | Ensure the measurement is taken within the specified operating temperature range. |
| Error message on display. | Internal error or malfunction. | Remove batteries, wait 1 minute, then reinsert. If the error persists, contact customer support. |
Specifications
- Model: OXI-TH1
- Dimensions: 2.2 x 3.5 x 13.5 cm
- Weight: 58 g
- Power Source: 2 x AAA batteries (included)
- Accuracy: +/-0.15°C
- Display Type: Digital LCD with color-coded backlight
- Measurement Units: Celsius (°C) / Fahrenheit (°F)
- Material: Plastic
- Certification: CE Medical Directive 93/42/EEC, TUV Sud Certified
- Manufacturer: OxiPro Medical Ltd
Warranty and Support
The OxiPro TH1 Thermometer comes with a 2-year guarantee from the date of purchase. This warranty covers manufacturing defects and ensures the product's quality and performance under normal use.
For any questions, troubleshooting assistance, or warranty claims, please contact OxiPro Medical Ltd customer support. As a UK-based company and approved supplier to NHS trusts, OxiPro is committed to providing high-quality products and reliable customer service.
Contact Information: Please refer to the contact details provided in your Quick Start Guide or visit the official OxiPro website for the most up-to-date support information.
